Trafalgar Twin Exposed Thermostatic Shower Pack incl. Valve, Elbow + Fixed Shower Head Chrome

Description

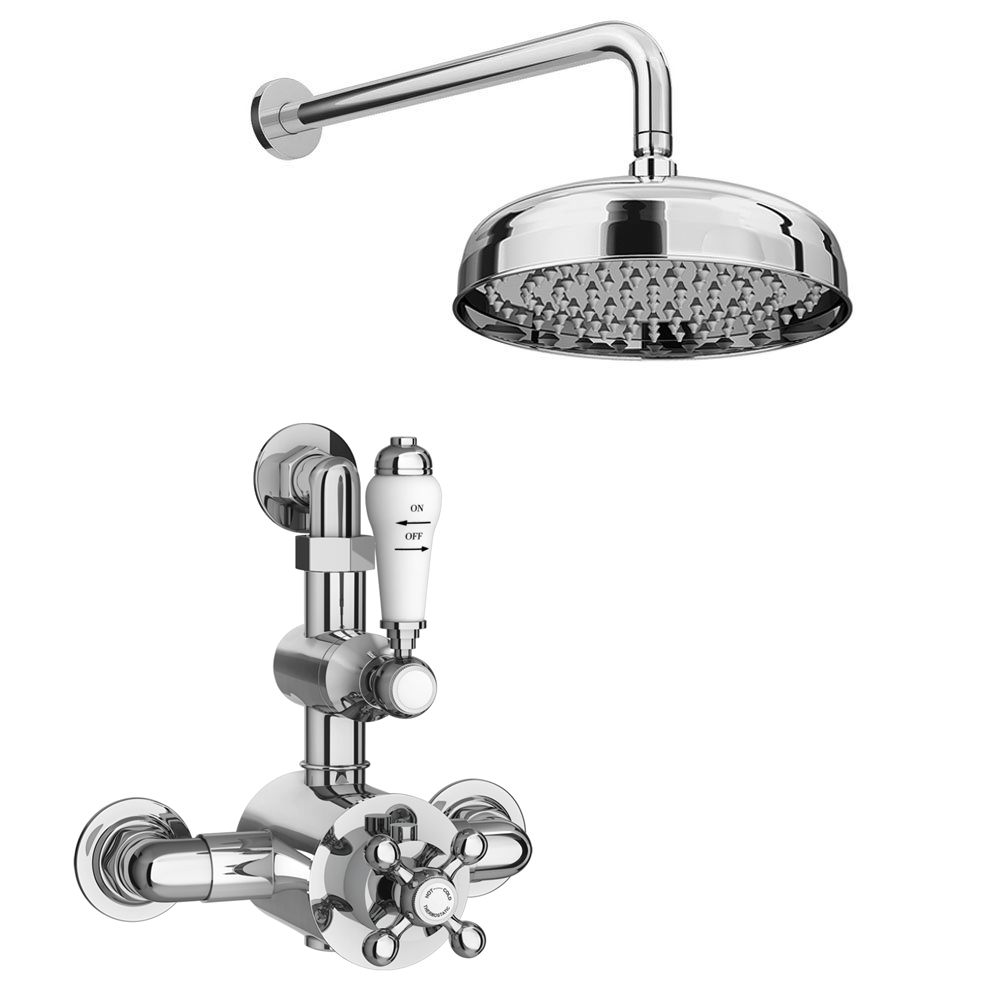

Trafalgar Traditional Twin Exposed Thermostatic Shower Valve with Return Elbow and Fixed 8″ Overhead Shower Head (Chrome)

Embrace classic luxury with the Trafalgar Traditional Twin Exposed Thermostatic Shower Valve Pack. This elegant shower set combines classic design with practical functionality, making it an excellent addition to any bathroom. Pack comes with a classic chrome plated back to wall return shower elbow and a traditional chrome 8 inch fixed overhead shower head and arm.

Technical Specifications:

Shower Valve:

• Projection: 135mm
• Height: 160mm
• Type: Twin Exposed Shower Valve
• Colour/Finish: White/Chrome
• Material: Crafted from solid brass
• Smooth Operation: Equipped with high-quality components
• Water Pressure Range: Suitable for systems between 0.5 bar and 5 bar
• Single Shower Outlet
• Classic Design: Features a traditional white lever and cross-head handle
• Suitable for Modern Pressurized Plumbing Systems
• Inlet Pipe Centers: 150mm
• Outlet Size: 15mm (1/2″ BSP)
• Hot Water Temperature Range: 55°C to 85°C
• Gravity Fed Systems: For optimal performance in older properties with low-pressure gravity-fed systems, this shower valve requires a pump (universal or negative
  head). Positive pumps are not recommended.

Shower Head & Arm:

• Head Diameter: 210mm
• Height: 100mm
• Arm Length: 345mm
• Style: Traditional
• Finish: Polished Chrome
• Material: Brass Internals
• Pressure Requirement: 0.5 bar minimum
• Easy-clean silicone nozzles

Additional Information:

5-year guarantee (1 year on serviceable parts)
Images for illustrative purposes only, measurements are approximate
Gravity-fed systems may require a negative or universal pump (sold separately)
Installation of the shower arm requires rear access

Comprises:

Trafalgar Traditional Twin Exposed Shower Valve

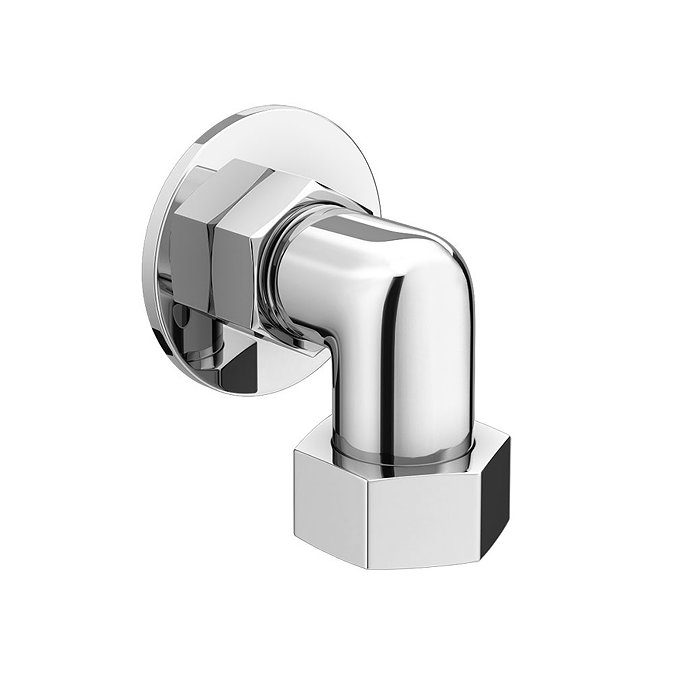

Back To Wall Return Shower Elbow

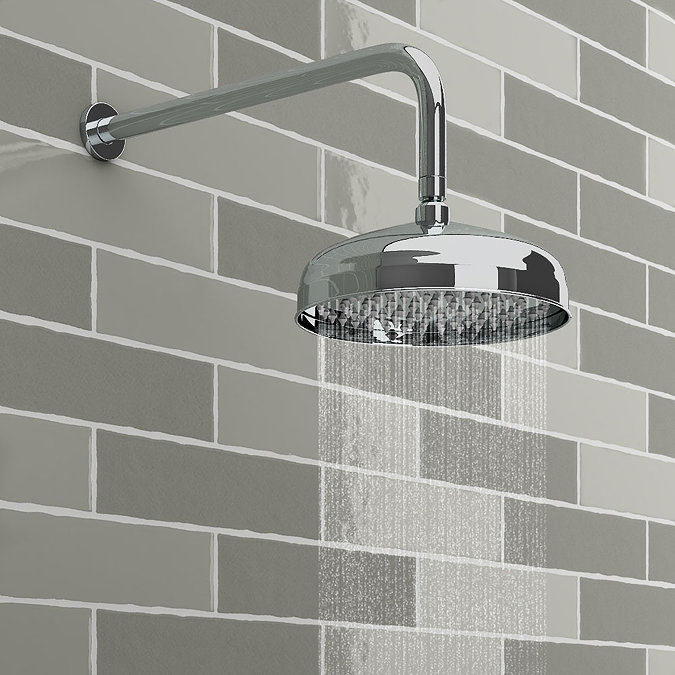

Traditional 8″ Apron Rose Shower Head
Chrome 345mm Round Wall Mounted Shower Arm
