Trafalgar Triple Concealed Shower Valve incl. Outlet Elbow, Handset & Curved Arm with Fixed Head

Description

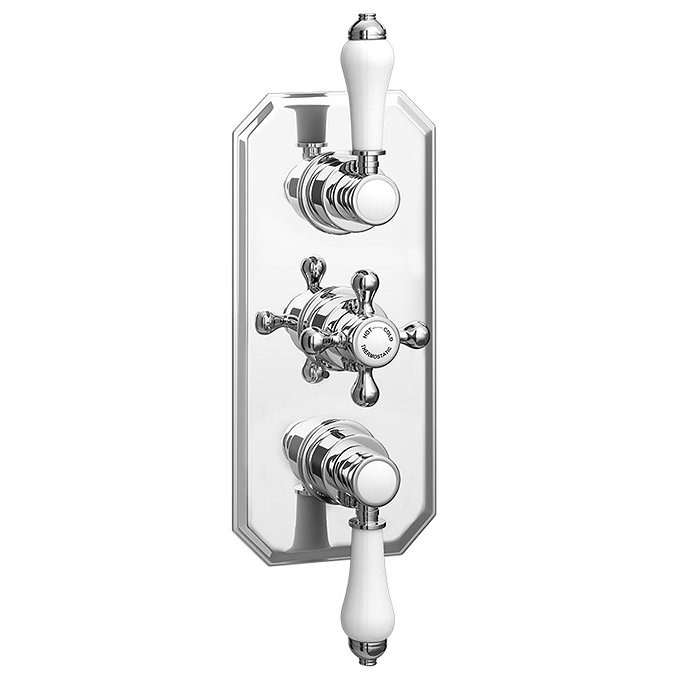

Trafalgar Triple Concealed Shower Valve incl. Outlet Elbow, Handset & Curved Arm with Fixed Head in Chrome

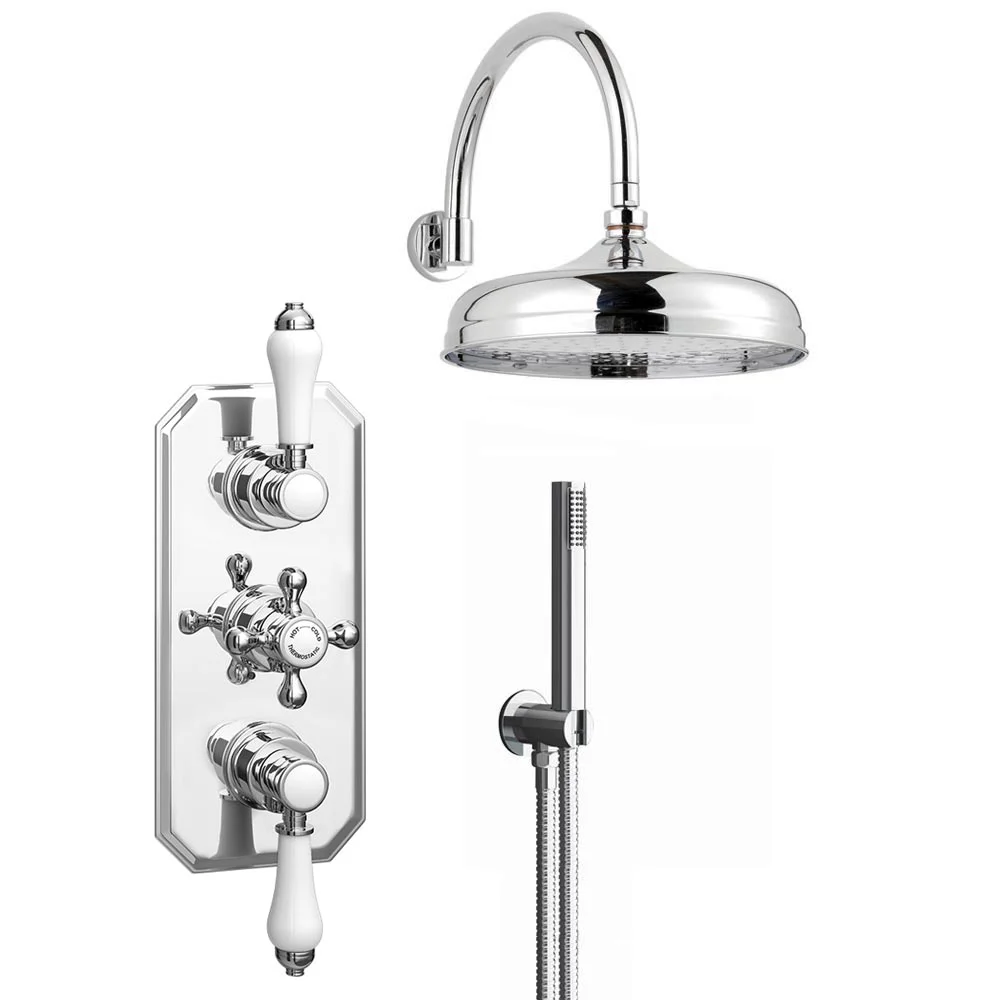

The Trafalgar shower package, which includes a triple concealed shower valve, an outlet elbow with a handset, and a curved arm with a 12″ fixed overhead shower rose, brings substantial elegance to any bathroom style.

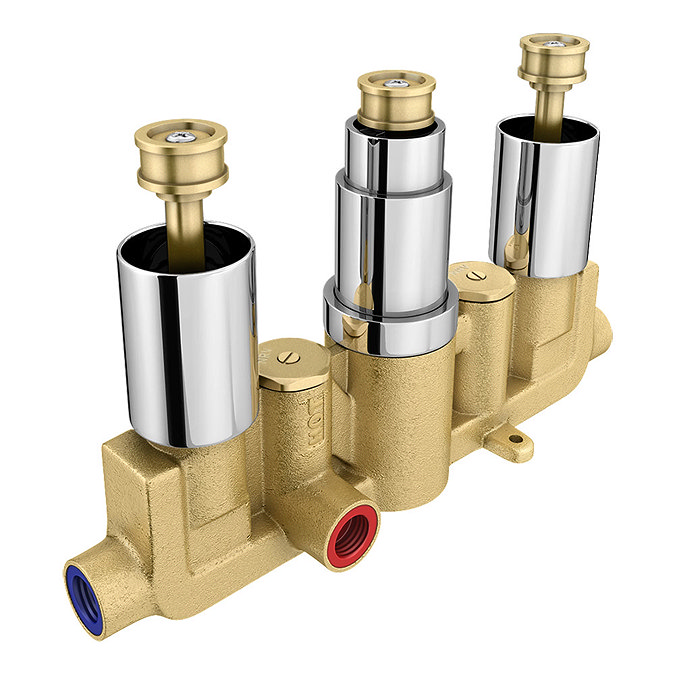

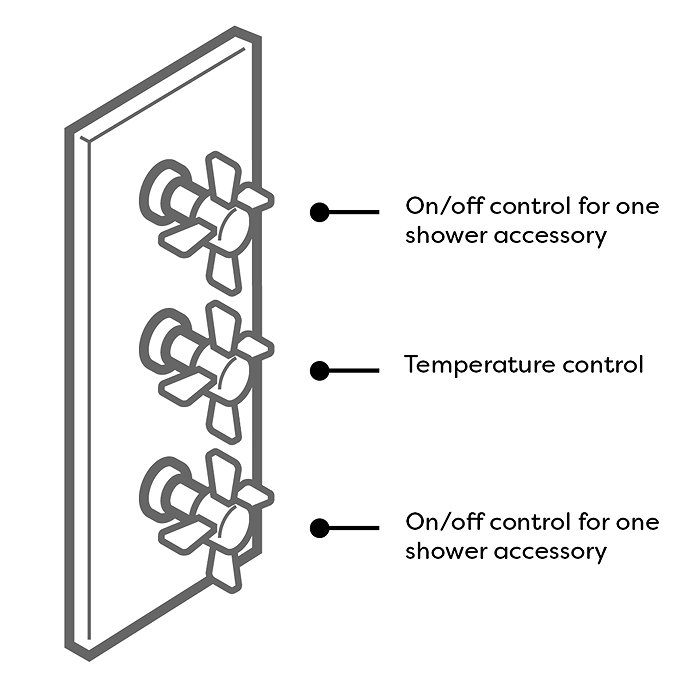

This triple concealed thermostatic shower valve offers thermostatic showering via three easy-to-operate controls. It can operate two shower accessories either separately or simultaneously. Manufactured using high-quality chrome and brass, our range of Edwardian shower valves will look outstanding in any shower enclosure.

This is a perfect solution for today’s bathroom, providing both classic style and functionality.

Shower Valve Details:

• Height: 280mm
• Width: 130mm
• Type: Concealed Valve
• Style: Traditional
• Colour/Finish: Chrome
• Material: Highly Durable Brass
• Water Pressure: 0.5 bar to 5 bar
• Mounting: Wall Mounted
• Control: Thermostatically Controlled
• Handles: Classic Face Plate, Lever and Cross Head
• Separate Controls: Temperature and Flow
• Operates: Two Shower Accessories Separately or Simultaneously – 2 Outlets
• Compatibility: Suitable for Modern Pressurised Plumbing Systems
• Installation: Can be Fitted Vertically or Horizontally
• Hot Water Temperature: 55 to 85 Degrees
• Note: The shower valve will not work efficiently on a gravity-fed tank system unless a booster pump is installed. If a pump is required, we recommend a universal or negative head pump.

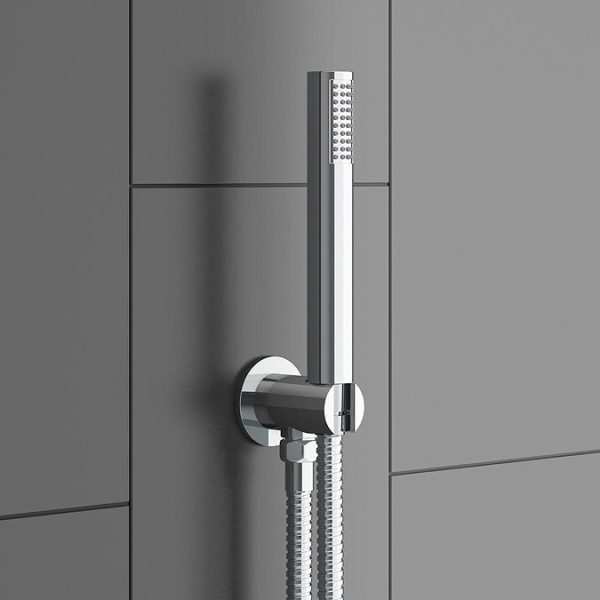

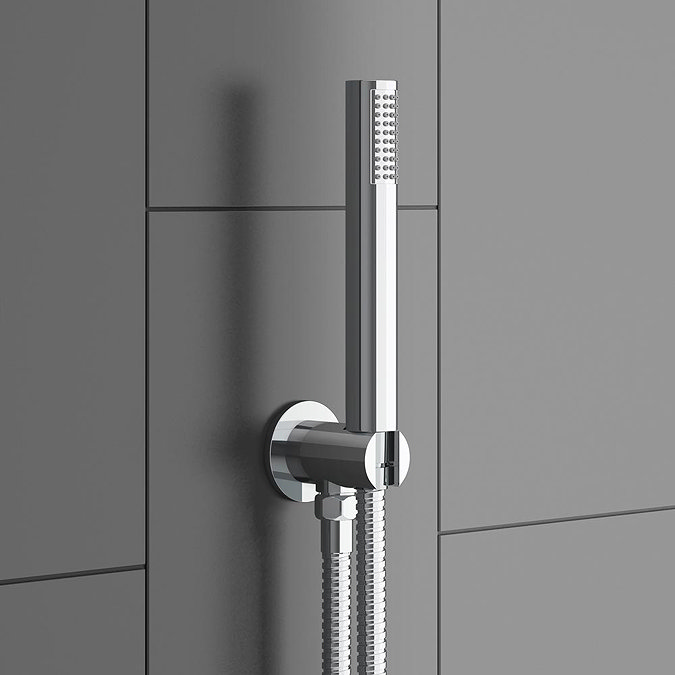

Outlet Elbow incl. Hose & Handset Details:

• Depth: 59mm
• Height: 226mm
• Width: 32mm
• Quality: Manufactured To The Highest Standards
• Design: Round Handset with Built-in Outlet
• Shower Flex: 1.5m, Brass / Chrome plated
• Outlet Elbow with Parking Bracket: Brass / Chrome plated
• Handset: ABS plastic / Chrome plated
• Hose: Rust-resistant
• Finish: Highly polished
• Holder: Pencil handset holder
• Nozzles: Silicone nozzles mean that any lime scale deposits can simply be rubbed away

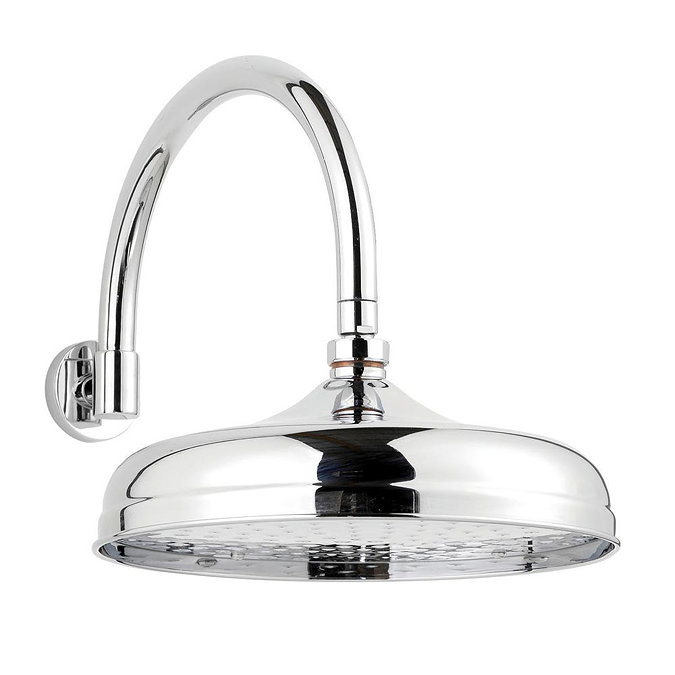

Fixed Head and Arm Details:

• Head: Round fixed 12″
• Shower Arm Length: 310mm
• Colour/Finish: Polished Chrome
• Material: Heavyweight Brass Construction
• Design: Creates a classic bathroom statement
• Style: Traditional Fixed Shower Head
• Arm: Curved Wall Mounted
• Quality: High Quality Design, Manufactured to the Highest Standards

Guarantee: 5 Years (1 Year on serviceable parts, for example, internal components such as check valves and cartridges)

Please note that all pictures are for illustrative purposes only and all measurements are approximate.

Package Comprises

(1) Trafalgar Traditional Triple Concealed Thermostatic Shower Valve
(1) 12 Inch Apron Fixed Shower Head with Curved Wall Mounted Arm – Chrome
(1) Round Outlet Elbow with Parking Bracket, Flex & Handset

Gravity Fed Systems If you live in an older property, there’s a good chance you have a low-pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar. Therefore, we recommend installing a negative or universal pump (sold separately). Please note that positive pumps will not work.
