Trafalgar Traditional Triple Thermostatic Shower Package with Head + Handset

Description

Trafalgar Traditional Triple Thermostatic Shower Package with Fixed Head and Handset in Chrome

With this innovative Trafalgar Traditional Triple Thermostatic Shower Package, you’re in total control. It’s both quick and simple to adjust temperature and flow thanks to the practical thermostatic shower valve, which comes complete with two handy shower accessories that can work separately or simultaneously. This two outlet shower valve combines period shaping with a contemporary minimalist look. You can even hide messy pipework behind the wall, displaying only the elegant faceplate, handles and fixed shower head. Although they might look antique, the features are newly made from durable brass and ceramic to withstand frequent use.

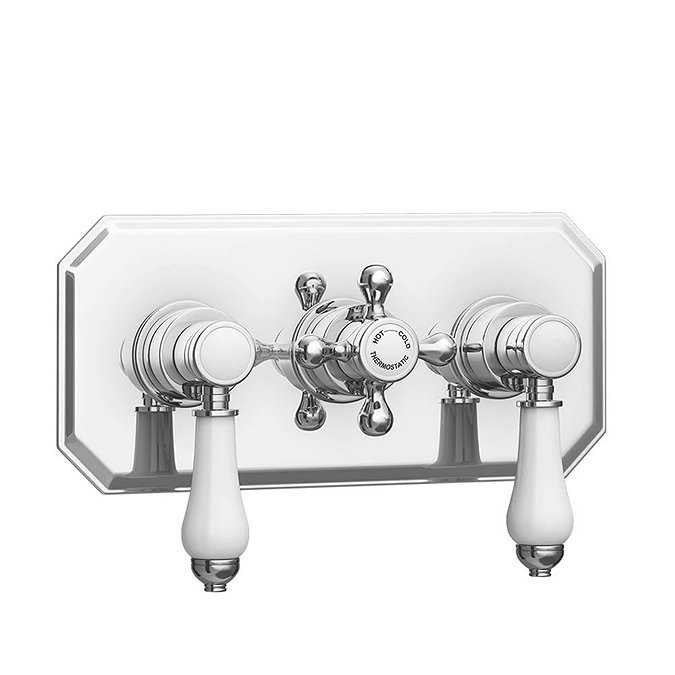

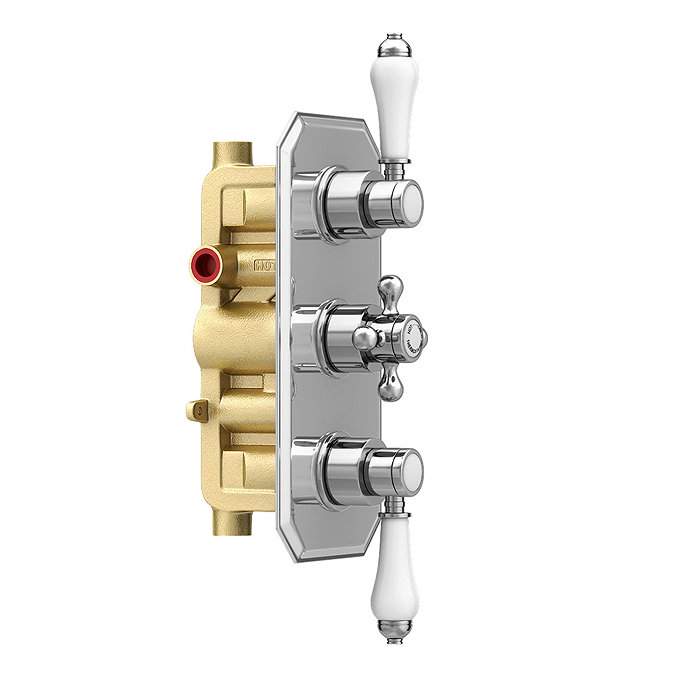

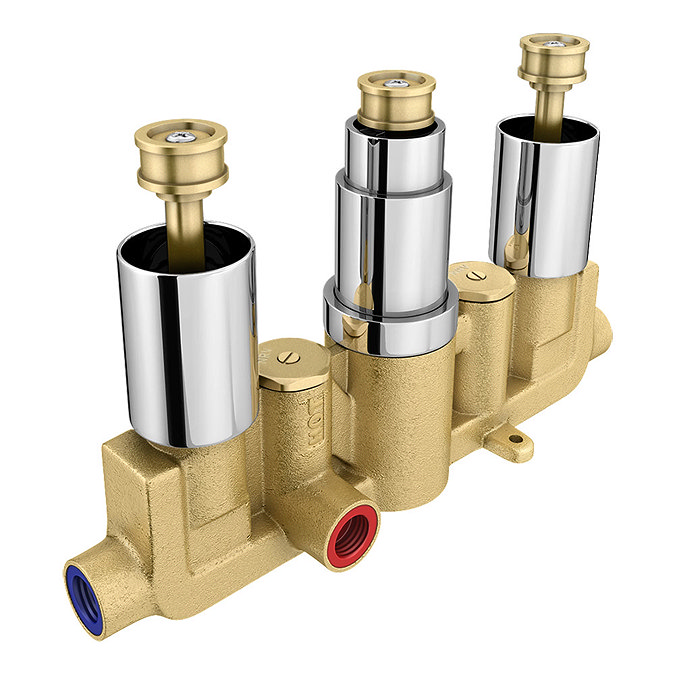

Shower Valve Details:

• Height: 280mm
• Width: 130mm
• Type: Concealed Valve
• Style: Traditional
• Colour/Finish: Chrome
• Material: Highly Durable Brass
• Water Pressure: 0.5 bar to 5 bar
• Mounting: Wall Mounted
• Thermostatically Controlled
• Handles: Classic Face Plate, Lever and Cross Head

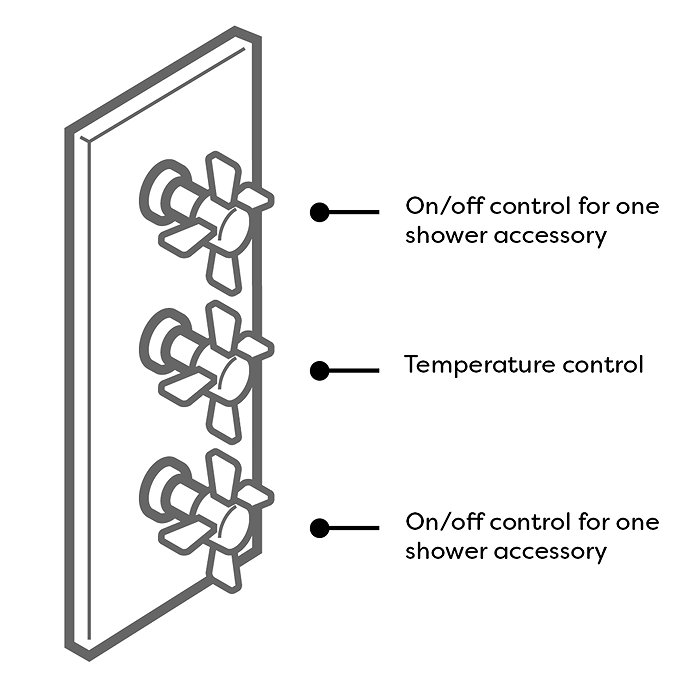

• Separate Controls: Temperature and Flow
• Operates: Two Shower Accessories Separately or Simultaneously – 2 Outlets
• Compatibility: Suitable for Modern Pressurised Plumbing Systems
• Installation: Can be Fitted Vertically or Horizontally
• Hot Water Temperature: 55 to 85 Degrees
• Note: Shower Valve will not work efficiently on a gravity-fed tank system, unless a booster pump is installed. Should a pump be required, we recommend a universal or negative head pump.

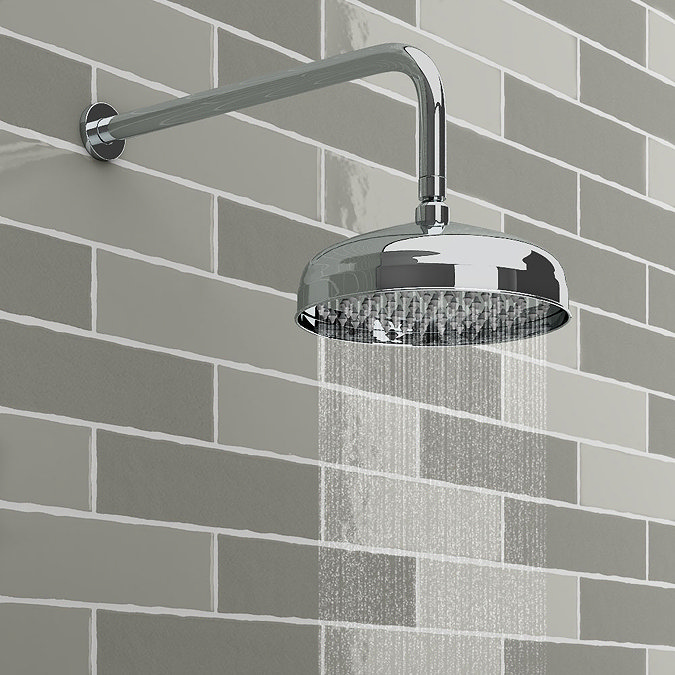

Shower Head with Arm Details:

• Diameter: 210mm
• Height: 100mm
• Shower arm length: 345mm
• With Swivel ball joint
• Style: Traditional
• Colour/Finish: Polished Chrome
• Material: Brass Internals
• Rainfall shower
• Pressure requirement 0.5 bar minimum
• Installation of the arm requires rear access behind the wall.

Outlet Elbow with Parking Bracket, Flex & Handset Details:

• Height: 216mm
• Width: 50mm
• Depth: 75mm
• Finish: Polished Chrome
• Material: Brass Internals
• Style: Traditional
• Connections: 1/2″ BSP (British Standard Pipe) connections
• Features: The outlet elbow discreetly conceals unsightly fittings, making it an ideal choice for use with concealed shower valves.
• Flexible Hose: The included 1.5m chrome flexible hose ensures flexibility and ease of use.
• Mounting: Designed for wall mounting.
• Water Pressure Compatibility: Suitable for water pressure systems of 0.2 bar and above.
• Installation Note: Rear access behind the wall is required for installation.

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All images provided are for illustration purposes only, and the measurements are approximate.

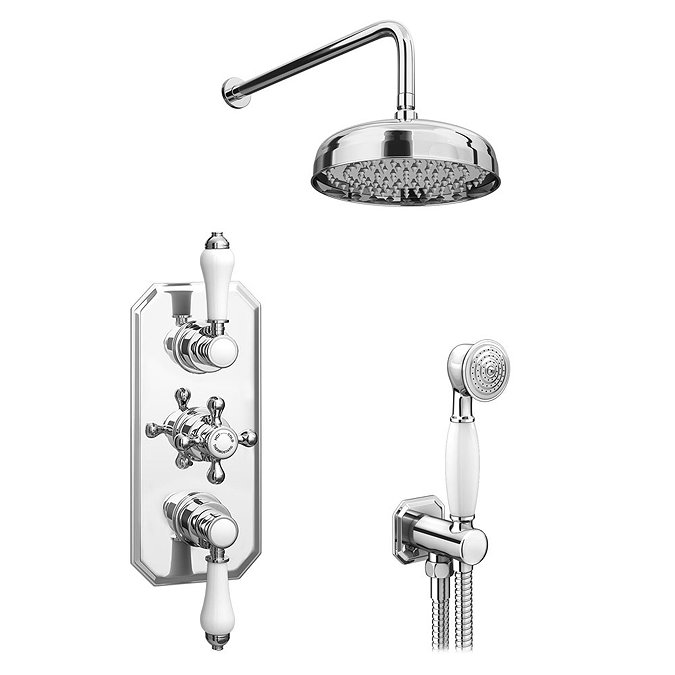

Comprises:

(1) Traditional Triple Concealed Thermostatic Shower Valve
(1) Traditional 8″ Apron Rose Shower Head with Arm
(1) Traditional Outlet Elbow with Parking Bracket, Flex & Handset

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
