Trafalgar Traditional Shower Package with Ceiling Mounted Fixed Head, Handset + Bath Spout

Description

Trafalgar Traditional Shower Package with Ceiling Mounted Fixed Head, Handset + Bath Spout in Polished Chrome

The Trafalgar traditional 3 outlet shower package features a stylish triple concealed thermostatic shower valve with built-in diverter which offers thermostatic showering via three easy-to-operate controls. Operates two shower accessories separately or simultaneously and diverts to a third option: ceiling mounted fixed head & handset with option to divert to bath filler.

Package comes with a wall mounted bath spout, a 8″ ceiling mounted shower head with swivel joint, a traditional style outlet elbow with parking bracket, flex and handset.

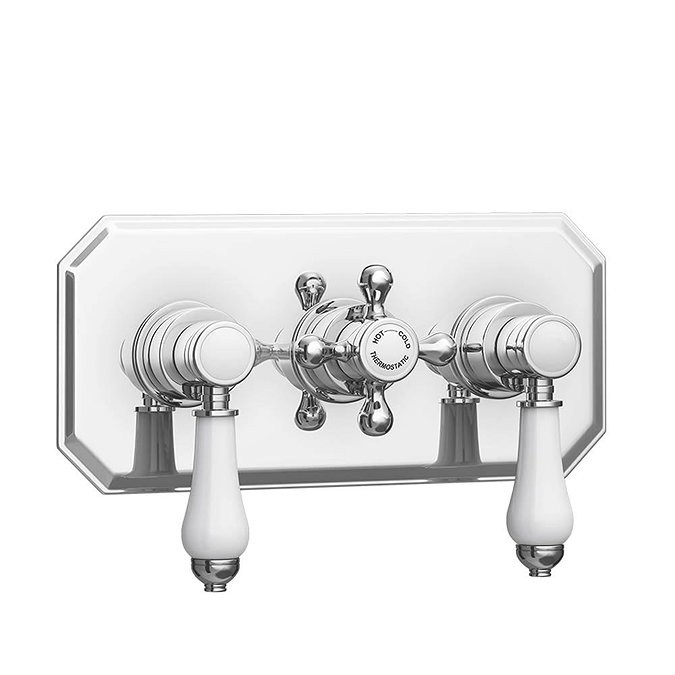

Shower Valve Details:

• Height: 280mm
• Width: 130mm
• Type: Concealed Valve
• Style: Traditional
• Colour/Finish: Chrome & White
• Water Pressure: 0.5 bar to 5 bar
• Mounting: Wall-mounted
• Features: Built-in Diverter, Thermostatically controlled
• Handles: White indices, lever handles (classic face plate, lever, and cross head)

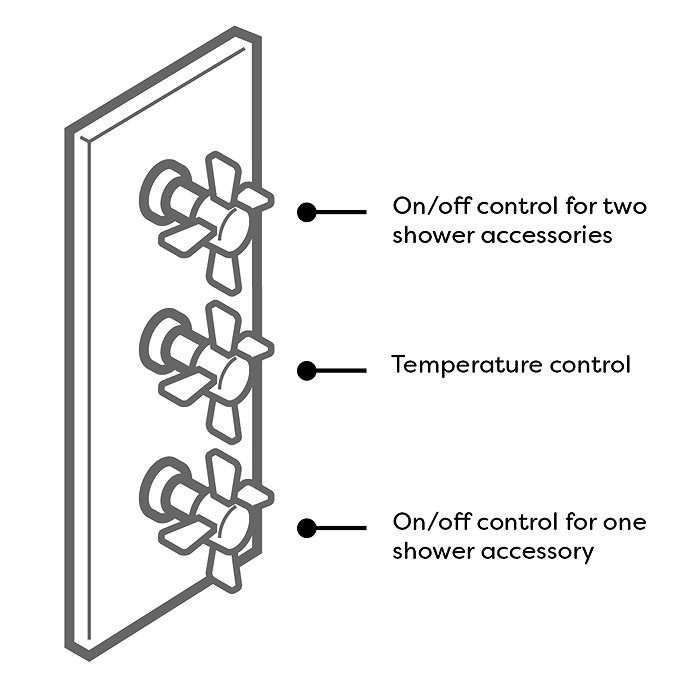

• Controls: Separate controls for temperature and flow
• Compatibility: Suitable for modern pressurized plumbing systems
• Orientation: Can be fitted vertically or horizontally
• Hot Water Temperature Range: 55 to 85 Degrees
• Note: For optimal performance, this shower valve requires a booster pump if installed in a gravity-fed tank system.

Shower Head with Vertical Arm Details:

• Diameter: 210mm
• Height: 100mm
• Shower arm height: 150mm
• With Swivel ball joint
• Style: Traditional
• Colour/Finish: Polished Chrome
• Material: Brass Internals
• Rainfall shower
• Pressure requirement 0.5 bar minimum
• Silicone nozzles mean that any limescale deposits can simply be rubbed away

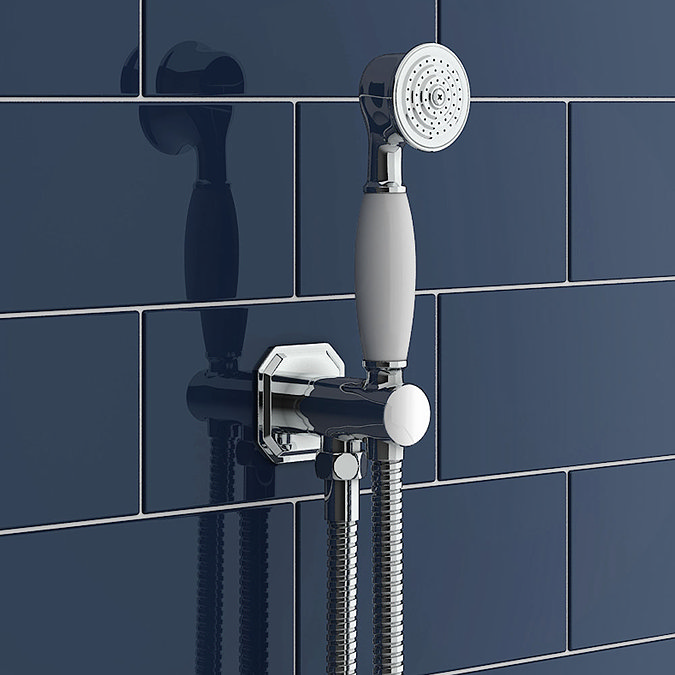

Outlet Elbow with Parking Bracket, Flex & Handset Details:

• Height: 216mm
• Width: 50mm
• Depth: 75mm
• Finish: Polished Chrome
• Material: Brass Internals
• Style: Traditional
• Connections: 1/2″ BSP (British Standard Pipe) connections
• Features: The outlet elbow discreetly conceals unsightly fittings, making it an ideal choice for use with concealed shower valves.
• Flexible Hose: The included 1.5m chrome flexible hose ensures flexibility and ease of use.
• Mounting: Designed for wall mounting.
• Water Pressure Compatibility: Suitable for water pressure systems of 0.2 bar and above.
• Installation Note: Rear access behind the wall is required for installation.

Bath Spout Details:

• Colour/Finish: Chrome finish
• Manufactured from highly durable brass
• Easy installation
• Traditional design
• Suitable for low pressure systems of 0.2 bar and above
• Projection: 176mm
• Wall mounted

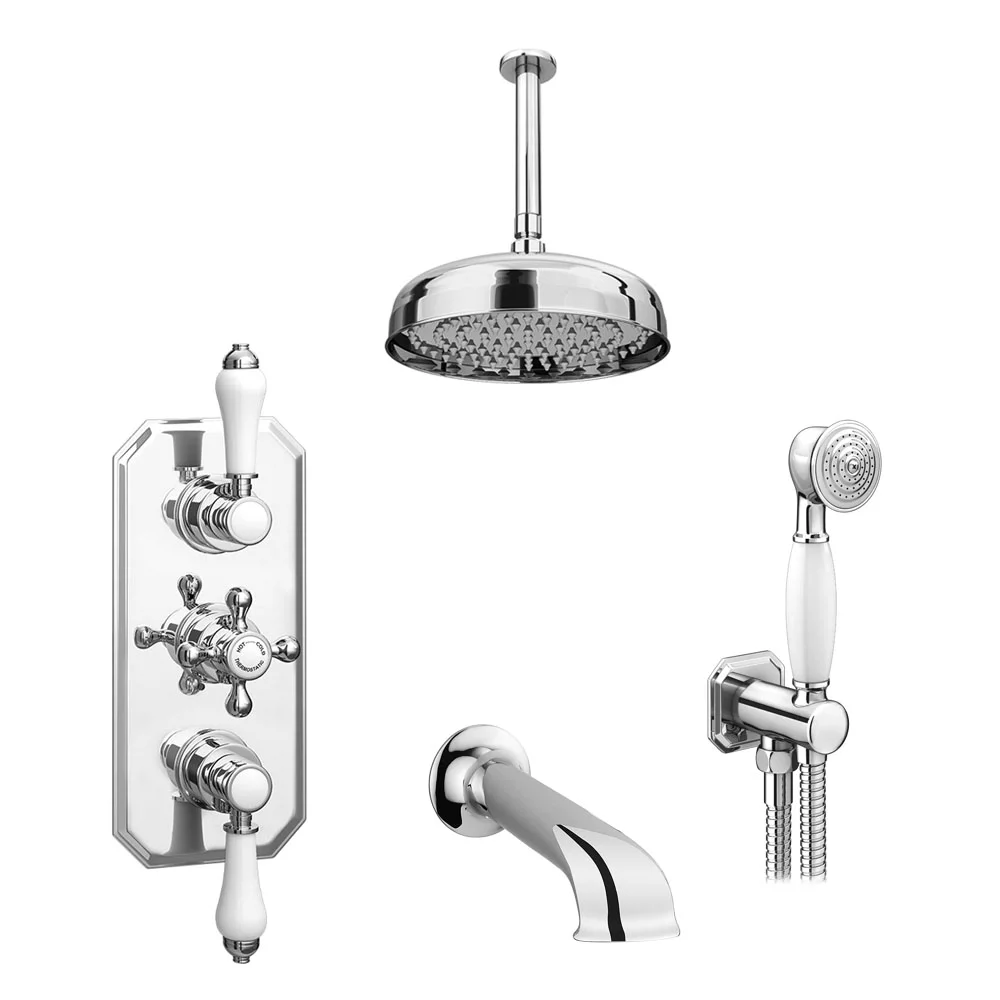

Package Includes:

(1) Traditional Triple Concealed Thermostatic Shower Valve with Diverter
(1) Traditional 8″ Apron Rose Shower Head with Ceiling Mounted Arm
(1) Traditional Outlet Elbow with Parking Bracket, Flex & Handset
(1) Wall Mounted Bath Spout

Guarantee: 5 Years (1 Year on serviceable parts, for example, internal components such as check valves and cartridges)

Please note that product images are for illustration purposes only, and all measurements are approximate.

Gravity Fed Systems: If you live in an older property, there’s a good chance you have a low-pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar. Therefore, we recommend installing a negative or universal pump (sold separately). Please note that positive pumps will not work.
