Trafalgar Concealed Individual Stop Tap + Thermostatic Control Valve with with Slider Rail Kit

Description

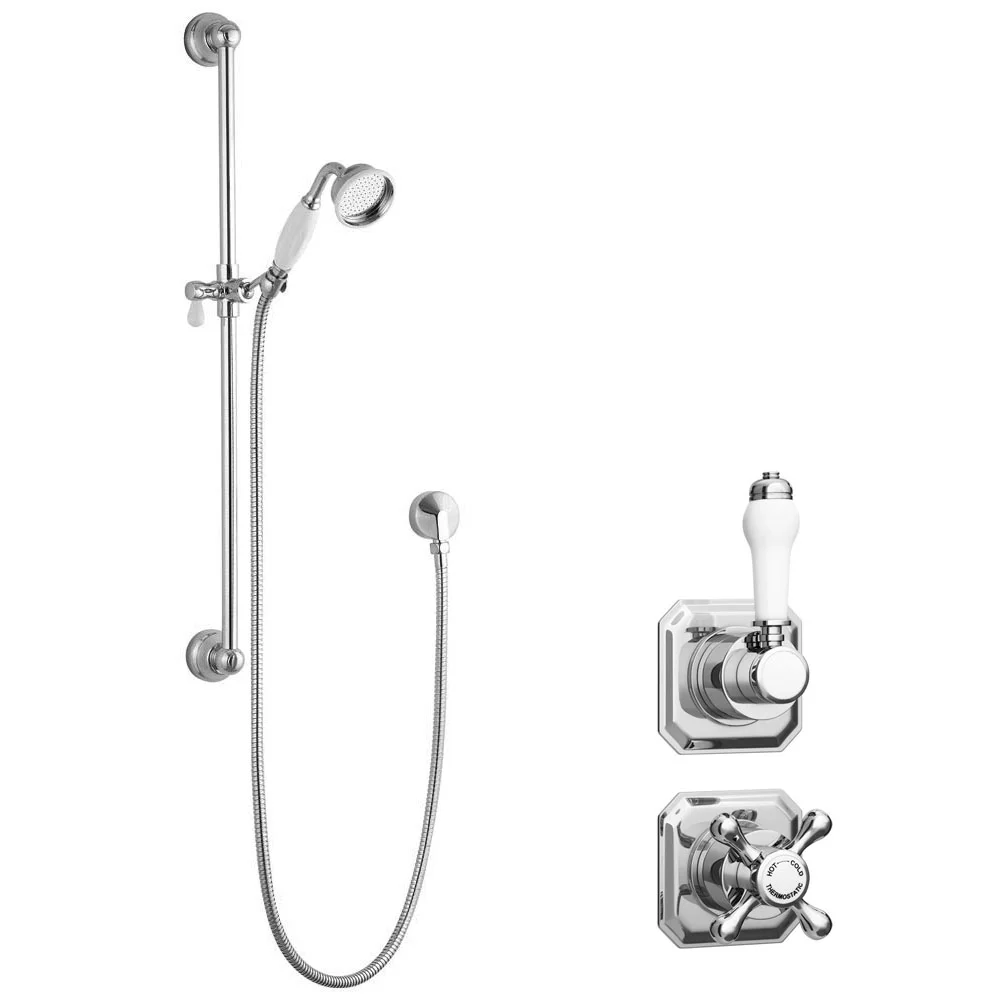

Trafalgar Concealed Individual Stop Tap + Thermostatic Control Valve with with Slider Rail Kit

The Trafalgar concealed individual stop tap and thermostatic control shower valve pack features a Edwardian style design. This shower valve pack is perfect for installing in a concealed arrangement, pack comes supplied with a traditionally styled shower handset with wall mounted slide rail.

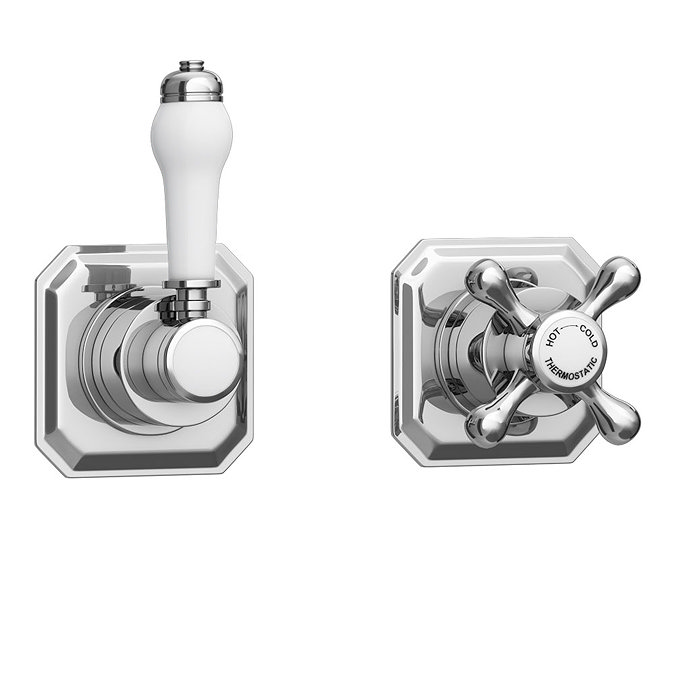

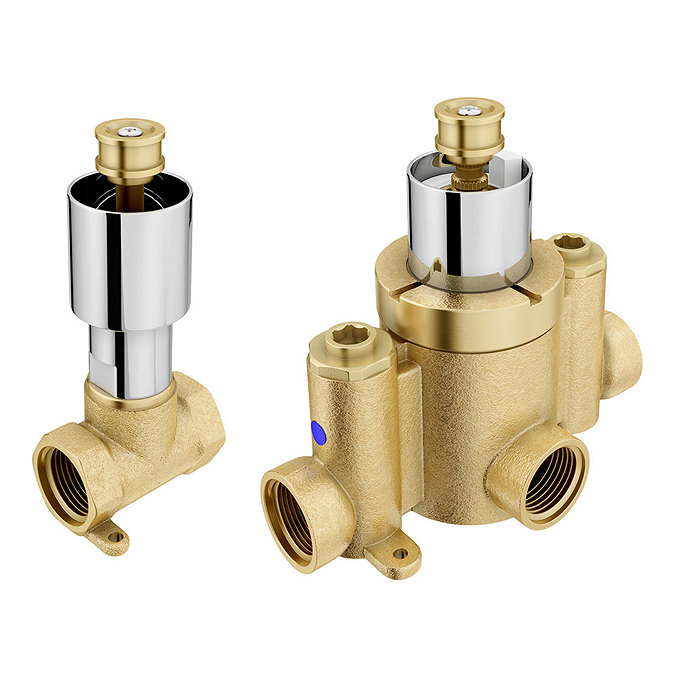

The Trafalgar concealed shower valve consists of two individual controls, for temperature and flow. The brass valve bodies come with chrome plated back plates and handles. This concealed valve has been designed to be paired with one outlet, i.e. a main shower head.

Shower Valve Details

• Stop Tap: W70 x H70 x D154mm
• Thermostatic Control: W70 x H150 x D154mm
• Back plate: 70 x 70mm
• Style: Traditional
• Range: Trafalgar
• Valve Handles: Crosshead and Lever
• Colour/Finish: Chrome Plated
• Material: Brass Internals
• Concealed fitting
• Traditional bevelled back plates
• For use with 1 Outlet
• Min operating pressure: 0.5 bar
• Max operating pressure: 5 bar
• Hot Water Supply Temperature 55-85°C
• Cold Water Supply Temperature 4-29°C
• Suitable for modern pressurised plumbing systems.
• Bring an Edwardian sensibility to your bathroom with this traditional shower
• Pack includes individual thermostatic control with a individual stop tap for flow control.
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.

• For further information refer to products installation instructions

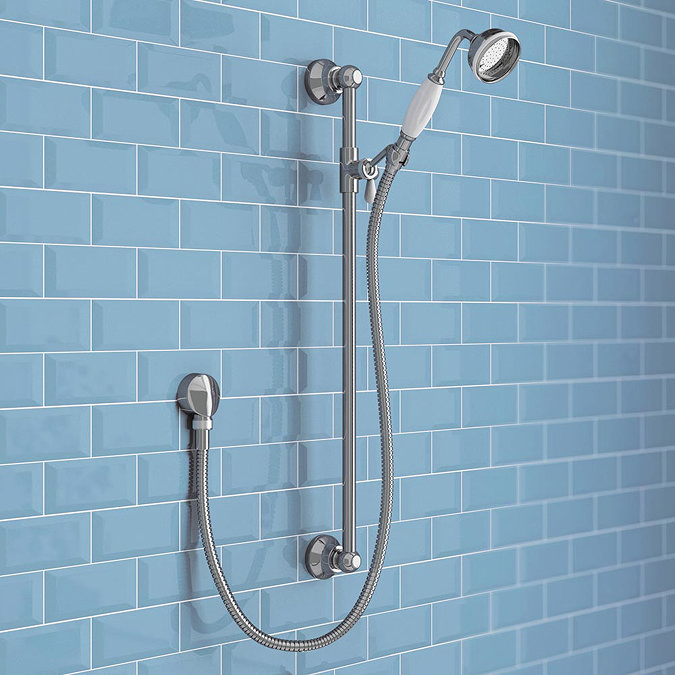

Slide Rail Kit Details

• Height: 690mm
• Traditional Design
• Colour/Finish: Polished Chrome with White ceramic detailing
• Material: Brass Internals
• Slide Rail Kit & Shower
• Low pressure
• Adjustable Handset Position
• 1.5m hose
• Minimum 0.1 bar pressure required for best performance
• Manufactured to the Highest Standards
• Includes outlet elbow

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Comprises

(1) Individual Stop Tap with Traditional Back plate
(1) Thermostatic Valve with Traditional Back plate
(1) Traditional Shower Slide Rail Kit

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
