Traditional Cool Touch Shower Bar Valve + Slider Rail Kit

Description

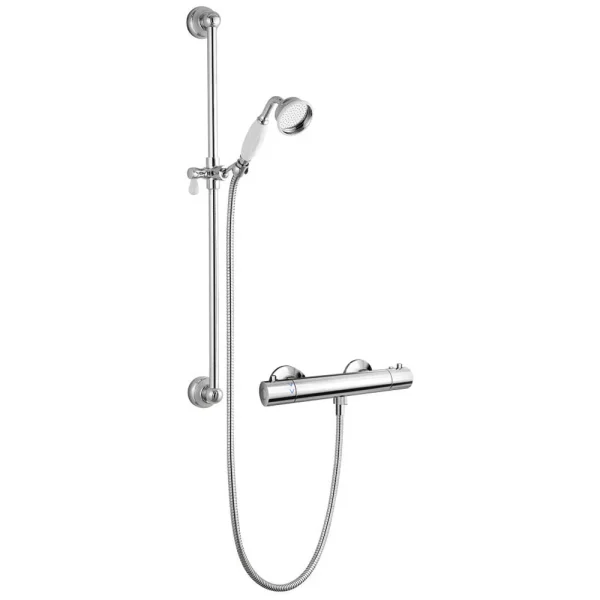

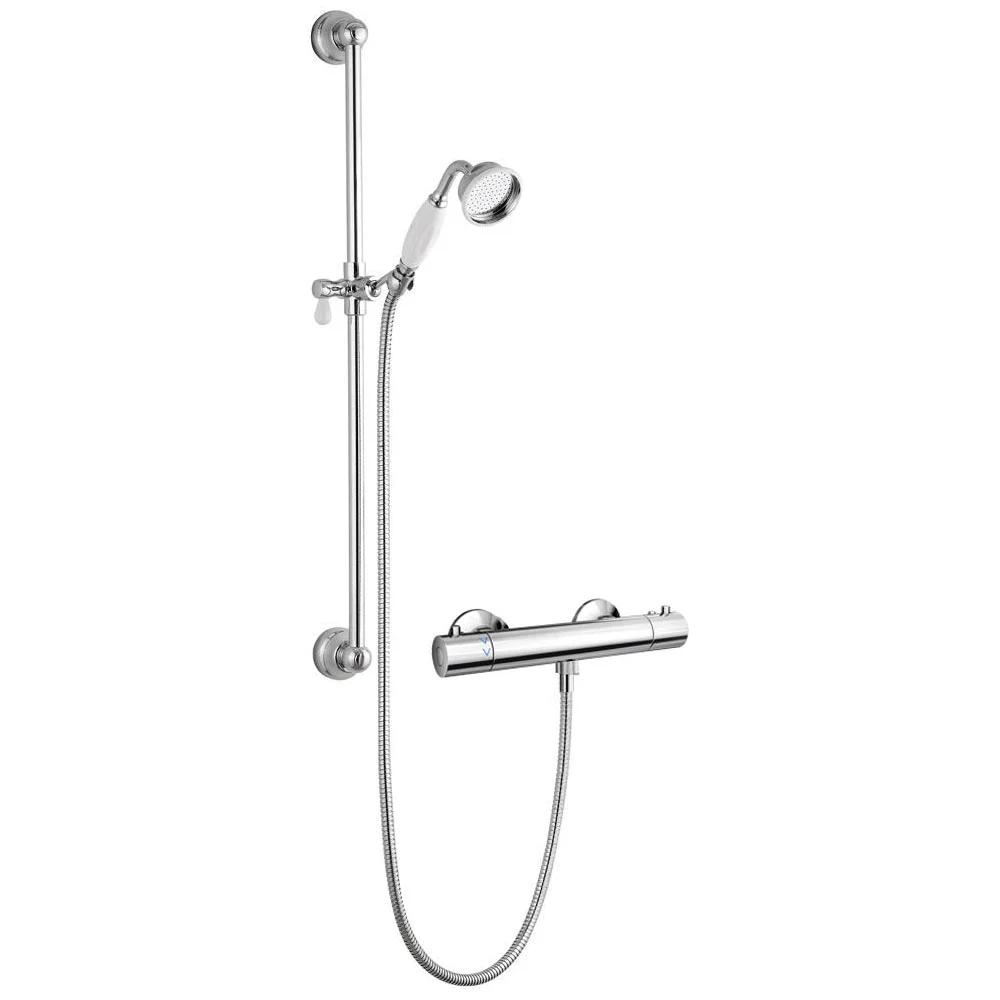

Traditional Cool Touch Shower Bar Valve with Slider Rail Kit in Chrome

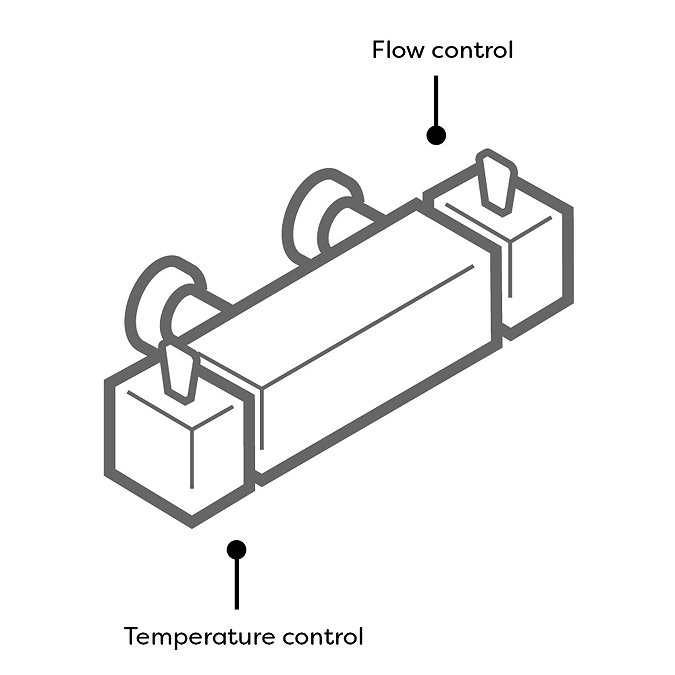

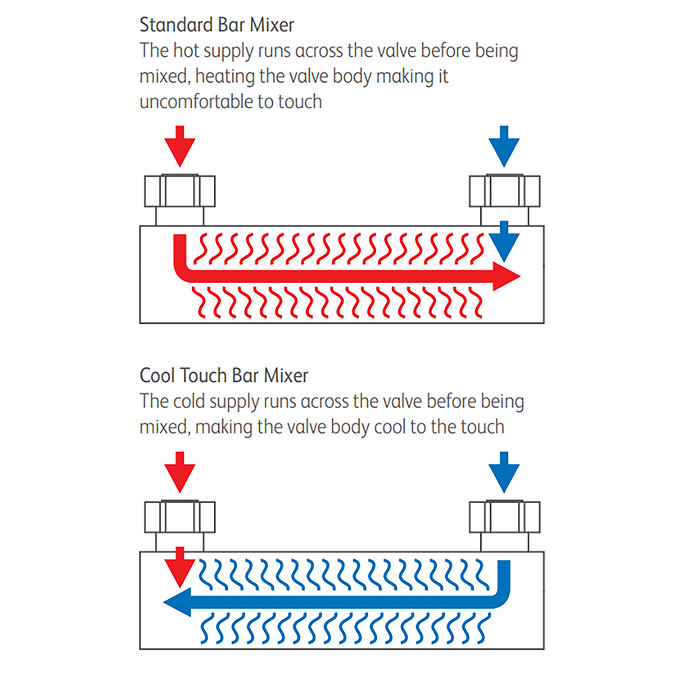

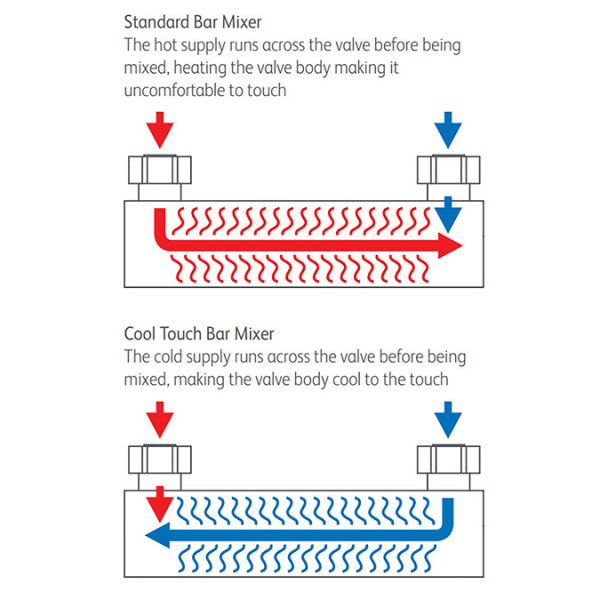

The stylish ‘Cool Touch’ Thermostatic Bar Valve is designed to provide safe showering for the entire family. This minimalist chrome bar valve features separate controls for temperature and flow. Cold water is circulated around the bar valve itself, ensuring it remains cool to the touch. The valve comes with the Trafalgar Traditional Slider Rail Kit, providing a flexible showering solution for all users, regardless of size. The kit includes a classic slide rail, a 1.5m hose, and a shower handset.

Shower Valve Details:

• Width: 277mm
• Height: 40mm
• Colour/Finish: Polished Chrome
• Material: Brass Internals
• Water Pressure: MP – 0.5 bar pressure minimum
• Mounting: Wall Mounted
• Thermostatic: Offers anti-scald protection
• Bottom Outlet: Compatible with a slide rail kit (not included)
• Pipe Inlet Centres: 150mm apart
• Outlet: 15 mm (1/2″ BSP)
• Hot Water Temperature: Ranges from 55 to 85 Degrees
• For gravity-fed systems, a pump is required. We recommend a universal or negative head pump.

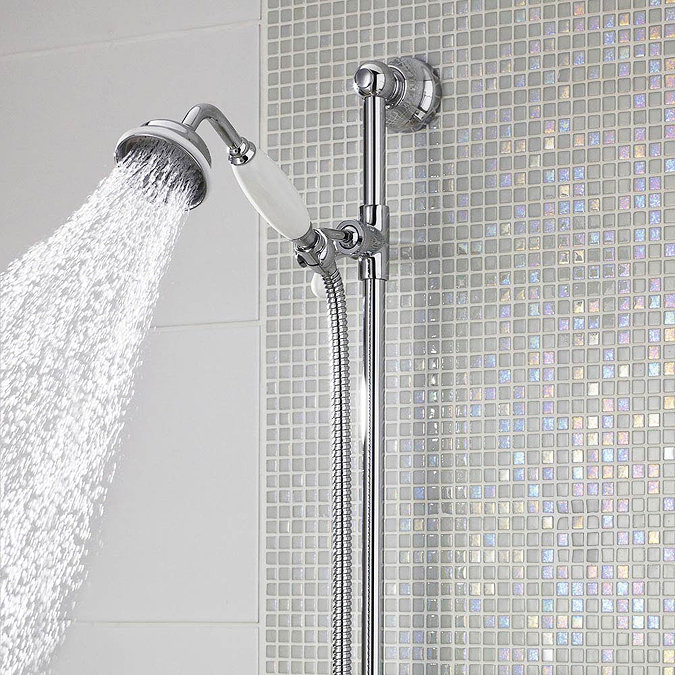

Traditional Slide Rail Kit Details:

• Height: 690mm
• Design: Traditional
• Colour/Finish: Polished Chrome with White Ceramic Detailing
• Material: Brass Internals
• Slide Rail Kit & Shower: Low Pressure
• Handset Position: Adjustable
• Hose: 1.5m
• Manufactured to the Highest Standards

Guarantee: 5 Years (1 Year on serviceable parts, for example, internal components such as check valves and cartridges)

Please note that all measurements are approximate and images are for illustrative purposes only.

Package Includes:

(1) Cool Touch Shower Bar Valve – Chrome
(1) Trafalgar Traditional Shower Slide Rail Kit – Chrome

Gravity Fed Systems:

If you reside in an older property, there’s a high probability you have a low-pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar. Therefore, we recommend installing a negative or universal pump (sold separately). Please note that positive pumps will not function with this system.
