Traditional Concealed Shower Valve w. Slide Rail Kit & Wall Mounted Fixed Head

Description

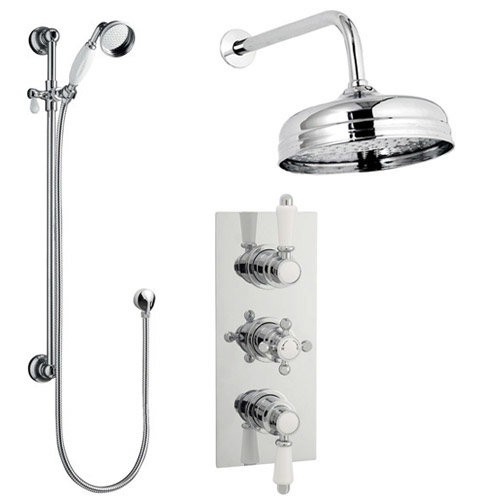

Traditional Concealed Shower Valve with Slide Rail Kit & Wall Mounted Fixed Head – Chrome

8″ Apron Fixed Shower Head & Arm – Chrome

• High Quality Design
• Finish – Polished Chrome Finish
• Manufactured to the Highest Standards
• Heavyweight Brass Construction
• Smooth Operation with Quality Components
• Wall Mounted Fixed head
• Requires a minimum of 0.5 bar pressure

Traditional Shower Slide Rail Kit – Chrome

• Traditional Design
• Finish – Polished Chrome
• Brass Internals
• Minimum 0.1 bar pressure required for best performance
• Manufactured to the Highest Standards
• Smooth Operation with Quality Components
• All kits include sliding rail, outlet elbow, shower hose and shower head.

Edwardian Triple Concealed Thermostatic Shower Valve – Chrome

• Height – 280mm
• Width – 120mm
• Depth – 135mm
• Valve/Cartridge Type – 1/4 Turn Ceramic Disc
• Pipe Size – 15mm (1/2″ BSP)

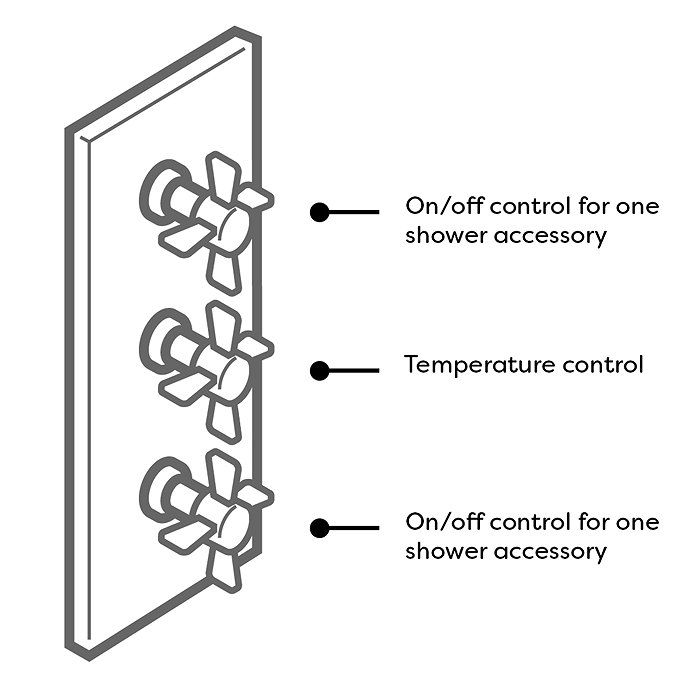

• Separate controls for temperature and flow.
• Operates two shower accessories separately or simultaneously
• Concealed Thermostatic Shower Valve
• Offers thermostatic showering via three easy-to-operate controls.
• Suitable for all types of plumbing installation
• Finish – Polished Chrome
• Manufactured from high quality brass & ABS
• Thermostatically controlled
• Built in anti-scald device
• Suitable for water systems between 0.1 and 4 bar pressure
• For use with combi boilers & gravity fed systems
• Suitable for unvented mains pressure systems
• Dimensions – Height 280mm, Width 120mm
• Projection from Wall – 66mm
• WRAS Approved (2204707)

5 Year Guarantee against Manufacturing Defects

Flow Rates

0.1 Bar – 5.5 l/m
0.2 bar – 7.1 l/m
0.5 Bar – 14 l/m
1.0 Bar – 20 l/m
2.0 Bar – 29 l/m
3.0 Bar – 44 l/m
