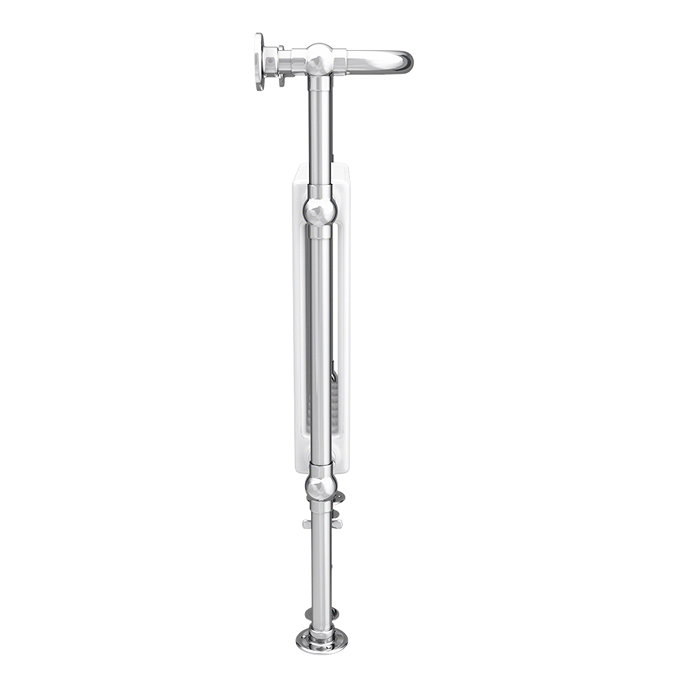

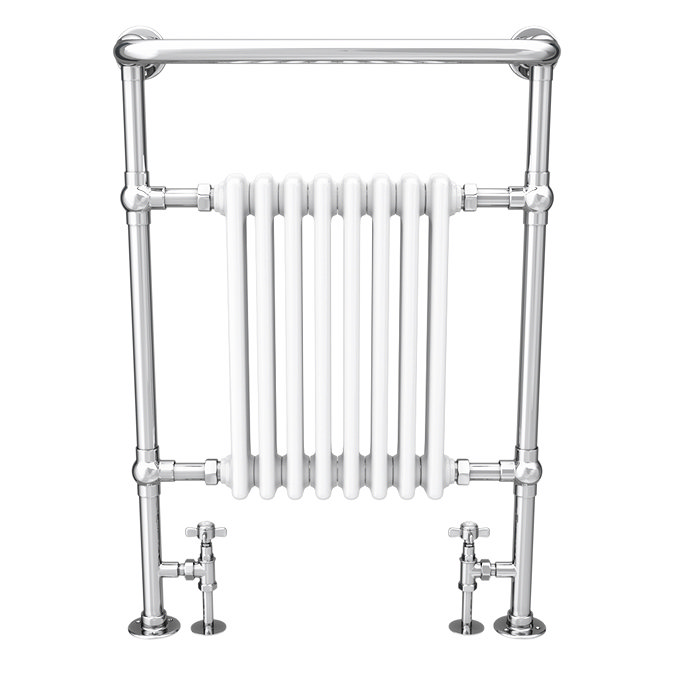

Chatsworth Savoy Traditional Radiator with Crosshead Valves

Description

Chatsworth Savoy Traditional Radiator with Crosshead Valves

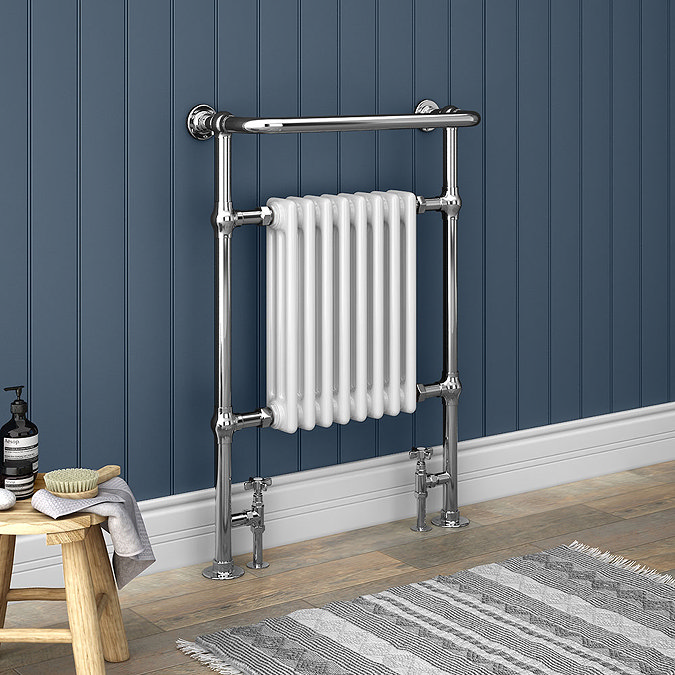

The Chatsworth Savoy Traditional Radiator, with its classic design, exudes luxury and timeless elegance. Crafted from steel, it heats up quickly and retains warmth for an extended period. This compact towel rail radiator, with a width of just 673mm, is ideal for cloakrooms, bathrooms, and kitchens where space is at a premium. It features a traditional towel rail that extends over the radiator, allowing you to hang your towels to dry without hindering the heat flow around the room. The radiator comes with two chrome valves, each adorned with a white cap in the centre of the crosshead handles, perfectly complementing the white body of the radiator.

Chatsworth Savoy Traditional Radiator Details:

• Depth: 235mm
• Height: 952mm
• Width: 659mm
• Size, type, and position of connections: 1/2″ FI BSP
• Dry Mass: 15.8kg
• Content: 7.35lt
• BTU T50: 2305
• ∆ Watt T50: 676°C
• Max Operating Pressure: 6 Bar
• Projection from wall: 230mm
• Traditional Design
• Manufactured to the Highest Standards
• Tube Diameter: 32mm
• Heating Type: Central Heating
• 3 column 8 section radiator
• Comes complete with fixing screws
• Tested and Certified BS EN 442-1 Standards
  UKCA  / CE Marked
  ISO9001:2015 Registered Manufacturer

Traditional Crosshead Angled Radiator Valves Details:

• Style: Traditional
• Colour/Finish: Polished Chrome
• Material: Brass Internals
• Type: Manual
• White ceramic cap in the centre of the crosshead handle
• Smooth Operation with Quality Components
• Comes as a Pair
• Angled Valve
• Manual radiator valves control the flow of hot water from the boiler into the radiator.
• Supplied with 15mm water-carrying pipes and concealing plates
• Adjustable – Can be cut down to the required length
• Please note that the tubes are water-carrying and are designed to be connected to the copper pipe below the floor. Only use compression fittings when connecting to these pipe kits. Solder fittings or push-fit fittings are not suitable.

We recommend that pipework is not installed until the radiator or heated towel rail is received.

All images are for illustration purposes only and all measurements are approximate.

Guarantee: 5 Years

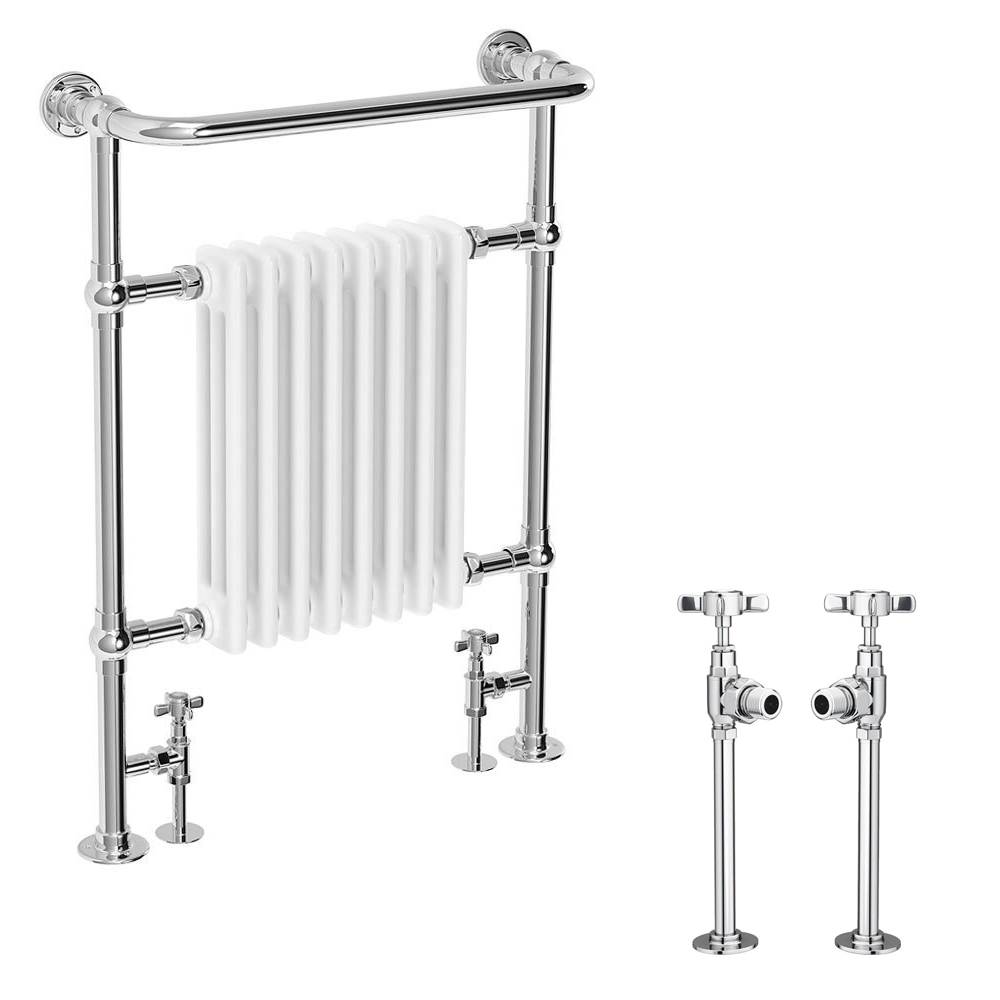

Package Includes:

(1) Chatsworth Savoy Traditional Radiator – Chrome
(1) Pair of Traditional Chrome Plated Angled Radiator Valves with Pipes & Concealing Plates
