Hudson Reed Quest Triple Thermostatic Valve with Round Shower Head + Handset
Hudson Reed Quest Triple Thermostatic Valve with Round Shower Head + Handset The Hudson Reed Quest Triple Concealed Thermostatic Shower Valve offers thermostatic showering via three easy-to-operate controls. Suitable for all types of plumbing installation this shower valve has the added safety benefit of a built in anti scald device should the cold water supply fail. Separate…
£361.95
The full product description can be found below
Description
Hudson Reed Quest Triple Thermostatic Valve with Round Shower Head + Handset

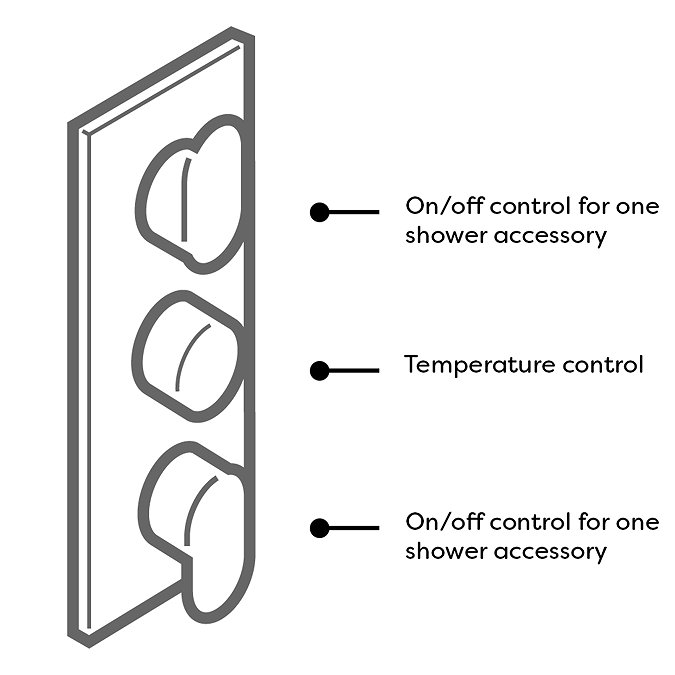

The Hudson Reed Quest Triple Concealed Thermostatic Shower Valve offers thermostatic showering via three easy-to-operate controls. Suitable for all types of plumbing installation this shower valve has the added safety benefit of a built in anti scald device should the cold water supply fail. Separate controls for temperature and flow. Operates two shower accessories separately or simultaneously. Supplied with a 200mm round fixed shower head with swivel joint and a round outlet elbow with parking bracket, flex & handset.

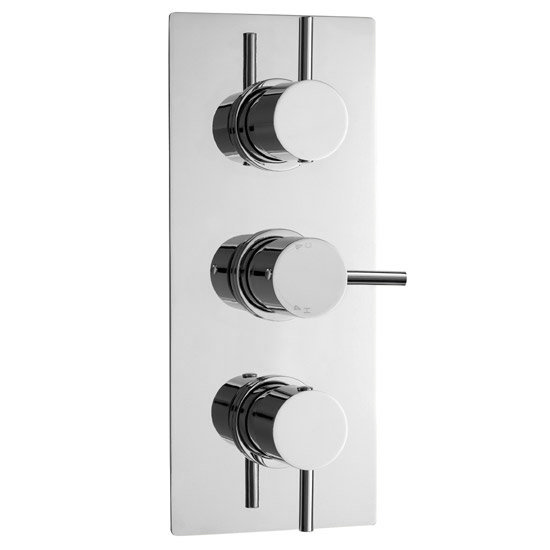

Triple Concealed Thermostatic Shower Valve Details
- Colour/Finish – Polished Chrome
- Product Code – JTY314
- Thermostatically controlled
- Built in anti-scald device
- Operates two points simultaneously
- Suitable for water systems between 0.1 and 4 bar pressure
- For use with combi boilers & gravity fed systems
- Suitable for unvented mains pressure systems
- Can be used with ether a fixed shower head or slider rail kit
- Manufactured from high quality brass & ABS
- Smooth Operation with Quality Components
- TMV3 approved
- 5 Year guarantee
Flow Rates
0.1 Bar – 5.5 l/m
0.5 Bar – 12 l/m
1.0 Bar – 18 l/m
2.0 Bar Max – 25 l/m
3.0 Bar Max – 31 l/m

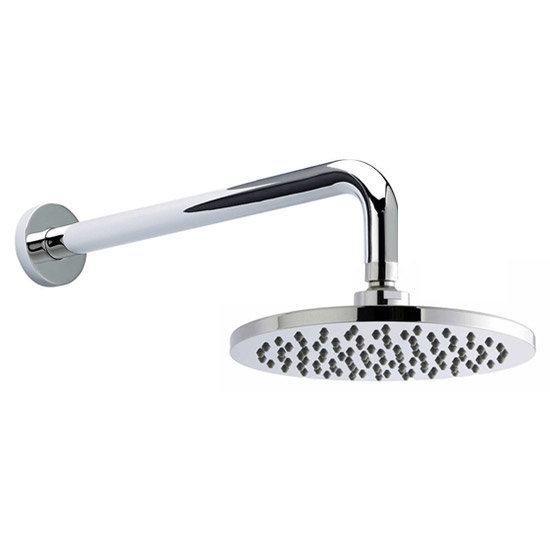

Fixed Round Shower Head with Wall Mounted Arm Details
- Shower head dimensions – 200mm diameter
- Shower arm length – 345mm
- Style – Modern
- Colour/Finish – Chrome
- Water Pressure – 0.5 bar min to 3 bar max
- Supplied with swivel joint and wall mounted round arm.
- Please note – Shower head chrome plated plastic, not metal.
- 2 Year Guarantee
Hudson Reed Round Outlet Elbow w/ Parking Bracket, Flex & Handset Details
- Product Code – A3263
- Colour/Finish – Polished Chrome
- Manufactured To The Highest Standard By Hudson Reed
- Round Handset with Built in Outlet
- Suitable for all plumbing systems
- 20 Year Guarantee

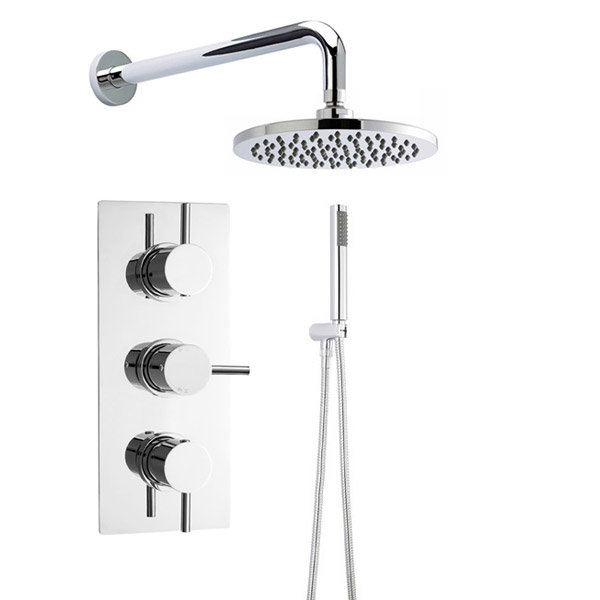

Comprises
(1) 200mm Round Head
(1) Round Shower Arm
(1) Hudson Reed Round Outlet Elbow w/ Parking Bracket, Flex & Handset – A3263
(1) Hudson Reed Quest Triple Concealed Thermostatic Shower Valve – Chrome – JTY314
