Orion Chrome Shower Package with Concealed Valve + Square Ceiling Mounted Head

Description

Orion Chrome Shower Package with Concealed Valve + Square Ceiling Mounted Head in Polished Chrome

The minimalist Orion concealed thermostatic shower valve features a square back plate and a ceiling-mounted square shower head. This package offers precise thermostatic showering with two easy-to-operate controls: one for flow control and the other for temperature selection.

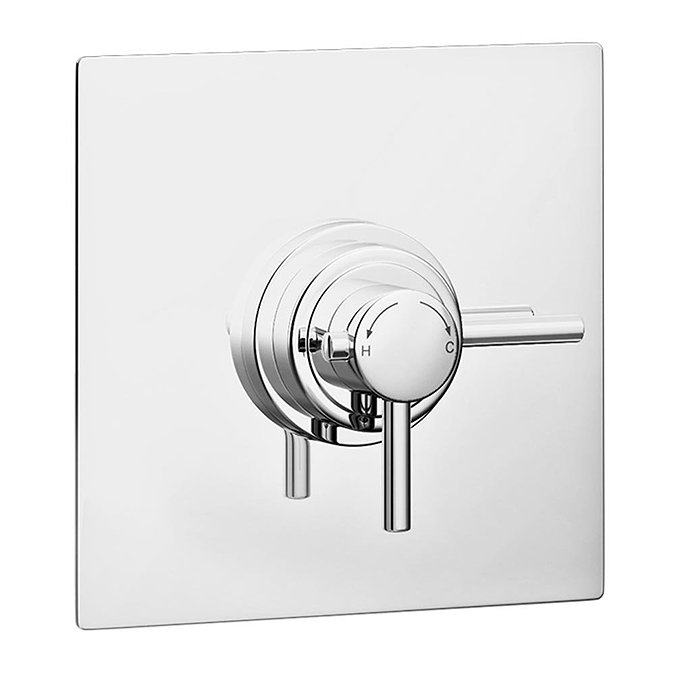

Shower Valve Details:

• Height: 181mm
• Width: 181mm
• Type: Dual Concealed Shower Valve
• Handle Type: Lever
• Style: Modern
• Colour/Finish: Chrome
• Material: Solid brass
• Operates: Single shower accessory (1 Outlet)
• Mounting: Wall-mounted
• Valve Installation: Can be installed either concealed or exposed.
• Back Plate Shape: Square
• Smooth Operation: Quality components ensure smooth functionality.
• Water Pressure Range: 0.5 bar to 5 bar
• Anti-Scald Technology: Provides safety in case of cold water failure.
• Suitability: Designed for modern pressurized plumbing systems.
• Inlet Centers: 150mm between pipe inlet centers
• Hot Water Temperature Range: 55 to 85 degrees Celsius
• Gravity Fed Systems: If you reside in an older property with a low-pressure gravity-fed system, this shower valve requires a minimum pressure of 0.5 bar. We recommend installing a negative or universal pump (sold separately). Note that positive pumps will not function efficiently.

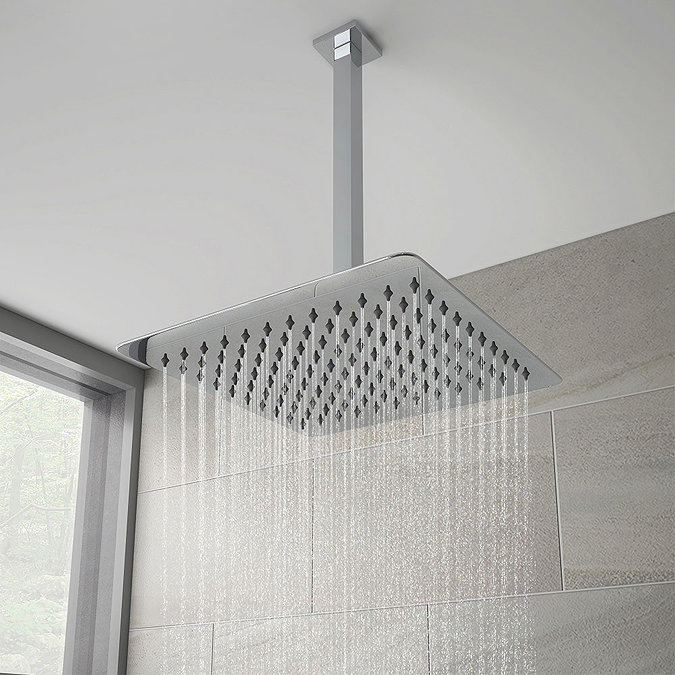

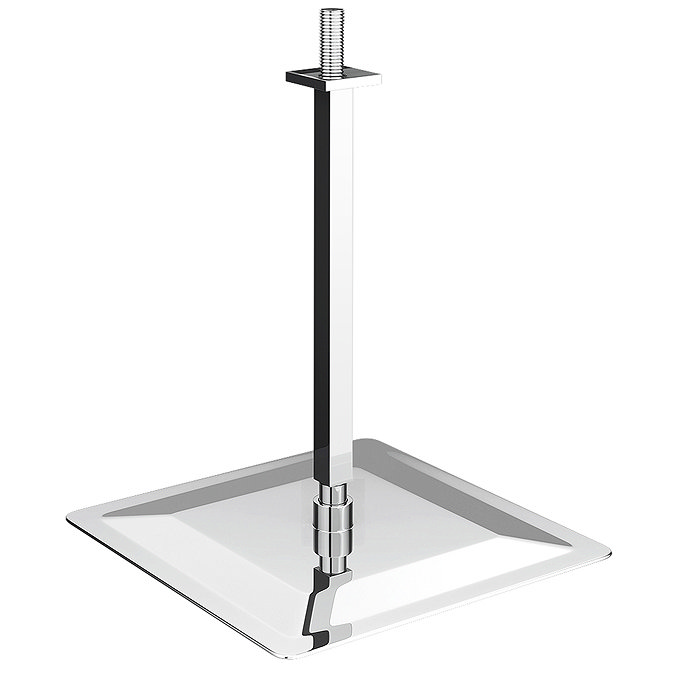

Shower Head + Arm Details:

• Size: 300 x 300mm
• Shower Arm Length: 300mm
• Style: Modern
• Shape: Square
• Colour/Finish: Chrome
• Material: Stainless Steel
• Thickness/Profile: 3mm (excluding swivel joint)
• Pressure Requirement: Minimum 0.5 bar
• Inlet Connections: 1/2″ BSP
• Sleek Design: Easy to clean and maintain with rub-clean nozzles.
• Supplied with Swivel Ball Joint
• Ceiling Mounted

Guarantee: 5 years (1 year on serviceable parts, such as internal components like check valves and cartridges).

Please note that all measurements provided are approximate, and the product images are for illustrative purposes only. If you have a gravity-fed system, ensure proper installation with the recommended pump for optimal functionality.
