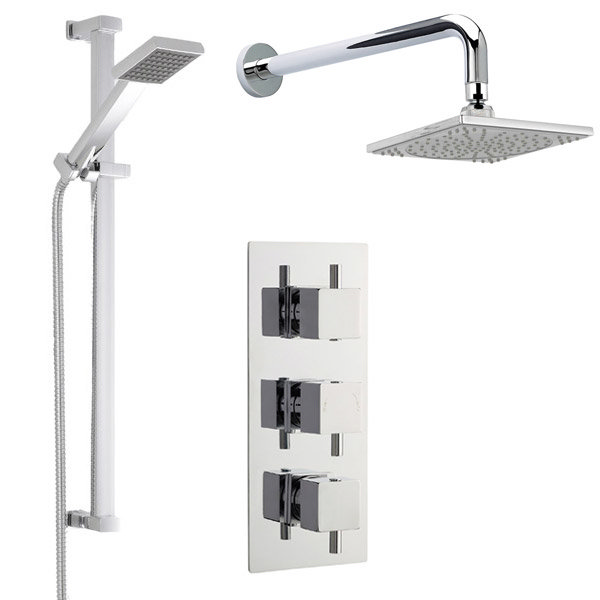

Modern Concealed Shower Valve w/ Slide Rail Kit & Wall Mounted Fixed Head

Description

Modern Concealed Shower Valve with Slide Rail Kit & Wall Mounted Fixed Head – Chrome

Shower Head and Shower Arm Details

• Shower head dimensions – 180 x 180mm
• Shower arm length – 345mm
• High Quality Design
• Chrome Finish
• We recommend a minimum pressure of 0.1 bar for best performance

Rectangular Slide Rail Kit Details

• Height: 602mm
• Depth: 58mm
• Style: Modern
• Finish: Chrome
• Internal Components: Made of brass
• Recommended Minimum Pressure: 0.1 bar for optimal performance
• Note: Some components are chrome-plated plastic, not metal.

Shower Valve Details

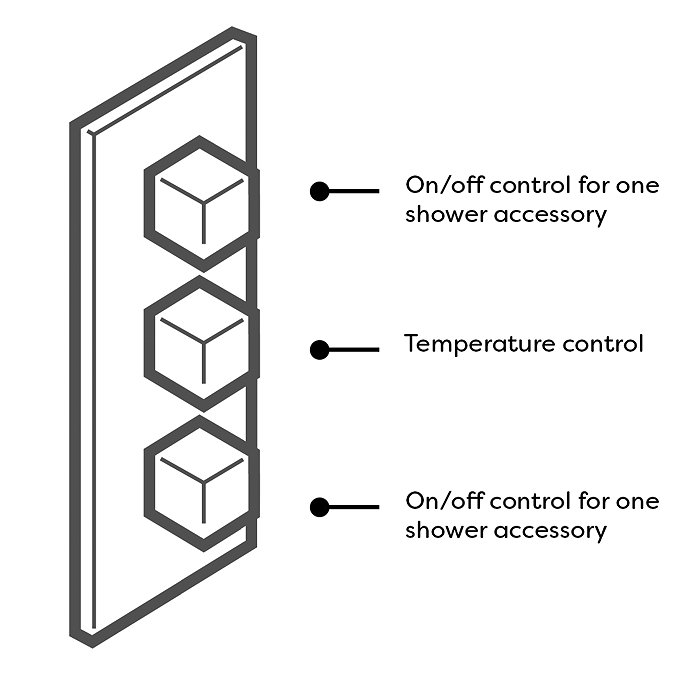

• Separate controls for temperature and flow.
• Operates two shower accessories separately or simultaneously
• Concealed Thermostatic Shower Valve
• Offers thermostatic showering via three easy-to-operate controls.
• Suitable for all types of plumbing installation
• Finish – Polished Chrome
• Thermostatically controlled
• Built in anti-scald device
• Suitable for water systems between 0.1 and 4 bar pressure
• For use with combi boilers & gravity fed systems
• Suitable for unvented mains pressure systems
• Manufactured from high quality brass & ABS
• TMV2 approved

All measurements are approximate

5 Year Guarantee against Manufacturing Defects

Flow Rates

0.1 Bar – 5.5 l/m
0.5 Bar – 12 l/m
1.0 Bar – 18 l/m
2.0 Bar – 25 l/m
3.0 Bar – 31 l/m
