Milan Square Concealed Individual Diverter and Thermostatic Control Valve with Handset and 300mm Shower Head

Description

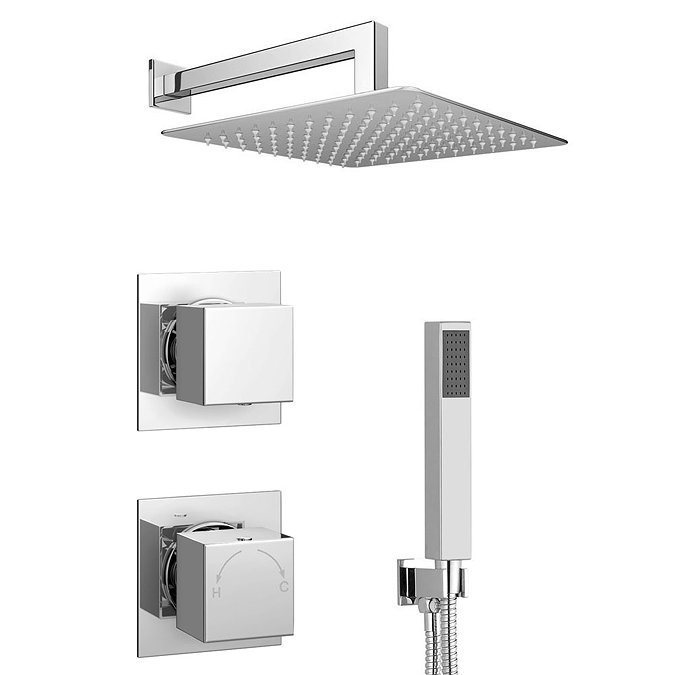

Milan Square Concealed Individual Diverter and Thermostatic Control Valve with Handset and 300x300mm Shower Head in Chrome

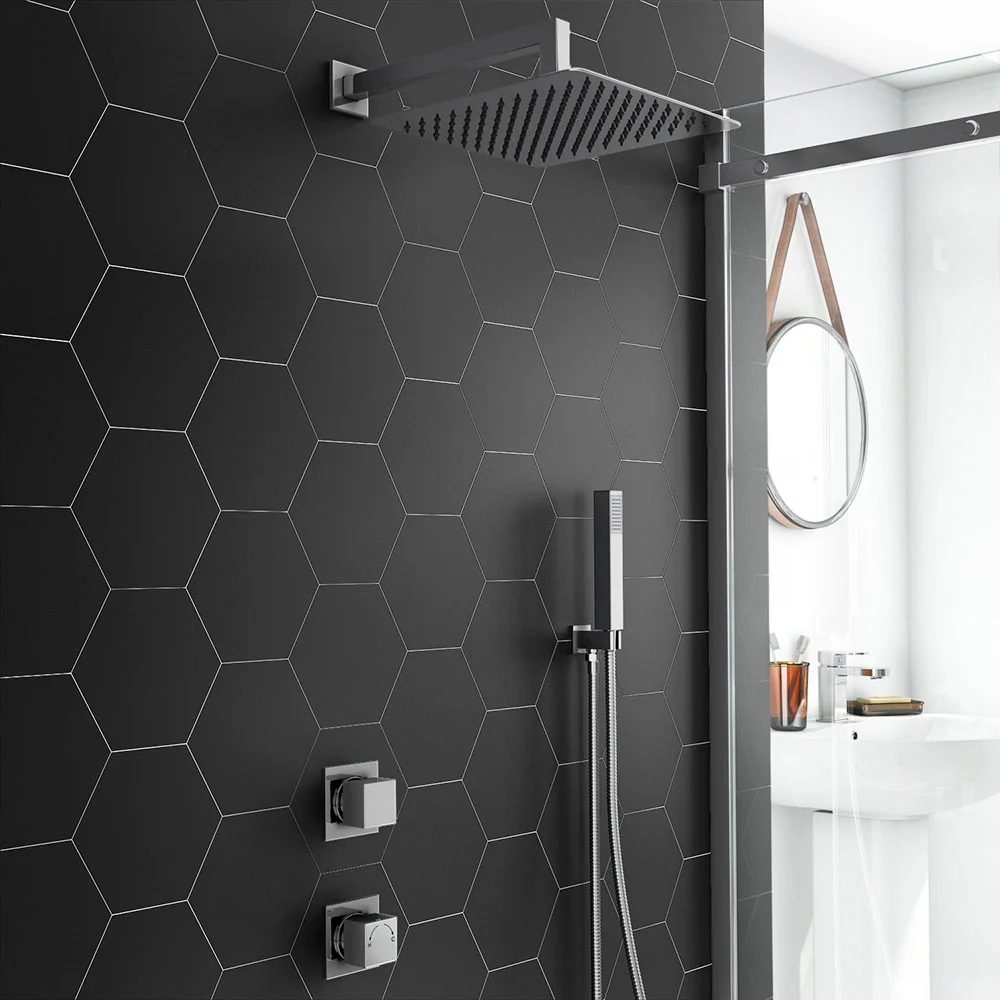

The Milan Concealed Individual Diverter and Thermostatic Control Shower Valve Pack features a striking modern square design. This shower valve pack is perfect for concealed installation and comes supplied with a 300x300mm wall-mounted fixed shower head and a square shower handset.

Shower Valve Details:

• Style: Modern
• Range: Milan
• Valve Handles: Square
• Colour/Finish: Chrome Plated

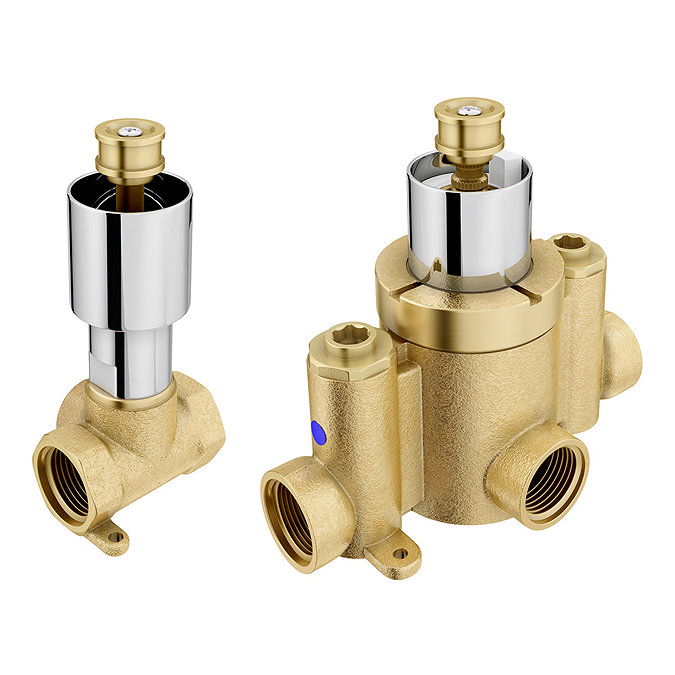

• Material: Brass Internals

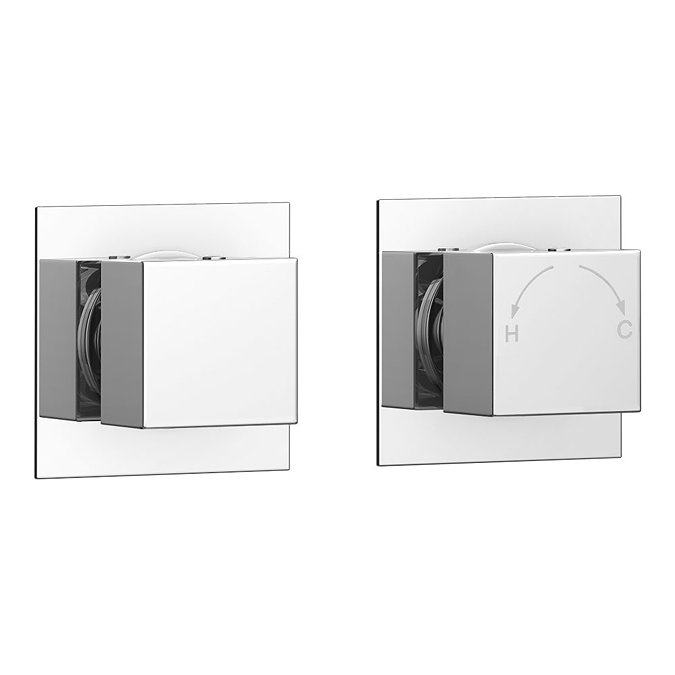

• Concealed fitting with square backplates
• Suitable for use with 2 outlets
• Minimum operating pressure: 0.5 bar
• Maximum operating pressure: 5 bar
• Hot Water Supply Temperature: 55-85°C
• Cold Water Supply Temperature: 4-29°C
• Suitable for modern pressurized plumbing systems

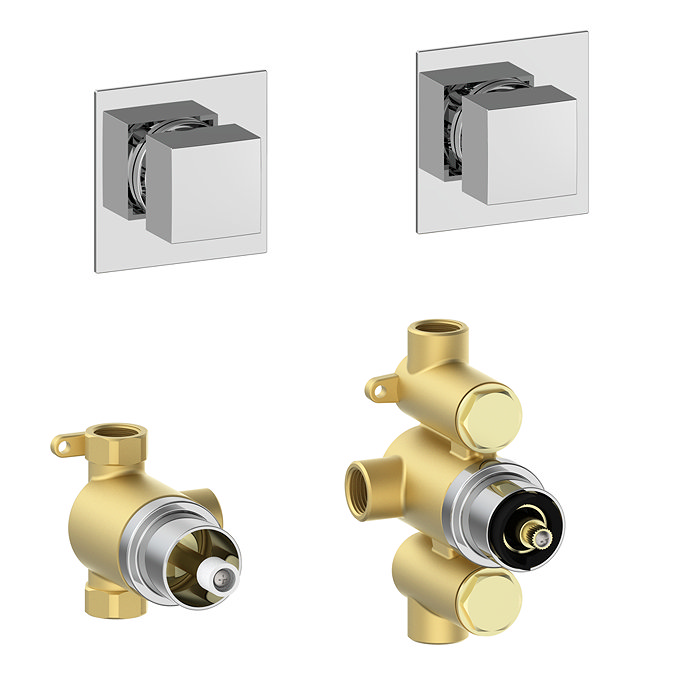

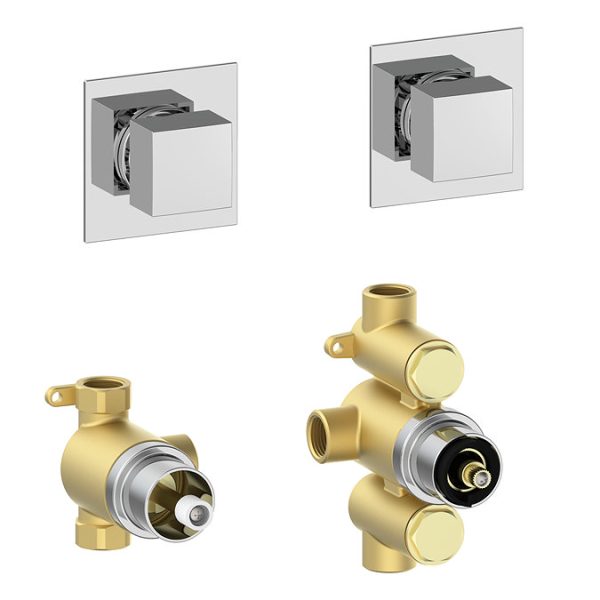

• Pack includes individual thermostatic control and an individual diverter valve for switching water flow between 2 outlets

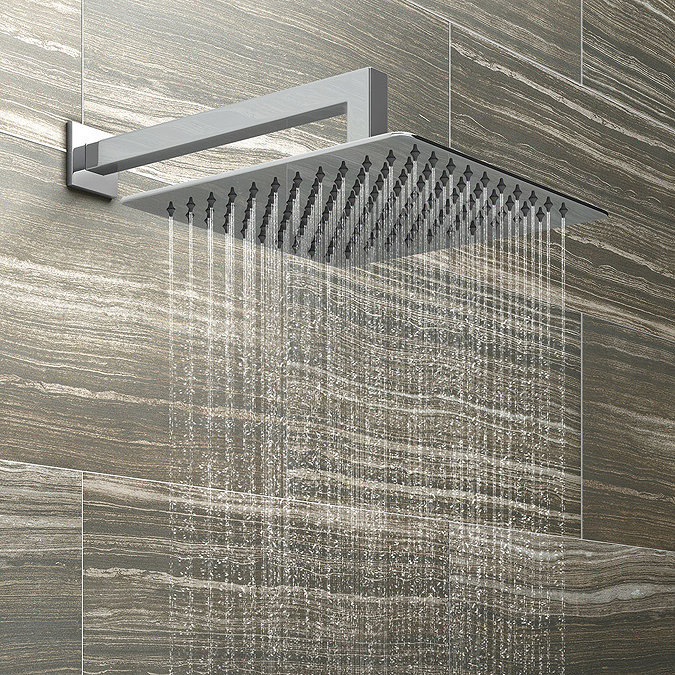

Shower Head Details:

• Dimensions: Head Size: 300 x 300mm, Arm Length: 388mm
• Style: Modern
• Colour/Finish: Chrome Effect
• Material: Stainless Steel Head
• Thickness/Profile: 3mm (excluding swivel joint)
• 90-degree Bend Wall Mounted
• Pressure requirements: 0.5 bar minimum
• Inlet Connections: 1/2″ BSP
• Supplied with swivel joint
• Rub clean nozzles make this item easy to clean and maintain
• Shower head chrome-plated plastic, not metal

Square Outlet Elbow with Parking Bracket, Flex + Handset Details:

• Dimensions: Depth: 63mm,Height: 228mm, Width: 40mm
• Manufactured to the highest standards
• Rectangular Handset with Built-in Outlet
• Suitable for all plumbing systems
• 1.5m Shower flex – Brass / Chrome plated
• Outlet Elbow with Parking Bracket – Brass / Chrome plated
• Rectangular handset – ABS plastic / Chrome plated
• Rust-resistant hose
• Wall-mounted
• Highly polished finish
• Square handset holder

Note: The shower valve will not work efficiently on a gravity-fed tank system unless a booster pump is installed. We recommend a universal or negative head pump if needed.

For further information, please refer to the product’s installation instructions. All measurements are approximate, and the images are for illustrative purposes only.

Guarantee: 5 years (1 year on serviceable parts, e.g., internal components like check valves and cartridges)

Comprises:

(1) Milan Concealed Individual Stop Tap + Thermostatic Control Shower Valve For 2 Outlets
(1) Milan 300 x 300mm Ultra-Thin Square Shower Head
(1) 90 Degree Bend Shower Arm
(1) Square Outlet Elbow with Parking Bracket, Flex + Handset

Gravity Fed Systems: If you live in an older property, there’s a good chance you have a low-pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar; therefore, we recommend installing a negative or universal pump (sold separately). Please note that positive pumps will not work effectively in this case.
