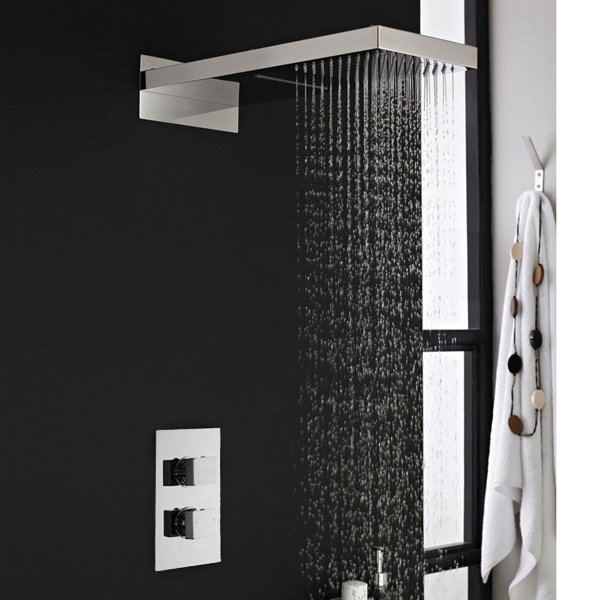

Milan Shower Valve with Built in Diverter + Rainfall/Water Blade Shower Head

Description

Milan Concealed Shower Valve with Built-in Diverter and Rainfall/Water Blade Shower Head

This Milan minimalist concealed thermostatic shower valve package complements any modern bathroom suite, offering a flexible shower solution with a neat finish. The pipework is concealed for a sleek look. The included shower valve diverts between two functions: ‘Rain effect’ or ‘Waterfall effect’ on the shower head. The top control is the diverter to switch between shower head functions, while the bottom control adjusts the temperature.

Shower Valve Details:

• Style: Modern
• Colour/Finish: Chrome Plated
• Valve Handles: Square
• Material: Brass Internals
• Control: Thermostatically controlled
• Water Pressure: 0.5 bar to 5 bar
• Faceplate: Rectangular
• Installation: Can be fitted vertically or horizontally
• Outlets: 2
• Feature: Built-in Diverter
• Compatibility: Suitable for modern pressurised plumbing systems
• Temperature Range: Hot water temperature 55 to 85 degrees
• The shower valve will not work efficiently on a gravity-fed tank system unless a booster pump is installed. Should a pump be required, we recommend a universal or negative head pump.

Shower Head Details:

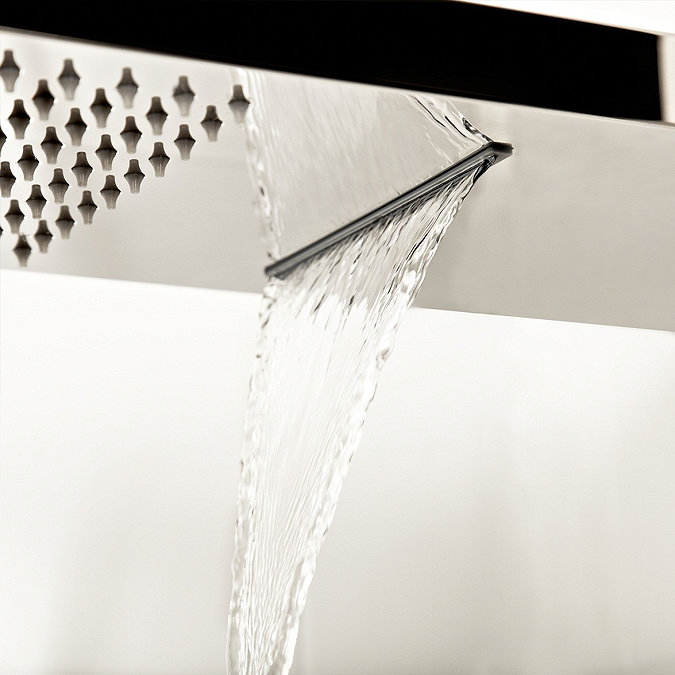

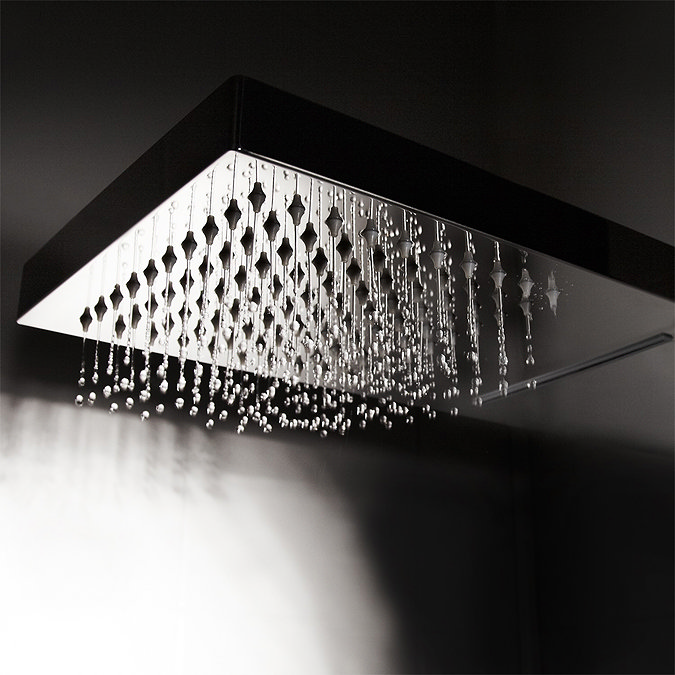

• Type: Overhead Fixed Shower Head with integrated arm, rectangular rain + waterfall functions
• Finish: Chrome Effect
• Material: Stainless Steel
• Mounting: Wall Mounted
• Maintenance: Rub-clean nozzles make this item easy to clean and maintain
• Inlet Connections: 1/2″ BSP
• Recommended Water Pressure: 0.5 – 3 bar
• Max Water Pressure: 8 bar
• Recommended Hot Water Temp: 37 – 57 °C
• Max Hot Water Temp: 73 °C

Guarantee: 5 Years (1 Year on serviceable parts, e.g., internal components such as check valves and cartridges)
Additional Information: Pictures are for illustrative purposes only. All measurements are approximate.

Comprises:

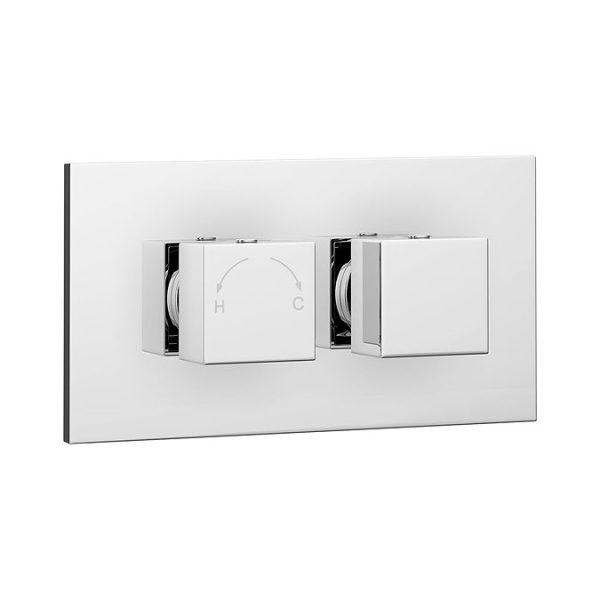

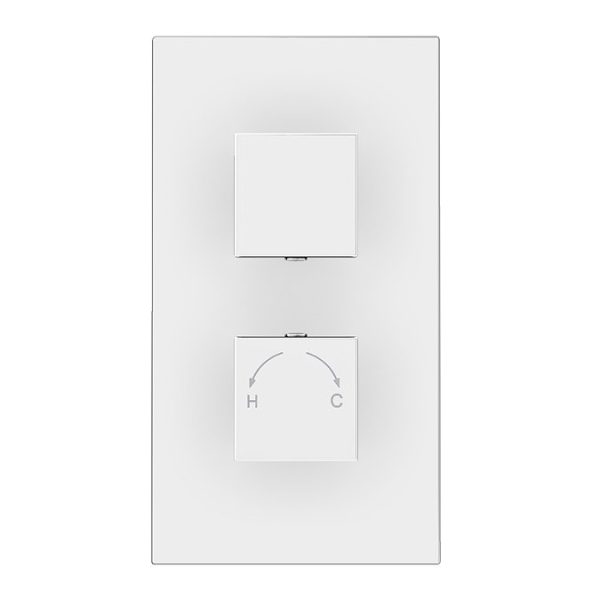

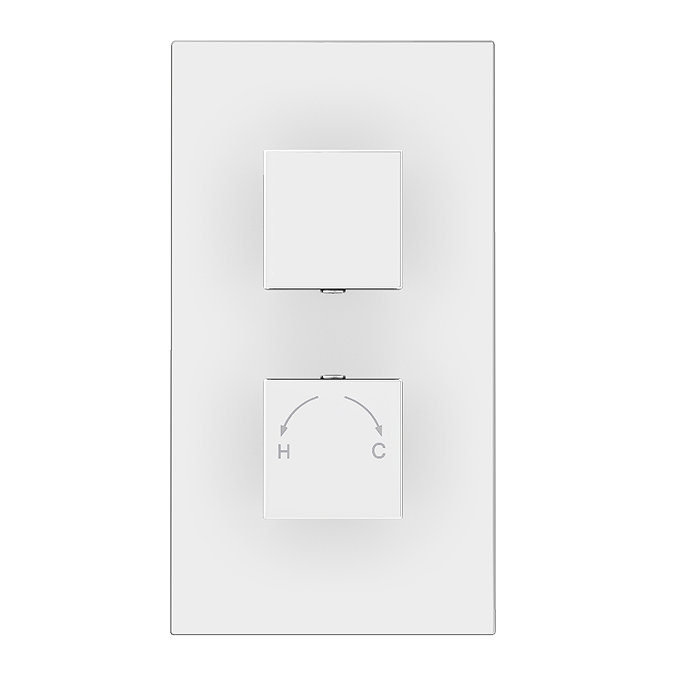

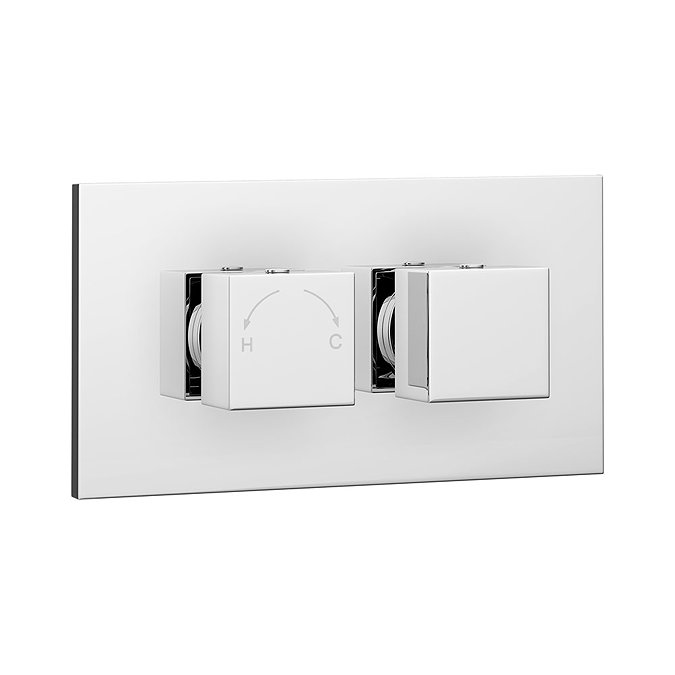

(1) Milan Concealed Twin Shower Valve with Built-in Diverter

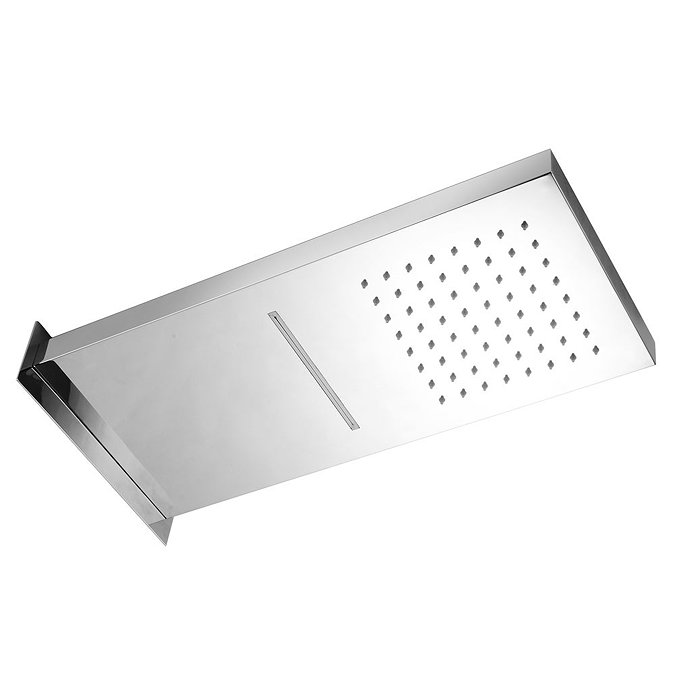

(1) Rectangular Shower Head with Water Blade

Gravity Fed Systems: If you live in an older property, there’s a good chance you have a low-pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar; therefore, we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
