Description

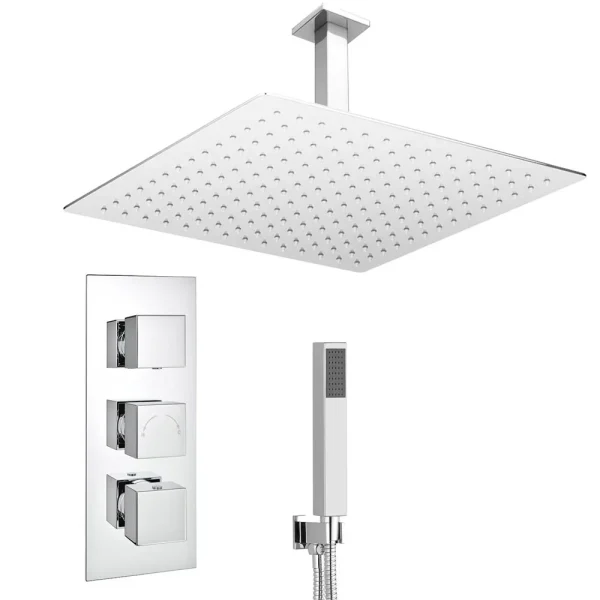

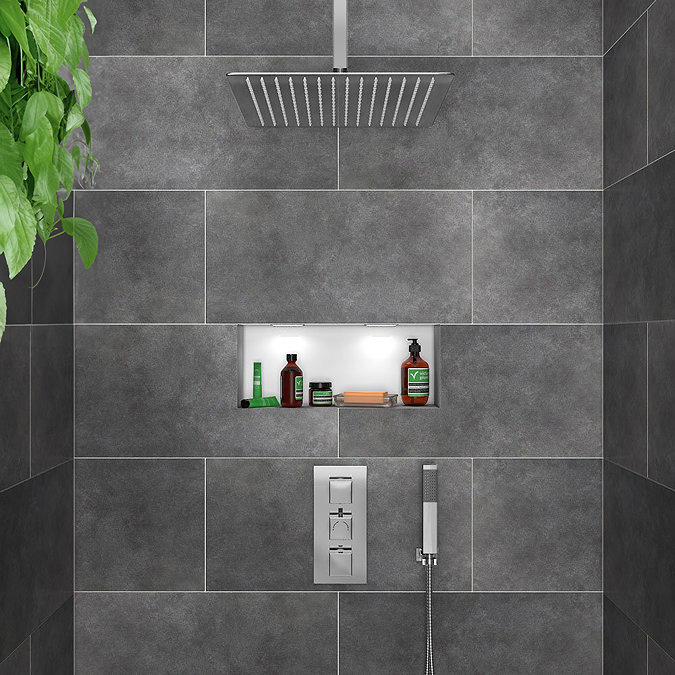

Milan Concealed Shower Package incl. 400x400mm Ceiling Mounted Square Rainfall Fixed Shower Head + Wall Mounted Handset Chrome
Bring a cool and contemporary aesthetic to your bathroom or wet room with the Milan Shower Package. The set includes a large rainfall shower head to add a touch of luxury to your space. A concealed 3 outlet shower valve lets you switch between the head and separate handheld shower or use them at the same time. Longing for a blissful shower experience? Use the intuitive handles to tailor the temperature and flow exactly to your liking. Each piece in this set has a simple, angular design and features a gleaming polished chrome finish for a distinctly modern look.
Shower Valve Details
- Width: 120mm
- Depth: 126mm
- Height: 280mm
- High Quality Design
- Finish: Polished Chrome
- Material: Brass Internals
- Thermostatically controlled
- Valve Handles: Square
- Rectangular Backplate
- Style: Modern

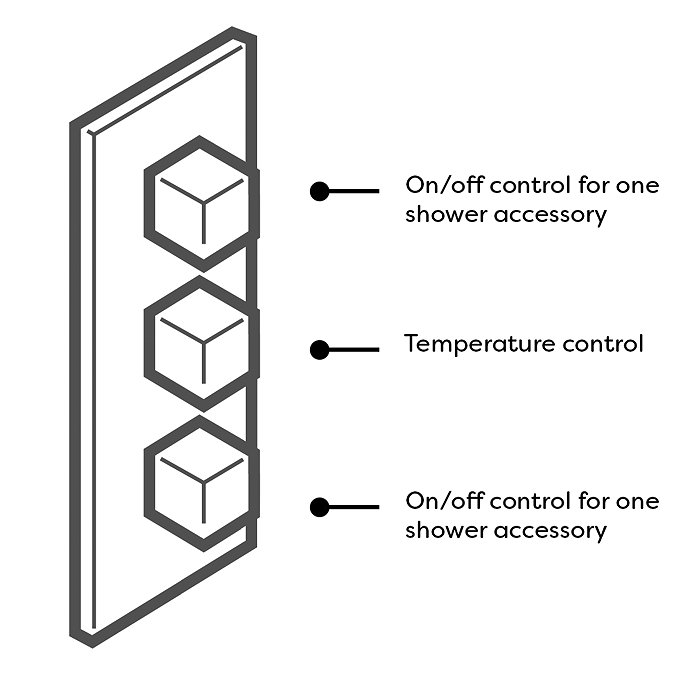

- Operates two points separately or simultaneously
- Water Pressure: 0.5 bar to 5 bar

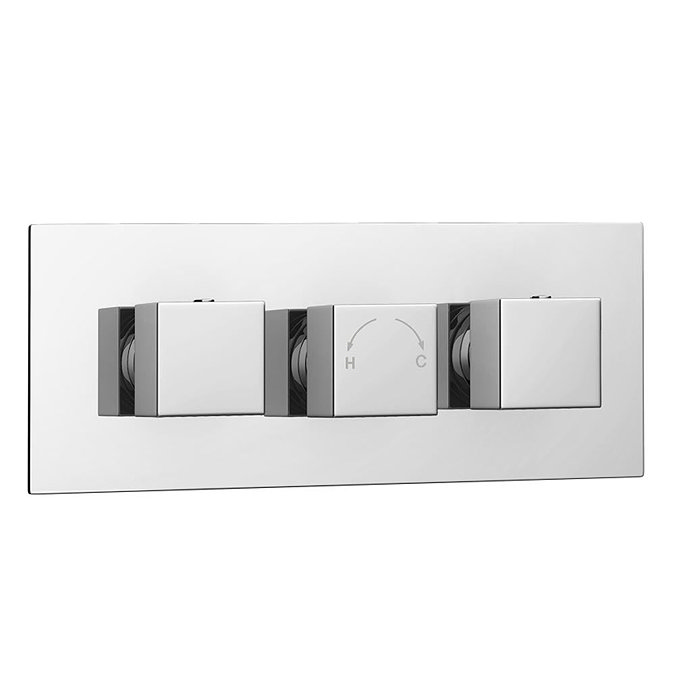

- Can be fitted vertically or horizontally
- Suitable for modern pressurised plumbing systems.
- Hot water temperature 55 to 85 Degrees
- The shower valve will not work efficiently on a gravity fed tank system unless a booster pump is installed.
- Should a pump be required we recommend a universal or negative head pump.

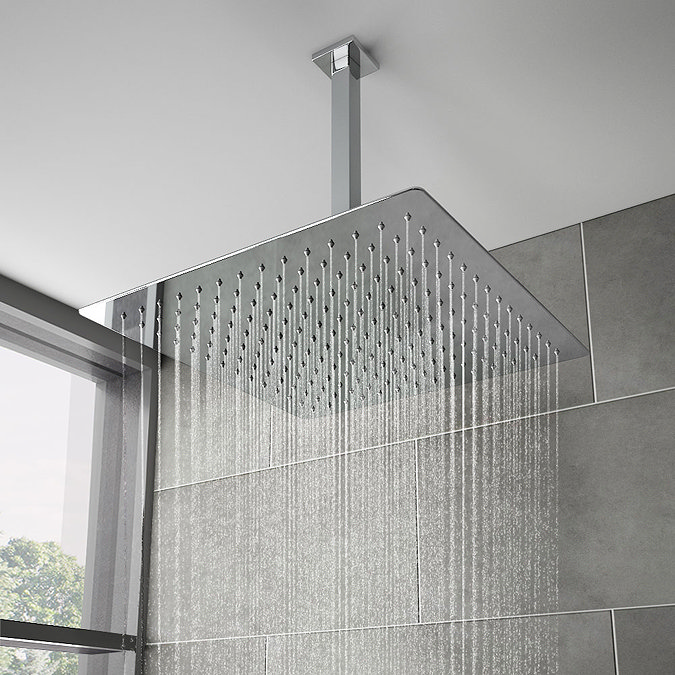

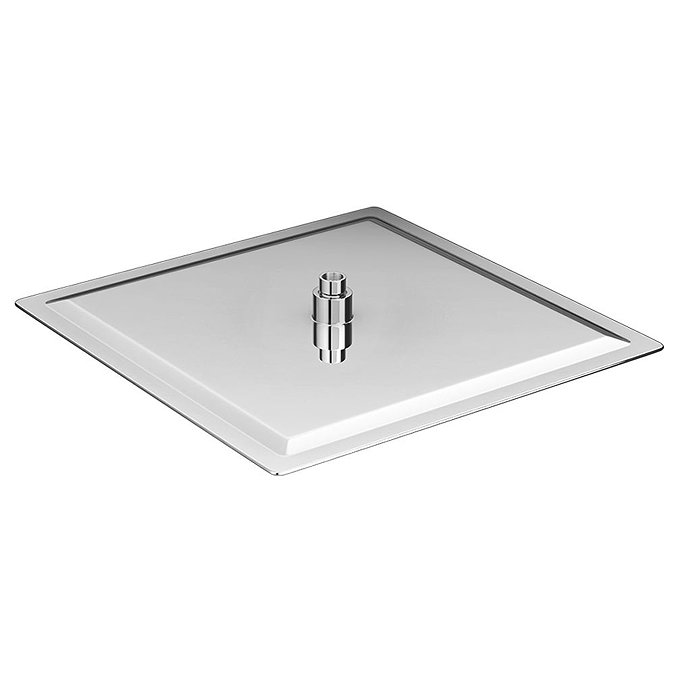

Shower Head Details
- Size: 400 x 400mm
- Style: Modern
- Shape: Square
- Colour/Finish: Chrome Effect
- Material: Stainless Steel
- Thickness/Profile: 7mm (excluding swivel joint)
- Pressure requirement: 0.5 bar minimum
- Inlet Connections: 1/2″ BSP
- Thin profile
- Stylish sleek minimalist design that looks great in any setting.
- Supplied with 360-degree swivel ball joint that allows you to adjust the angle of the shower head
- Rub clean nozzles makes this item easy to clean and maintain
Shower Arm Details
- Height: 150mm
- Finish: Chrome
- Product Type: Contemporary
- Ceiling Mounted
- Supply: Suitable for all plumbing systems
- Inlet Connections: 1/2″ BSP
- Working Pressures: Min 0.2bar, Max 8.0bar
- Supplied with metal back nut.
- Designed to be used in conjunction with shower heads/roses shower valves.
Square Outlet Elbow with Parking Bracket, Flex + Handset Details
- Depth: 63mm
- Height: 228mm
- Width: 40mm
- Manufactured To the Highest Standards
- Rectangular Handset with Built in Outlet
- Suitable for all plumbing systems
- 1.5m Shower flex – Brass / Chrome plated
- Outlet Elbow with Parking Bracket – Brass / Chrome plated
- Rectangular handset – ABS plastic / Chrome plated
- Rust resistant hose
- Highly polished finish
- Square handset holder
Product images are for illustrative purposes only and may differ from the actual product
All measurements are approximate
Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)
Comprises
(1) Milan Chrome Triple Square Concealed Thermostatic Shower Valve
(1) Milan Large Ultra-Thin Square Shower Head (400 x 400mm)
(1) Chrome Square Ceiling Fed Shower Arm
(1) Square Outlet Elbow with Parking Bracket, Flex + Handset
Gravity Fed Systems:
If you live in an older property, there’s a good chance you have a low-pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
