Milan Shower Bath + Exposed Shower Pack (1700 L Shaped with Screen + Panel)

Description

Milan Shower Bath + 2 Outlet Exposed Thermostatic Shower Package (1700mm L Shaped with Screen + Panel)

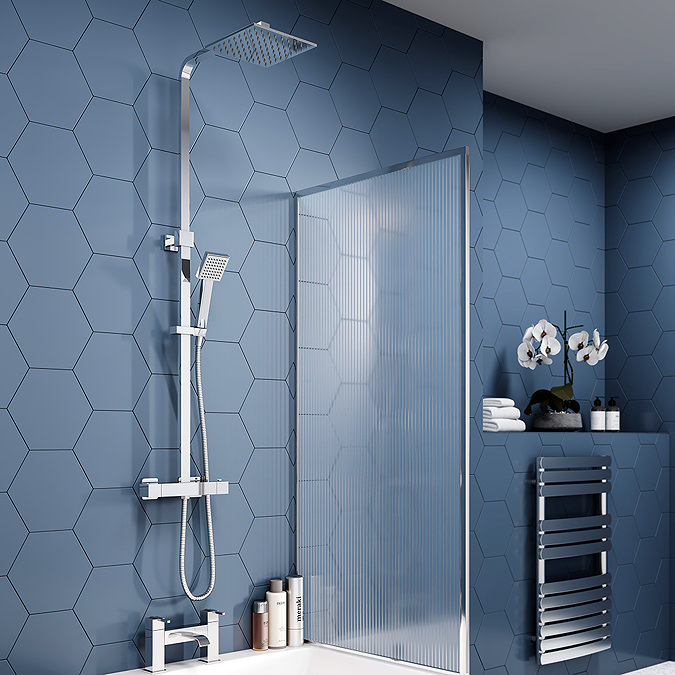

Spruce up a tired bath shower area with the Milan Shower Bath and Exposed Shower Pack. The L-shaped shower bath gives you room to stretch out when washing, extending to a roomy 1700mm length. It’s finished in gleaming gloss white for a modern look and comes complete with a hinged bath screen that prevents fixture-damaging splashes when using the accompanying chrome-plated shower. Its thermostatic function prevents scalding, so you can feel completely safe. Use the handset and slider for adjustable height, or the fixed head for a rainfall effect that provides fuller body coverage.

Available in left and right-handed versions. Please note, the optional bath end panel is sold separately.

Bath Details:

• Dimensions: 1700mm x 700mm (850mm at widest point)
• Colour/Finish: Gloss White
• Material: Acrylic
• Includes: Metal bath legs and quality acrylic front panel
• Guarantee: 5 Years
• Protective Film: The bath will have a protective plastic film which should be removed once installed

Bath Screen Details:

• Height: 1430mm
• Width: 795mm (Adjustment 780mm – 795mm)
• Colour/Finish: Polished Chrome
• Features: Reversible, hinged screen with fixed return, metal caps, 6mm toughened safety glass, suitable for use with square shower baths
• Guarantee: 5 Years

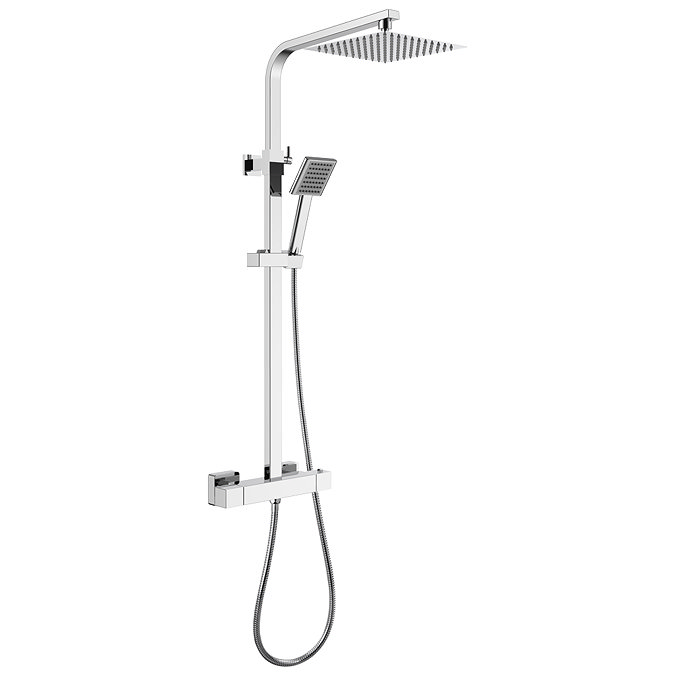

Exposed Shower Details:

• Dimensions:
• Rigid riser height: 730-1175mm
• Length of shower head arm: 305mm
• Overhead shower head size: 195 x 195mm
• Features:
• Shape: Square
• Style: Modern
• Thermostatic shower, comprising a square thermostatic bar valve and rigid riser kit with twin square shower heads
• High-quality design and build
• Adjustable height and handset holder
• Incorporates the latest ceramic disc technology
• Finished in highly polished chrome
• Thermostatic shower system that eliminates the risk of scalding
• Working pressure between 0.5 to 5.0 bar
• Minimalistic shower system
• 1.5m high-quality flexible hose
• Easy-to-clean rubber jets included on both the main shower head and handset
• Diverter incorporated to control flow between overhead and hand shower
• One fixed head and one handset
• Lightweight handset minimises risk of damage to bath and/or shower tray in case of accidental droppage
• Square thermostatic mixing valve of brass construction with built-in diverter and polished chrome finish
• Rigid riser with polished chrome finish
• Easy installation
• 150mm between pipe inlet centres
• Inlet Pipe Feeds: 15mm (1/2″ BSP)
• In the event of cold water failure, the valve will shut down to prevent scalding
• Shower valve comes with non-return valves
• Certain parts are chrome-plated plastic, not metal

Guarantee
Shower: 5 Years (1 Year on serviceable parts, for example, internal components such as check valves and cartridges)

Please Note:

End panel, taps, and waste not included
Iimages are for illustrative purposes only and all measurements are approximate.
Tap holes have to be drilled by the customer

Comprises:

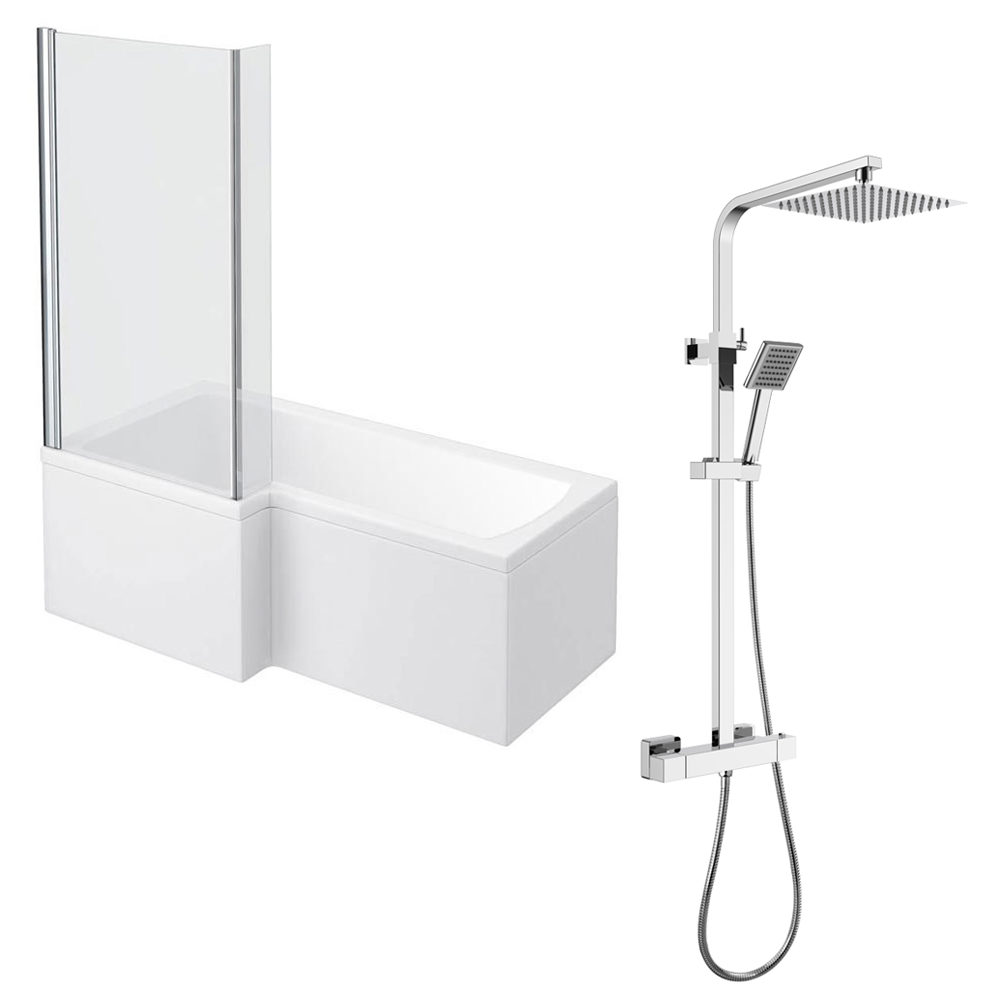

(1) 1700mm L-Shaped Square Shower Bath
(1) 1700mm L-Shaped Acrylic Front Panel
(1) 6mm Hinged Bath Screen
(1) Milan Modern Thermostatic Shower – Chrome

Gravity Fed Systems: If you live in an older property, there’s a good chance you have a low-pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar; therefore, we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
