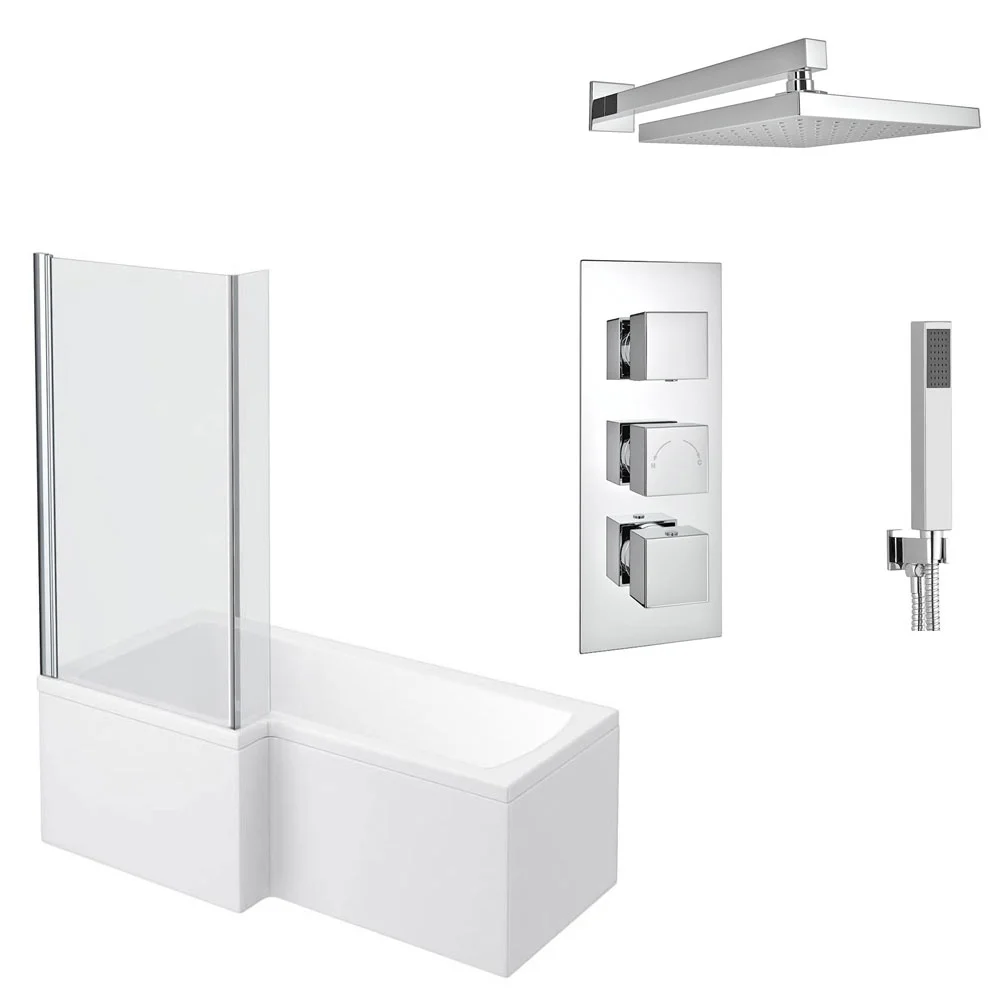

Milan Shower Bath + Concealed 2 Outlet Shower Pack (1700 L Shaped with Screen + Panel)

Description

Milan Shower Bath with 2 Outlet Concealed Thermostatic Shower Package (1700mm L Shaped with Screen + Panel)

The Milan shower bath with a concealed thermostatic shower package features a stylish overhead, rainfall-type square shower head and a handset for extra flexibility.

Modern shower baths allow for both showering and bathing space in the bathroom. This 1700mm shower bath comes with a hinged bath screen and matching front panel manufactured from high-quality gloss white acrylic.

All our shower baths are available in left- or right-hand configurations and are the ideal new solution for families looking to add a little luxury while keeping an eye on space. Please note, the optional bath end panel is sold separately.

Bath Details:

• Dimensions: 1700mm x 700mm (850mm at widest point)
• Colour/Finish: Gloss White
• Material: Acrylic
• Includes: Metal bath legs and quality acrylic front panel
• Guarantee: 5 Years

Bath Screen Details:

• Height: 1430mm
• Width: 795mm (Adjustment 780mm – 795mm)
• Colour/Finish: Polished Chrome
• Features: Reversible, hinged screen with fixed return, metal caps, 6mm toughened safety glass, suitable for use with square shower baths
• Guarantee: 5 Years

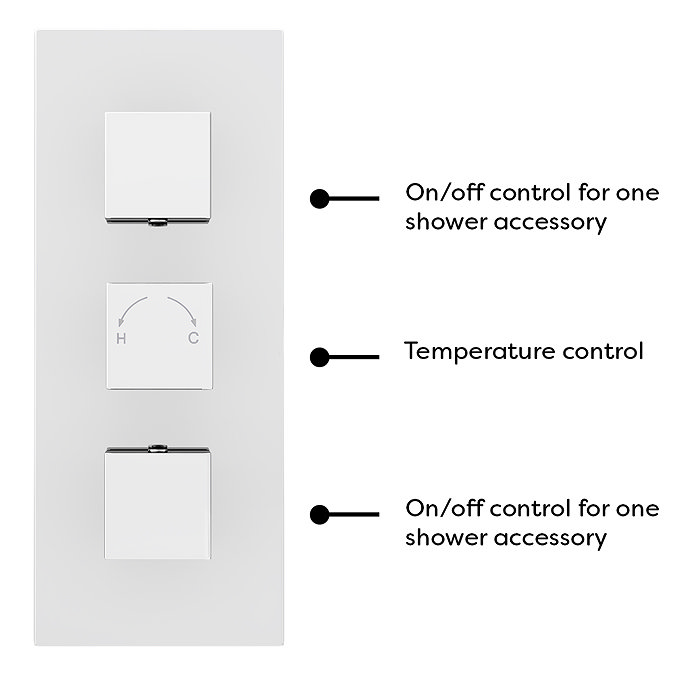

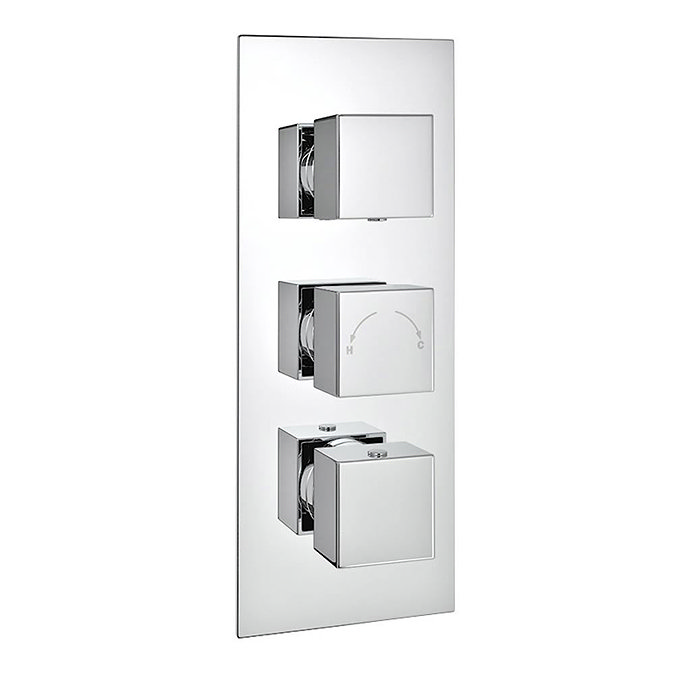

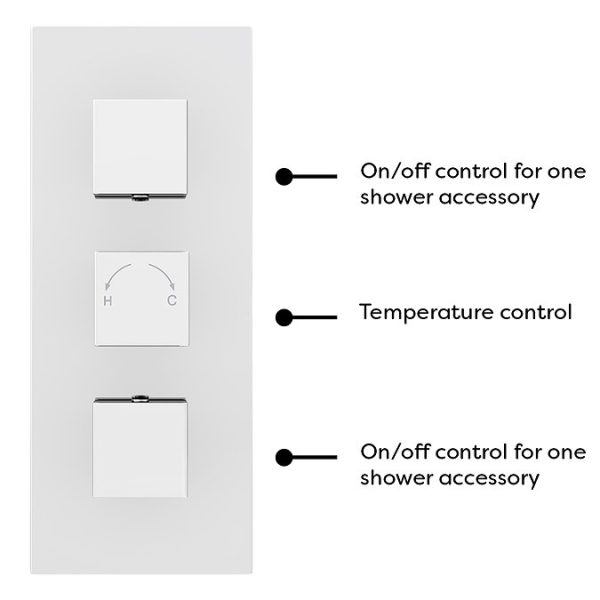

Concealed Shower Valve Details:

• Design: High-quality design
• Finish: Polished Chrome

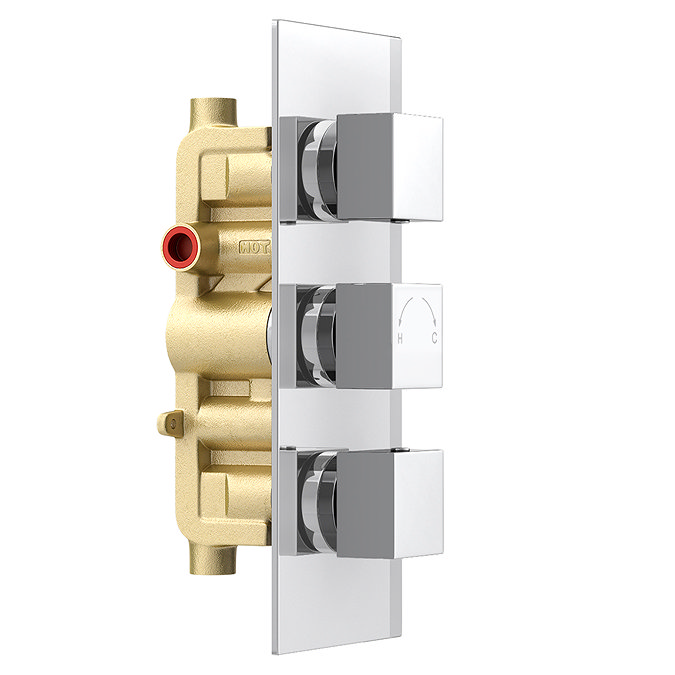

• Material: Brass internals
• Features:
• Thermostatically controlled
• Valve handles: Square
• Rectangular faceplate
• Modern style
• Operates two points separately or simultaneously
• Water pressure: 0.5 bar to 5 bar
• Suitable for modern pressurised plumbing systems

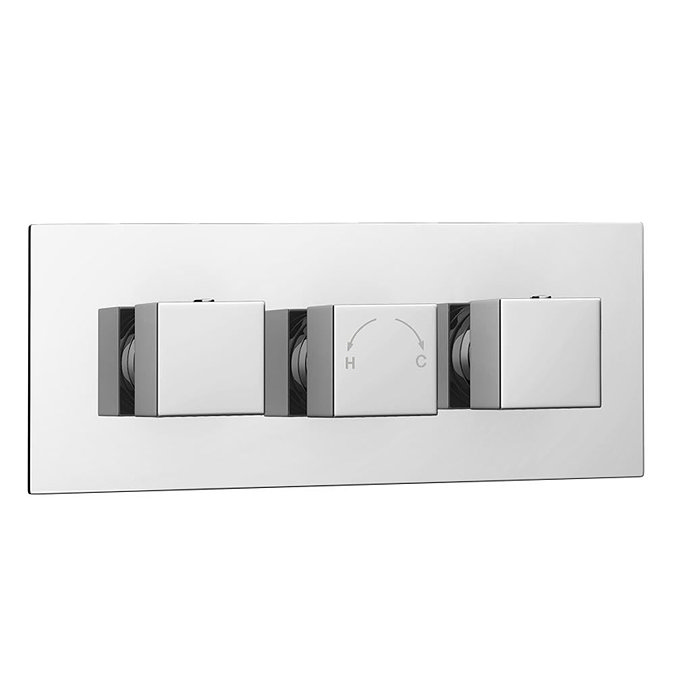

• Can be fitted vertically or horizontally
• Hot water temperature: 55 to 85 Degrees
• Should a pump be required, we recommend a universal or negative head pump
• The shower valve will not work efficiently on a gravity-fed tank system unless a correct booster pump is installed
• Guarantee: 5 Years (1 Year on serviceable parts, for example, internal components such as check valves and cartridges)

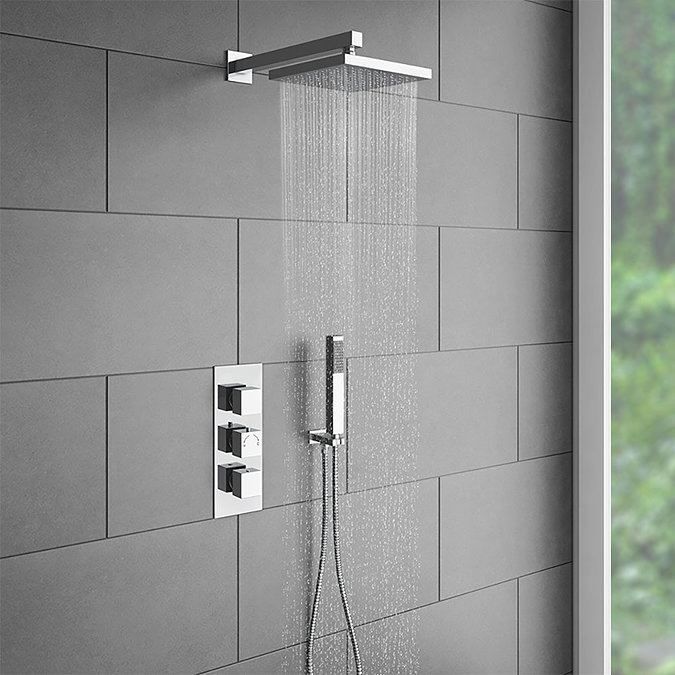

Overhead Shower Head with Arm Details:

• Shower Head Dimensions: 200 x 200mm
• Style: Modern
• Colour/Finish: Chrome
• Type: Rainfall
• Pressure Requirement: 0.5 bar minimum
• Features: Supplied with a swivel joint and wall-mounted square arm, rub-clean nozzles for easy maintenance
• Note: Shower head is chrome-plated plastic, not metal. Installation of the arm requires rear access behind the wall.
• Guarantee: 2 Years

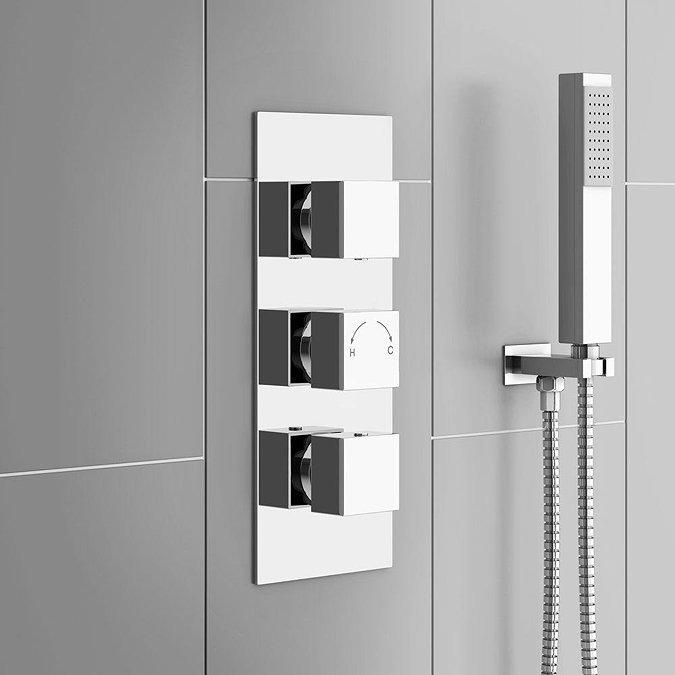

Shower Handset Details:

• Manufactured to the highest standards
• Features:
• Rectangular handset with built-in outlet
• Suitable for all plumbing systems
• 1.5m shower flex – brass/chrome plated
• Outlet elbow with parking bracket – brass/chrome plated
• Rectangular handset – ABS plastic/chrome plated
• Rust-resistant hose
• Highly polished finish
• Square handset holder
• Guarantee: 5 Years

Please Note:

End panel, taps, and waste not included
All measurements are approximate
Tap holes must be drilled by the customer

Comprises:

(1) 1700mm L-Shaped Square Shower Bath
(1) 1700mm L-Shaped Acrylic Front Panel
(1) 6mm Hinged Bath Screen
(1) Milan Triple Square Concealed Thermostatic Shower Valve – Chrome
(1) Milan 200 x 200mm Fixed Square Shower Head + Wall Mounted Arm
(1) Square Outlet Elbow with Parking Bracket, Flex + Handset

Gravity Fed Systems: If you live in an older property, there’s a good chance you have a low-pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar; therefore, we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
