Milan Shower Bath + Concealed 1 Outlet Shower Pack (1700 L Shaped with Screen + Panel)

Description

Milan Shower Bath + 1 Outlet Concealed Thermostatic Shower Package (1700mm L Shaped with Screen and Panel)

The Milan Shower Bath with a concealed thermostatic shower package features a stylish overhead, rainfall-type ultra-thin square shower head.

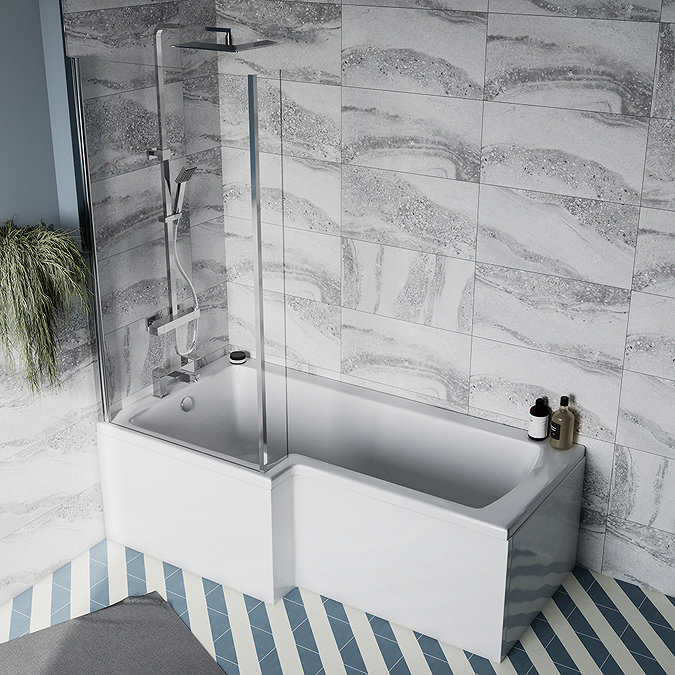

Modern shower baths allow for both showering and bathing space in the bathroom. This 1700mm shower bath comes with a hinged bath screen and matching front panel manufactured from high-quality gloss white acrylic.

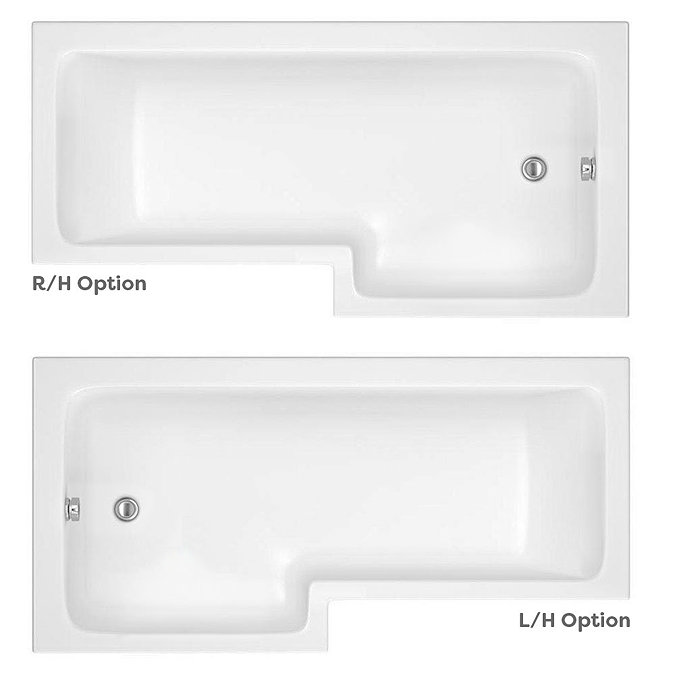

All our shower baths are available in left or right-hand configurations and are the ideal new solution for families looking to add a little luxury while keeping an eye on space. Please note, the optional bath end panel is sold separately.

Bath Details:

• Dimensions: 1700mm x 700mm (850mm at widest point)
• Colour/Finish: Gloss White
• Material: Acrylic
• Includes: Metal bath legs and quality acrylic front panel
• Guarantee: 5 Years

Bath Screen Details:

• Height: 1430mm
• Width: 795mm (Adjustment 780mm – 795mm)
• Colour/Finish: Polished Chrome
• Features: Reversible, hinged screen with fixed return, metal caps, 6mm toughened safety glass, suitable for use with square shower baths
• Guarantee: 5 Years

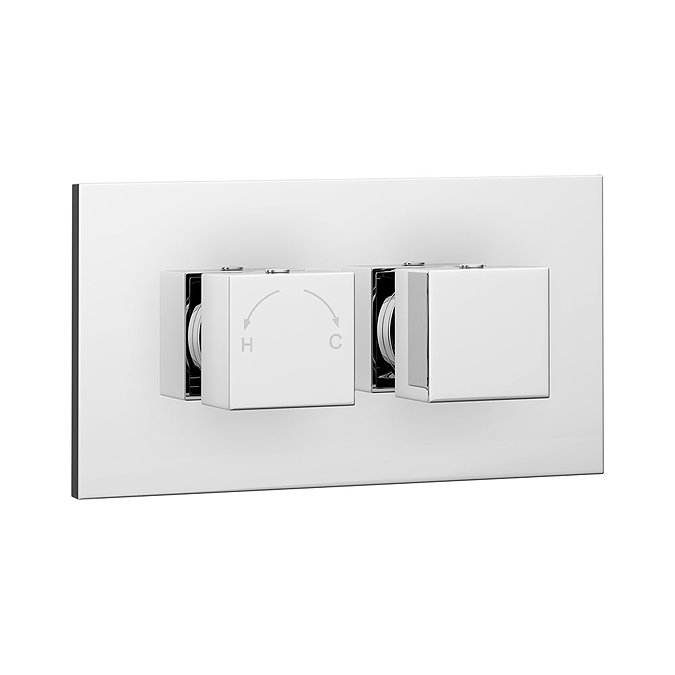

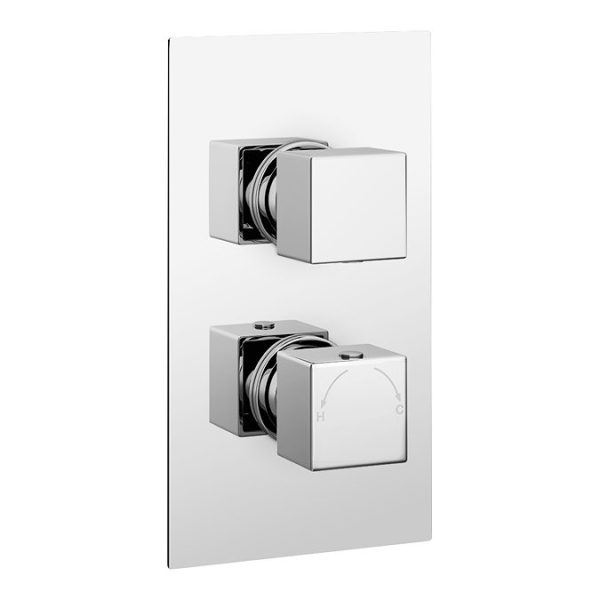

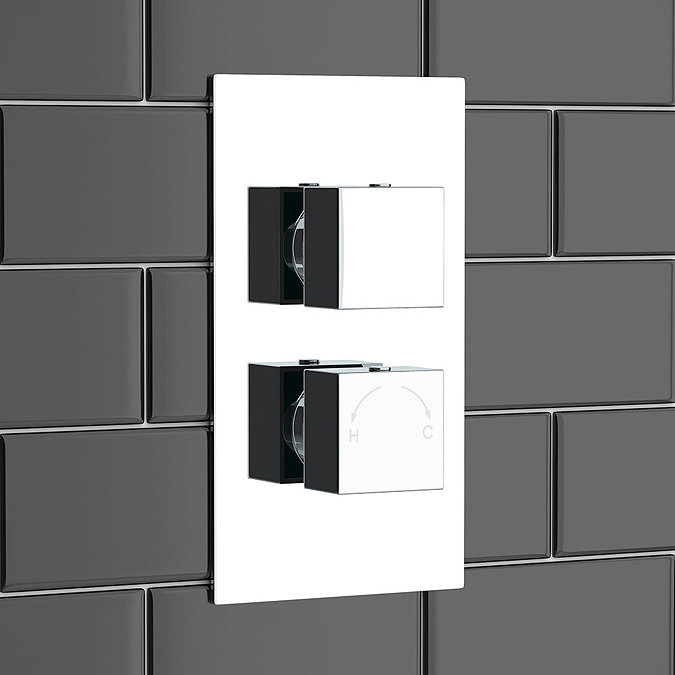

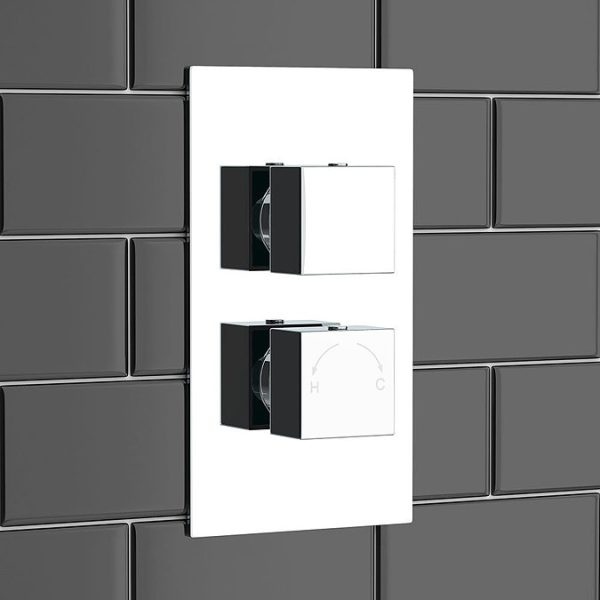

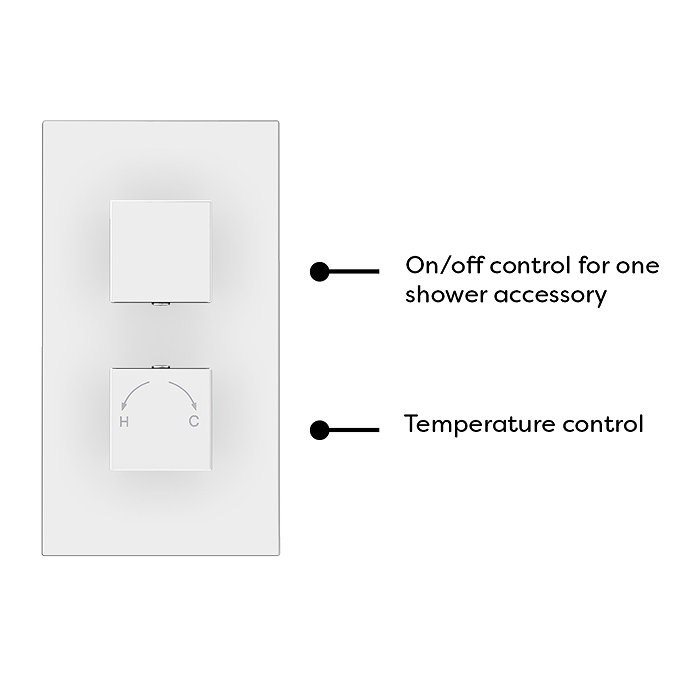

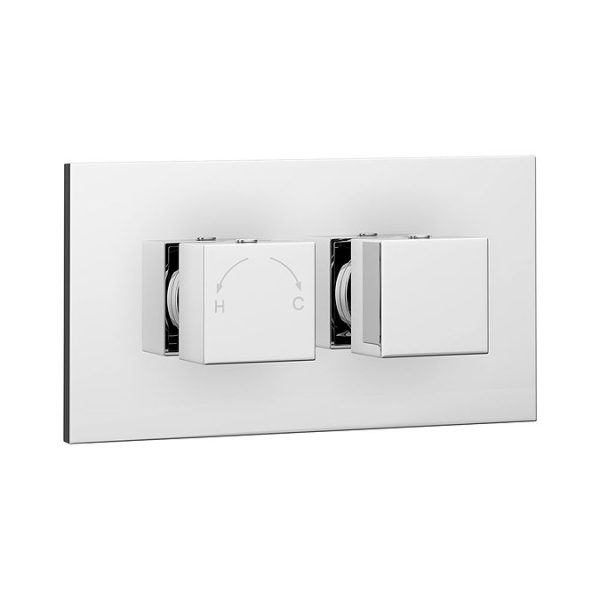

Concealed Shower Valve Details:

• Style: Modern
• Colour/Finish: Chrome Plated
• Valve Handles: Square
• Material: Brass Internals
• Features:
• Thermostatically controlled
• Water Pressure: 0.5 bar to 5 bar
• Rectangular Backplate
• For use with 1 Outlet
• Can be fitted vertically or horizontally
• Suitable for modern pressurised plumbing systems
• Hot water temperature: 55 to 85 Degrees
• Should a pump be required, we recommend a universal or negative head pump
• The shower valve will not work efficiently on a gravity-fed tank system unless a good booster pump is installed
• Guarantee: 5 Years (1 Year on serviceable parts, for example, internal components such as check valves and cartridges)

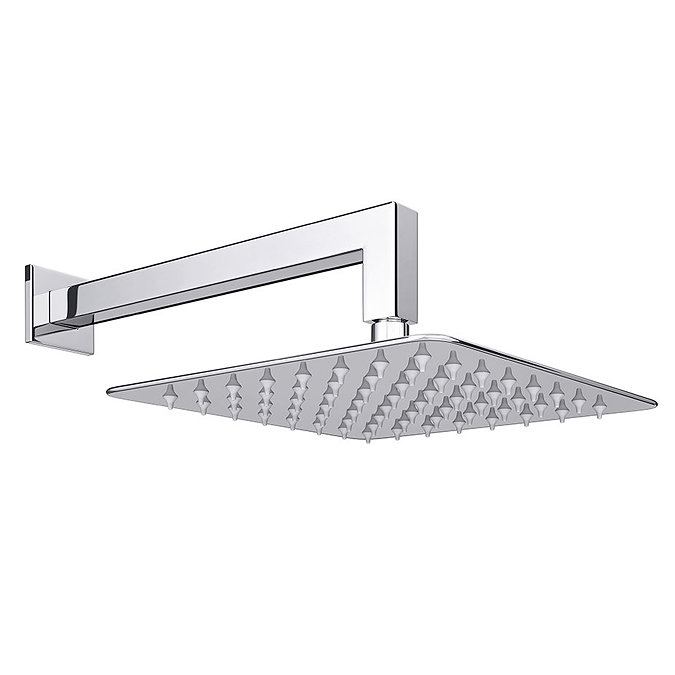

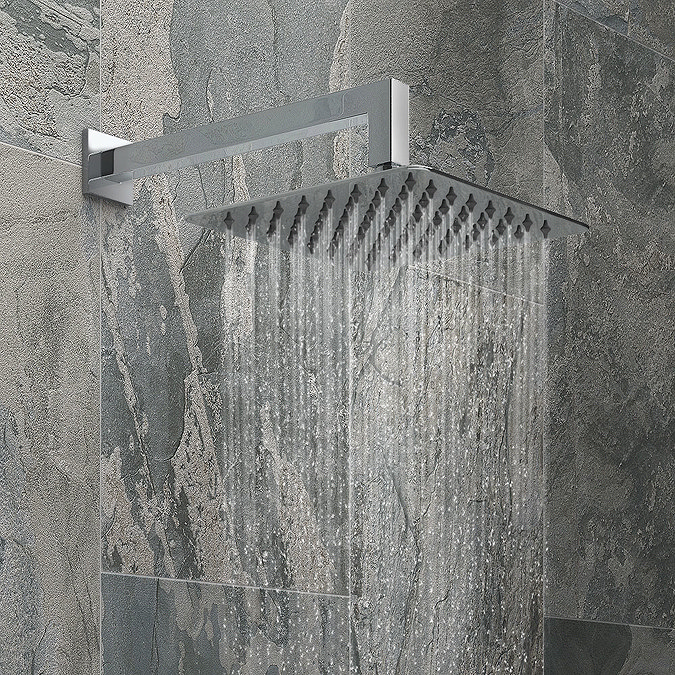

Shower Head and Arm Details:

• Style: Modern
• Colour/Finish: Polished Chrome
• Material: Stainless Steel
• Shower Head: 200 x 200mm
• Head Thickness: 3mm (excluding swivel joint)
• Mounting: Wall mounted
• Type: Rainfall
• Pressure Requirement: 0.5 bar minimum
• Inlet Connections: 1/2″ BSP
• Features: Supplied with swivel joint, rub-clean nozzles for easy maintenance
• Guarantee: 5 Years

Please Note:

End panel, taps, and waste not included
All measurements are approximate
Tap holes must be drilled by the customer

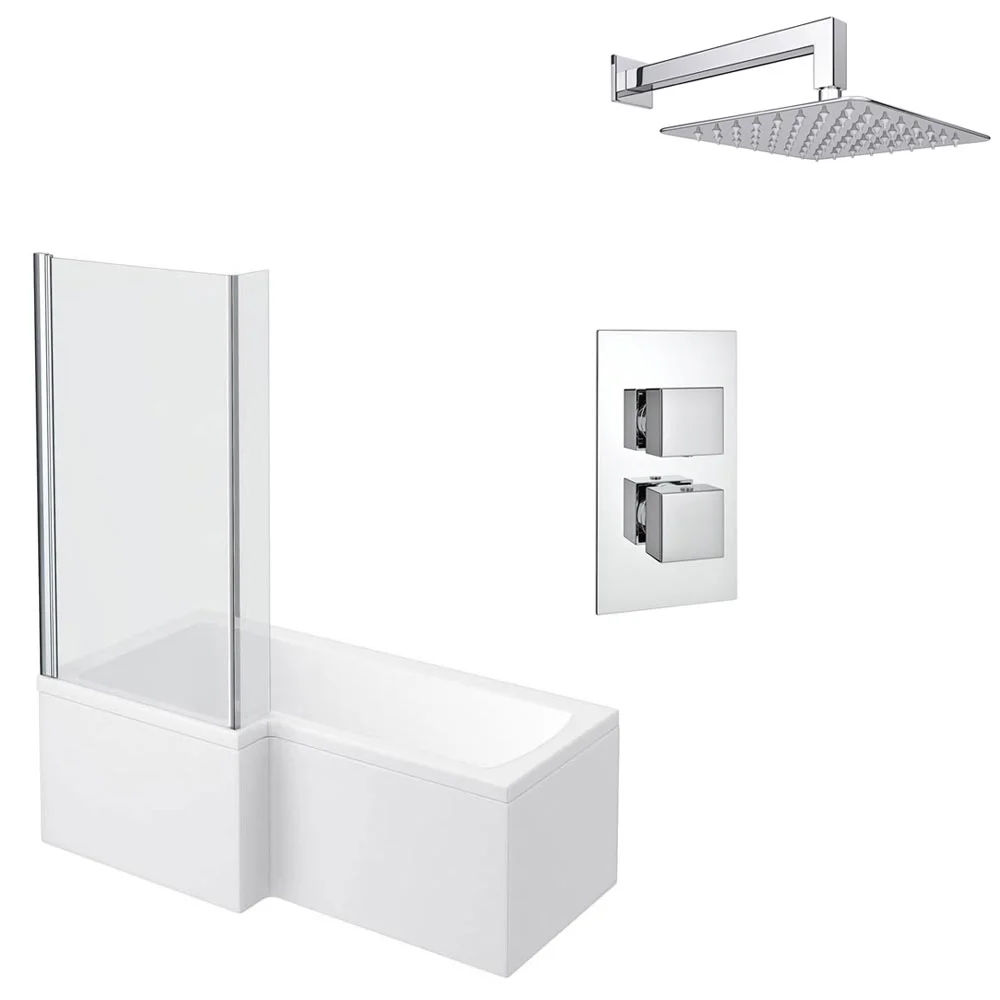

Comprises:

(1) 1700mm L-Shaped Square Shower Bath
(1) 1700mm L-Shaped Acrylic Front Panel
(1) 6mm Hinged Bath Screen
(1) Milan Twin Modern Square Concealed Shower Valve – Chrome
(1) Milan Square Wall Mounted 90 Degree Bend Shower Arm – Chrome
(1) Milan Ultra-Thin Square Shower Head with Swivel Joint (200 x 200mm)

Gravity Fed Systems: If you live in an older property, there’s a good chance you have a low-pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar; therefore, we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
