Milan Concealed Shower Valve with Slide Rail Kit + Wall Mounted Fixed Head

Description

Milan Concealed Shower Valve with Slide Rail Kit + Wall Mounted Fixed Head Chrome

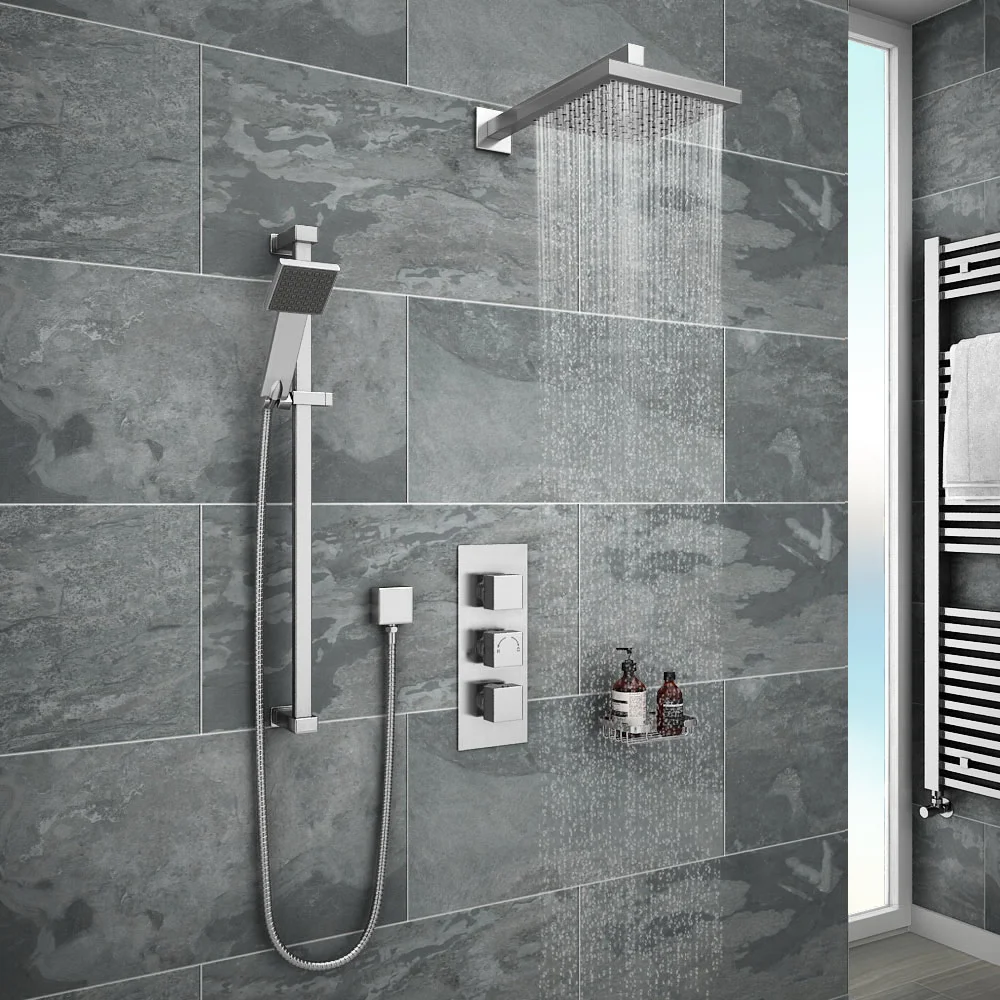

This Concealed Shower Mixer from Milan combines sleek, ultra-modern design with a range of ways to vary your experience. Its thermostatic valve is hidden away neatly in the wall, leaving only the contemporary chrome control plate on display for an uncluttered look. The overhead shower and handset boast a distinctive square design and can be operated either separately or simultaneously, so you can choose exactly how and where to direct the flow.

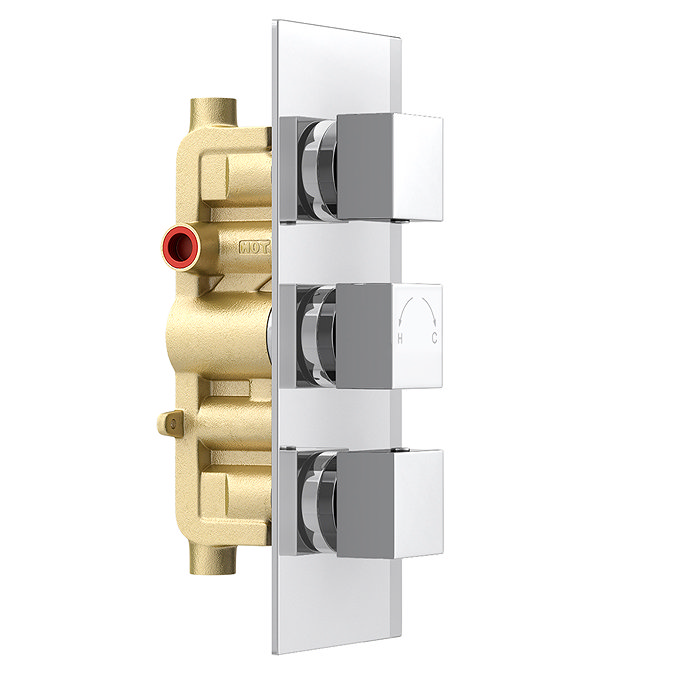

Shower Valve Details

• Width: 120mm
• Depth: 126mm
• Height: 280mm
• High Quality Design
• Finish: Polished Chrome

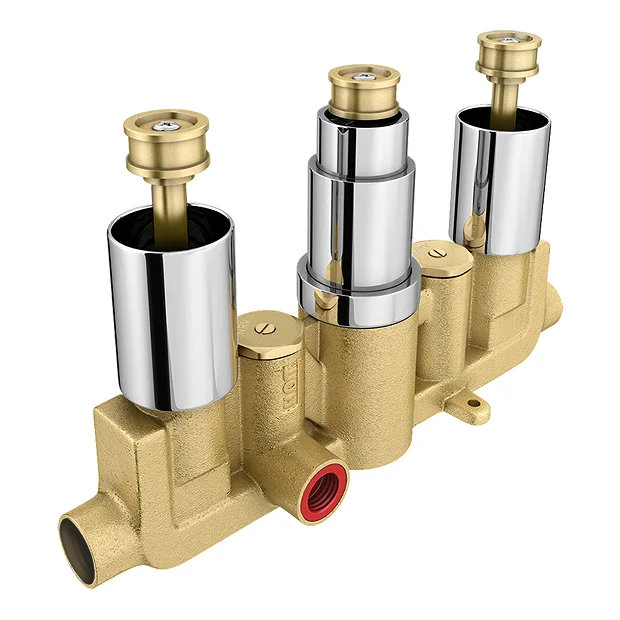

• Brass Internals
• Thermostatically controlled
• Valve Handles: Square

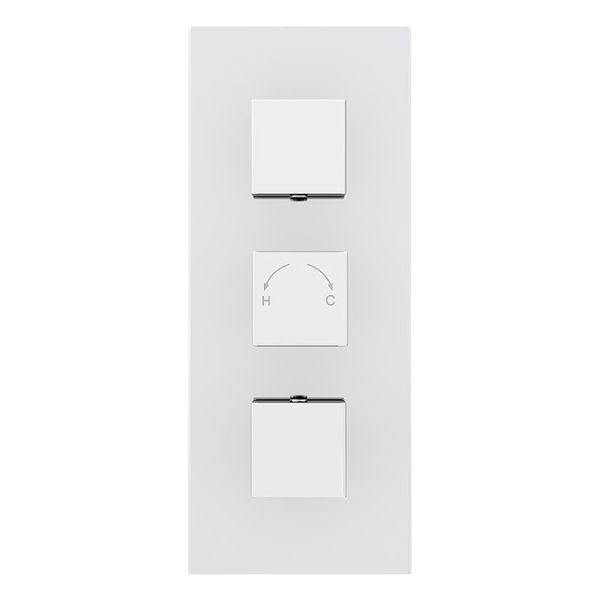

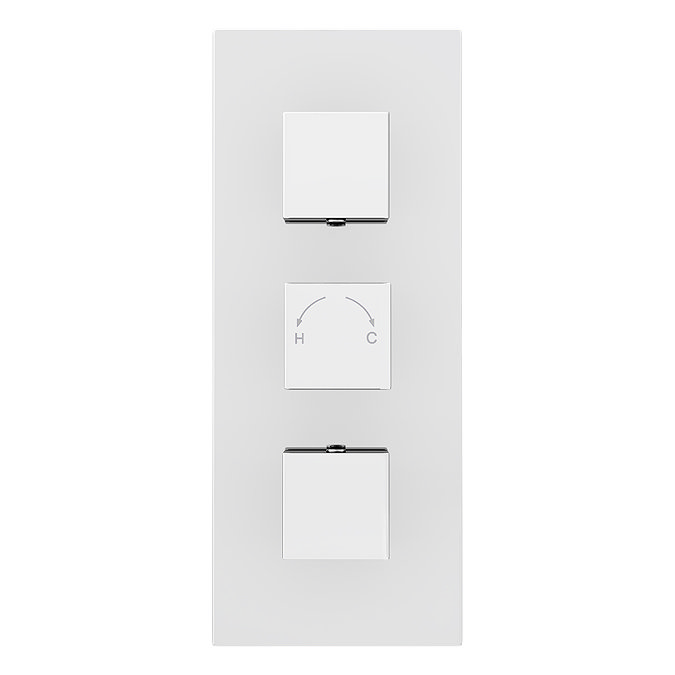

• Rectangular Faceplate
• Outlets: 2
• Style: Modern

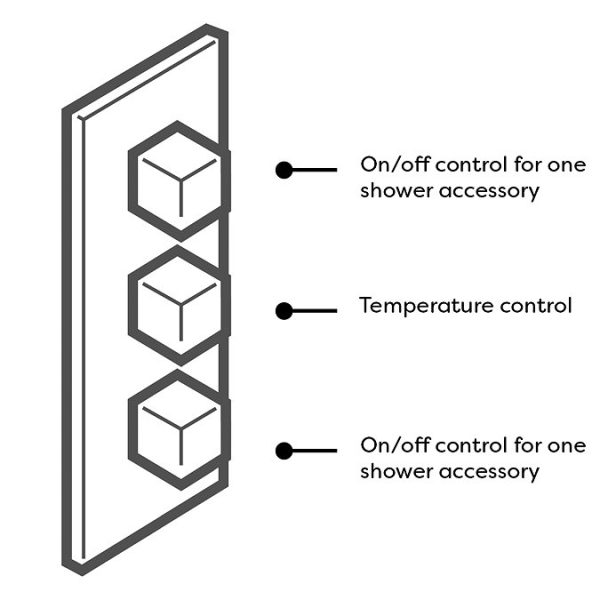

• Operates two points separately or simultaneously
• Water Pressure: 0.5 bar to 5 bar
• Suitable for modern pressurised plumbing systems.
• Can be fitted vertically or horizontally
• Hot water temperature 55 to 85 Degrees
• Should a pump be required we recommend a universal or negative head pump

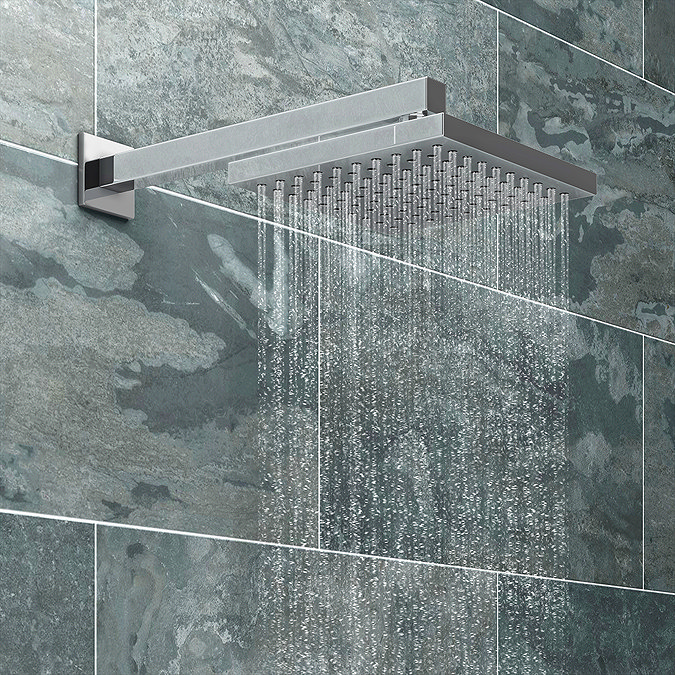

Shower Head Details

• Shower head dimensions: 200 x 200mm
• Shower arm length: 354mm
• Style: Modern
• Colour/Finish: Chrome
• Pressure requirement 0.5 bar minimum
• Supplied with swivel joint and wall mounted square arm.
• Shower head chrome plated plastic, not metal.
• Installation of the arm requires rear access behind the wall.

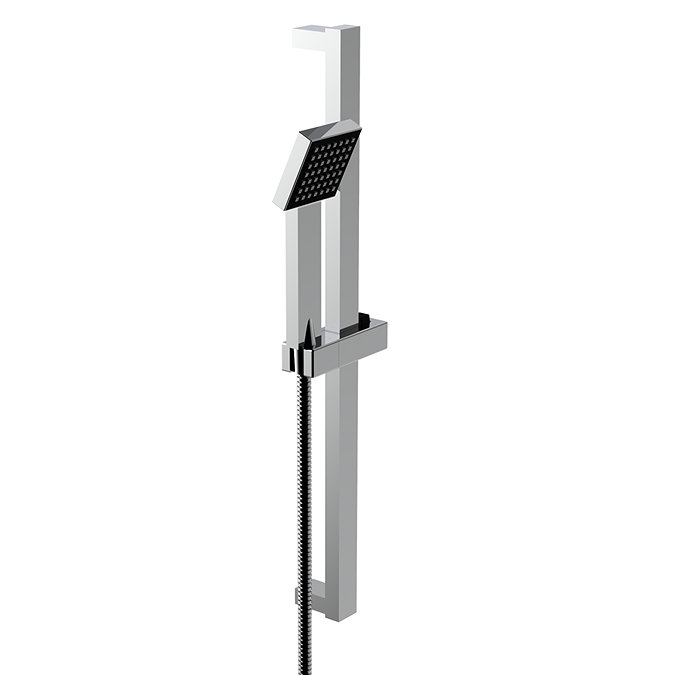

Slide Rail Kit Details

• Height: 602mm
• Depth: 58mm
• Style: Modern
• Finish: Chrome
• Internal Components: Made of brass
• Recommended Minimum Pressure: 0.1 bar for optimal performance
• Note: Some components are chrome-plated plastic, not metal.

Pictures for illustrative purposes only

Shower head and arm guaranteed for 2 years.

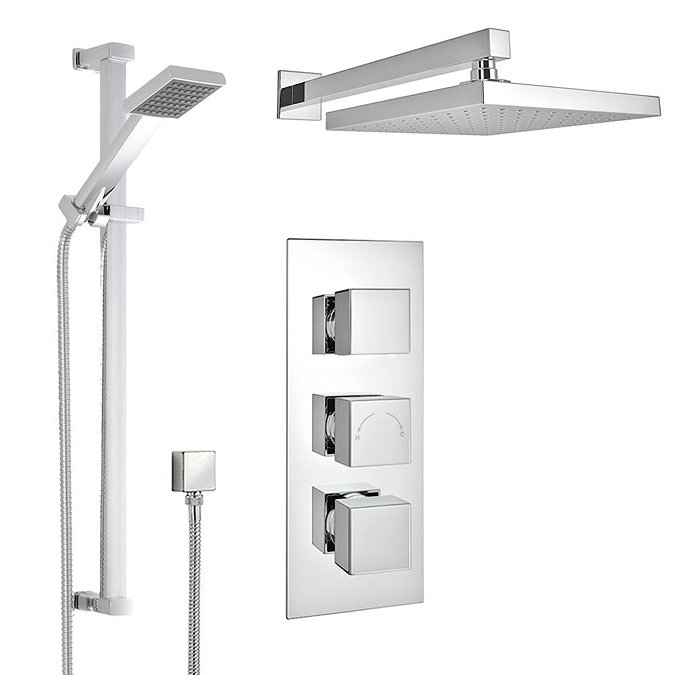

Comprises

(1) 200 x 200mm Square Head
(1) Square Shower Arm
(1) Triple Square Concealed Thermostatic Shower Valve
(1) Rectangular Slide Rail Kit with Square Outlet Elbow

Gravity Fed Systems:
If you live in an older property, there’s a good chance you have a low-pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
