Milan 2 Outlet Shower System (Fixed Shower Head + Overflow Bath Filler)

Description

Milan Modern Concealed Shower System (2 Outlet Triple Shower Valve, Fixed Shower Head + Overflow Bath Filler)

The Milan shower system epitomizes minimalist elegance with its triple concealed thermostatic shower valve, complete with stylish square handles. It includes a wall-mounted shower head and an overflow bath filler with a click-clack waste, adding substantial elegance to any modern bathroom.

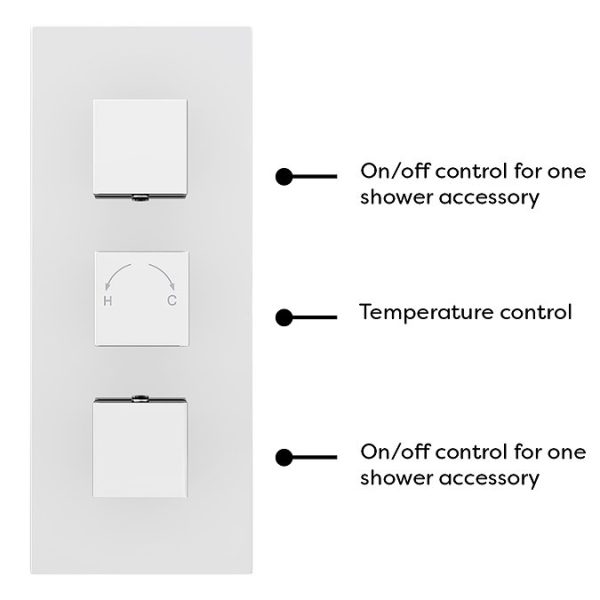

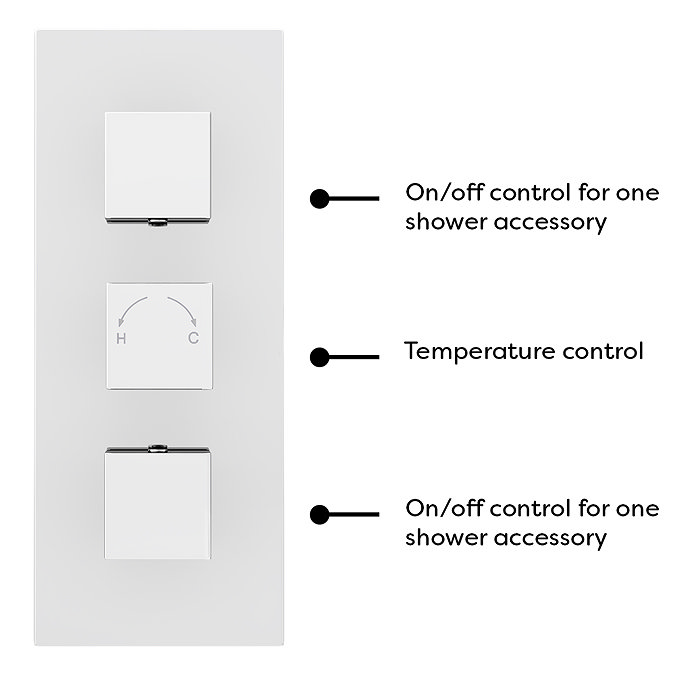

This sleek concealed thermostatic shower system provides thermostatic showering through three easy-to-operate controls, offering separate adjustments for temperature and flow. It can operate two outlets—either separately or simultaneously (fixed head and overflow bath filler).

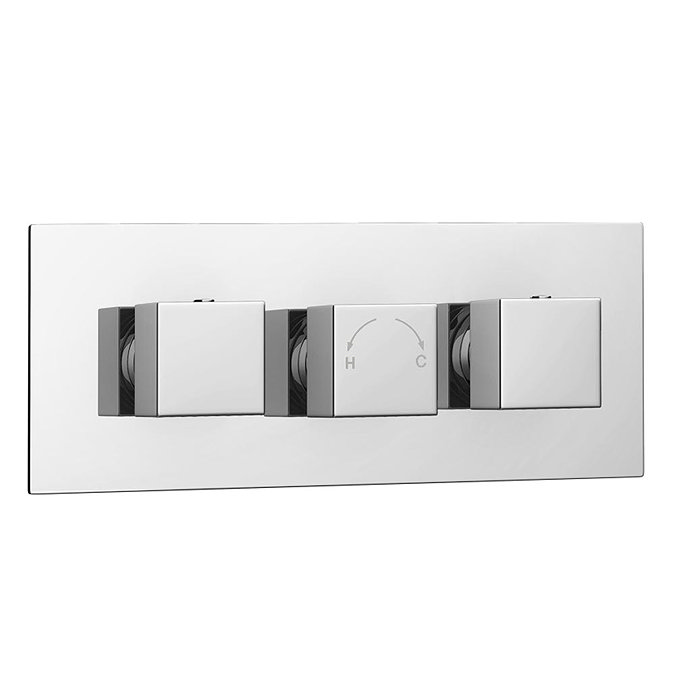

Shower Valve Details:

• Width: 120mm
• Depth: 126mm
• Height: 280mm
• Design: High-Quality Modern Style
• Finish: Polished Chrome
• Material: Brass Internals
• Temperature Control: Thermostatically controlled for safety
• Handles: Square
• Backplate: Rectangular
• Outlets: 2
• Water Pressure: Suitable for 0.5 bar to 5 bar
• Installation: Can be fitted vertically or horizontally
• Temperature Range: Hot water temperature from 55 to 85 Degrees
• Note: Inefficient on gravity-fed tank systems without a booster pump. A universal or negative head pump is recommended (sold separately).

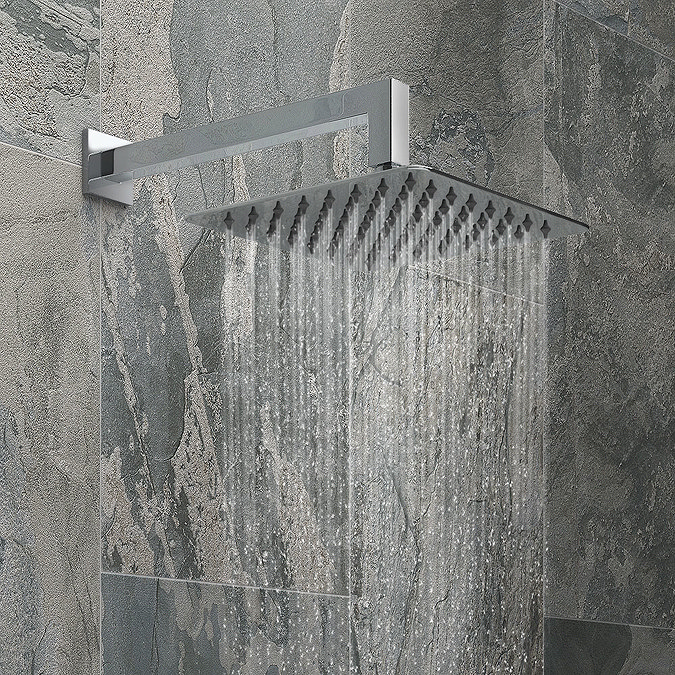

Shower Head + Arm Details:

• Style: Modern
• Colour/Finish: Polished Chrome
• Material: Stainless Steel
• Dimensions: 200 x 200mm Shower Head, 3mm Thickness (excluding swivel joint), 388mm Arm Length
• Mounting: Wall-mounted with a 90-degree bend
• Pressure Requirement: Minimum 0.5 bar
• Connections: 1/2″ BSP Inlet
• Features: Swivel joint and rub-clean nozzles for easy maintenance

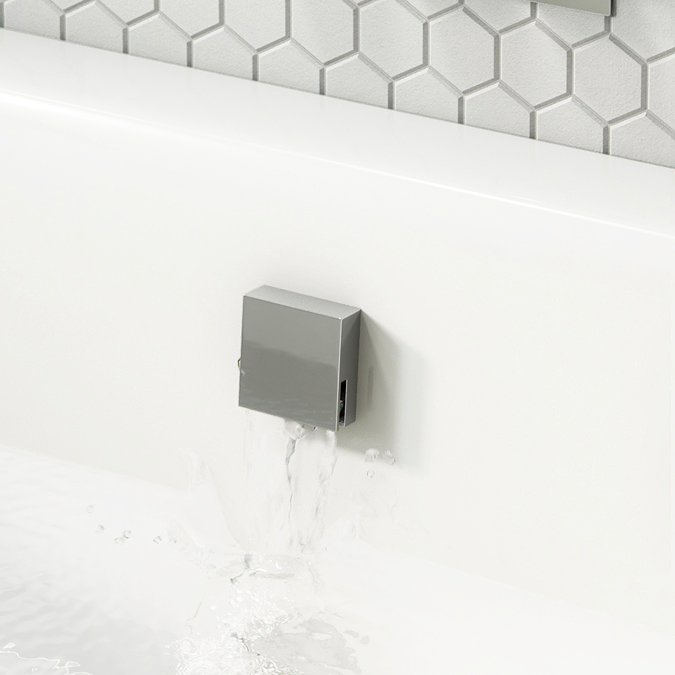

Square Slimline Freeflow Bath Filler Waste Details:

• Shape: Square
• Colour: Chrome
• Length: 643mm
• Type: Freeflow Bath Filler Waste and Overflow
• Includes: Click-clack waste
• Compatibility: Suitable for single and double-ended baths and medium-pressure systems (0.5 bar and above)
• Installation Note: Must be fitted on a flat edge.

Guarantee: 5 years, with a 1-year warranty on serviceable parts such as check valves and cartridges.

Please note: All measurements are approximate, and images are for illustrative purposes only.

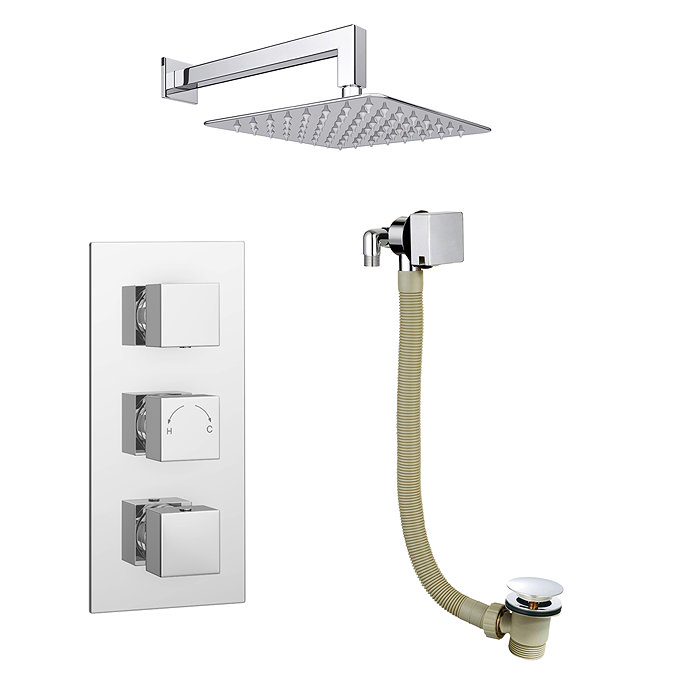

Package Comprises:

(1) Triple Square Concealed Thermostatic Shower Valve
(1) Square Wall Mounted 90 Degree Bend Shower Arm
(1) 200 x 200mm Ultra-Thin Square Shower Head with Swivel Joint
(1) Square Slimline Freeflow Bath Filler Click Clack Waste

For Gravity Fed Systems: Owners of older properties with low-pressure gravity-fed systems will require a minimum pressure of 0.5 bar for this shower valve. We recommend installing a negative or universal pump (sold separately) for optimal performance. Positive pumps are not compatible.
