Hudson Reed Topaz Lever Wall Mounted Bath Filler

Description

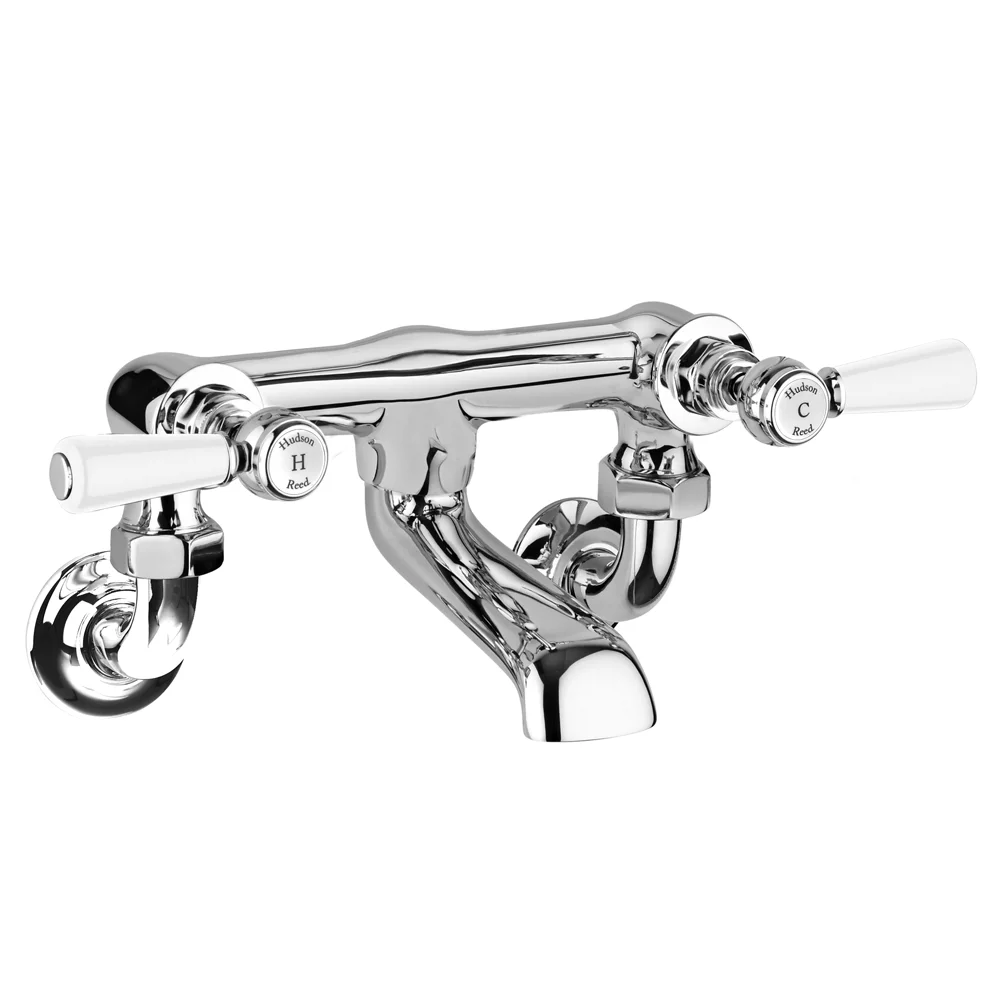

Hudson Reed Topaz Lever Wall Mounted Bath Filler – BC303HLWM

The Hudson Reed Topaz Edwardian style lever deck mounted bath tap offers the perfect upgrade for any traditional bathroom. Although these fittings are suitable for low pressure, we recommend a minimum operating pressure of 0.2 bar for best performance.

Product Details

• Height: 175mm
• Width: 338mm
• Depth: 217mm
• Height Of Spout: 63mm
• Tap Spout Projection: 121mm
• Style: Traditional
• Colour/Finish: Polished Chrome / White
• Material: Brass
• Deck Mounted
• Stunning traditional bath filler offering a timeless design
• Ceramic quarter turn technology for ease of use
• High quality internal brass for long life
• Lever taps giving an authentic traditional look whilst being easy to use
• Operating Pressure: 0.2
• Pipe Centres: 90-300mm
• Pipe Size: 22 mm (3/4″ BSP)
• Valve/Cartridge Type: 1/4 Turn Ceramic Disc
• Hot tap turns clockwise to open / Cold tap turns anti-clockwise to open

All measurements are approximate

Flow Rates

0.1 Bar – 10 l/m
0.5 Bar – 36.2 l/m
1 Bar Max – 53 l/m
2 Bar Max – 75.7 l/m
3 Bar Max – 92 l/m
