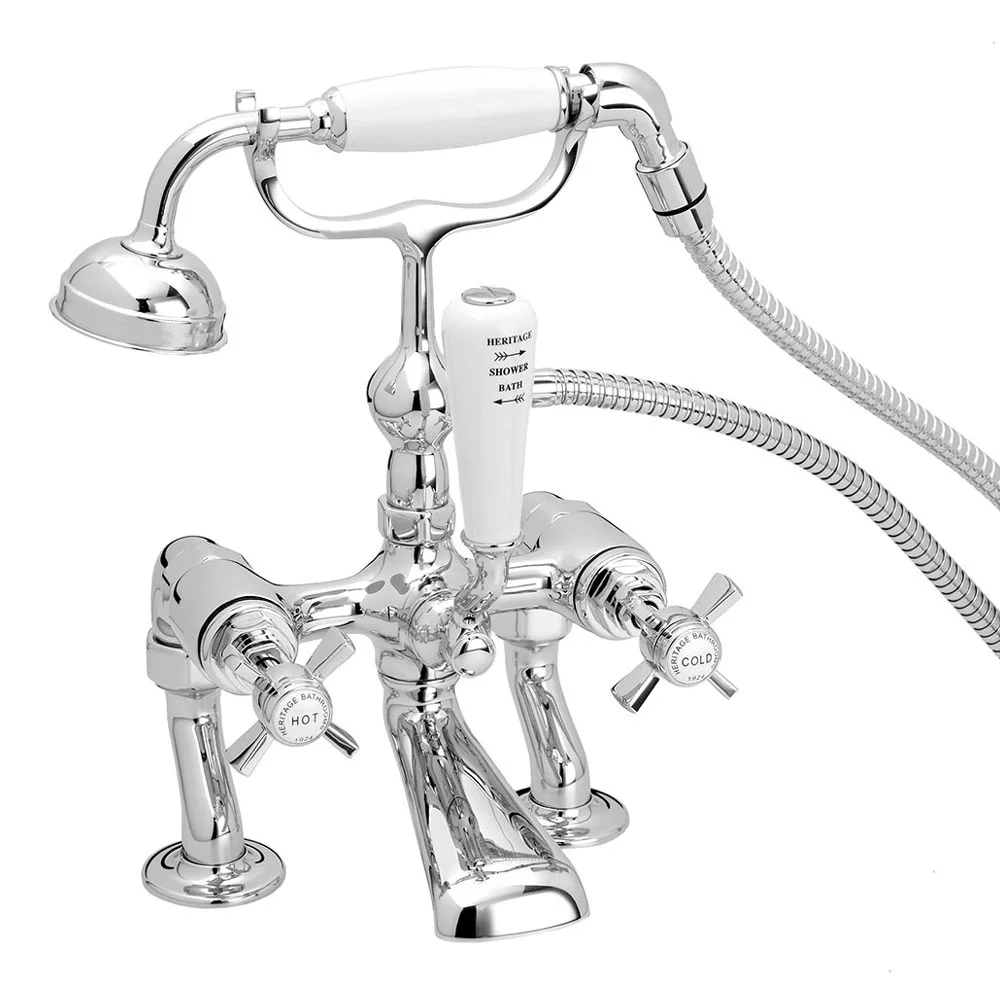

Heritage Dawlish Bath Shower Mixer Tap Chrome

Description

Heritage – Dawlish Bath Shower Mixer Tap – Chrome – TDCC02

The gorgeous Dawlish range is a homage to past elegance and opulence, such as the elegant Bath Shower Mixer. Features quarter turn valves and comes supplied with a 1.5m hose, traditional shower handset and wall bracket. Manufactured from durable brass and finished beautifully in chrome. Comes with a 10 year guarantee from Heritage.

Product Details

• Brand – Heritage Bathrooms
• Product Code – TDCC02
• Finish – Chrome
• Projection – 280mm
• Full Height – 340mm
• Range – Dawlish
• Product Type – Bathroom Taps
• Main Construction Material – Brass
• Mount Type – Deck Mounted
• Handle Type – Crosshead
• Connection Inlet – 3/4″ BSP
• Connection Outlet – Open
• Number of Tap Holes – 2
• Valve/Cartridge Type – Quarter Turn 3/4″ Ceramic Disc
• Plumbing System Requirements – All – Ideally Balanced
• Working Pressure Range – Min. 0.2 Bar, Max. 5.0 Bar
• Maximum Hot Water Temperature – 60°C
• Maximum Static Pressure – (bar) 10
• Flow Type – Single Flow
• Isolation Included – No
• Supplied with 1.5m hose
• Traditional shower handset and wall bracket

Images are for illustrative purposes.

Flow Rates

0.2 Bar – 7.15 l/m
0.5 Bar – 11.31 l/m
1.0 Bar – 15.99 l/m
2.0 Bar – 22.62 l/m
3.0 Bar – 27.7 l/m
5.0 Bar – 35.76 l/m
8.0 Bar – 45.23 l/m
