Heritage Dawlish Bath Filler Vintage Gold

Description

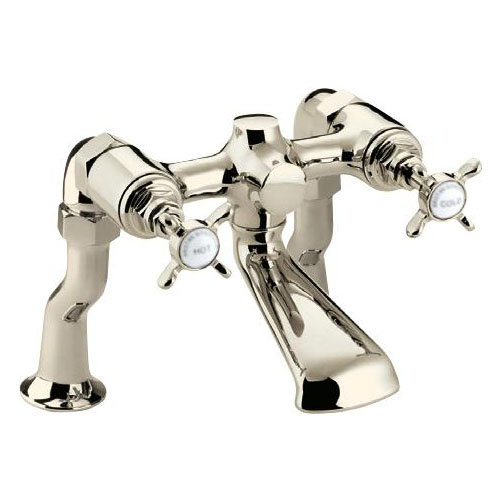

Heritage – Dawlish Bath Filler – Vintage Gold – TDCG072

The gorgeous Dawlish range is a homage to past elegance and opulence, such as the elegant Bath Filler. Features quarter turn valves and designed to comply with WRAS. Manufactured from durable brass and finished beautifully in vintage gold. Comes with a 10 year guarantee from Heritage.

Product Details

• Brand – Heritage Bathrooms
• Product Code – TDCG072
• Finish – Vintage Gold
• Full Height – 230mm
• Product Type – Bathroom Taps
• Main Construction Material – Brass
• Mount Type – Deck or Wall Mounted
• Handle Type – Crosshead
• Connection Inlet – 3/4” BSP
• Connection Outlet – Open
• Number of Tap Holes – 2
• Valve/Cartridge Type – Quarter Turn 3/4” Ceramic Disc
• Working Pressure Range – Min. 0.2, Max. 8.0 Bar
• Maximum Hot Water Temperature – 60°C
• Maximum Static Pressure – (bar) 10
• Flow Type – Single Flow
• Isolation Included – No
• WRAS approved

Images are for illustrative purposes.

10 Year guarantee

Flow Rates

0.2 Bar – 27.7 l/m
0.5 Bar – 45.6 l/m
1.0 Bar – 64.4 l/m
2.0 Bar – 91.2 l/m
3.0 Bar – 111.6 l/m
5.0 Bar – 144.1 l/m
