Heritage Dawlish Bath Filler Chrome

Description

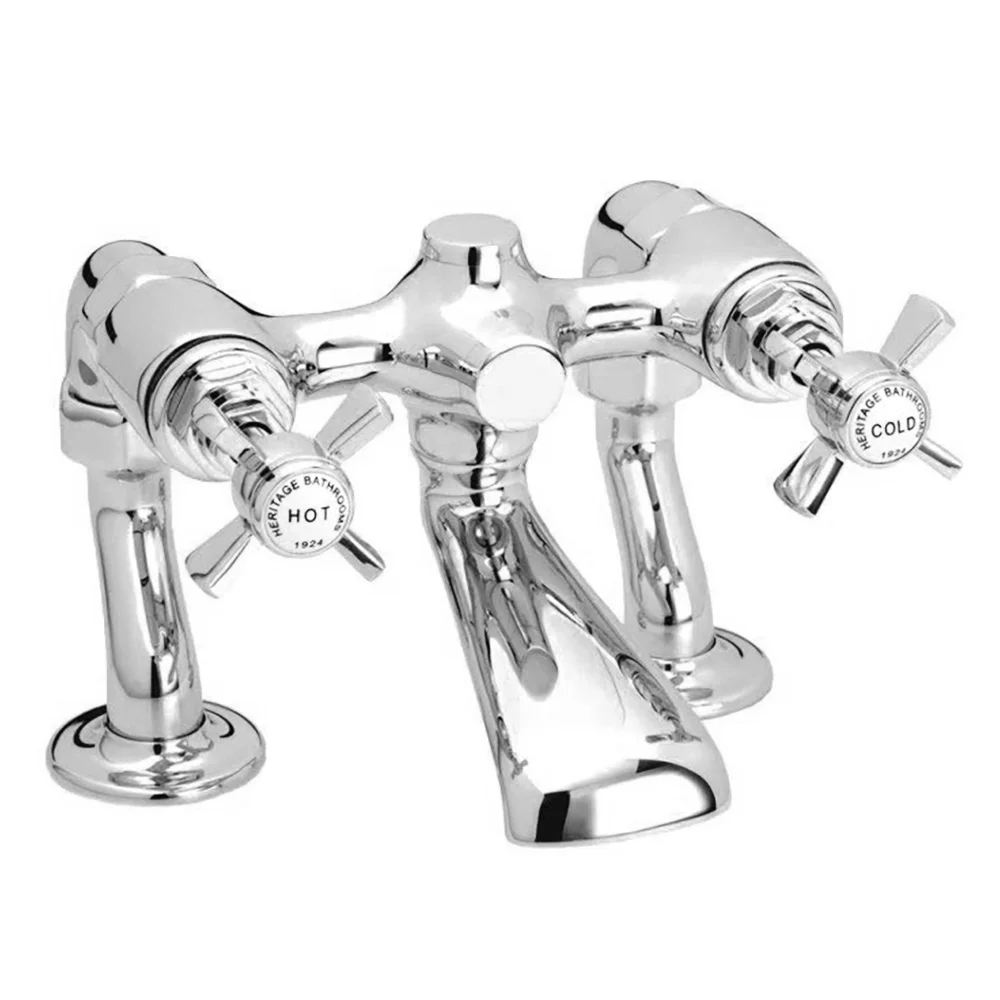

Heritage – Dawlish Bath Filler – Chrome – TDCC072

The gorgeous Dawlish range is a homage to past elegance and opulence, such as the elegant Bath Filler. Features quarter turn valves and designed to comply with WRAS. Manufactured from durable brass and finished beautifully in chrome. Comes with a 10 year guarantee from Heritage.

Product Details

• Brand – Heritage Bathrooms
• Product Code – TDCC072
• Finish – Chrome
• Full Height – 230mm
• Product Type – Bathroom Taps
• Main Construction Material – Brass
• Mount Type – Deck or Wall Mounted
• Handle Type – Crosshead
• Connection Inlet – 3/4” BSP
• Connection Outlet – Open
• Number of Tap Holes – 2
• Valve/Cartridge Type – Quarter Turn 3/4” Ceramic Disc
• Working Pressure Range – Min. 0.2, Max. 8.0 Bar
• Maximum Hot Water Temperature – 60°C
• Maximum Static Pressure – (bar) 10
• Flow Type – Single Flow
• Isolation Included – No
• WRAS approved

Images are for illustrative purposes.

10 Year guarantee

Flow Rates

0.2 Bar – 27.7 l/m
0.5 Bar – 45.6 l/m
1.0 Bar – 64.4 l/m
2.0 Bar – 91.2 l/m
3.0 Bar – 111.6 l/m
5.0 Bar – 144.1 l/m
