Description

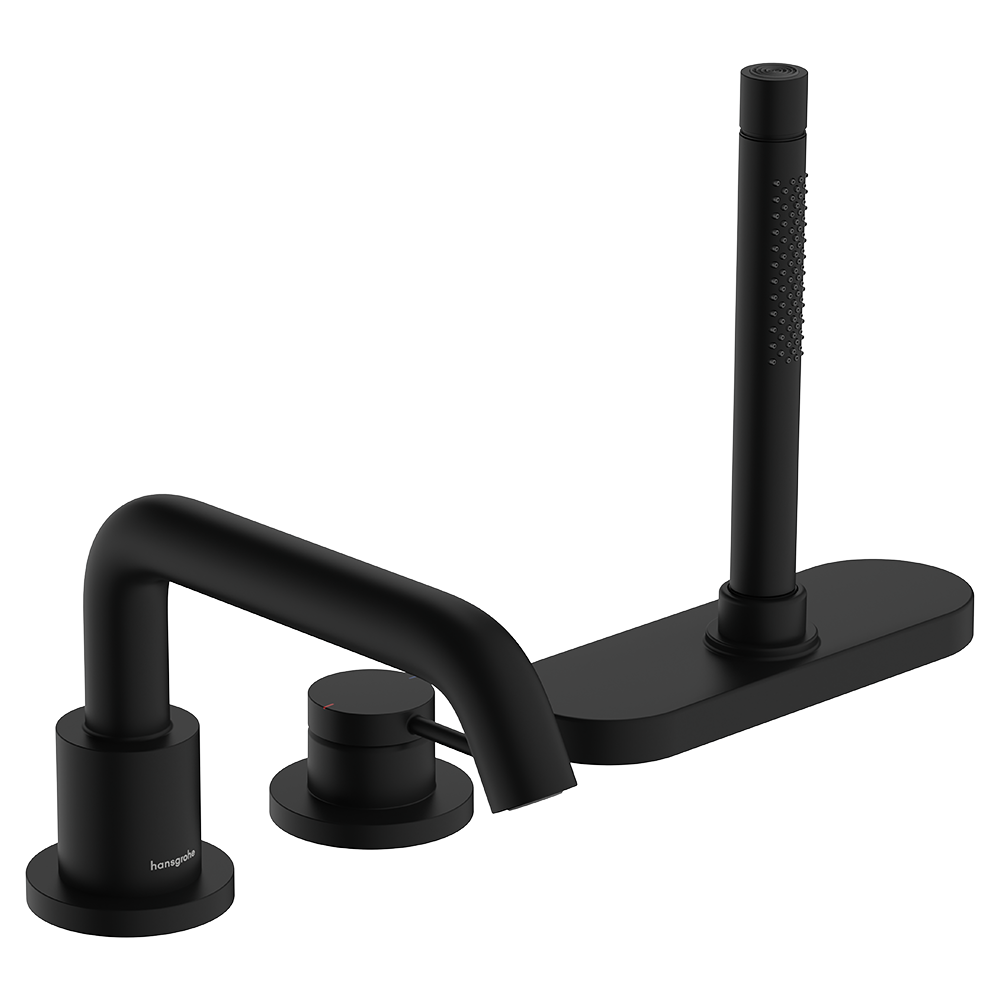

hansgrohe Tecturis S 3-hole Rim Mounted Single Lever Bath Mixer with sBox – Matt Black
The Tecturis S Bath Mixer is a stylish 3-hole rim-mounted single-lever bath mixer. It offers two functions: a normal spray for the mixer and Rain/MonoRain spray for the hand shower. The spout projects 194 mm from the bath rim, and the upper outlet provides a flow rate of 9 l/min, while the lower outlet delivers 20 l/min. Additional components include a hand shower, shower holder, shower hose, and hose box. The mixer comes with an sBox for quiet, smooth, and protected hose guidance, along with safety features like a ceramic cartridge diverter, non-return valve, and protection against backflow. Installation is designed for the bath rim, requiring a minimum operating pressure of 1 bar and handling a maximum operating pressure of 10 bar.
Product Details
- Brand: hansgrohe
- Product Code: 73447670
- Finish: Matt Black
- Projection: 194mm
- Maximum pull-out length of hand shower: 1450mm
- 2 functions
- Flow rate upper outlet: 9 l/min
- Flow rate lower outlet: 20 l/min
- Spray type mixer: normal spray
- Spray type hand shower: Rain, MonoRain
- sBox for quiet, smooth and protected hose guidance
- Maximum flow rate at 3 bar: 20 l/min
- Ceramic cartridge
- Diverter with automatic resetting
- Non-return valve
- Protected against backflow, according to DIN EN 1717
- Connection dimension: DN15
- Connection type: basic set
- Installation on bath rim
- Min. operating pressure: 1 bar
- Max. operating pressure: 10 bar
- Consists of: 3-hole rim mounted single lever bath mixer, hand shower, shower holder, shower hose, hose box
5 Year Guarantee
