hansgrohe Square Concealed Valve with Raindance 300 Overhead and Select Rail Kit Matt Black

Description

hansgrohe Square Concealed Valve with Raindance 300 Overhead and Select Rail Kit – Matt Black – 88102077

The hansgrohe Square Concealed Valve with Raindance 300 Overhead and Select Rail Kit is a premium shower system that offers a luxurious and comfortable showering experience. It consists of a large square overhead shower head, a hand-held shower head, and a concealed valve, all in a sleek matt black finish. The overhead shower head features multiple nozzles that deliver a powerful and even spray of water. The hand-held shower head is attached to an adjustable rail that allows you to change the height and angle of the spray. The concealed valve has a simple and elegant design, with twin control knobs that lets you adjust the water temperature and flow. The hansgrohe Square Concealed Valve with Raindance 300 Overhead and Select Rail Kit is a modern and stylish shower system that will transform your bathroom into a spa-like oasis.

Fixed Head & Arm Details

• Consists of: overhead shower, shower arm
• Shower head size: 300 x 300 mm
• Spray pattern: rainair
• Ball-joint: overhead shower angle adjustable
• Spray face: metal
• Shower arm length 390 mm
• Maximum flow rate 17 l/min at 3 bar
• Flow rate rainair 17 l/min at 3 bar
• Operating pressure: min. 1.5 bar/max. 6 bar
• Spray disc removable for cleaning
• Installation: wall
• Connection thread ½”
• WRAS 2310023

Outlet Elbow Details

• Plastic connection angle
• Non-return valve
• Connection type: ½”
• Connection thread ½”
• Material cover: plastic

Shower Kit Details

• Shower head size: 120 mm
• Spray pattern: RainAir, Rain, Whirl
• Select button to comfortably switch between spray modes
• Maximum flow rate (at 3 bar): 14.4 l/min
• minimum flow pressure: 1 bar
• Operating pressure: min. 1 bar/max. 6 bar
• With internal water conduction
• Rinseable screen seal
• Connection thread ½”
• WRAS 2210037
• Pivot connector prevents hose from tangling
• Shower bar diameter: 22 mm
• Profile pipe: round
• Drilling distance: 625 mm
• Metal hand shower holder
• Hand shower holder with locking mechanism
• Adjustable angle/tilt
• Plastic

iBox Details

• Adjustable clamping collar
• G¾ connections; G1 connection possible with provided reductions
• Patented sound proofing
• Support points for spirit level
• Includes flush block
• Marking aid for plating
• Connection thread Rp ¾
• Rotationally-symmetrical installation
• Installation Depth: from 80 to 108mm
• WRAS 1304305
• WRAS 1503309
• Kiwa UK 1405706

Finish Set Details

• Designed to run 2 outlets
• Thermostat cartridge, shut-off/ diverter valve
• Maximum flow rate (at 3 bar): 29 l/min
• Flow rate upper outlet 28 l/min at 3 bar
• Flow rate lower outlet 25 l/min at 3 bar
• Min. Operating pressure: 1 bar
• Max. Operating pressure: 10 bar
• Safety stop at 40°c
• Maximum temperature can be adjusted on installation
• Connection type: basic set
• Noise class: I
• WRAS 2308702

5 Year Guarantee

Comprises

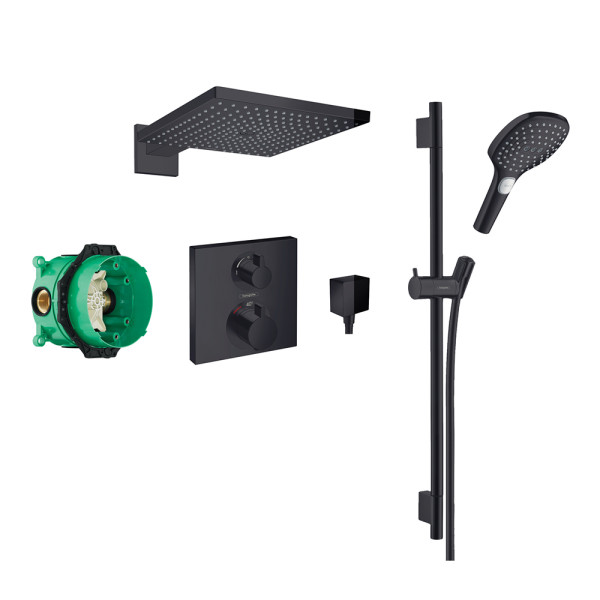

(1) Raindance Select E Hand Shower 120 3jet – Matt Black – 26520670
(1) Raindance E Overhead Shower 300 1jet with Shower Arm – Matt Black – 26238670
(1) Ecostat Square Thermostatic Mixer for Concealed Installation for 2 Outlets – Matt Black – 15714670
(1) iBox Universal Basic Set – 01800180
(1) Unica Shower Rail S Puro 65 cm with Isiflex Shower Hose 160cm – Matt Black – 28632670
