Geberit Rimless 4 in 1 Pack, Frame + Flush Plate + Pan & Soft Close Seat

Description

Geberit Rimless 4-in-1 Pack, Frame + Flush Plate + Pan & Soft Close Seat

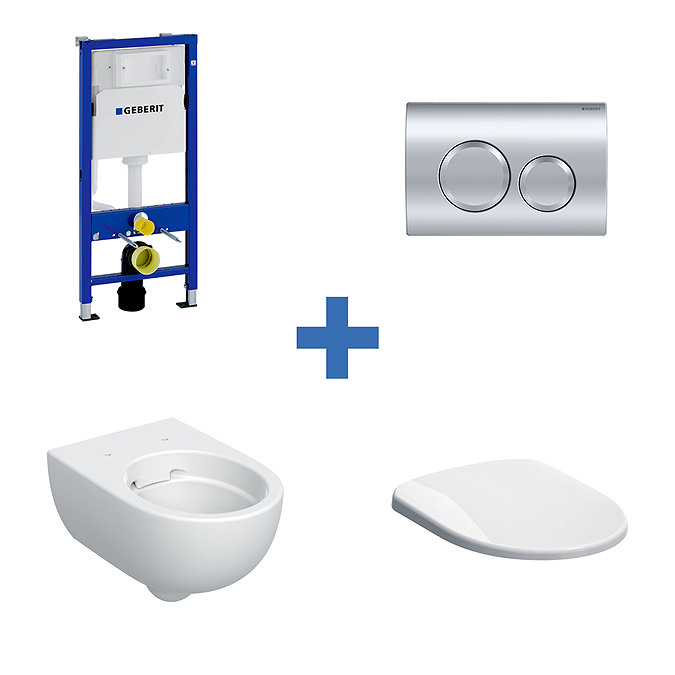

This Geberit wall hung WC bundle pack comprises of Geberit Duofix 112cm Frame with Delta20 Chrome Flush Plate and Geberit Selnova Rimless Shrouded Wall-Hung Pan & Soft Close Quick Release Seat.

With its modern classic lines, the Geberit Selnova series can be incorporated into any bathroom. Geberit’s simple and discreet design brings functionality to the fore. It comes with a soft close, quick release seat to make cleaning a breeze.

Geberit Rimfree Rimless toilets are equipped with a specially designed, patented flush guide which ensures a targeted and hygienic flush every time. The smooth inner surface of the rimless Rimfree toilet pan is easily cleaned.

Designed to last, Geberit Delta frames incorporate tried and tested materials which will serve you for years to come. Installed 60 million times over the past 50 years, Geberit concealed cisterns and flush plates represent the ultimate tried and tested solution. Every blow moulded cistern is factory-made leak tested, therefore there are no unnecessary sealings or leakage of the cistern for maximum operational reliability.

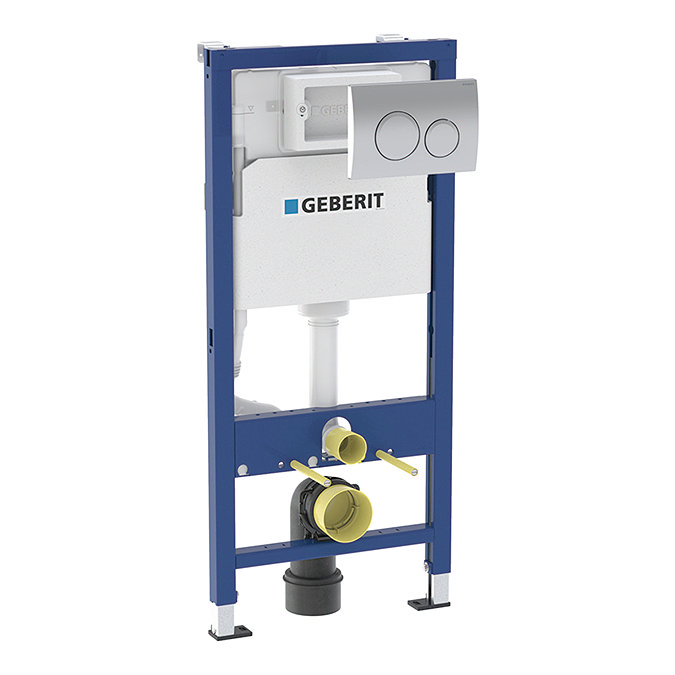

WC Cistern Frame Details

• For drywall construction
• For installation in part or room-height prewall installations
• For installation in room-height installation walls
• For wall-hung WCs with connection dimensions in accordance with EN 33:2011
• For wall-hung WCs with projection up to 62cm
• For floor constructions 0–20cm
• Features:
• Self-supporting frame, powder-coated
• Frame with ø 9mm drilling holes for fastening in wood frame construction
• Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
• Feet adjustable 0–20cm
• Concealed cistern, fully insulated against condensation
• Cistern fulfils standard requirements in accordance with EN 14055, Class II
• Water supply connection on the rear or top centre
• With conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
• Fastening option for electrical connection
• Flush volume, factory setting 5.8 and 3l
• Flush volume large, adjustment range 4.5 / 6 / 7.5l
• Flush volume small, adjustment range 3-4l
• What’s Included:
• Angle stop valve R 1/2″”, with adaptor ring
• 2 distance bolts
• 2 wall anchors
• Connection set for WC, ø 90 mm
• Connection bend 90° made of PE-HD, ø 90mm
• Adaptor socket made of PE-HD, ø 90 / 110mm
• 2 protection plugs
• Cup for flush volume reduction 4.0 / 2.6l
• Crossbar for panelling support
• 2 threaded rods M12
• Fastening material

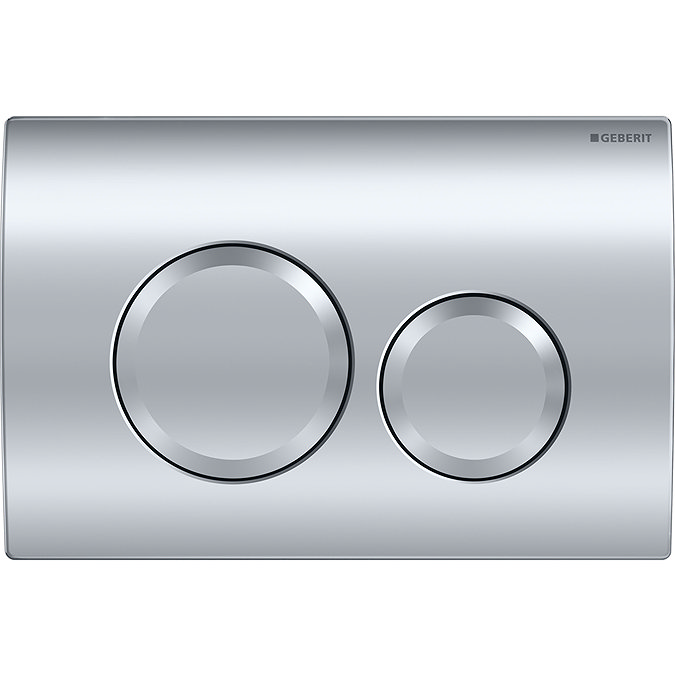

• Flush plate Delta20

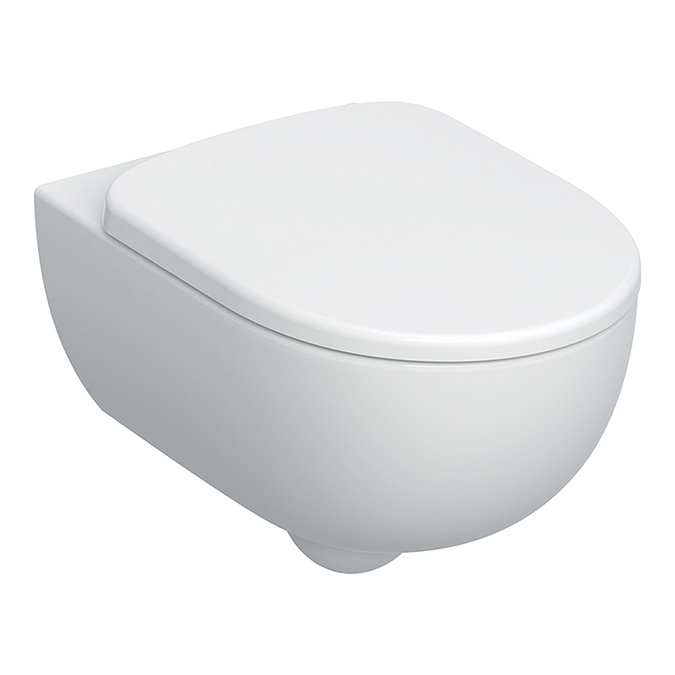

Wall Hung WC Details

• Colour: White
• Wall Hung
• Material: Vitreous china / Duroplast
• Approvals: Type 1, full flush volume 6 / 5 / 4l, in accordance with EN 997
• Flushes with 4.5l
• Easy fastening with Geberit WC wall fixing type EFF3
• Rimless Rimfree
• Fully shrouded
• Fastening material included
• Soft Close
• Quick Release

25 Year Spare Parts Guarantee
