Dual Flush Concealed WC Cistern with Wall Hung Frame + Modern Toilet

Description

Dual Flush Concealed WC Cistern with Wall Hung Frame + Modern Toilet

The modern wall hung pan with frame and cistern brings great style to any modern bathroom setting. Without any compromise on style and good looks the wall hung option provides a bathroom design solution delivering a completely clear and open floor area.

Please select your choice of wall hung pan via the drop-down menu.

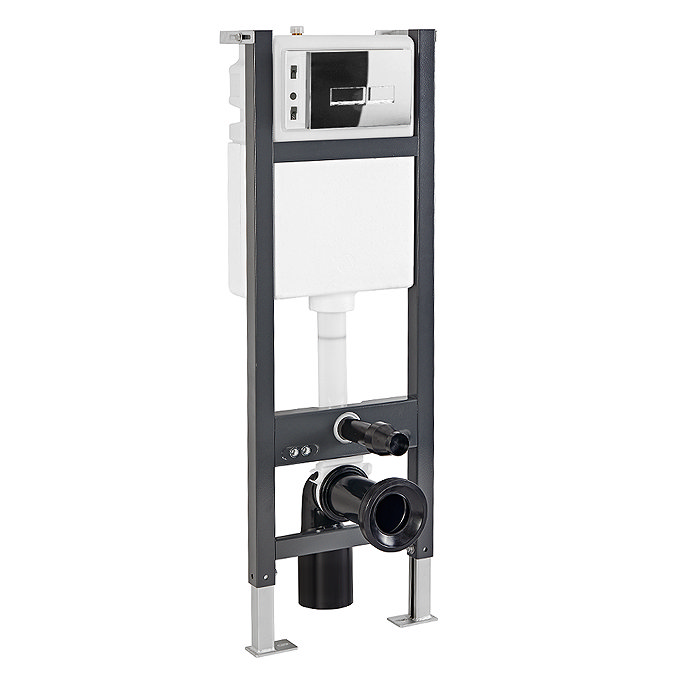

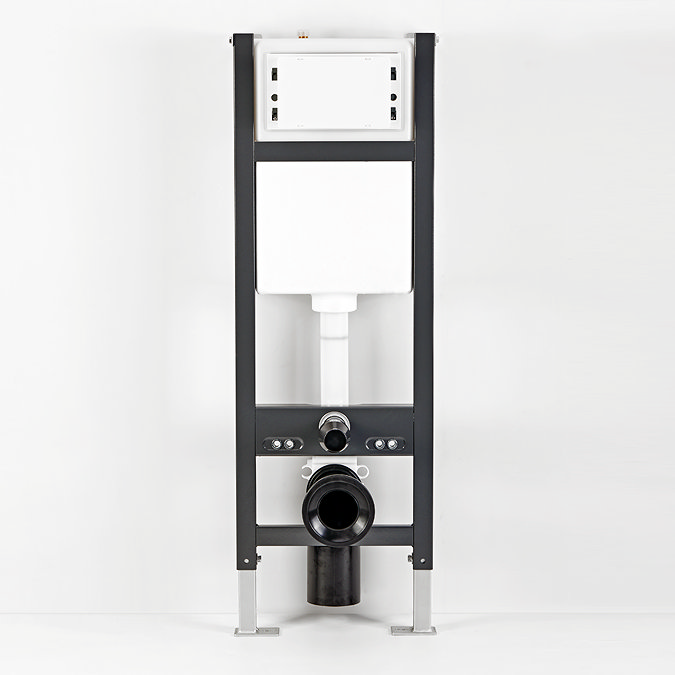

WC Cistern Frame Details

• Height: 1078-1438mm (Approx.)
• Width: 415mm
• Depth: 170-200mm
• Full flush: 6-7.5L, Half flush: 2.5-4L
• Fill valve pressure: 0.2-16 bar
• Metal frame support weight: 400KG
• Designed to provide stable support for wall-hung WC pans
• Built-in or plasterboard wall installation
• Dual flush cistern

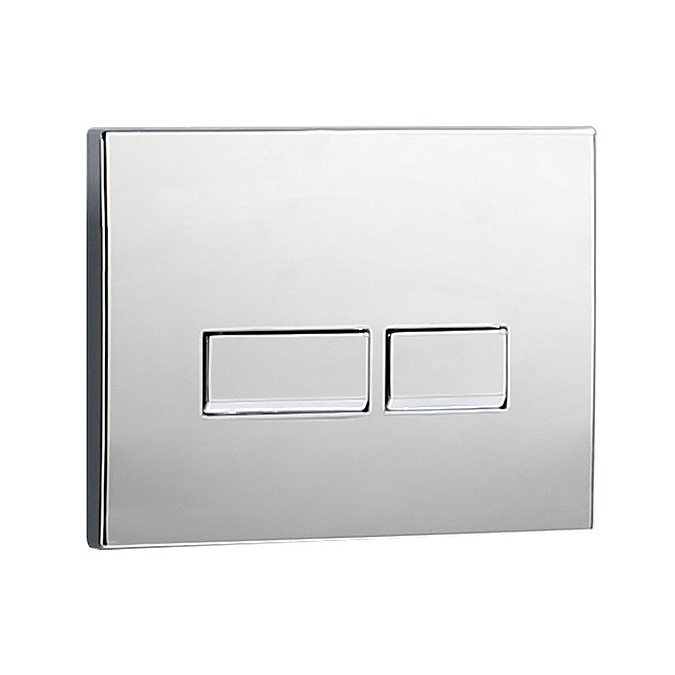

• Flush plate size: 242 x 160mm
• Flush plate thickness: 10mm
• Flush plate colour: Polished Chrome
• Flush plate material: Manufactured from high impact, tough ABS
• Button shape: Square
• Style: Modern
• Water saving dual-flush valve
• Insulated against condensation and reduces noise from water tank
• Durable moulded tank
• Easy access for maintenance
• Hassle-free installation
• Made from durable high-quality materials
• Adjustable height and depth
• Sleek and minimalist design.
• Designed to be compatible with a wide range of wall hung pans
• Seamless integration: The fixing frame is designed to seamlessly integrate with your wall hung pan, creating a clean and streamlined look in your bathroom.
• Includes brackets and WC bend
• Guarantee: 5 Years for tank and 2 Years for fill valve and flush valve

Cistern

• Tested in accordance with EN 14055
  UKCA Marked
  ISO9001:2015 Registered Manufacturer

Wall Hung Pan Options –

Option 1 – Premier Clara Wall-Hung Pan with Soft Close Seat

• Width: 355mm
• Depth:525mm
• Height: 355mm
• Style: Contemporary
• Colour/Finish: Gloss white
• Material: Ceramic construction
• Supplied with soft close seat

Option 2 – Hudson Reed – Round Wall-Hung Pan with top-fix Soft-Close Seat

• Height: 350mm
• Width: 355mm
• Depth: 510mm
• Product Code: CPA004
• Brand: Hudson Reed
• Colour/Finish: Gloss white
• Material: Ceramic construction
• Supplied with a top-fix soft-close seat

Option 3 – Hudson Reed – Square Wall Hung Pan with top-fix Soft-Close Seat

• Height: 360mm
• Width: 350mm
• Depth: 525mm
• Product Code: CPA005
• Brand: Hudson Reed
• Colour/Finish: Gloss white
• Material: Ceramic construction
• Supplied with a top-fix soft-close seat

Option 4 – Toronto Modern Round Wall Hung Toilet Details

• Projection: 530mm
• Width: 355mm
• Height: 400mm
• Colour/Finish: Gloss White
• Material: Ceramic
• Supplied with a D-Shape Soft Close Top-Fixing Seat

All measurements are approximate

Pictures shown are for illustration purposes only.
