Diamond White 500 x 1000mm Straight Heated Towel Rail (incl. Valves + Electric Heating Kit)

Description

Diamond White 500 x 1000mm Straight Heated Towel Rail (incl. Valves + Electric Heating Kit)

The Diamond 500 x 1000mm straight profile towel rail is finished in classic brilliant ice white and features sixteen horizontal 22mm diameter tubes.

Designed to be plumbed into the main central heating system and used as a radiator/towel rail. It also can be wired into the electric mains for summer towel warming.

**Supplied with Radiator Valves & Summer Electric Heating Kit. **

Towel Rail Details

• Depth: 61mm
• Height: 1000mm
• Width: 500mm
• Size, type, and position of connections: 1/2″ FI BSP
• Dry Mass: 5.5kg
• Content: 3.8lt
• BTU T50: 914
• ∆ Watt T50: 268°C
• Max Operating Pressure: 8 Bar
• Quantity of Cross Rails: 16
• C/C Tappings (distance between pipe centres): 450mm
• Projection from Wall: 85/95mm
• Profile: Straight
• Standard rails 22mm tube diameter
• Classic brilliant ice white finish
• Material: Durable Steel
• Supplied complete with fixing kit, including plugs and vents
• Manufactured under BS EN ISO 9001 quality standards
• Guarantee: 5 Year (Please Note: According to EN-442 norm, the CE label must stay on the product. In the case of removal, the warranty will expire.)

Radiator Valves Details

• Height: 82mm
• Depth: 51mm
• Diameter: 31mm
• Material: Brass
• Finish: Chrome
• Angled Valves
• Comes as a Pair
• Guarantee: 5 Year

Heating Element Details

• Watt: 400W
• Length: 440mm
• Material: Stainless Steel
• Chrome T-Piece – Dual Fuel adapter for Designer Radiators + Heated Towel Rails
• Requires electrical connection by an Approved Electrician.
• Fits any 1/2″ BSP wet system towel warmer to give heating on demand when the central heating system is off.
• Ideal for summer use
• On-off operation only

Dual Fuel Radiator: Connected to the central heating system, and to the electric socket.

Please Note: We recommend using a qualified electrician for installation.

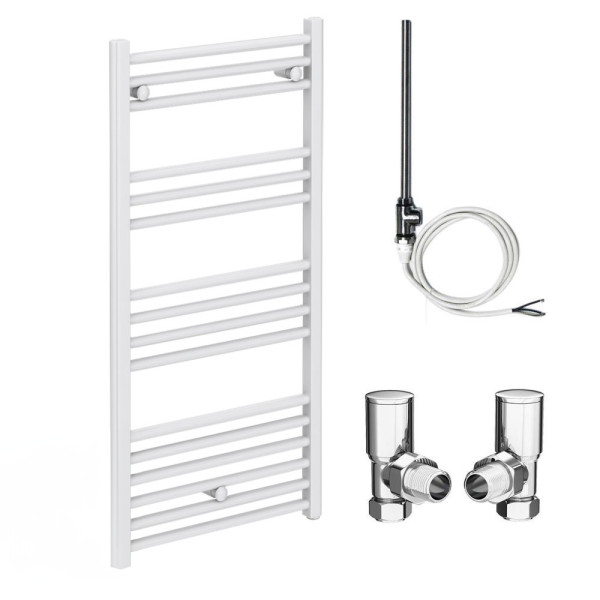

Comprises

(1) Diamond Heated Towel Rail – W500mm x H1000mm – White – Straight
(1) Pair of Modern Angled Radiator Valves – Chrome
(1) 400W Electric Radiator Heating Element + Chrome T-Junction
