Cruze Round Shower Package with Concealed Valve + Flat Fixed Shower Head

Description

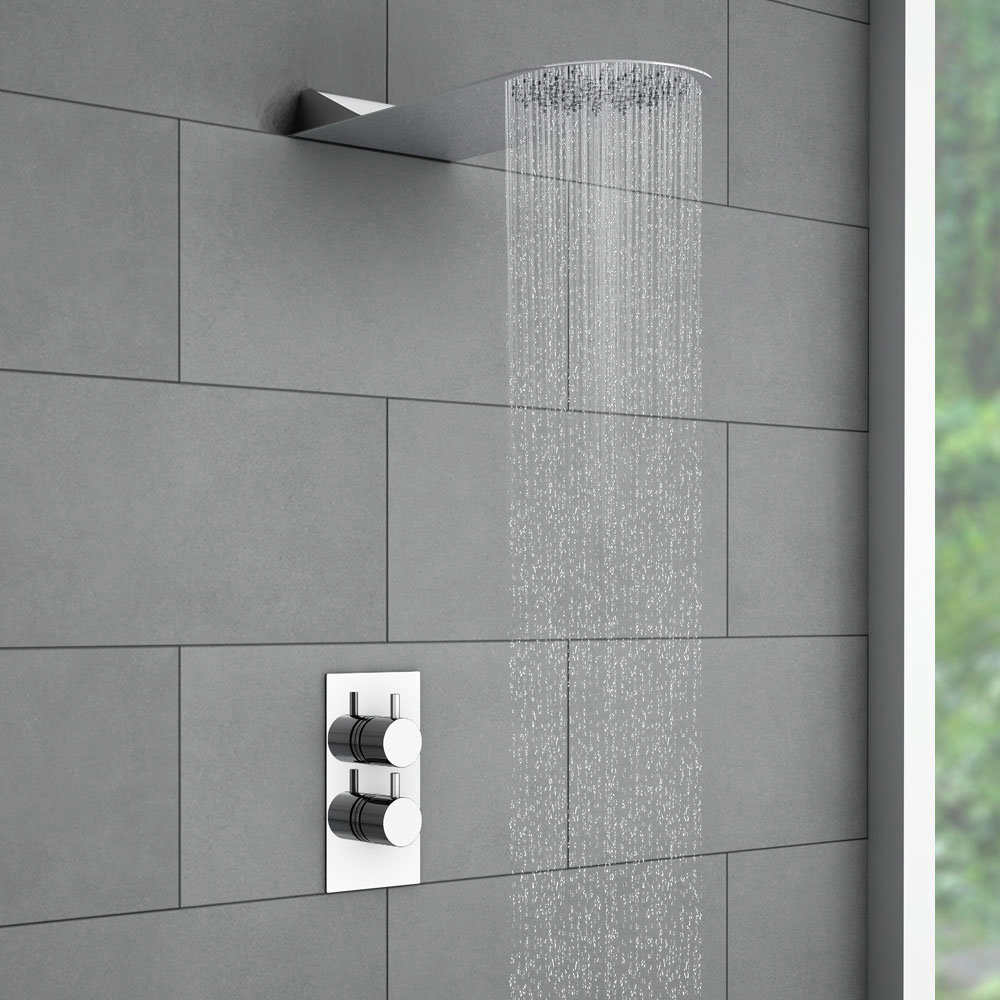

Cruze Round Shower Package with Concealed Valve and Flat Fixed Shower Head in Chrome

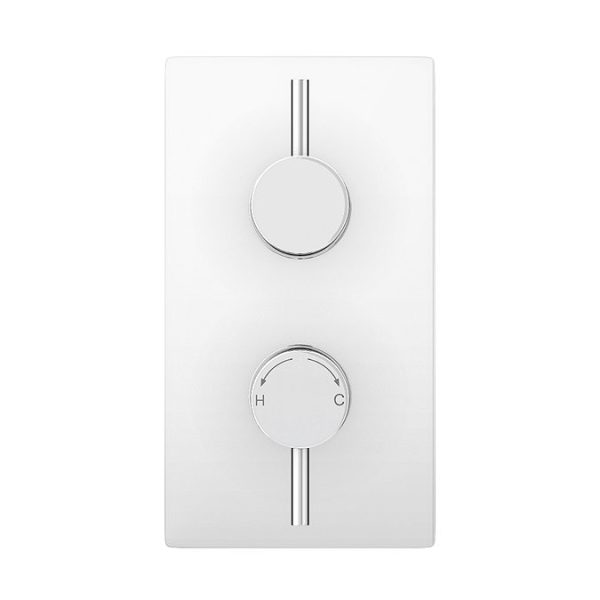

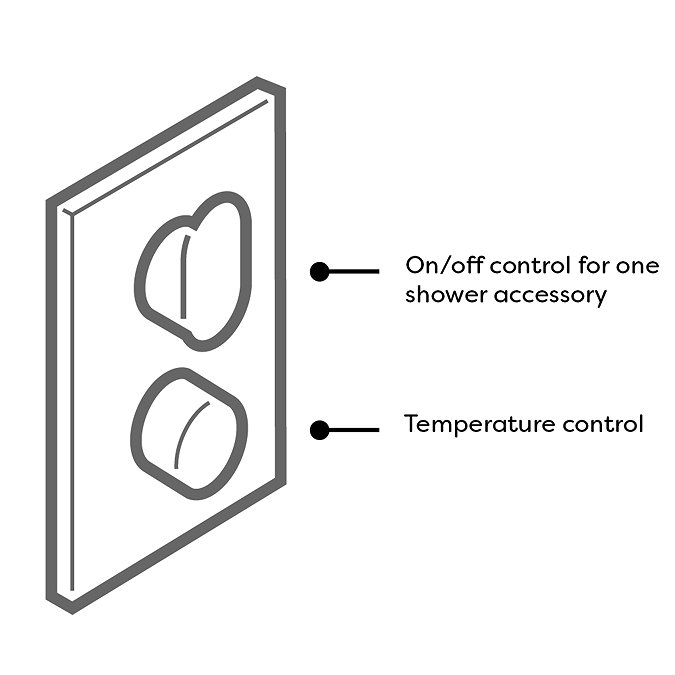

This minimalist Cruze Concealed Thermostatic Valve, which complements any modern bathroom suite, offers thermostatic showering via two easy-to-operate controls for temperature and flow. It comes supplied with a fixed round flat rainfall shower head.

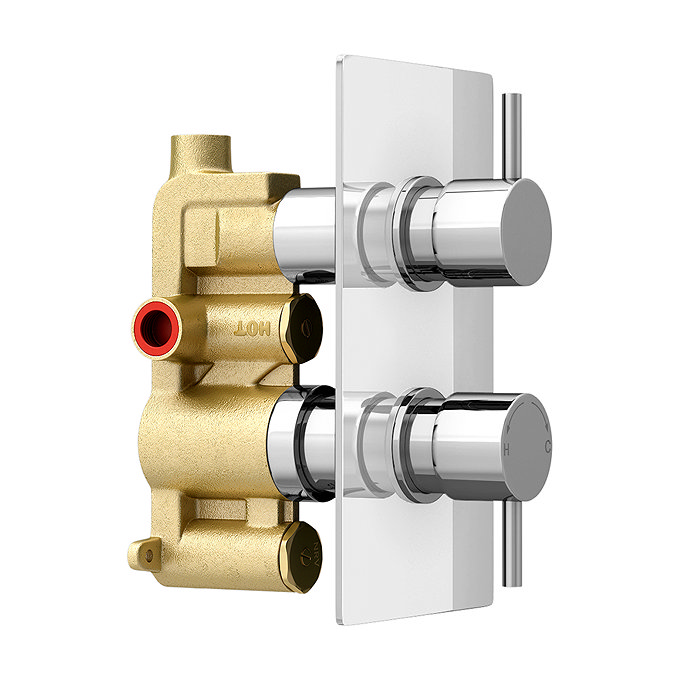

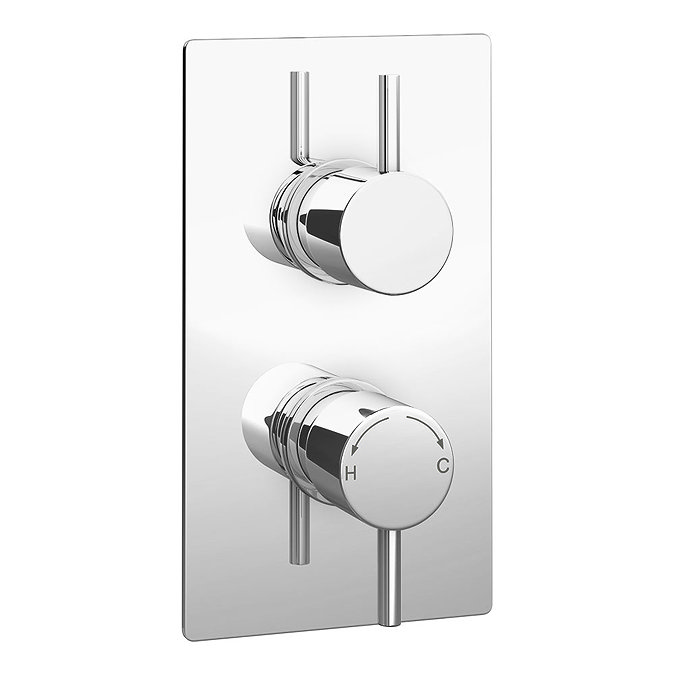

Shower Valve Details:

• Height: 200mm
• Width: 120mm
• Depth: 133mm
• Style: Modern
• Colour/Finish: Chrome Plated
• Valve Handles: Round

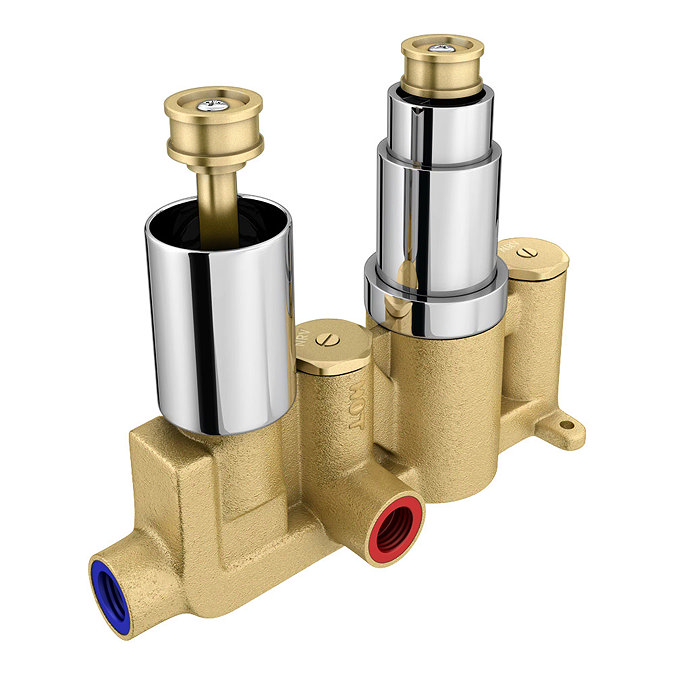

• Material: Brass Internals
• Thermostatically controlled
• Water Pressure: 0.5 bar to 5 bar
• Rectangular Faceplate
• For use with 1 Outlet
• Can be fitted vertically or horizontally
• Hot water temperature: 55 to 85 Degrees
• For gravity-fed systems, a pump will be required. We recommend a universal or negative head pump.

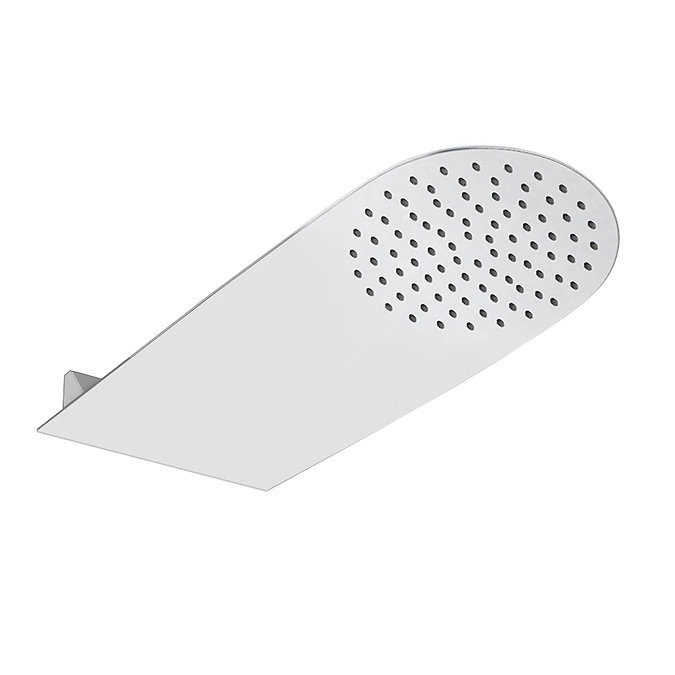

Shower Head Details:

• Dimensions:
• Width: 220mm
• Length: 500mm
• Height: 53mm
• Style: Modern
• Colour/Finish: Chrome Effect
• Material: Stainless Steel
• Pressure Requirement: Minimum 0.5 bar
• Inlet Connections: 1/2″ BSP
• Mounting: Wall Mounted
• Equipped with rub-clean nozzles for easy cleaning
• Fixed onto the wall using two expansion screws
• Includes a long 1/2″ male threaded adapter for water supply connection

Note:

All images provided are for illustrative purposes only, and the measurements are approximate.

Guarantee:

5 Years (1 Year on serviceable parts, for example, internal components such as check valves and cartridges)

The package comprises of:

(1) Twin Round Concealed Shower Valve
(1) Cruze Round Flat Fixed Shower Head (220 x 500mm)

Gravity Fed Systems: If you live in an older property, there’s a good chance you have a low-pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar, therefore, we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
