Cruze Round Push Button Shower Valve Pack with Handset + Rainfall Shower Head

Description

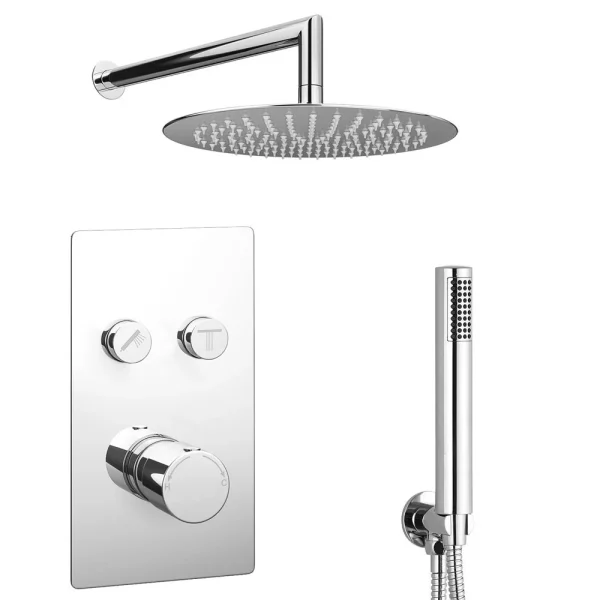

Cruze Round Push-Button Shower Valve Pack with 2 Outlets (Handset + Rainfall Shower Head)

This Cruze concealed push-button operated thermostatic valve pack with two outlets will complement any modern bathroom suite, the round handle controls temperature whilst the on/off push-buttons provide instant start/stop activation. Operate two shower accessories.

Shower Valve Details

• Height: 215mm
• Width: 120mm
• Style: Modern
• Colour/Finish: Chrome Plated
• Valve Handles: Round
• Brass Internals
• Select push button On/Off control for two outlets.
• Buttons provided: hand shower and overhead shower
• Thermostatically controlled
• Water Pressure: 0.5 bar to 5 bar
• Easy to use
• Rectangular Faceplate
• For use with 2 Outlets
• Bottom knob controls temperature.
• Instant start/stop activation.
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• The shower valve will not work efficiently on a gravity fed tank system unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.

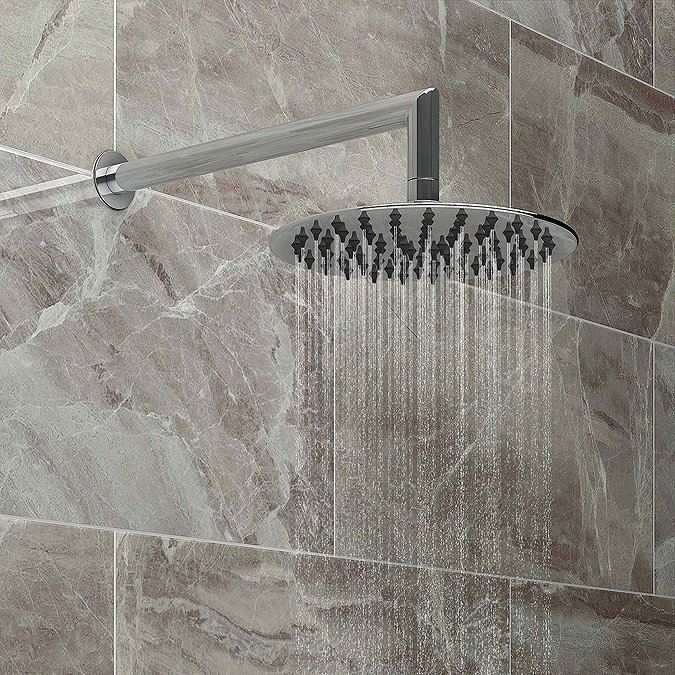

Shower Head Details

• Style: Modern
• Colour/Finish: Polished Chrome
• Material: Stainless Steel
• Diameter: 300mm Head
• Rainfall Style
• Thickness: 3mm (excluding swivel joint)
• Shower Arm Length: 460mm
• Wall mounted 90-degree Bend
• Pressure requirement 0.5 bar minimum
• Inlet Connections: 1/2″ BSP
• Supplied with swivel joint Rub clean nozzles makes this item easy to clean and maintain

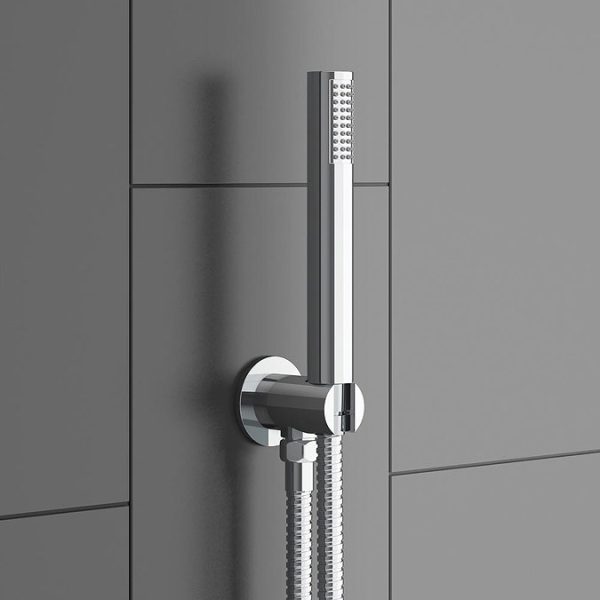

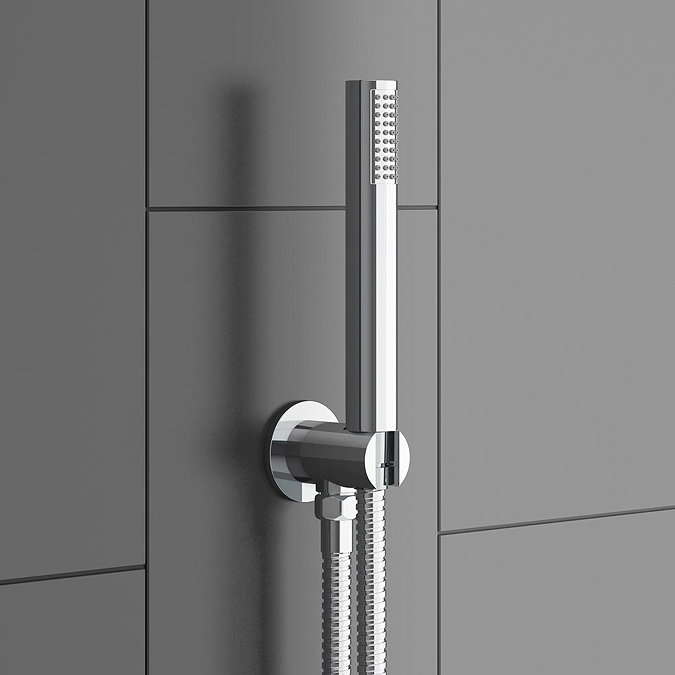

Round Outlet Elbow with Parking Bracket, Flex & Handset Details

• Depth: 66mm
• Height: 244mm
• Width: 50mm
• Manufactured To the Highest Standards
• Round Handset with Built in Outlet
• Suitable for all plumbing systems
• 1.5m Shower flex – Brass / Chrome plated
• Outlet Elbow with Parking Bracket – Brass / Chrome plated
• Handset – ABS plastic / Chrome plated
• Rust resistant hose
• Highly polished finish
• Pencil handset holder
• Silicone nozzles mean that any lime scale deposits can simply be rubbed away

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Pictures for illustrative purposes only.

Comprises

(1) Cruze Twin Modern Round Push-Button Shower Valve with 2 Outlets
(1) Cruze 300 x 300mm Ultra-Thin Round Shower Head
(1) 90 Degree Bend Shower Arm
(1) Round Outlet Elbow with Parking Bracket, Flex & Handset

Gravity Fed Systems:
If you live in an older property there’s a good chance you will have a low-pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
