Cruze Modern Shower Package (Includes Fixed Shower Head and Overflow Bath Filler)

Description

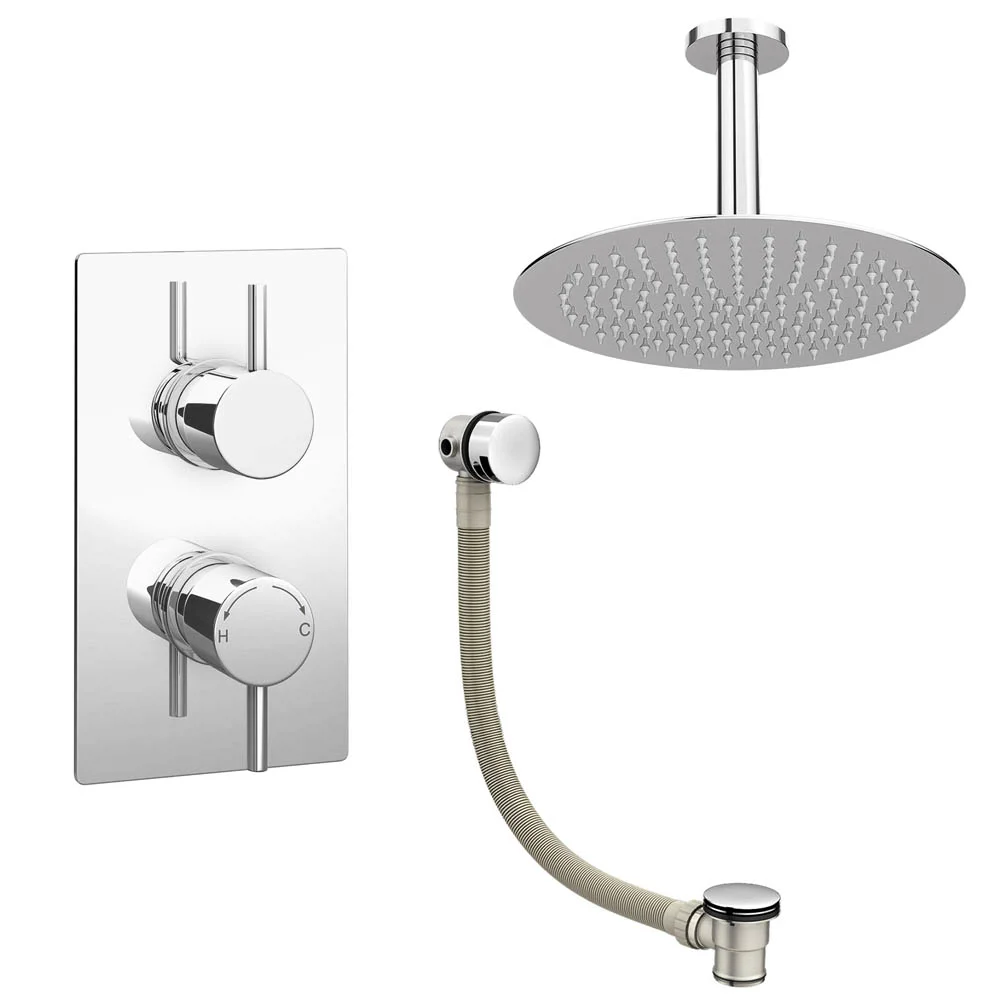

Cruze Modern Shower Package (Includes Fixed Shower Head and Overflow Bath Filler)

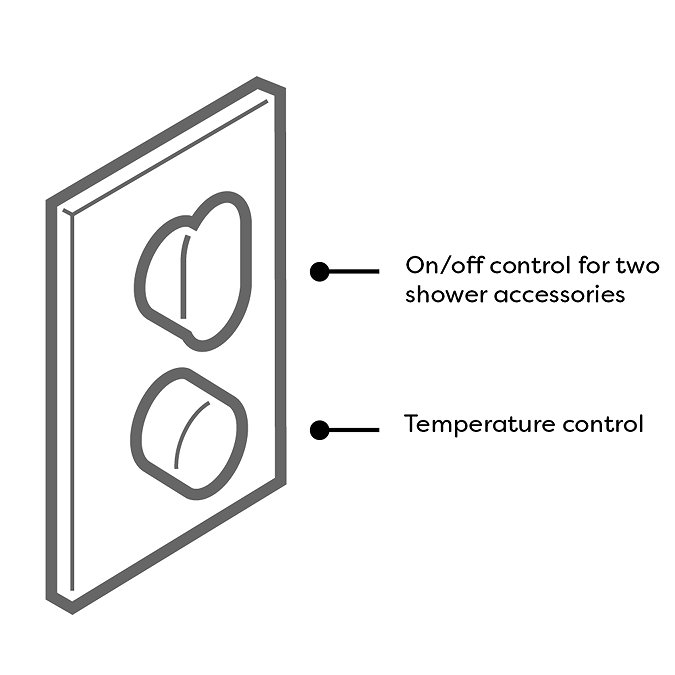

The Cruze Modern Shower Package, which includes a Fixed Shower Head and an Overflow Bath Filler, brings a minimalist yet substantial elegance to the modern bathroom range. This package features a stylish concealed thermostatic valve with a diverter, offering thermostatic showering through two easy-to-operate controls for temperature and flow. This system diverts between two shower accessories: a fixed head and an overflow bath filler.

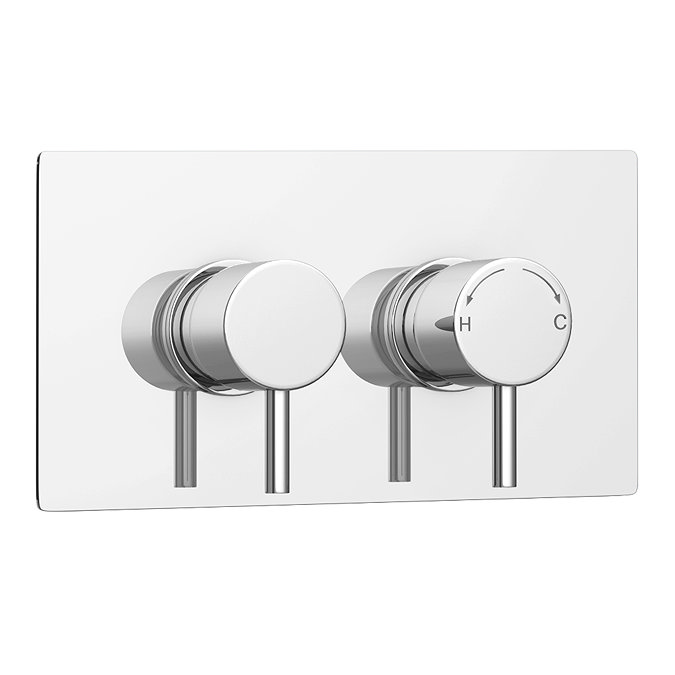

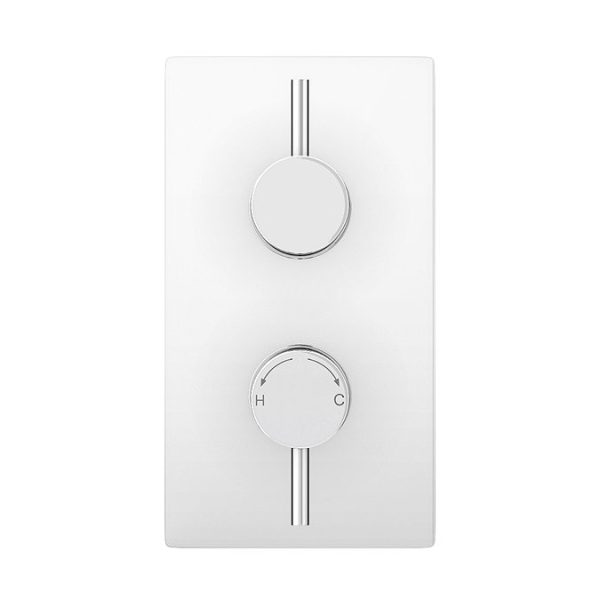

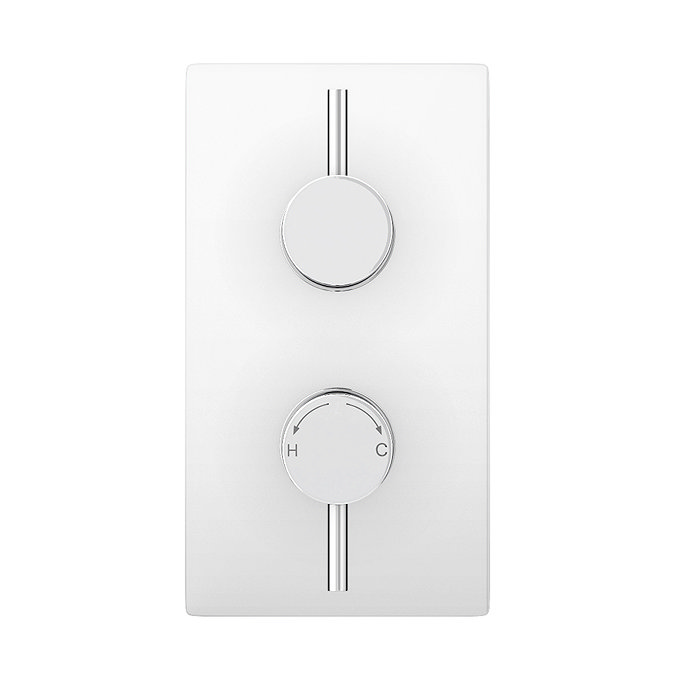

Shower Valve Details:

• Style: Modern
• Colour/Finish: Chrome Plated
• Valve Handles: Round

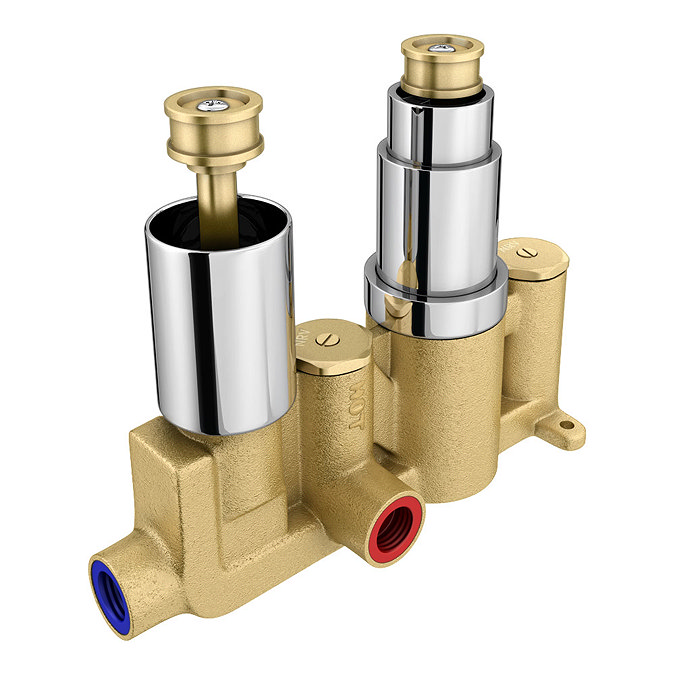

• Brass Internals
• Thermostatically controlled
• Rectangular Faceplate
• Can be fitted vertically or horizontally
• Outlets: 2
• Built-In Diverter
• Water Pressure: 0.5 bar to 5 bar
• Suitable for modern pressurised plumbing systems.
• Hot water temperature: 55 to 85 Degrees
• The shower valve will not work efficiently on a gravity-fed tank system unless a booster pump is installed. Should a pump be required, we recommend a universal or negative head pump.

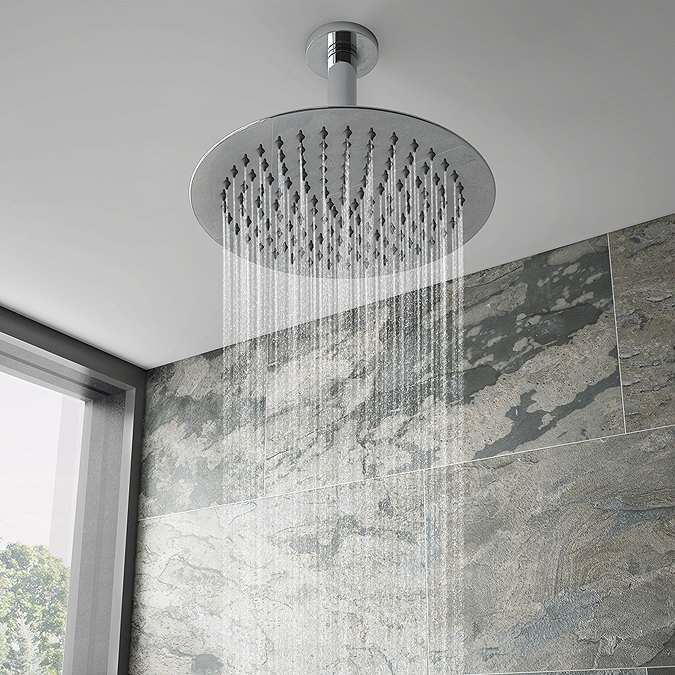

Shower Head and Arm Details:

• Head Diameter: 300mm, Arm Length: 165mm
• Style: Modern
• Type: Ceiling Mounted
• Shape: Round
• Colour/Finish: Chrome Effect
• Material: Stainless Steel
• Thickness/Profile: 3mm (excluding swivel joint)
• Pressure requirement: 0.5 bar minimum
• Inlet Connections: 1/2″ BSP
• Sleek design
• Rub clean nozzles make this item easy to clean and maintain
• Supplied with a swivel ball joint

Round Slimline Freeflow Bath Filler Details:

• Finish: Chrome
• Product Type: Freeflow Bath Filler and Overflow
• Click Clack Waste
• Requirement: Suitable for all plumbing systems. Suitable for baths up to 18mm thick
• Bath Filler Option: Connects to hot and cold water supply.
• Installation: Must be fitted on a flat edge; not suitable for pressed steel baths

The package comes with a 5-year guarantee (1 year on serviceable parts, for example, internal components such as check valves and cartridges).

Please note that all measurements are approximate and pictures are for illustration purposes only.

The package comprises:

(1) Twin Concealed Shower Valve with Built-In Diverter
(1) Cruze Ultra Thin Round Shower Head with Short Vertical Arm – 300mm
(1) Round Slimline Freeflow Bath Filler

Gravity Fed Systems: If you live in an older property, there’s a good chance you have a low-pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar, therefore, we recommend installing a negative or universal pump (sold separately). Please note that positive pumps will not work.
