Cruze Concealed Thermostatic Valve with Diverter, Fixed Shower Head + 4 Body Jets

Description

Cruze Concealed Thermostatic Valve with Diverter, Fixed Shower Head and 4 Body Jets

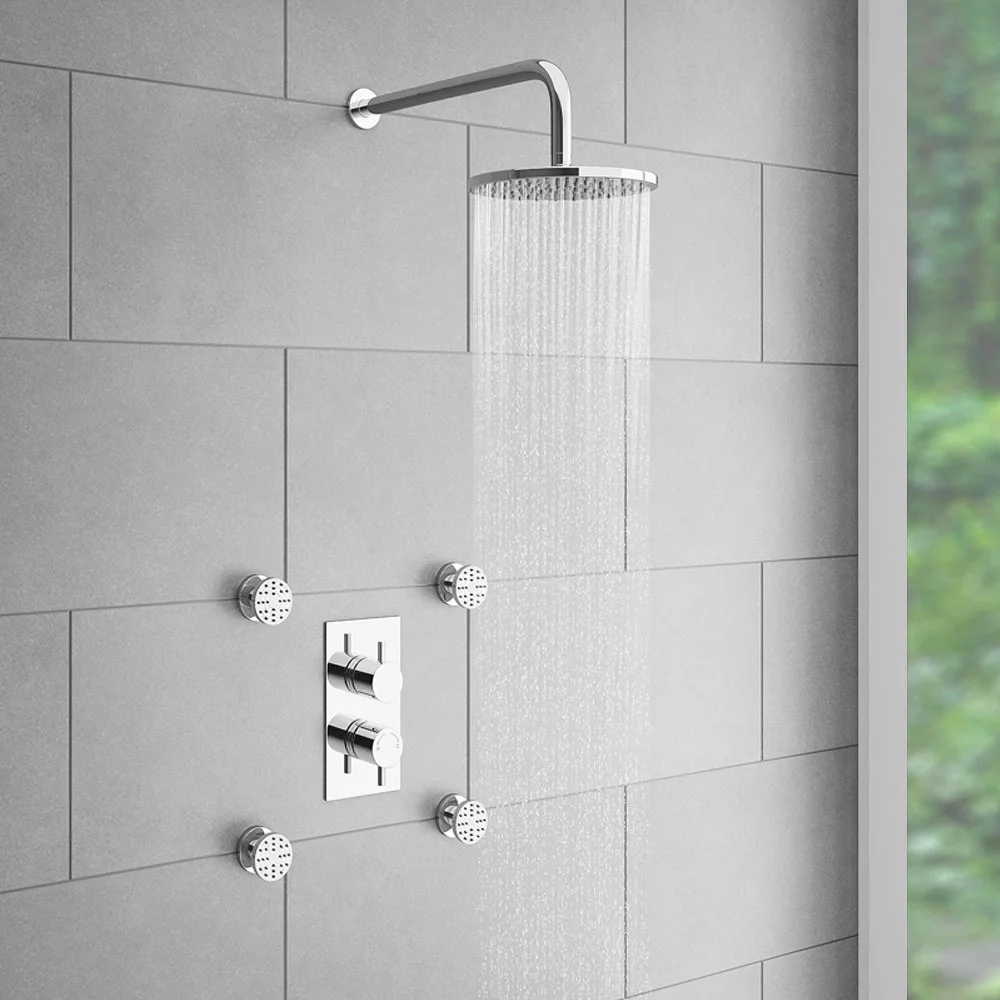

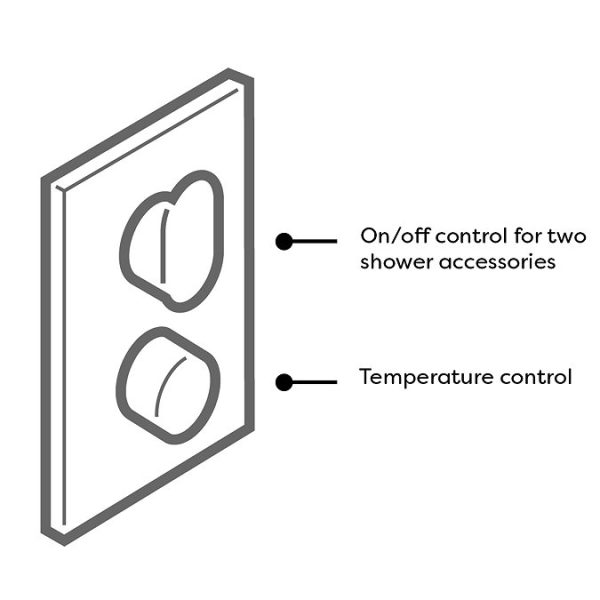

The stylish Cruze shower package includes a concealed thermostatic shower valve with a diverter, a round fixed shower head, and 4 body jets. This shower pack, which complements any modern bathroom suite, offers thermostatic showering via two easy-to-operate controls for temperature and flow. The shower valve has the added safety benefit of a built-in anti-scald device, which activates should the cold water supply fail. It diverts between two shower accessories: the fixed head and the body jets.

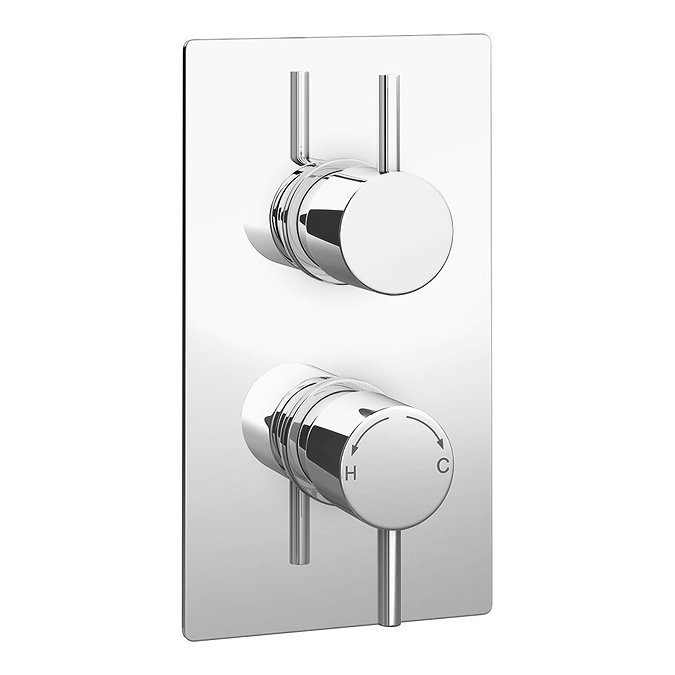

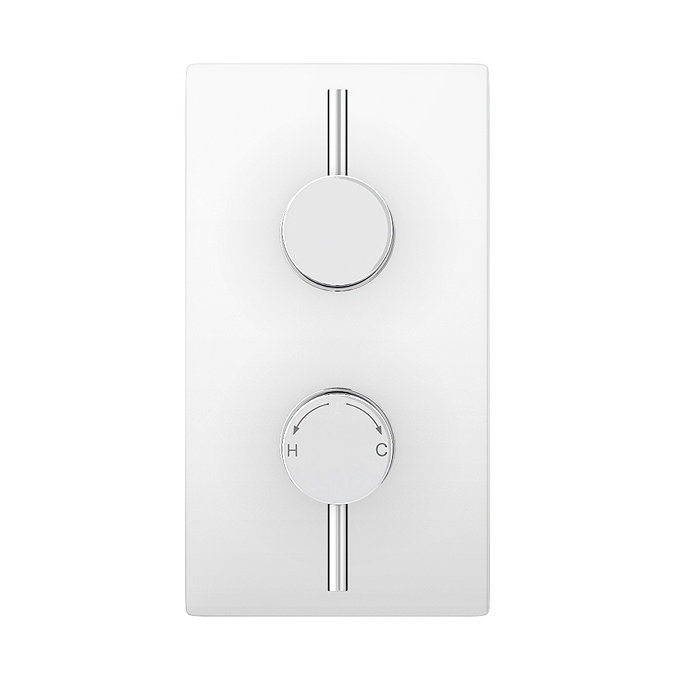

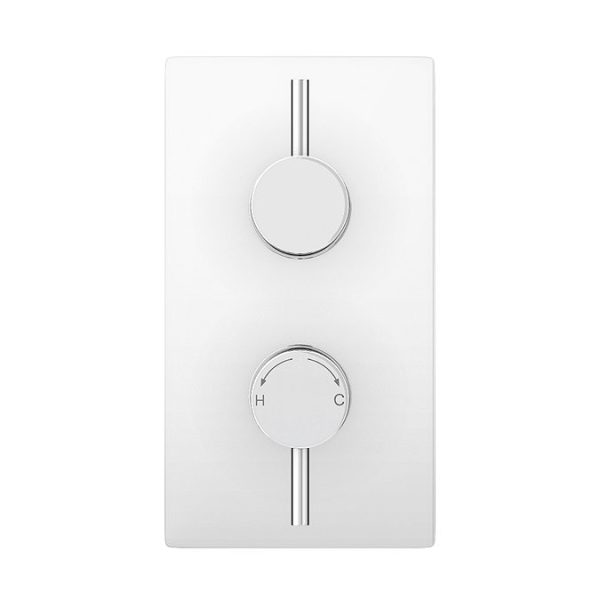

Shower Valve Details:

• Style: Modern
• Colour/Finish: Chrome Plated
• Valve Handles: Round

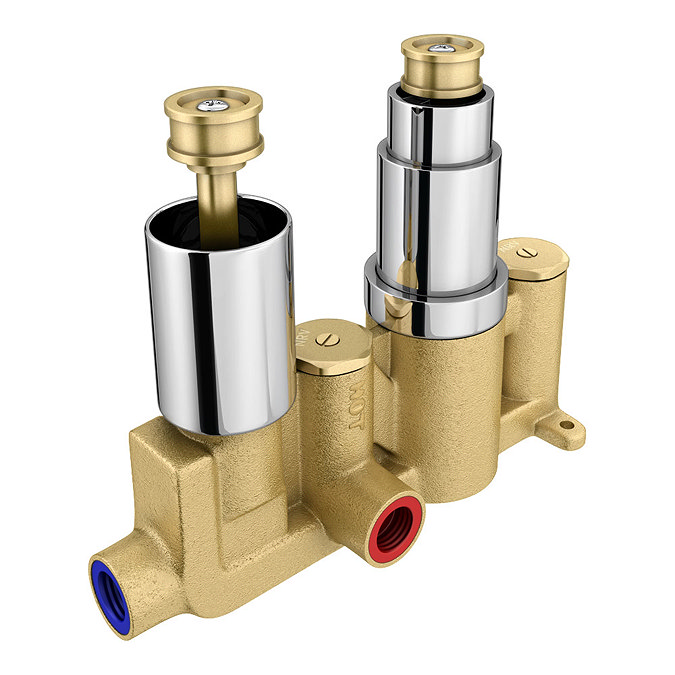

• Brass Internals
• Thermostatically controlled
• Water Pressure: 0.5 bar min to 3 bar max
• Rectangular Faceplate
• Built-In Diverter
• Can be fitted vertically or horizontally
• Suitable for modern pressurised plumbing systems.
• Hot water temperature: 55 to 85 Degrees
• The shower valve will not work efficiently on a gravity-fed tank system unless a booster pump is installed. Should a pump be required, we recommend a universal or negative head pump.

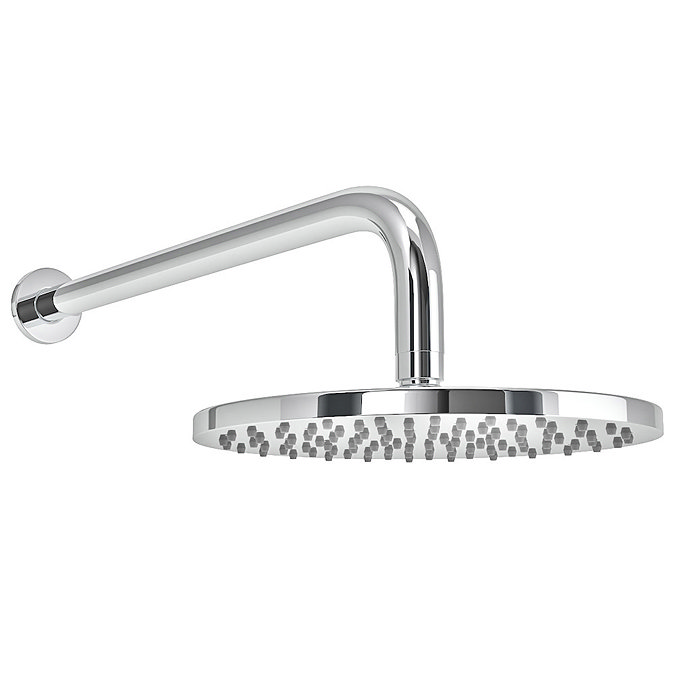

Shower Head Details:

• Head Diameter: 200mm, Arm Length: 345mm
• Style: Modern
• Colour/Finish: Chrome
• Water Pressure: 0.5 bar min to 3 bar max
• Supplied with a swivel joint and a wall-mounted round arm.
• The shower head is chrome-plated plastic, not metal.
• Installation of the arm requires rear access behind the wall.

Body Jet Details:

• Colour/Finish: Polished Chrome
• Material: Brass
• Product Type: Slim Round Body Jet
• Features: Supplied with swivel joint, silicone nozzles for easy limescale removal

All measurements are approximate. Images shown are for illustration purposes only.

Guarantee: 5 Years (1 Year on serviceable parts, for example, internal components such as check valves and cartridges). The shower head and arm are guaranteed for 2 years.

Comprises:

(1) Cruze Twin Square Concealed Shower Valve with Diverter – Chrome
(1) 200mm Round Head
(1) Round Shower Arm
(4) Body Jets

Gravity Fed Systems If you live in an older property, there’s a good chance you have a low-pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar. Therefore, we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
