Chatsworth 600 x 1370mm Cast Iron Style 4 Column White Radiator Brushed Brass Wall Stay Brackets and Thermostatic Valves

Description

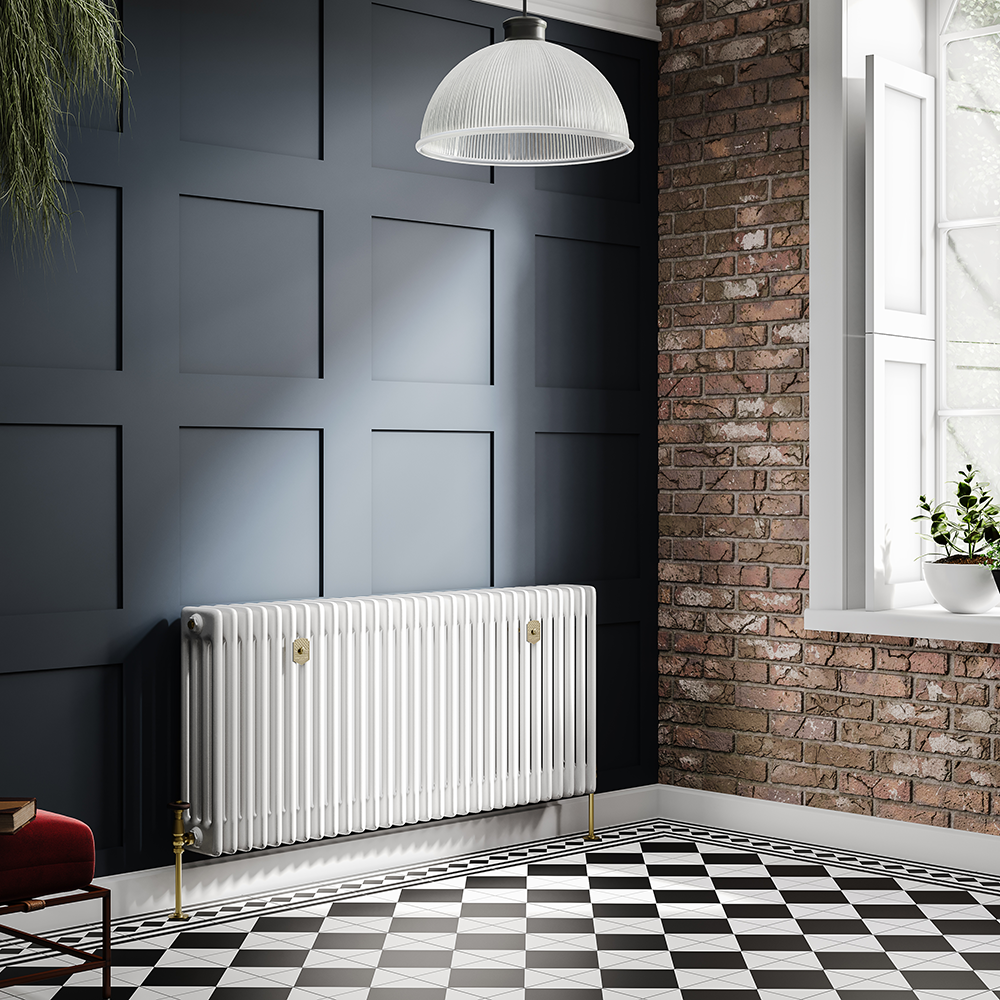

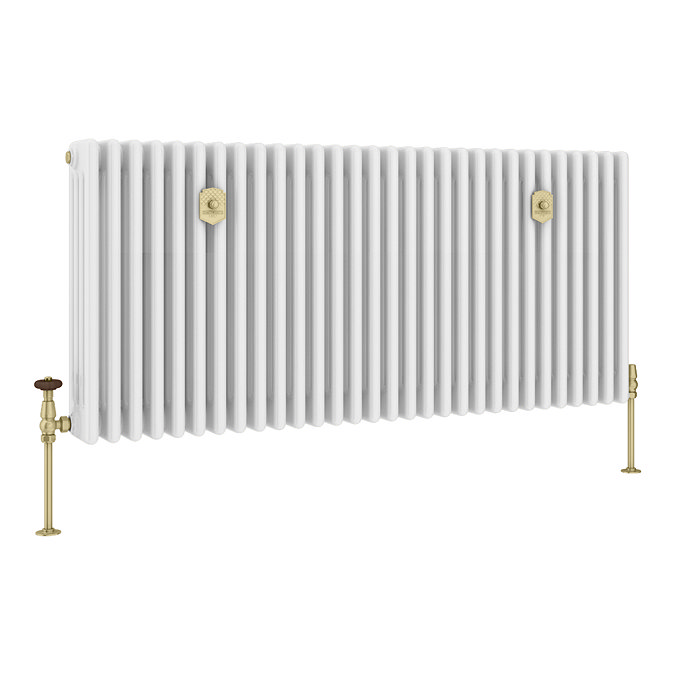

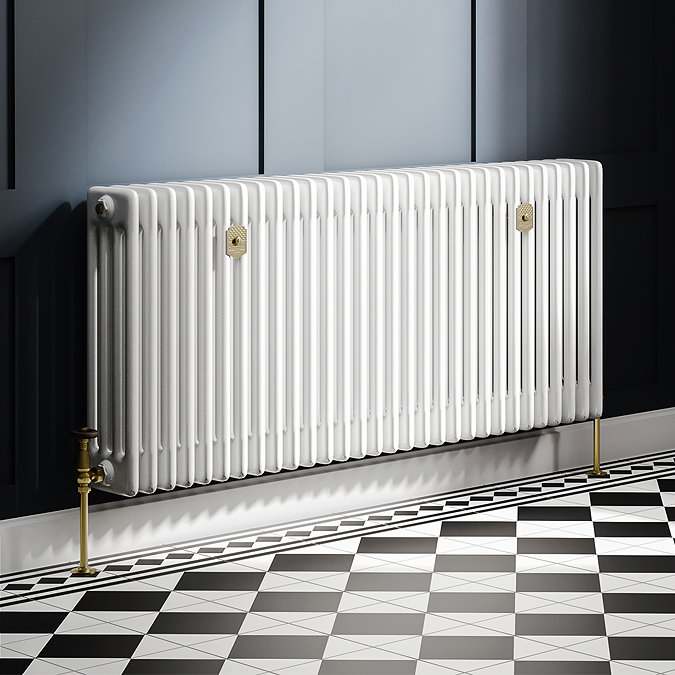

Chatsworth Deluxe H600 x W1370mm Cast Iron Style Traditional 4 Column (30 Sections) White Horizontal Radiator incl. 2 x Brushed Brass Wall Stay Brackets and Traditional Thermostatic Angled Radiator Valves

The Chatsworth Deluxe Cast Iron Style Traditional 4 Column White Radiator is a heating solution that combines vintage charm and modern functionality. It features four heat-emitting columns, traditional wall stay brackets with a brushed brass finish, and thermostatic valves for precise temperature control. This package offers both aesthetic appeal and practicality for any traditional or period-style home.

Radiator Details:

• Width: 1370mm
• Height: 600mm
• Depth: 140mm
• Size, type, and position of connections: 1/2″ FI BSP
• Dry Mass: 57.82kg
• Water Content: 35.51lt
• BTU T50: 7820
• ∆ Watt T50: 2292°C
• Max Operating Pressure: 8 Bar
• Columns: 4
• Sections: 30
• Colour: White Gloss
• Material: Durable Steel
• High quality paint finish
• Style: Traditional
• Wall Mounted
• Horizontal
• Supplied with wall fixing kit
• Made from 1.5mm thick mild steel
• Guarantee: 5 Year
• Tested and Certified BS EN 442-1 Standards
• UKCA  / CE Marked
• ISO9001:2015 Registered Manufacturer

Radiator Valve Details:

• Colour/Finish: Brushed brass
• Material: Brass
• Style: Traditional
• Type: Thermostatic
• Position: Angled
• Energy Saving: Heat your home more efficiently with our thermostatic radiator valves, helping save
• money by allowing you to adjust the temperature on different radiators in the house.
• Valve Inlet: 15mm compression
• Radiator Coupler: 1/2″ BSPT male thread
• Frost Protection
• Comprises of One wheel-head and one lock-shield
• Wooden effect wheel head for a touch of classic design
• Bi-directional – can be fitted on either the flow or return pipe of your radiator.
• Supplied as a pair of valves and 180mm pipes (can be cut down)
• Includes matching blanking and bleed plugs
• Classic design
• Please note, the tubes are water carrying and designed to be connected to the copper pipe below the floor. Only use compression fittings when connecting to these pipe kits. Not suitable for solder fittings or push-fit fittings.
• Guarantee: 3 Year

Radiator Wall Stay Bracket Details:

• Overall length: 360mm (can be cut down)
• Range: Chatsworth 1928
• Style: Traditional
• Colour/Finish: Brushed brass
• Material: Brass
• High-quality Chatsworth 1928 column radiator wall stay bracket
• Brushed brass finish for a sleek and elegant look
• Designed to securely hold your radiator in place
• Ensures stability and safety
• Constructed from durable materials for long-lasting use
• Compatible with a variety of column radiator models
• Enhances the functionality and style of your radiator installation
• Beware of sharp edges
• Wall fixings not included
• Perfect for vintage-inspired bathrooms
• Guarantee: 2 Year

Images are for illustration purposes only

All measurements are approximate

We recommend pipework is not installed until receipt of radiator or heated towel rail

Comprises:

(1) Cast Iron Style Traditional 4 Column White Radiator – 600 x 1370mm
(1) Chatsworth Traditional Brushed Brass Finish Thermostatic Radiator and Lock Shield Valve Set (incl. 180mm Pipe Set, Blanking and Bleed Plugs)
(2) Chatsworth 1928 Column Radiator Wall Stay Bracket Brushed Brass
