Burlington Kensington Chrome Wall Mounted Bath/Shower Mixer

Description

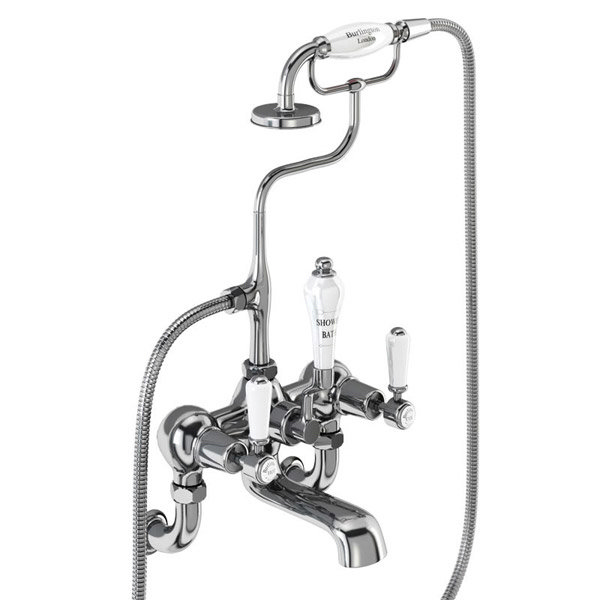

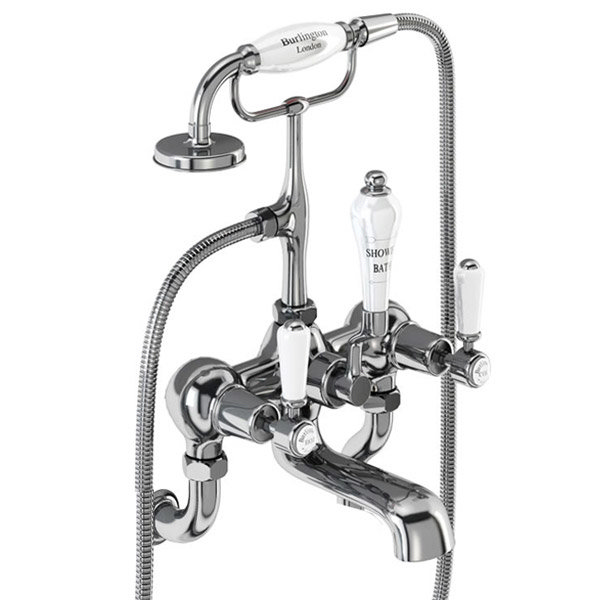

Burlington Kensington – Chrome Wall Mounted Bath/Shower Mixer – KE17

The Kensington range features a traditional design, manufactured to the highest standards using the latest technology. All Kensington bath taps have a ceramic lever tap head with a ceramic indice in the centre.

Product Details

• Product Code – KE17
• Brand – Burlington
• Product Type – Traditional
• Finishes – Chrome plated
• Material – Bodies are of all brass construction
• Supplied with flow straighter – this is for use with low water pressure
• Supplied with aerator – this is for use with high water pressure
• Standard cradle with optional ‘S’ adjuster

15 Year Guarantee

Compliance / Approvals

BS 5412:1996

Specification for low-resistance single taps and combination tap assemblies (nominal size 1 and 3) suitable for operation at PN 10 max. and a minimum flow pressure of 0.01 MPa (0.1 bar)

BS EN 200:2008

Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification

Comprises

T8-QT Quarter Turn Bath Shower Mixer high pressure (Including the standard cradle, ‘S’ adjuster, ceramic diverter, hose, ceramic telephone handset)
T17-2 Wall mounting unions (for Bath Shower Mixer & Bath Filler, 3/4)
T4 Kensington tap handles (pair)

Flow Rates

System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar
Spout (straightener) 22 22.6 25.2 27.2 29
Spout (aerator) 5.6 10.5 11.7 14.1 15.5
Handset 3.68 4.48 7.55 12.53 16.23
