Burlington Chelsea Regent Straight Mono Basin Mixer Tap with Pop Up Waste

Description

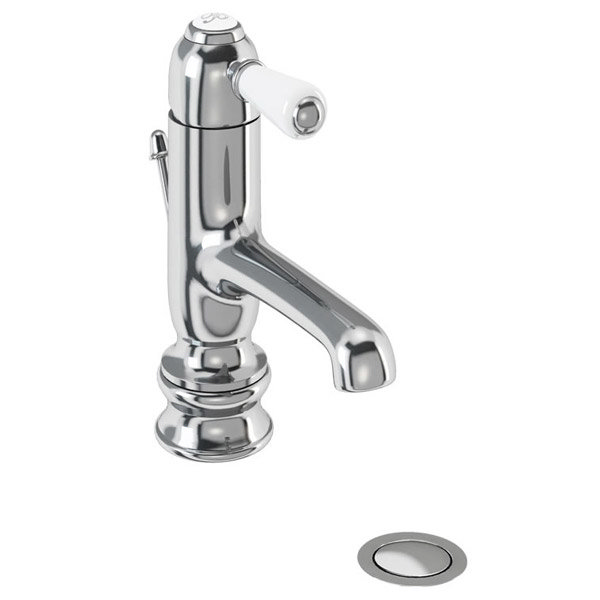

Burlington – Chelsea Regent Straight Mono Basin Mixer Tap with Pop Up Waste – CHR20

The Chelsea Regent mono basin mixer features a traditional design, manufactured to the highest standards using the latest technology. Regent taps have been designed so that the spouts are 3cm higher off the bath/basin than their equivalent namesake. This creates an opulent feel and, in certain commercial applications, ensures compliance with some archaic building regulations!

Product Details

• Product Code – CHR20
• Brand – Burlington
• Product Type – Traditional
• Finishes – Chrome plated
• Material – Bodies are of all brass construction
• Supplied with flow straighter – this is for use with low water pressure
• Supplied with aerator – this is for use with high water pressure

15 Year Guarantee

BS 5412:1996

Specification for low-resistance single taps and combination tap assemblies (nominal size 1 and 3) suitable for operation at PN 10 max. and a minimum flow pressure of 0.01 MPa (0.1 bar)

BS EN 200:2008

Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification.

Comprises

(1) Chelsea straight basin mono tap with pop up waste – CH20
(1) Regent small single tap base – T4B

Flow Rates

System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar
Spout (straightener) 4.83 n/a 8.21 14.36 18
Spout (aerator) 2.9 n/a 4.99 9.11 11.09
