Burlington Chelsea Curved Mono Basin Mixer Tap with Pop Up Waste

Description

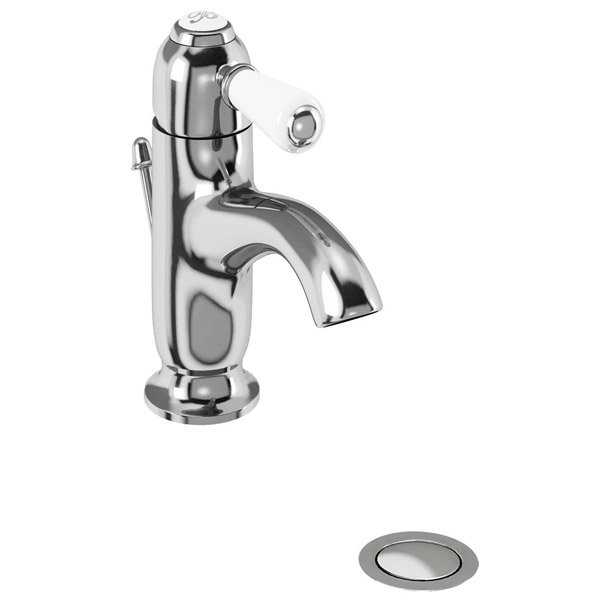

Burlington Chelsea Curved Mono Basin Mixer Tap with Pop Up Waste – CH22

The Chelsea mono basin mixer features a traditional design, manufactured to the highest standards using the latest technology.

Product Details

• Product Code – CH22
• Brand – Burlington
• Product Type – Traditional
• Finishes – Chrome plated
• Material – Bodies are of all brass construction
• Supplied with flow straighter – this is for use with low water pressure
• Supplied with aerator – this is for use with high water pressure

15 Year Guarantee

BS 5412:1996

Specification for low-resistance single taps and combination tap assemblies (nominal size 1 and 3) suitable for operation at PN 10 max. and a minimum flow pressure of 0.01 MPa (0.1 bar)

BS EN 200:2008

Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification.

Flow Rates

System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar
Spout (straightener) 5.51 n/a 12 17.31 21.16
Spout (aerator) 3.56 n/a 7.75 10.61 13
