Bristan Dune Monobloc Kitchen Sink Mixer Chrome

Description

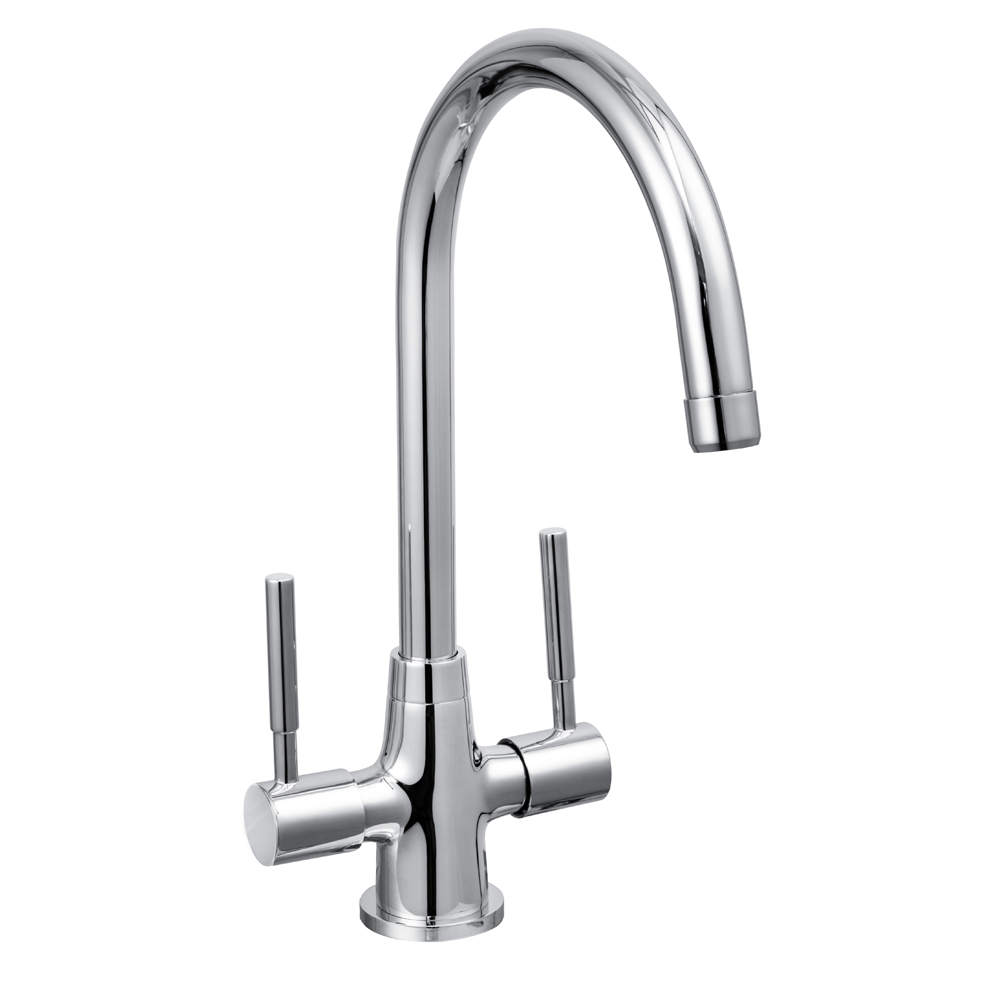

Bristan Dune Monobloc Kitchen Sink Mixer – Chrome – DU-SNK-C

The elegant design of the Dune Monobloc Kitchen Sink Mixer features sleek contours with easy to use lever controls. Bristan’s collection of modern kitchen taps offers a sleek style that will stand the test of time. Constructed with an all brass body with chrome levers, this tap is suitable for all plumbing systems.

Product Details

• Brand  Bristan
• Finish: Chrome
• Spout Height: 361mm
• Spout Projection: 194mm
• Swivel Spout
• Pipe Size – 15mm (1/2″ BSP)
• 1/2” BSP Flexible Tails
• Construction – Body is of brass construction and is designed to conform to BS EN 200
• Valve Type – 1/2” Ceramic Disc Valve – 1/4 turn
• Supply – Suitable for all plumbing systems,
• Minimum Dynamic Pressure (bar): 0.2 bar
• Maximum Dynamic Pressure (bar): 5 bar
• Maximum Hot Water Temperature °C: 60°C
• Maximum Static Pressure (bar): 10 bar)
• WRAS approved

Guarantee – 5 years covering manufacturing faults & 1 year Labour

All measurements are approximate

Mixed Flow Rates (l/min)

• 0.2 Bar – 6.76 l/min
• 0.5 Bar – 10.7 l/min
• 1 Bar – 16.2 l/min
• 2 Bar – 23.7 l/min
• 3 Bar – 29 l/min
• 5 Bar – 37.7 l/min
