Bristan Cashew EasyFit Monobloc Kitchen Sink Mixer

Description

Bristan Cashew EasyFit Sink Mixer – CSH-EFSNK-C

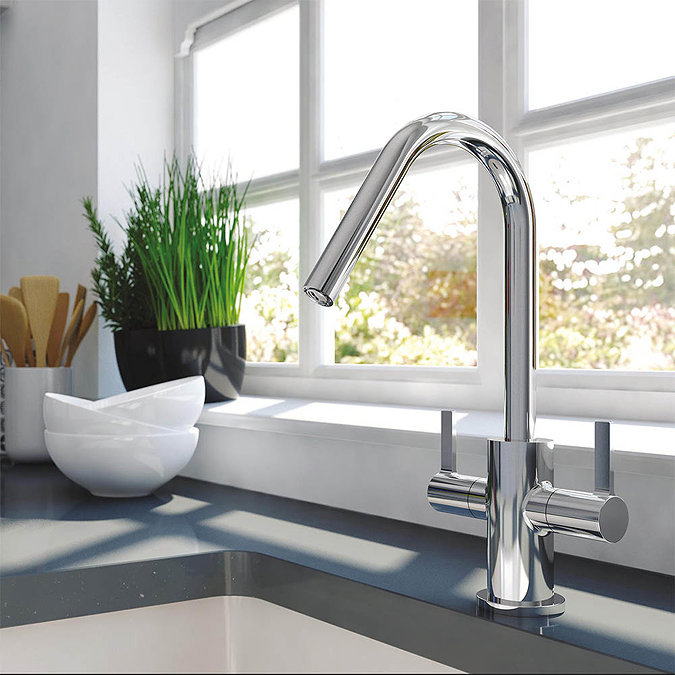

The Cashew EasyFit Sink Mixer is a sleek and contemporary tap that is designed with user-friendly handles. This tap features a unique patented top fix design, known as Easyfit technology, which simplifies the installation process compared to a standard tap. This design is particularly beneficial for installers, making both installation and future maintenance quick and easy.

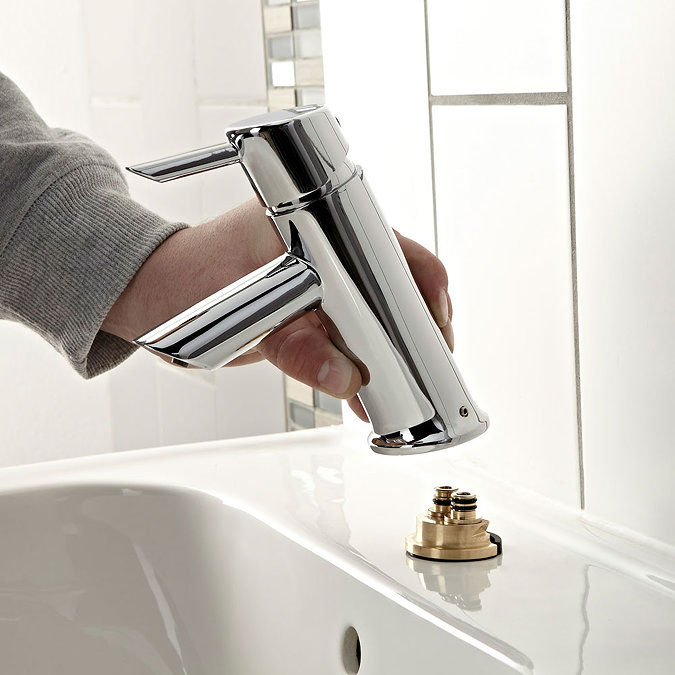

The Easyfit technology allows for simple installation from above the sink. You simply drop and twist the top fix base into the tap hole from above, and lock it into place with the provided Allen key. The package includes two isolation valves and flexi tails, which allow you to connect to the water supply at this point and isolate the base. You then push the tap onto the base and secure it into position with the supplied Easyfit tool and screws.

Product Details

• Brand: Bristan
• Range: Cashew
• Product Code: CSH-EFSNK-C
• Finish: Chrome
• Base To Spout: 200mm
• Spout Reach: 165mm
• Overall Height: 320mm
• Depth: 200mm
• Main Construction Material: Brass
• Mount Type: Deck
• Handle Type: Lever
• Connection Inlet: 1/2” BSP Flexible Tails
• Connection Outlet: Anti-Splash
• Number of Tap Holes: 1
• Valve/Cartridge Type: 1/2” Ceramic Disc Valve
• Plumbing System Requirements: Suitable for all plumbing systems
• Minimum Dynamic Pressure (bar): 0.5 bar
• Maximum Dynamic Pressure (bar): 5.0 bar
• Maximum Hot Water Temperature °C: 65°C
• Maximum Static Pressure (bar): 10 bar
• Flow Type: Single
• Isolation Included: Yes
• WRAS approved

Guarantee:  10 year parts and 1 year labour

Flow Rates (Mixed)

0.5 Bar – 3.4 l/m
1.0 Bar – 5.6 l/m
2.0 Bar – 9.1 1 l/m
3.0 Bar – 11.8 l/m
5.0 Bar – 16.7 l/m
