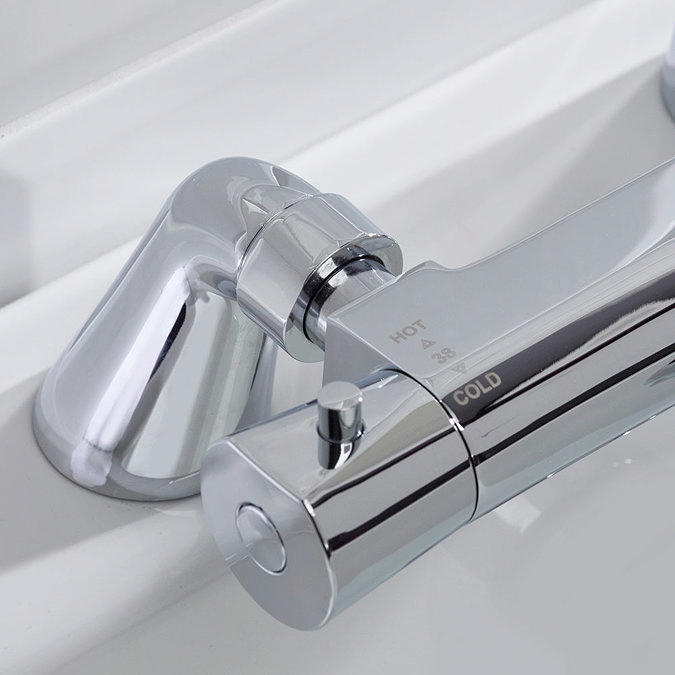

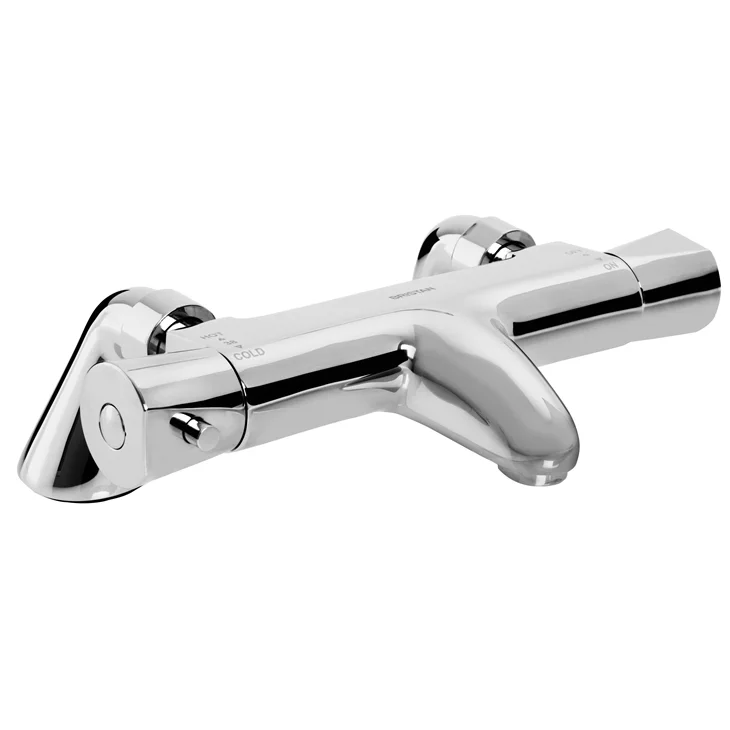

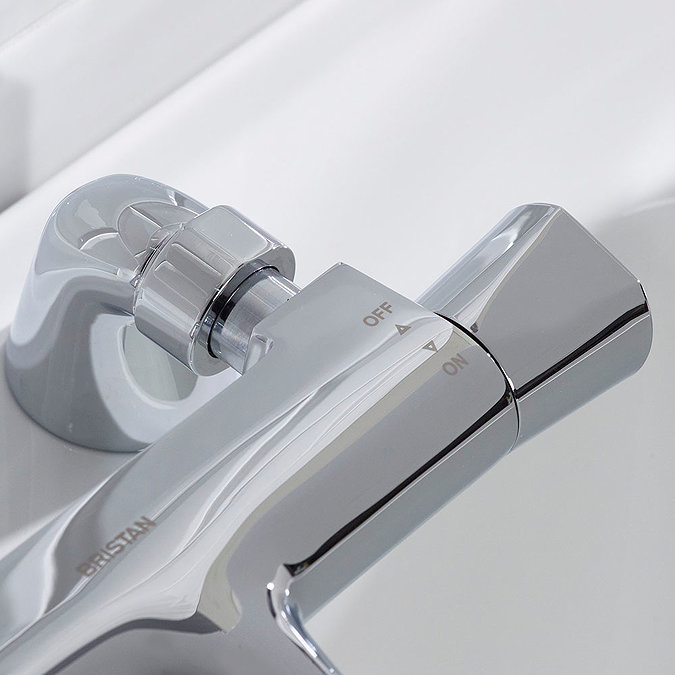

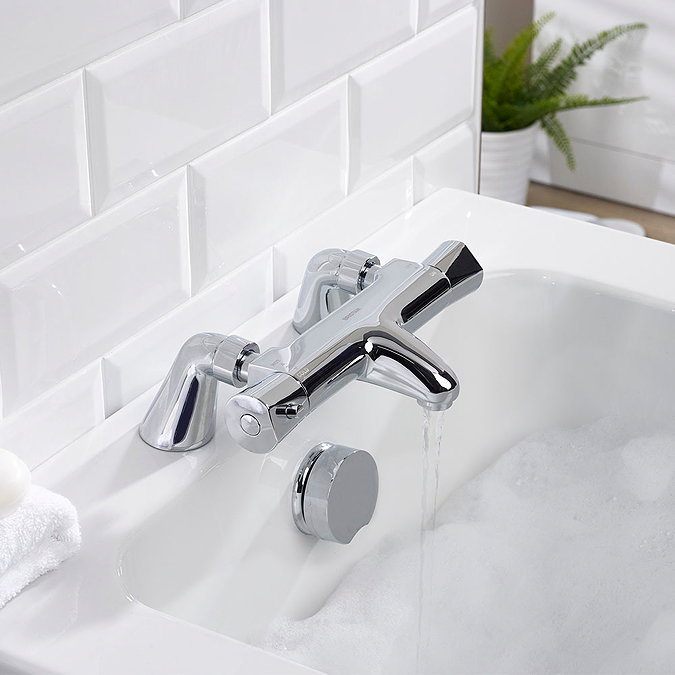

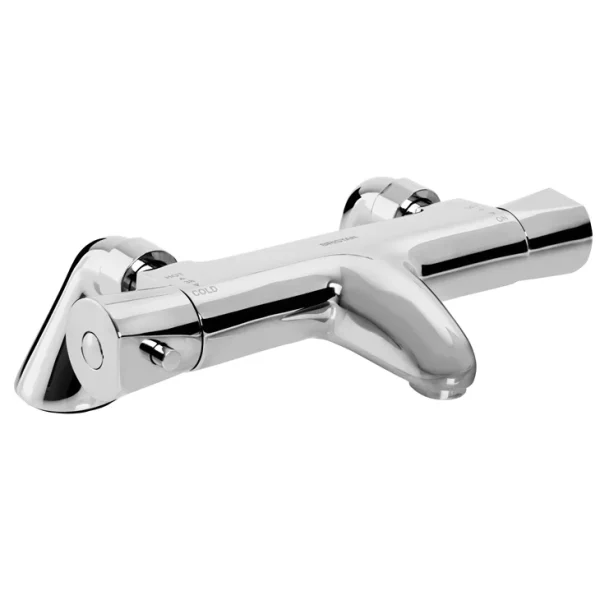

Bristan Artisan Thermostatic Pillar Bath Filler Chrome

Description

Bristan – Artisan Thermostatic Pillar Bath Filler – Chrome – AR-THBF-C

The Bristan Artisan range features dual control and thermostatic cartridge in sleek modern styling. The thermostatic cartridge maintains the temperature to +/-1°C by compensating for changes in the incoming water temperature and pressure giving the stable outlet temperature. Flow and temperature are controlled separately giving accurate control of both.

Features

• Product Code: AR THBF C
• Finish: Chrome
• Product Type: Contemporary
• Construction: Body is of brass construction and is designed to conform to BS EN 1111:1999 and BS EN 1287:1999
• Valve Type: ½” valve
• Cartridge: Thermostatic
• Supply: Suitable for nominally equal (balanced) inlet supply pressures only
• Inlet Connections: ¾” BSP
• Water Pressure: Min 0.5 bar Max. 5.0 bar
• Dimensions for Fittings: 180mm inlet centres

Additional Information

• Dual control – Flow and temperature are controlled separately giving accurate control of both.
• Thermostatic cartridge maintains showering temperature to +/-1°C by compensating for changes in the incoming water temperature and pressure giving the stable outlet temperature.
• Automatic shut off in the event of hot or cold water supply failure, thus reducing the risk of any injury.
• Factory set to 38°C to eliminate the ability to select unsafe temperature, this can be overridden by user to a maximum of 48°C.
• Chrome plated to BS EN 248.
• This product must have nominally equal (balanced) inlet supply pressures to function correctly. If pressures are unequal, then a pressure reducing valve should be used.

Guarantee: 5 years covering manufacturing faults
