Bristan Apelo Bath Shower Mixer with Kit Brushed Brass

Description

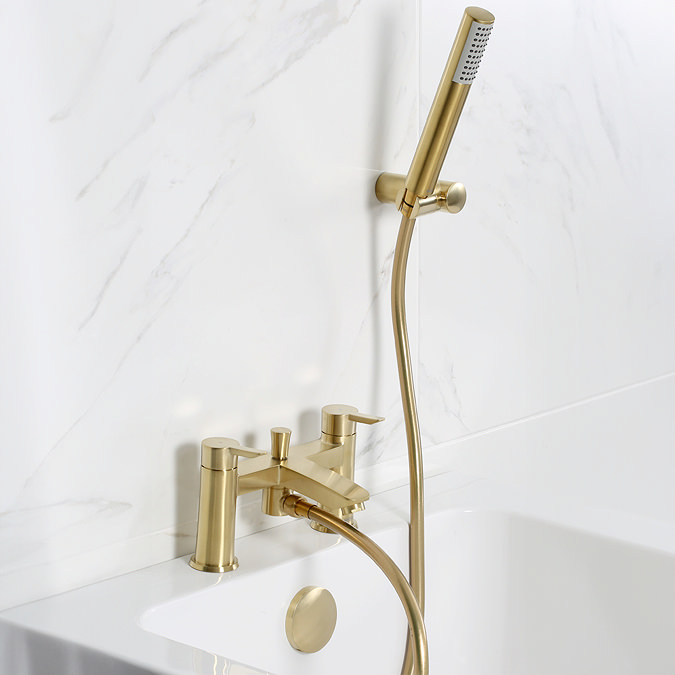

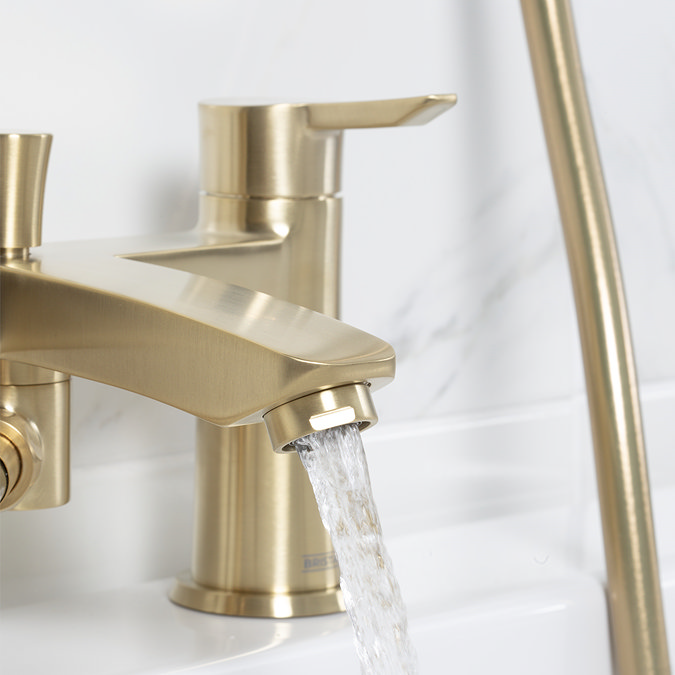

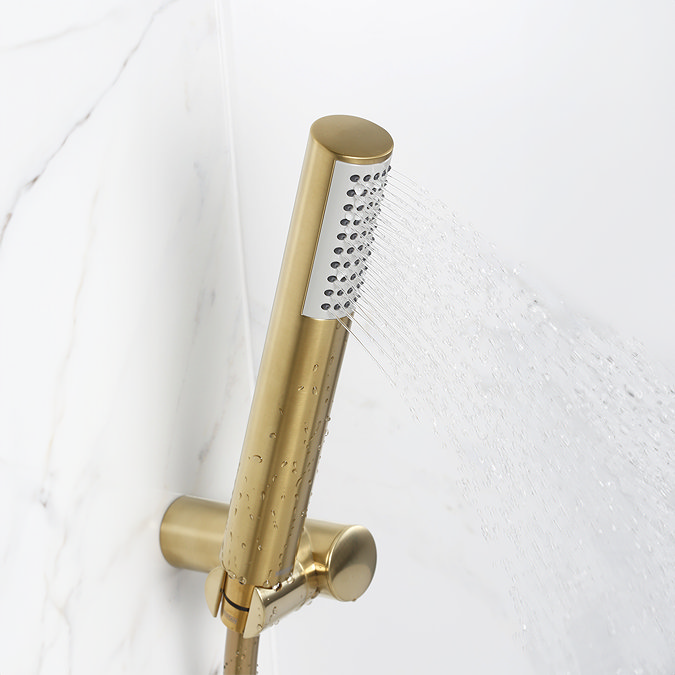

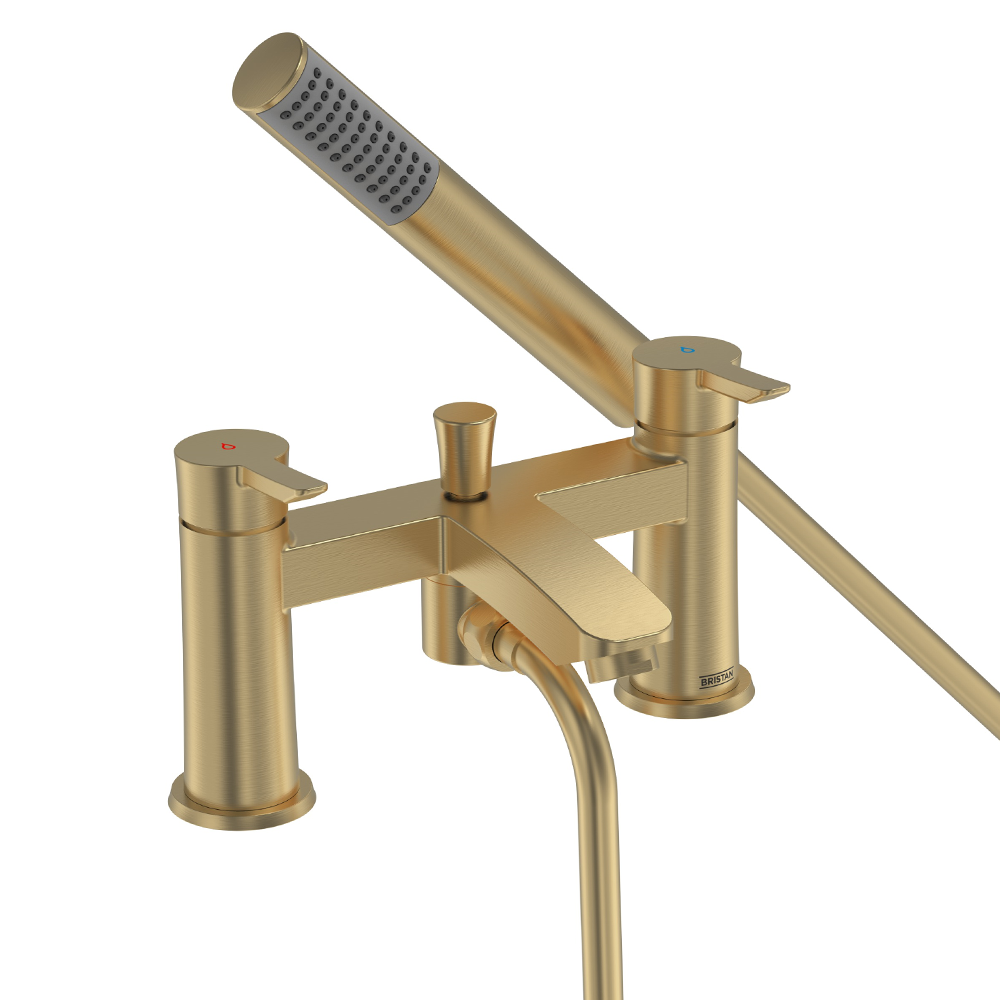

Bristan Apelo Brushed Brass Bath Shower Mixer with Kit

The Apelo tap range from Bristan has contemporary appeal with it’s sleek spout and stylish easy to use lever. This bath shower mixer features long life and easy to use 1/4 turn ceramic disc valves and are supplied with metal fixing nuts for added durability and to secure your tap in place. Suitable for high and low pressure water systems. Includes hose, rub-clean anti-limescale handset and wall bracket.

Product Details

• Band: Bristan
• Range: Apelo
• Finish: Brushed Brass
• Height: 135mm
• Width: 230mm
• Depth: 140mm
• Pipe Centres: 180mm
• Handset Height: 210mm
• Handset Holder Length: 95mm
• Product Type: Bathroom Taps
• Main Construction Material: Brass
• Mount Type: Deck
• Handle Type: Lever
• Connection Inlet: 3/4″ BSP
• Housed M24 Flow Straightener
• Number of Tap Holes: 2
• Ceramic Disc Valves
• Plumbing System Requirements: Suitable for all plumbing systems
• Long life 1/4 turn ceramic disc valves for
• added durability and smooth control.
• Minimum Dynamic Pressure (bar): 0.3 bar
• Maximum Dynamic Pressure (bar): 5.0 bar
• Maximum Hot Water Temperature °C: 60°C
• Maximum Static Pressure (bar): 10 bar
• Flow Type: Single
• Isolation Included: No
• Includes hose, rub-clean handset and wall bracket
• WRAS approved


Guarantee:

5 Year covering manufacturing faults & 1 year Labour

All measurements are approximate

Images are for illustrative purposes only

Flow Rates

Bath Filler Pressure

0.3 Bar – 12.5 l/m
0.5 Bar – 16.4 l/m
1.0 Bar – 24 l/m
2.0 Bar – 33.3 l/m
3.0 Bar – 40.8 l/m
5.0 Bar – 51.6 l/m

Handset Pressure

0.2 Bar – 3.91 l/m
0.5 Bar – 5.15 l/m
1.0 Bar – 7.62 l/m
2.0 Bar – 11.22 l/m
3.0 Bar – 14.25 l/m
5.0 Bar – 18.96 l/m
