Arezzo Square Matt Black 2 Outlet Shower System (Fixed Shower Head + Slimline Waterfall Bath Spout)

Description

Arezzo Square Matt Black 2-Outlet Shower System (Fixed Shower Head + Slimline Waterfall Bath Spout)

The striking matt black Arezzo square shower system boasts a concealed thermostatic shower valve adorned with chic square handles. It includes a wall-mounted shower head and a slimline waterfall bath filler spout, adding a touch of substantial elegance to any modern bathroom. This sophisticated concealed thermostatic shower system provides thermostatic showering and features a built-in diverter to alternate between two distinct outlets effortlessly.

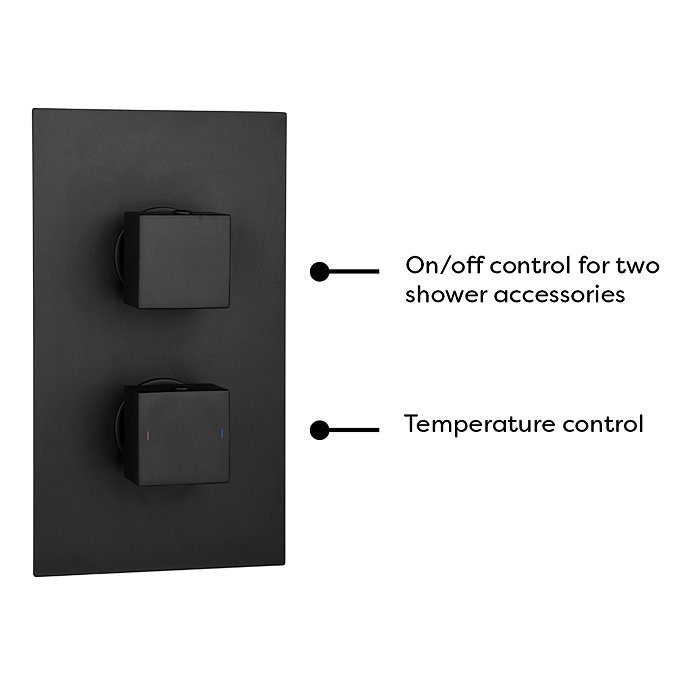

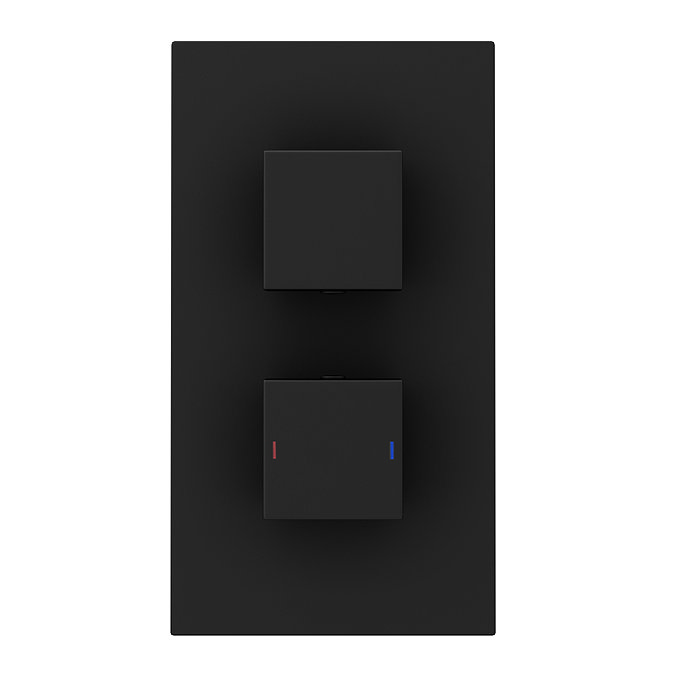

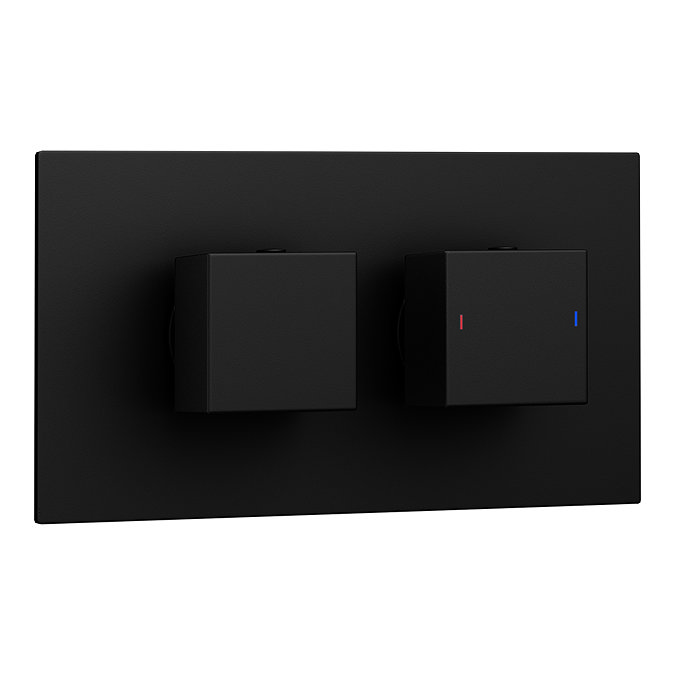

Shower Valve Details:

• Style: Modern
• Colour/Finish: Matt Black
• Valve Handles: Square
• Material: Brass Internals
• Features: Thermostatically controlled, concealed
• Water Pressure Range: 0.5 bar to 5 bar
• Backplate: Rectangular
• Compatibility: For use with 2 outlets, suitable for modern pressurised plumbing systems
• Installation: Can be fitted vertically or horizontally
• Temperature Range: Hot water temperature from 55 to 85 degrees Celsius
• Note: The shower valve will not operate efficiently on a gravity-fed tank system unless a booster pump is installed. For optimal performance, a universal or negative head pump is recommended.

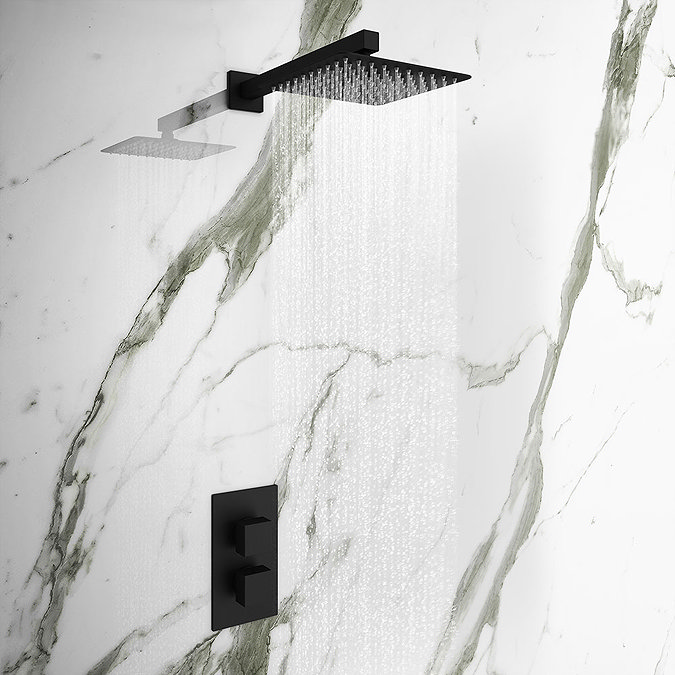

Shower Head with Arm Details:

• Dimensions: 200 x 200mm
• Arm Length: 355mm
• Material: Stainless Steel
• Features: Rainfall effect, ultra-thin design
• Inlet Connections: 1/2″ BSP
• Minimum Pressure Requirement: 0.5 bar
• Additional: Comes with a swivel joint and a wall-mounted square shower arm. The rub-clean nozzles facilitate easy cleaning and maintenance.

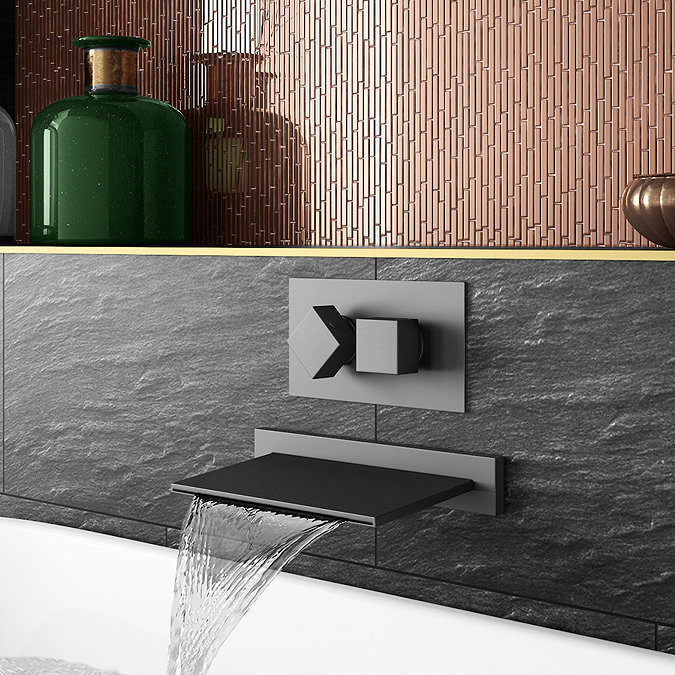

Bath Spout Details:

• Width: 300mm
• Spout Width: 250mm
• Depth: 152mm
• Material: Brass
• Style: Modern
• Product Type: Slimline Shower/Bath Waterfall Spout
• Minimum Water Pressure: MP – 0.5 bar
• Requirement: Compatible with all plumbing systems
• Inlet Size: 15 mm (1/2″ BSP)

Guarantee: 5 years, with a 1-year warranty on serviceable parts (e.g., internal components such as check valves and cartridges).

Please Note:

All measurements are approximate.
Images are for illustrative purposes only.

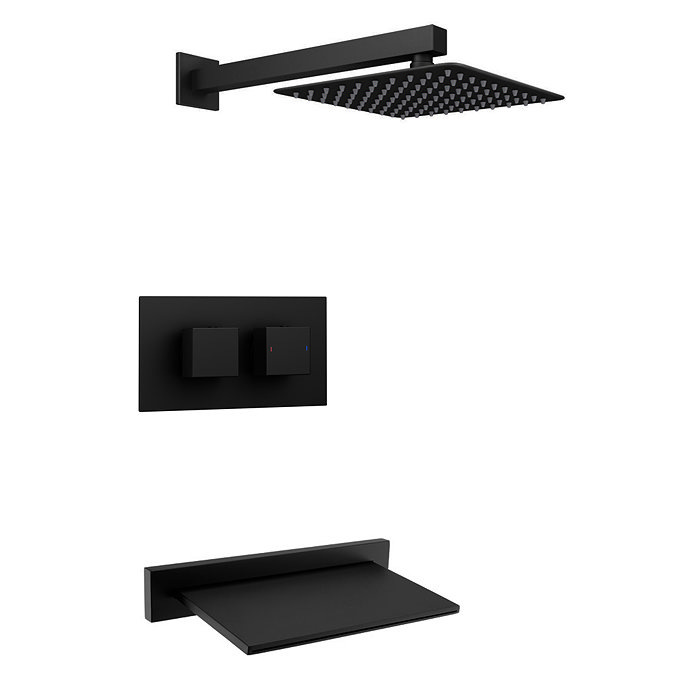

Package Includes:

(1) Square 200 x 200mm matt Black Fixed Shower Head + Wall Mounted Arm
(1) Matt Black Twin Square Handles Concealed Shower Valve with Diverter
(1) Matt Black Slimline Waterfall Wall Mounted Bath Spout

Gravity Fed Systems: For those residing in older properties with a low-pressure gravity-fed system, please note that this shower valve requires a minimum pressure of 0.5 bar. It is advised to install a negative or universal pump (available separately) to ensure proper function. Positive pumps will not work.
