Arezzo Rose Gold Round Shower Package with Concealed Valve + Head

Description

Arezzo Rose Gold Round Shower Package with Concealed Valve + Head

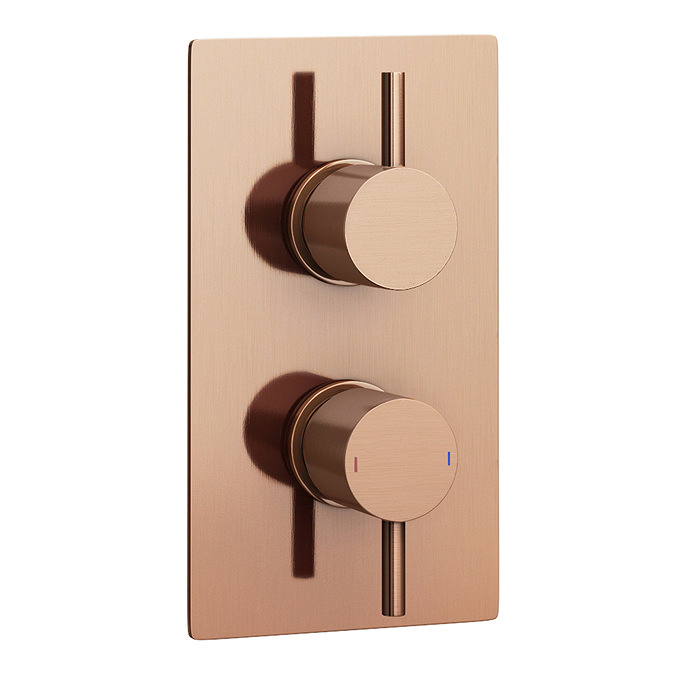

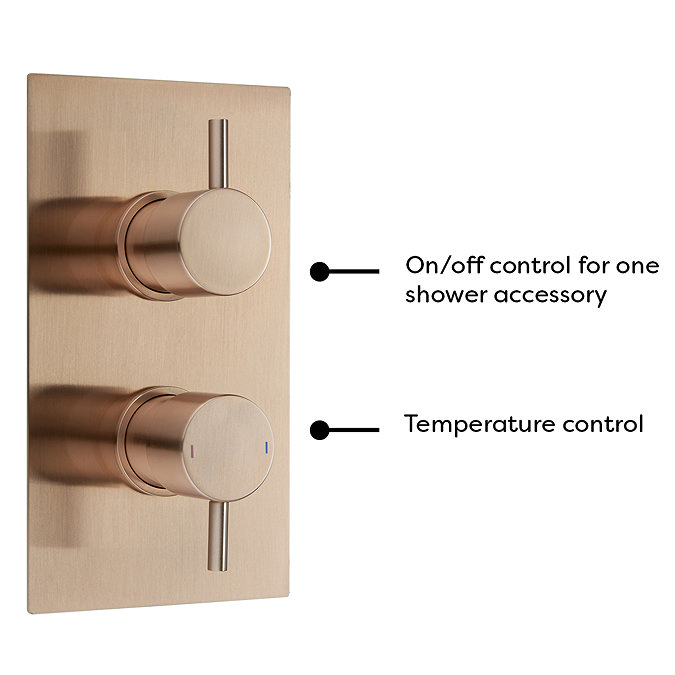

This Arezzo brushed rose gold round concealed thermostatic valve with it’s chic minimalist design will bring a touch of sophistication to any bathroom, offers thermostatic showering via two easy-to-operate controls for temperature and flow. Supplied with matching wall mounted rose gold round fixed shower head with swivel joint and arm.

Shower Valve Details

• Height: 215mm
• Width: 120mm
• Style: Modern
• Colour/Finish: Brushed Rose Gold
• Valve Handles: Round

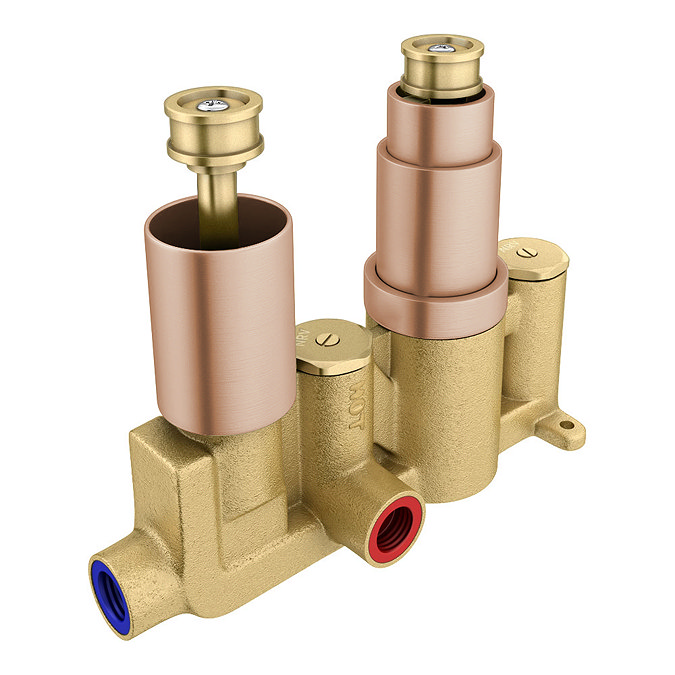

• Brass Internals
• Thermostatically controlled
• Water Pressure: 0.5 bar to 5 bar
• Rectangular Faceplate
• For use with 1 Outlet

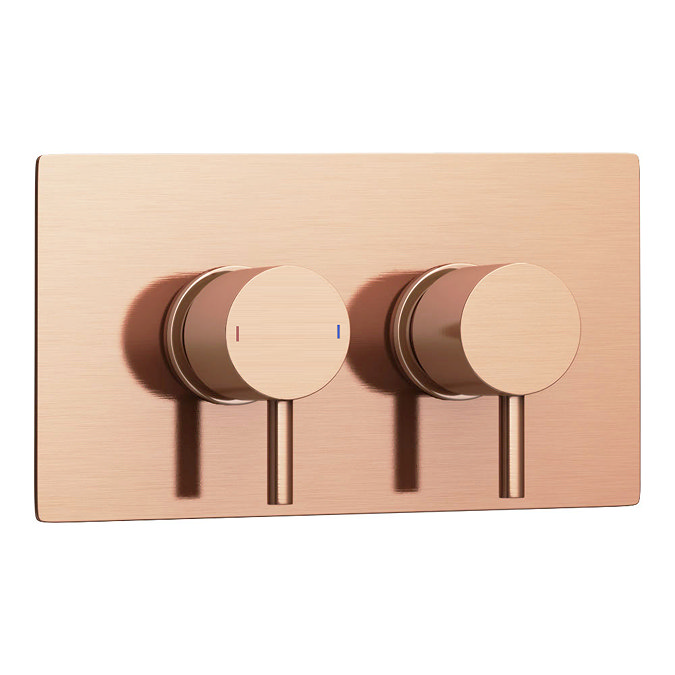

• Can be fitted vertically or horizontally
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump
• Flow Rates:
• 0.5 bar – 9.6 L/M
• 1 bar – 14.1 L/M
• 2 bar – 20.5 L/M
• 3 bar – 24.8 L/M
• 4 bar – 28.3 L/M
• 5 bar – 32 L/M

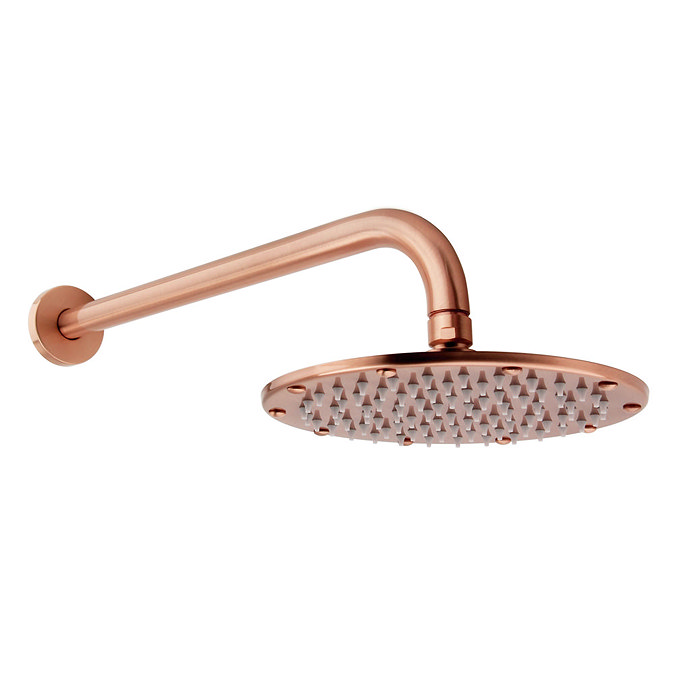

Shower Head + Arm Details

• Shower Head Dimensions: 195mm Diameter
• Shower Arm Length: 360mm
• Style: Modern
• Colour/Finish: Brushed Rose Gold
• Rainfall Effect
• Thin Shower Head
• Wall Mounted
• Eye-catching, rose gold finish
• Inlet Connections: 1/2″ BSP
• Pressure requirement 0.5 bar minimum
• Supplied with swivel joint and wall mounted round arm.
• Rub clean nozzles makes this item easy to clean and maintain

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Comprises

(1) Twin Round Concealed Shower Valve
(1) 200 x 200mm Ultra Thin Round Head
(1) Round Shower Arm


Gravity Fed Systems:

If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
