Arezzo Matt Black Concealed Individual Diverter + Thermostatic Control Valve with Handset + 200mm Shower Head

Description

Arezzo Matt Black Concealed Individual Diverter + Thermostatic Control Valve with Handset + 200mm Round Shower Head

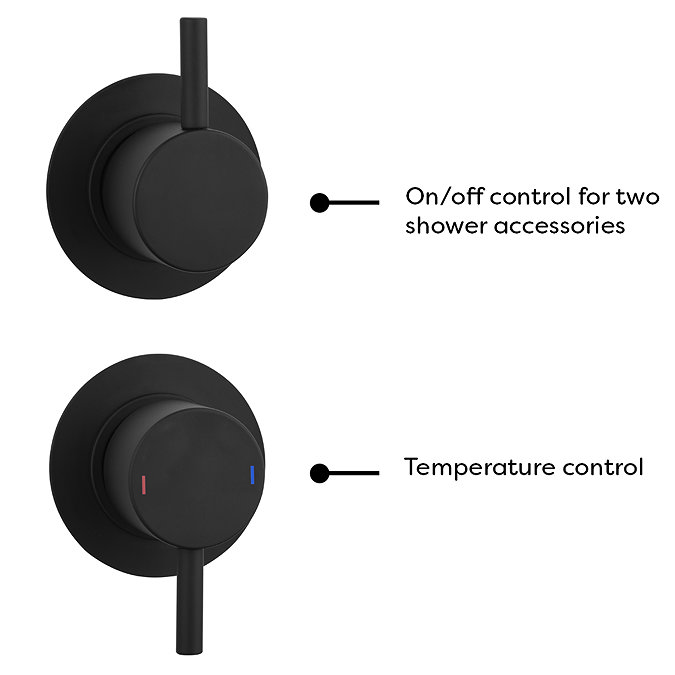

Bring a sleek modern look to your bathroom with the Arezzo Concealed Diverter and Thermostatic Shower Valve Pack in matt black. This shower pack features a concealed shower valve and comes complete with a luxurious fixed rainfall shower head that’s just the thing for those long pampering showers. The matching round shower handset has a bracket made from matt black coated stainless steel for a coordinated look. It’s simple to use, too – two knobs control temperature and flow, and the valve has dual functions so you can switch effortlessly between the head and handset.

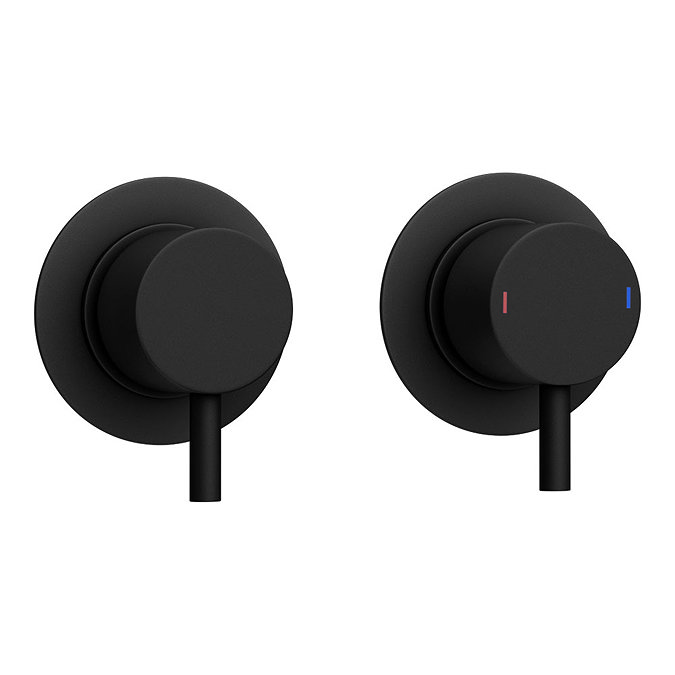

Shower Valve Details

• Diverter Valve: W70 x H70 x D138mm
• Thermostatic Control: W70 x H150 x D138mm
• Backplate: 70mm Diameter
• Style: Modern
• Range: Arezzo
• Valve Handles: Round
• Colour/Finish: Matt Black

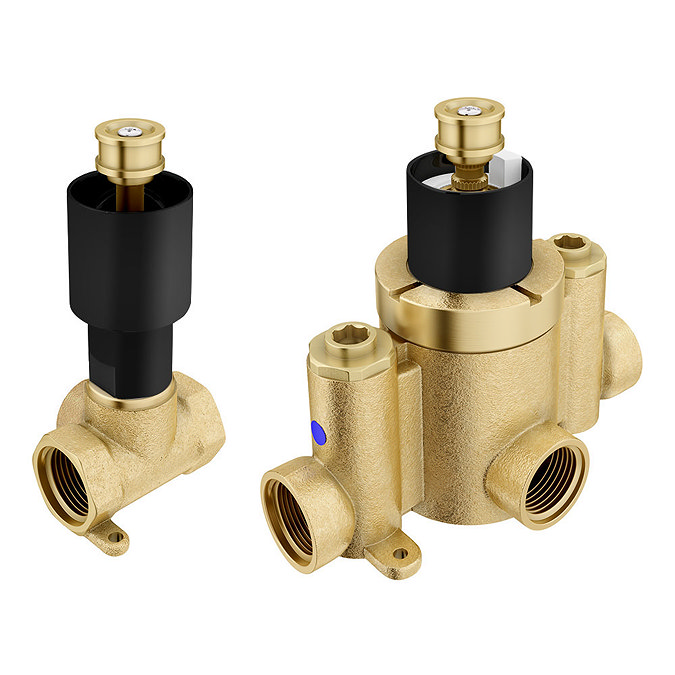

• Material: Brass Internals
• Concealed fitting
• Round backplates
• For use with 2 Outlets
• Min operating pressure: 0.5 bar
• Max operating pressure: 5 bar
• Hot Water Supply Temperature 55-85°C
• Cold Water Supply Temperature 4-29°C
• Suitable for modern pressurised plumbing systems.
• Pack includes individual thermostatic control with a individual diverter valve for switching water flow between 2 outlets.
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.

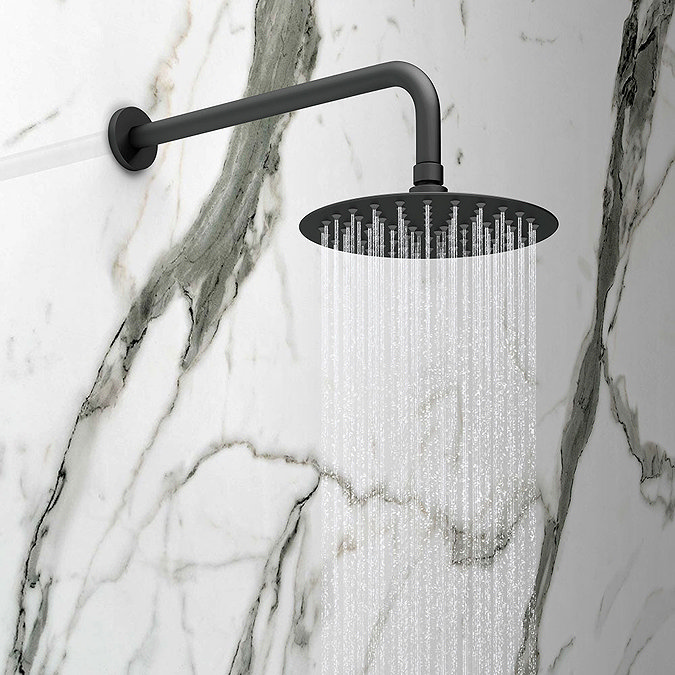

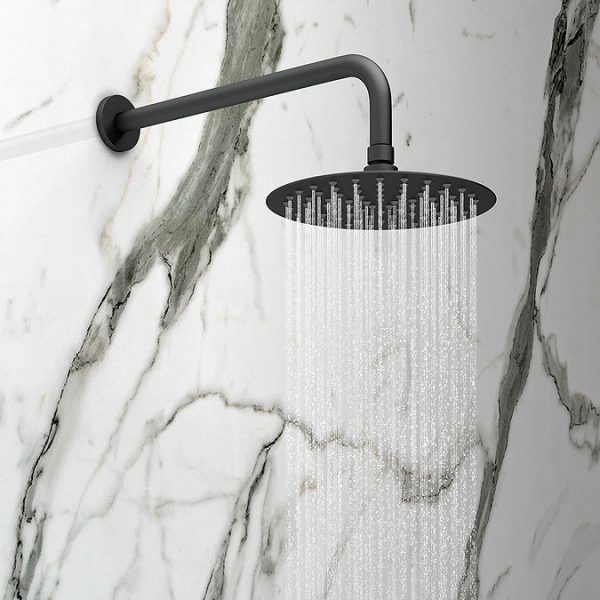

Shower Head Details

• Shower Head Dimensions: 200mm Diameter
• Shower Arm Length: 335mm
• Style: Modern
• Colour/Finish: Matt Black
• Material: Stainless Steel
• Rainfall Effect
• Ultra-Thin Shower Head
• Inlet Connections: 1/2″ BSP
• Pressure requirement 0.5 bar minimum
• Supplied with swivel joint and wall mounted round arm.
• Rub clean nozzles makes this item easy to clean and maintain

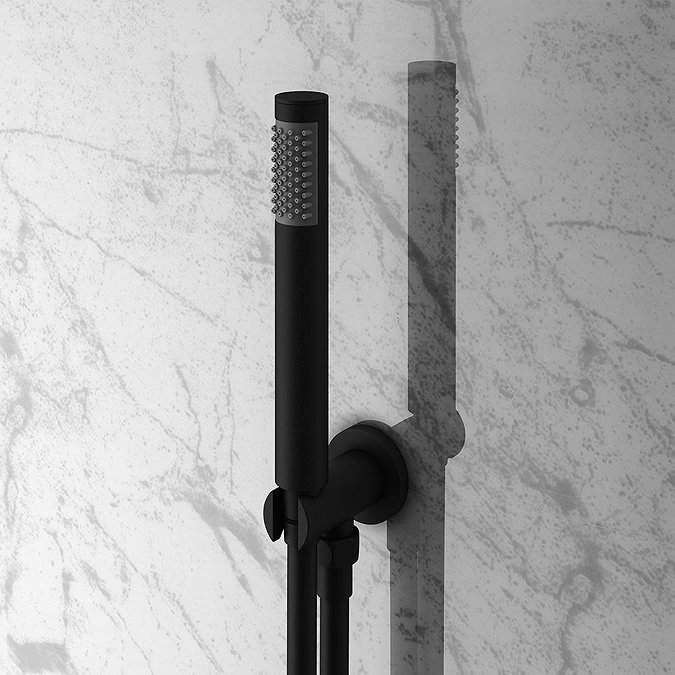

Shower Handset Details

• Depth: 67mm
• Height: 210mm
• Width: 50mm
• Colour/Finish: Matt Black
• Shape: Round
• Manufactured To The Highest Standards
• Round Handset with Built in Outlet
• Suitable for all plumbing systems
• 1.5m Shower Hose – Black PVC
• Outlet Elbow with Parking Bracket – Brass / Matt Black
• Handset – ABS plastic / Matt Black
• Quality finish
• Pencil handset holder
• Silicone nozzles mean that any lime scale deposits can simply be rubbed away
• Connections: 15 mm (1/2″ BSP)

For further information refer to products installation instructions

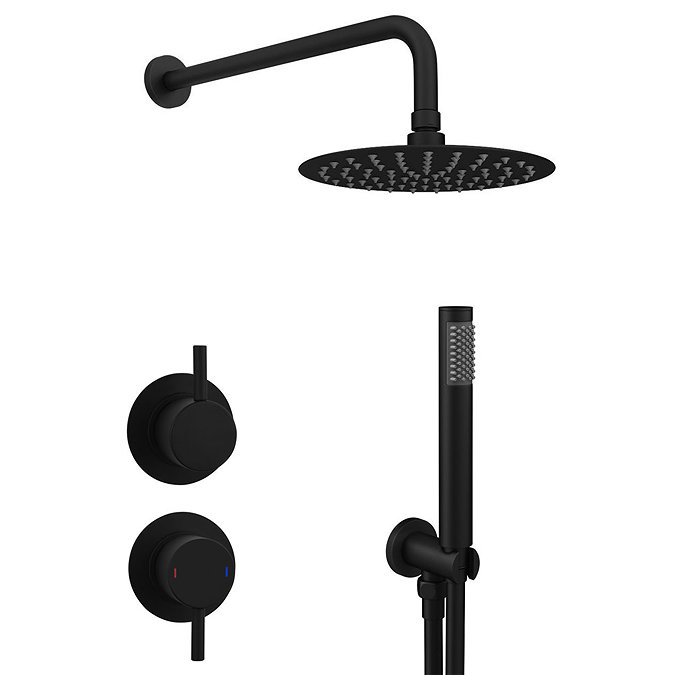

Comprises

(1) Arezzo Matt Black Concealed Individual Diverter + Thermostatic Control Shower Valve For 2 Outlets
(1) Arezzo Round 200mm Matt Black Fixed Shower Head + Wall Mounted Arm
(1) Arezzo Round Matt Black Outlet Elbow with Parking Bracket, Flex & Handset

Gravity Fed Systems:


If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
