Arezzo Compact Toilet Fixing Frame with Dual Flush Cistern + Modern Toilet

Description

Arezzo Compact Top/Front Flush Toilet Frame with Dual Flush Cistern, Matt Black Round Button Flush Plate + Wall Hung Modern Toilet

This quality compact toilet fixing frame helps to bring style to your bathroom in the form of wall hung toilets. This fixing frame has a small, compact design making it perfect for under windows or inside low-wall installations. This fixing frame is supplied with a modern matt black dual flush push plate which can be mounted on the front or top of the cistern, giving added flexibility.

Please select your choice of wall hung pan via the drop-down menu.

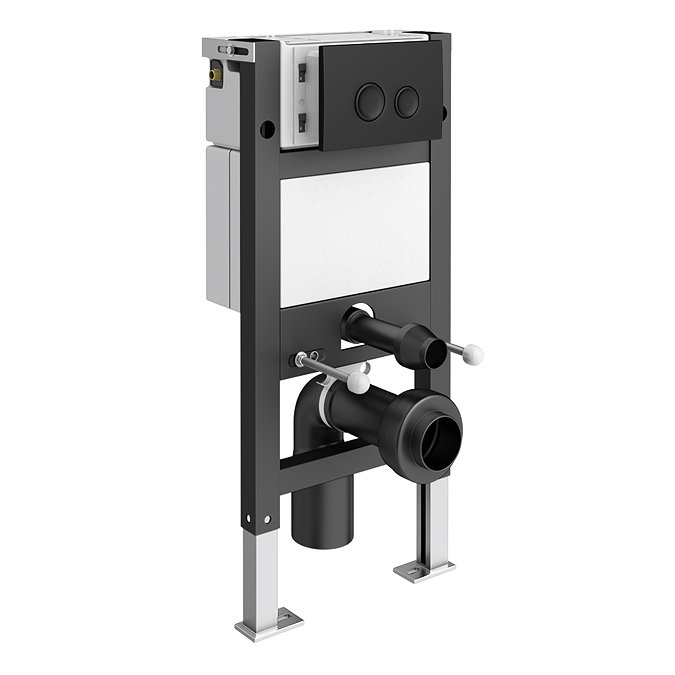

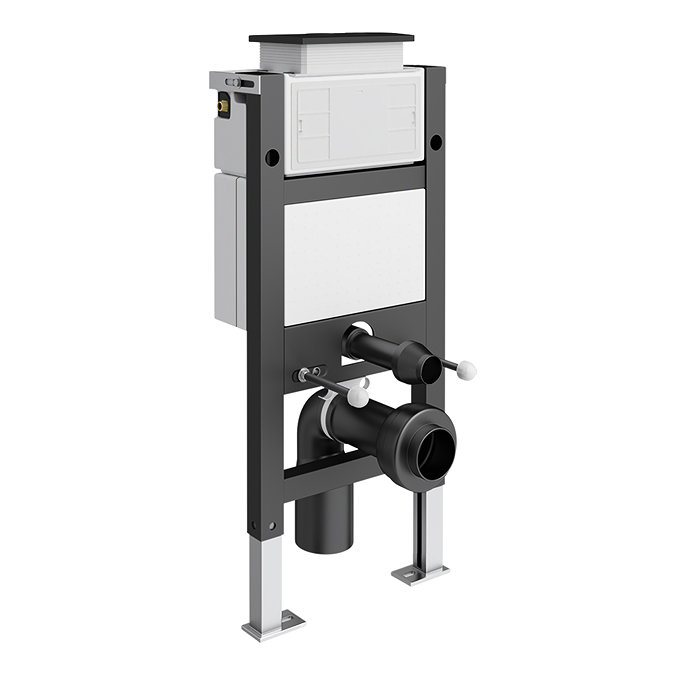

Wall Hung Cistern Frame Details:

• Height: 755-1055mm (Approx.), Width: 415mm, Depth: 166mm
• Frame Height Adjustment: 0-300mm
• Full Flush: 6-7.5L, Half flush: 2.5-4L
• Fill valve pressure: 0.2-16bar
• Metal Frame Support weight: 400KG
• Compatible with all wall-hung WC pans
• Built-in or plasterboard wall installation

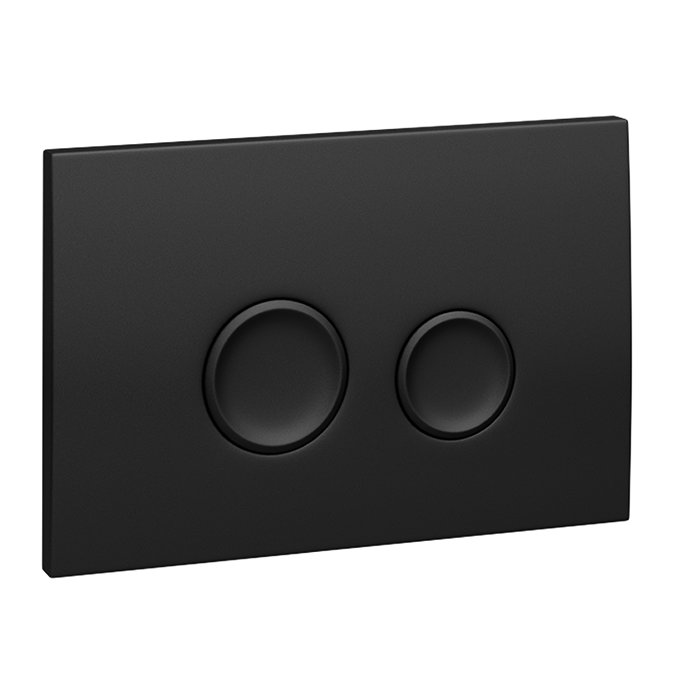

• Flush Plate Size: 242 x 160mm
• Flush Plate Colour: Matt Black
• Button Shape: Round
• Style: Modern
• Top or front flush installation
• Water saving dual-flush valve
• Insulated against condensation and reduces noise from water tank
• Durable moulded tank
• Easy access for maintenance
• Minimalist compact slimline design
• Suitable for bathroom furniture and concealed framework
• This fixing frame has a small, compact design making it perfect for under windows or inside low-wall installations.
• Includes brackets and WC bend
• Cistern tested in accordance with EN 14055
• UKCA Marked
• ISO9001:2015 Registered Manufacturer

Guarantees:
Cistern Frame: 5 Years for the tank and 2 Years for the fill valve and flush valve
Toilet: 5 Years (seat guaranteed for 1 year)

Wall Hung Pan Options:

Option 1 – Premier Clara Wall-Hung Pan with Soft Close Seat

• Width: 355mm, Depth: 525mm, Height: 355mm
• Style: Contemporary
• Colour/Finish: Gloss white
• Material: Ceramic construction
• Supplied with a soft close seat

Option 2 – Hudson Reed – Round Wall-Hung Pan with top-fix Soft-Close Seat

• Height: 350mm, Width: 355mm, Depth: 510mm
• Colour/Finish: Gloss white
• Material: Ceramic construction
• Supplied with a top-fix soft-close seat

Option 3 – Hudson Reed – Square Wall Hung Pan with top-fix Soft-Close Seat

• Height: 360mm, Width: 350mm, Depth: 525mm
• Colour/Finish: Gloss white
• Material: Ceramic construction
• Supplied with a top-fix soft-close seat

Option 4 – Toronto Modern Round Wall Hung Toilet Details

• Projection: 530mm, Width: 355mm, Height: 400mm
• Colour/Finish: Gloss White
• Material: Ceramic
• Supplied with a D-Shape Soft Close Top-Fixing Seat

Please note that all measurements are approximate and product images are for illustrative purposes only and may differ from the actual product.

Included:

Wall Hung Pan
Compact Top/Front Flush Toilet Frame
Matt Black Round Button Flush Plate
