Arezzo Brushed Brass Concealed Individual Diverter + Thermostatic Control Valve w. 4 Body Jets + Fixed Head

Description

Arezzo Brushed Brass Concealed Individual Diverter + Thermostatic Control Valve with 4 Body Jets and Fixed Head

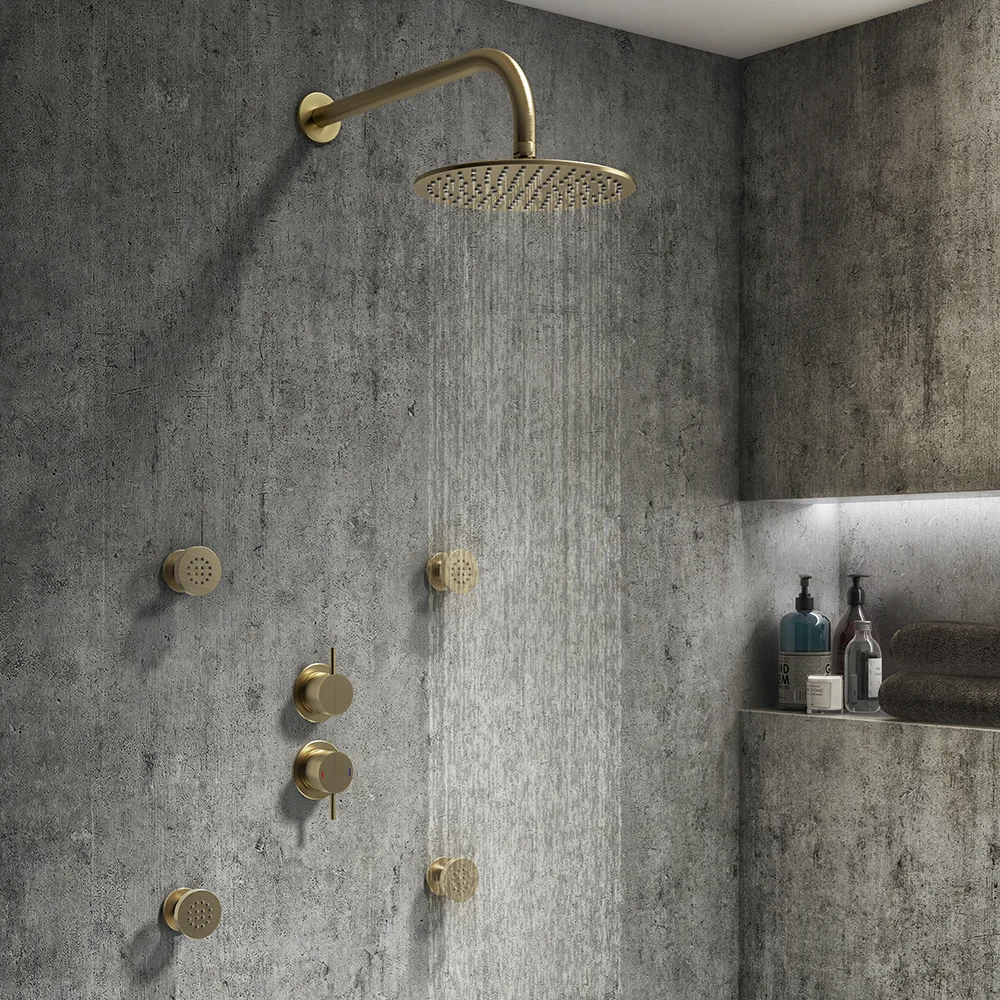

The Arezzo Brushed Brass Concealed Individual Diverter and Thermostatic Control Shower Valve Pack, featuring a minimalist round design, is perfect for concealed installations. The pack includes a wall-mounted fixed shower head and four matching round body jets.

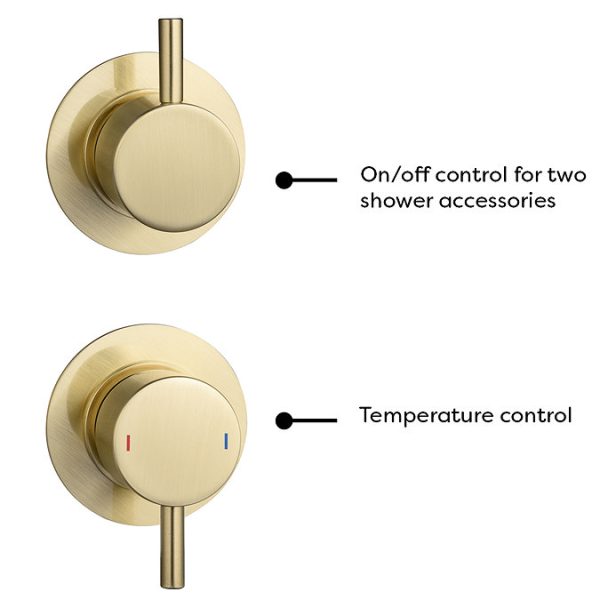

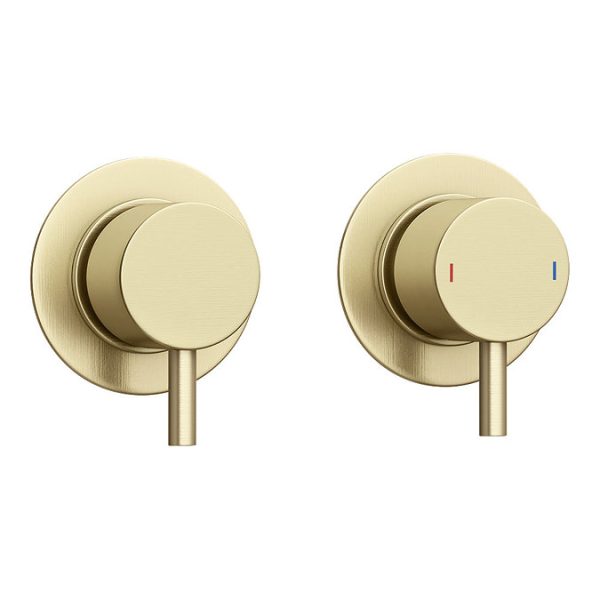

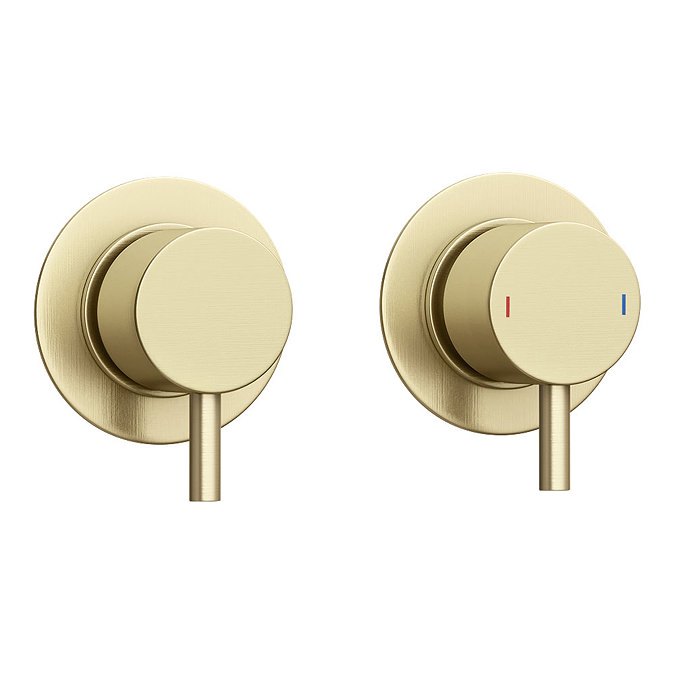

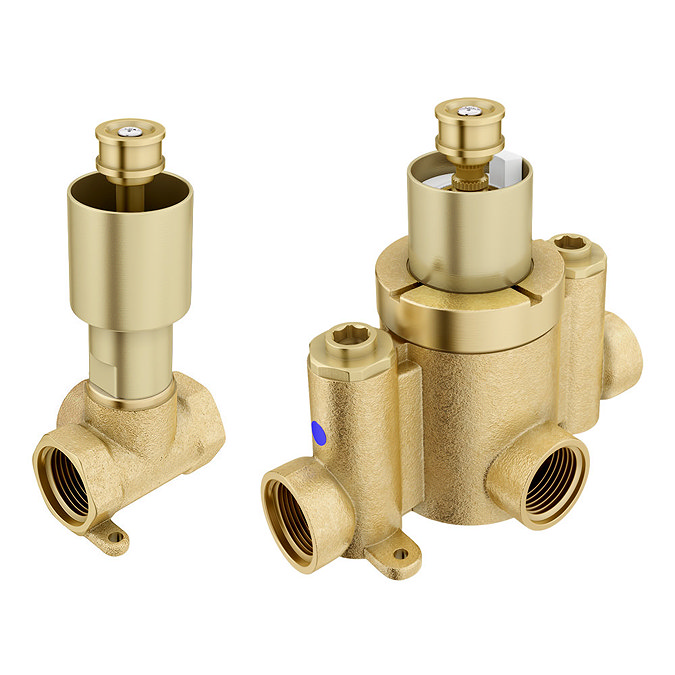

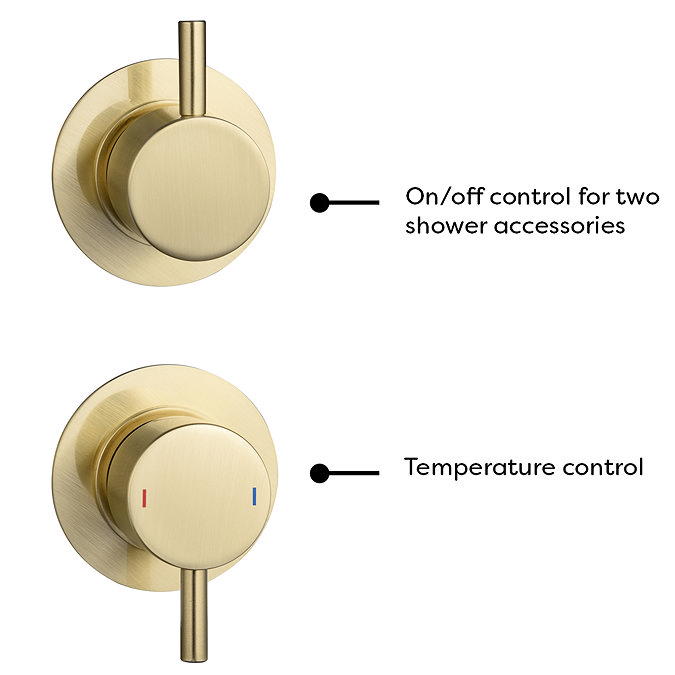

The Arezzo concealed shower valve has two individual controls for temperature and flow. The brass valve bodies are accompanied by contemporary brushed brass round back plates and handles. The diverter switches the water between two shower accessories, either the overhead shower head or the body jets, making it an ideal solution for multi-option showering.

Shower Valves Details:

• Style: Modern
• Range: Arezzo
• Valve Handles: Round
• Colour/Finish: Brushed Brass
• Material: Brass Internals
• Concealed fitting
• Round backplates
• For use with 2 outlets
• Min operating pressure: 0.5 bar
• Max operating pressure: 5 bar
• Hot Water Supply Temperature: 55-85°C
• Cold Water Supply Temperature: 4-29°C
• Suitable for modern pressurized plumbing systems
• Pack includes individual thermostatic control with an individual diverter valve for switching water flow between 2 outlets
• Note: Shower valve efficiency may be compromised on a gravity-fed tank system unless a booster pump is installed. We recommend a universal or negative head pump if needed.

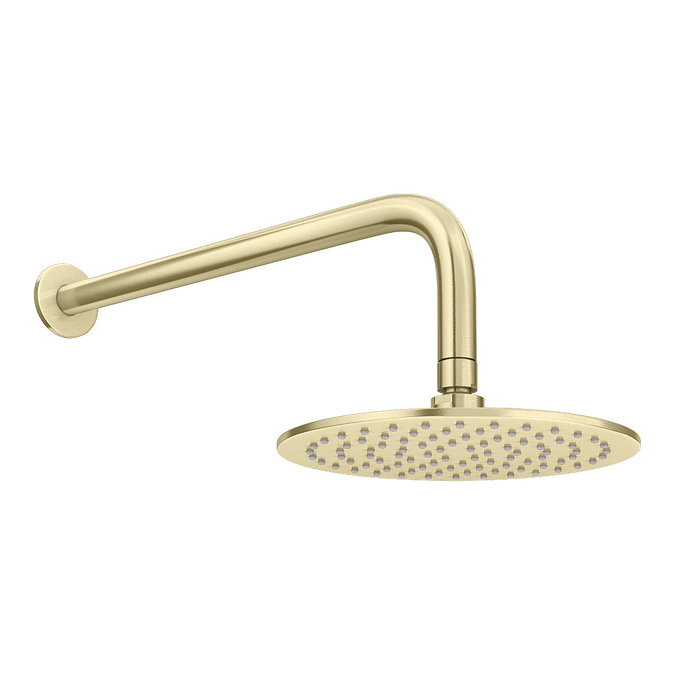

Shower Head with Arm Details:

• Shower Head Dimensions: 200mm Diameter
• Shower Arm Length: 360mm
• Style: Modern
• Colour/Finish: Matt Brushed Brass
• Rainfall Effect
• Thin Shower Head
• Wall Mounted
• Eye-catching, brushed brass finish
• Inlet Connections: 1/2″ BSP
• Pressure requirement: 0.5 bar minimum
• Supplied with a swivel joint and a wall-mounted round arm.
• The rub-clean nozzles make this item easy to clean and maintain.
• 3 Year Guarantee

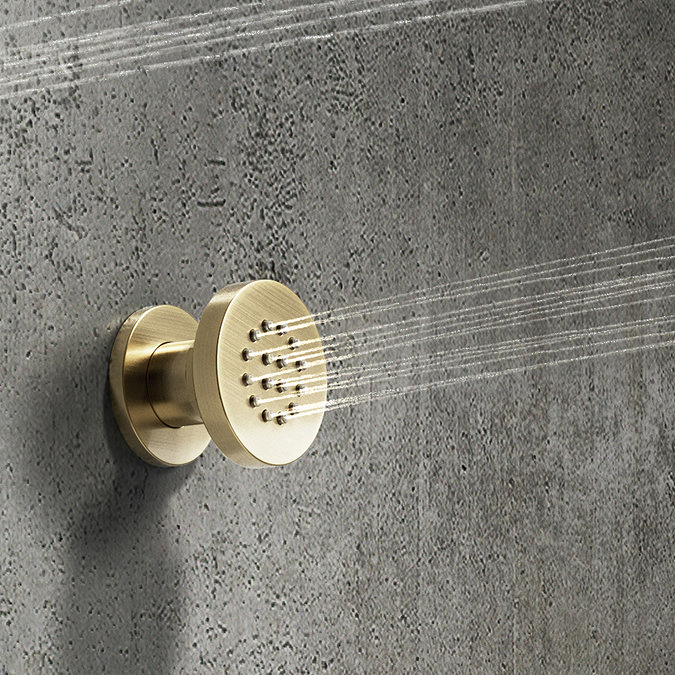

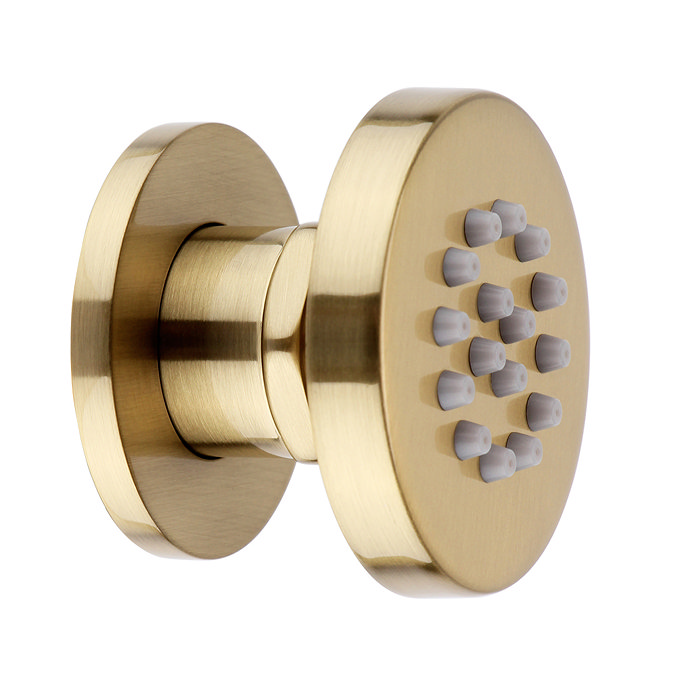

Body Jet Details:

• Overall Size: D37 x W50 x H50mm (Approx.)
• Diameter: 50mm
• Product Type: Slim Body Jet
• Shape: Round
• Brass 1/2 inch BSP thread
• Easy-to-clean rubber nozzles
• Colour/Finish: Brushed Brass
• Material: Brass
• Supplied with a swivel joint

Please note that installation requires rear access behind the wall.

The shower valve comes with a 5-year guarantee, with a 1-year guarantee on serviceable parts such as internal components like check valves and cartridges.

All measurements are approximate. Product images are for illustrative purposes only and may differ from the actual product.

The package comprises:

(1) Brushed Brass Concealed Individual Diverter + Thermostatic Control Shower Valve
(1) 200mm Brushed Brass Ultra-Thin Round Head
(1) Brushed Brass Round Shower Arm
(4) Arezzo Modern Slim Round Body Jet – Brushed Brass

Gravity Fed Systems: If you live in an older property, there’s a good chance you have a low-pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar, therefore we recommend installing a negative or universal pump (sold separately). Please note that positive pumps will not work.
