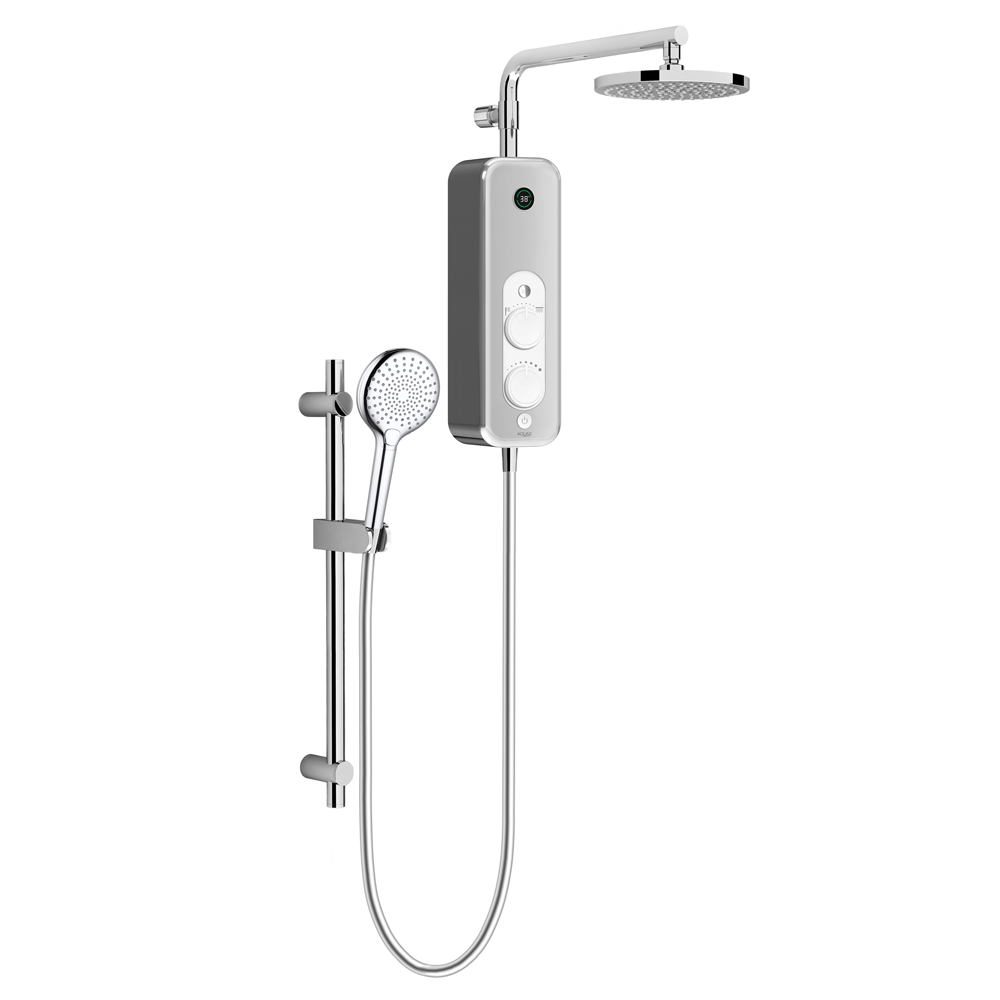

AQUAS Spa Flex 9.5kw 2 Outlet Full Chrome Electric Shower
AQUAS Spa Flex Semi Digital Smart 9.5KW Full Chrome Electric Shower (2 Outlet) with Overhead Shower and 3 Function Hand Shower A000601 The powerful 9.5KW AQUAS Spa Flex is a Semi-Digital Smart Electric Shower and comes with an overhead shower and 3F function hand shower. The 200mm showerhead spray outlet nozzles are easy…
£561.95
The full product description can be found below
Description
AQUAS Spa Flex Semi Digital Smart 9.5KW Full Chrome Electric Shower (2 Outlet) with Overhead Shower and 3 Function Hand Shower A000601
The powerful 9.5KW AQUAS Spa Flex is a Semi-Digital Smart Electric Shower and comes with an overhead shower and 3F function hand shower.

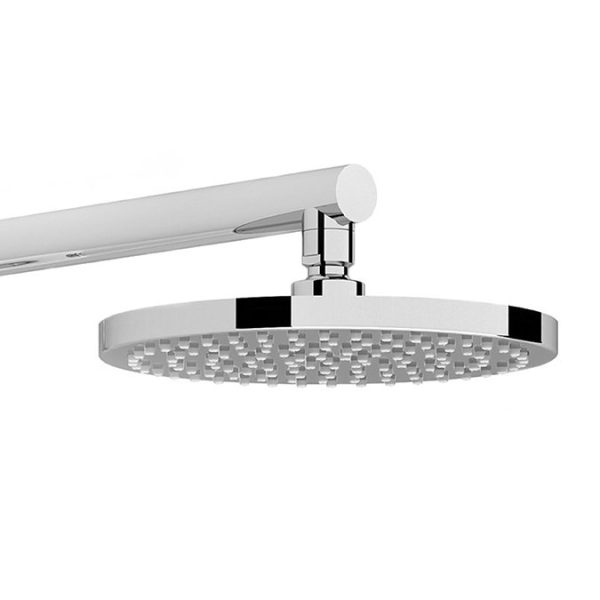

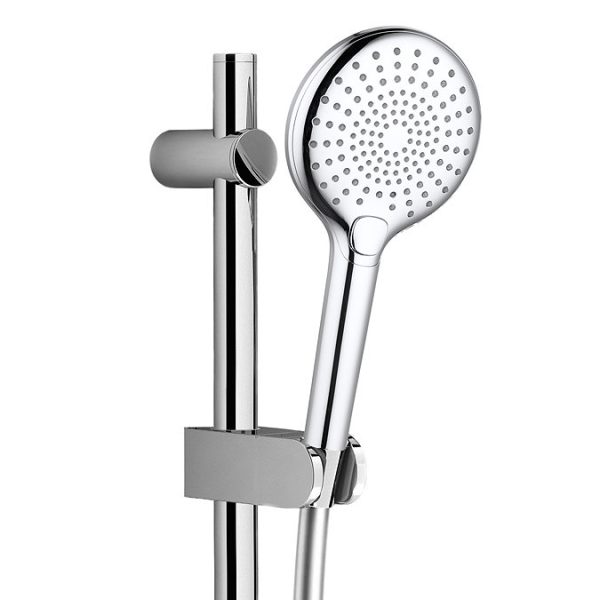

The 200mm showerhead spray outlet nozzles are easy to clean and use state-of the art material for a precise spray. The all-new Vento 120 3F shower is a perfect match for electric showers. It comes with 3 different spray combinations. The liquid silicone nozzles are optimised for flow. The push button makes changing spray easy.
Switch seamlessly between fixed and handheld showerheads via the simple and easy to control diverter.
You can even adjust the heating power to 5KW for an eco-friendly flow without compromising on your invigorating shower experience.

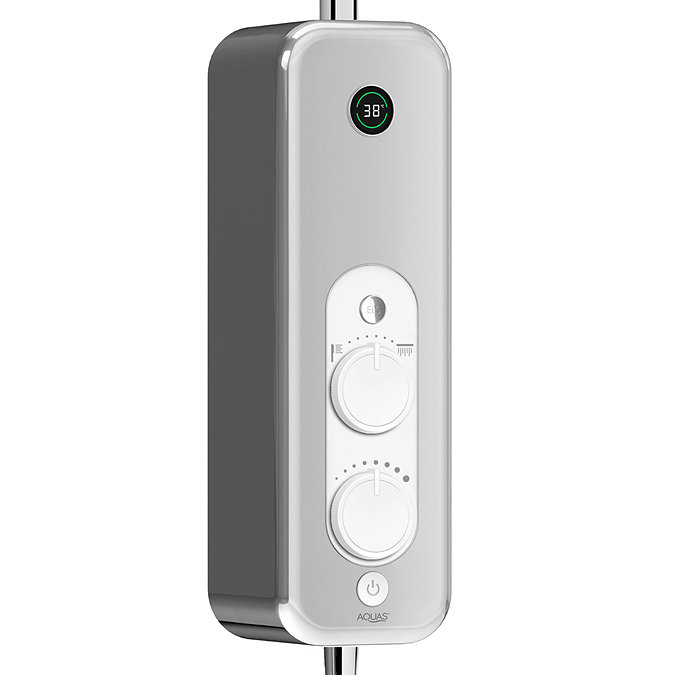

Temperature Display
The Spa flex shower comes with a temperature display which aids safety. The display also indicates if the if the heater is in Full Heating Power or Eco Mode
The full power setting 9.5kw is for the cooler seasons with Fully lit circle (GREEN) on display
The ECO 5kw setting for is for the warmer months – with Half circle (GREEN) on display
The shower has cold start technology and will display a count down on the display before the shower stops
Power settings remain in position even after restarting the shower for comfort
Before activating 9.5kw setting we recommend turning Volume control to full cold
Two-Way Divertor
Features a Two-way ceramic divertor to switch between Overhead and Hand shower. The diverter rotates through 180 degrees between functions for max flow
Longer Reach
Extra-long 400mm+ reach extending the shower head out further from the wall
Product Details:
- Range: Spa
- Name: FLEX SMART
- Colour: Chrome Face / Chrome Body
- Handshower: 120mm diameter, 3 spray pattern: rain, massage, mixed
- Overhead shower: SMART 200mm
- Slidebar: Rail length 600mm with front loading slider
- Distance between rail brackets adjustable. Bottom bracket fixed ,TOP Bracket Free Fix)
- Smooth silver hose 1,5m 1/2″ x 1/2″. One conical nut is twistfree and should be connected to the handshower . Both Fixation nuts are ABS / Non conductive for safety
- Shower arm 400mm with free fixation
- Power Rating: 9.5kw
- Minimum Flow required: 1.0 Bar Static, 1.5 Dynamic flowing pressure
- Temperature control:
- Electricity leakage safety
- High pressure protection
- Temperature and flow stabiliser
- Advantages:
- Fiber reinforced Tank – less limescale, extended life, energy efficient, burst resistant
- Controls:
- Start/Stop button
- Easy Grip – temperature control
- Two-way ceramic divertor to switch between Overhead and Handshower
- Installation:
- Electrical connection
- Water entry points right – top, bottom, back
- All Spa models have a water connection that is suitable for a “right” only water supply connection.
- The water connection pipe is not reversible.
- Use standard UK plumbing connections – compression – Push fit.
- Cable entry points right hand side – top, bottom, back
- Outlet connection 1/2″ compression and push fit 1/2″
- Power Input:
- A Power Input of 240 V and 40 amp circuit breaker is required for max output ( 9.5 KW ) anything less and the heater will not operate at max efficiency
- Min-Max Working Pressure:
- A Min Dynamic flow pressure of 150 K /Pa ( 15 ib / Sq In ) – 1.5 BAR is required
- A Max Static pressure of 500 K /Pa ( 75 ib / Sq In ) – 5.0 BAR should not be exceeded
- Should you require the showerhead to be higher, use extensions A000414 -300mm (AQ5701CP) or single or multiple A000412 150mm (AQ5702CP)
- Approvals: BEAB, CE UKCA
Frequently Asked Questions
Images are for illustration purposes only
Warranty: 2 years
Gravity Fed Systems:
The AQUAS shower requires a minimum static water pressure of 1.0 bar, delivering a flow rate of at least 9 litres per minute for proper functionality. For optimal performance and a superior showering experience, a pressure of 1.5 bars or higher is recommended.
If installing the shower with a gravity-fed water tank system (commonly located in lofts), it must be paired with a negative or universal head shower pump for sufficient pressure. However, this setup is not recommended, as the AQUAS shower is designed to have its own independent water feed directly from the mains supply.
