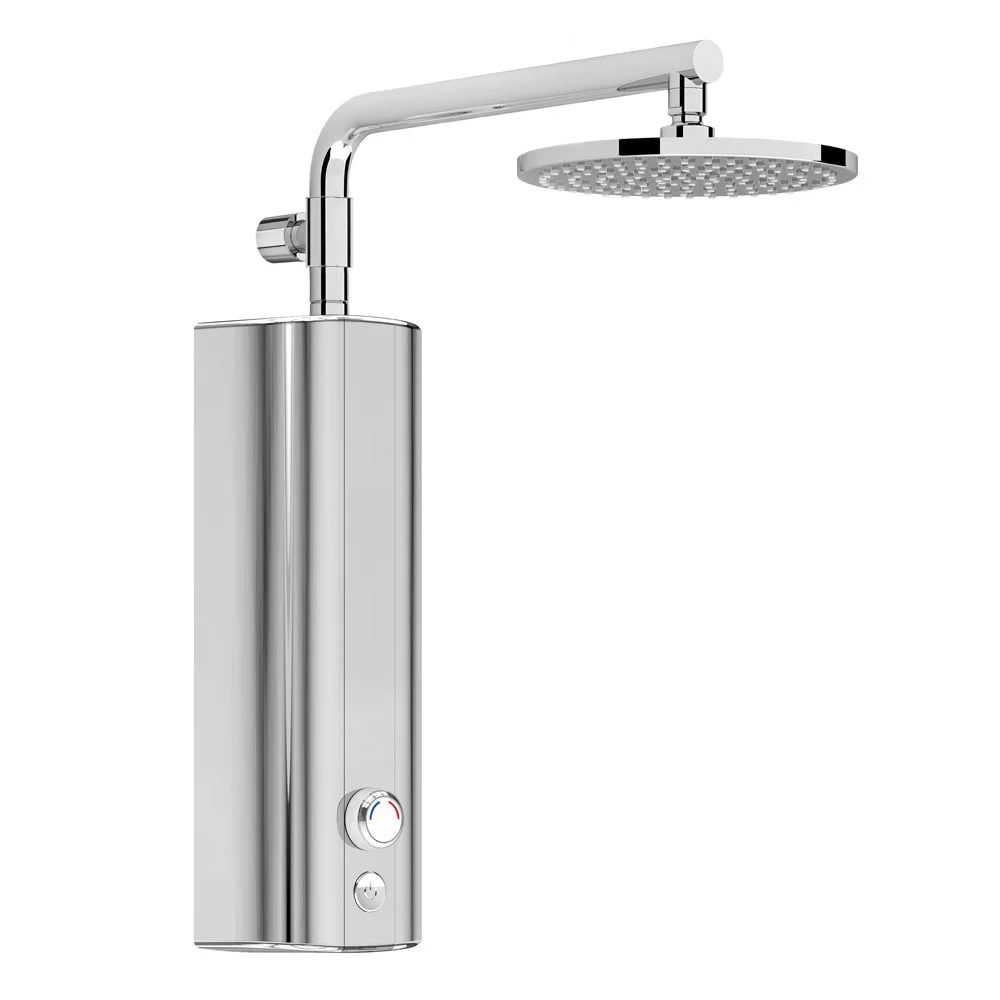

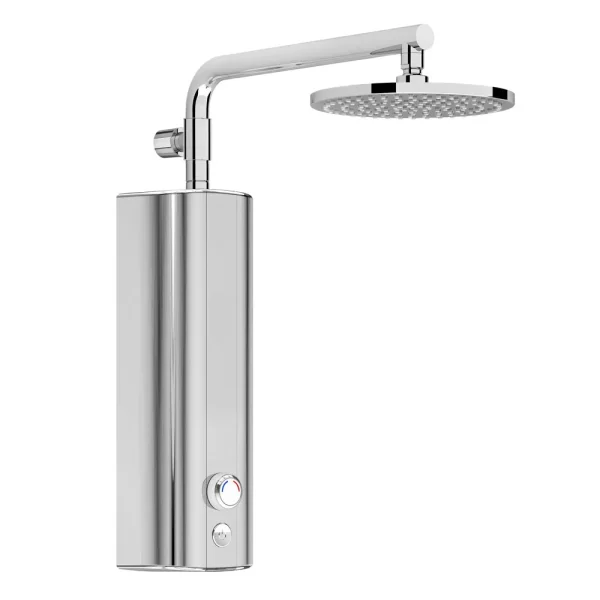

AQUAS AquaMax Top Manual Smart 9.5KW Full Chrome Electric Shower

Description

AQUAS AquaMax Top Manual Smart 9.5KW Full Chrome Electric Shower

Channel industrial style and enjoy instant hot water with this AQUAS AquaMax Top Manual Smart Electric Shower. Featuring a luxurious rainfall shower head design, this 9.5kw electric shower pairs elegance with convenience. An in built regulator means the shower flow will run at a steady temperature, and it’s simple to operate too – just push the button, and you’re ready to go. With a sleek chrome face and body, this unit from AQUAS showers looks as good as it functions. Continue the spa like aesthetic with the Turin Black Heated Towel Rail.

Product Details:

• Range: AQUAMAX
• Name: Top Manual SMART
• Colour: Chrome Face / Chrome Body
• Overhead shower: SMART 200mm Rainshower
• Shower arm 400mm with free fixation
• Power Rating: 9.5kw
• Minimum Flow required: 1.0 Bar
• Temperature control:
• Electricity leakage safety
• High pressure protection
• Temperature and flow stabilizer
• Advantages:
• Fiber reinforced  Tank – less limescale, extended life, energy efficient, burst resistant
• Controls:
• Start/Stop button
• Easy Grip – temperature control
• Installation:
• Electrical connection
• Water entry points right – top, bottom, back
• All indulge and AQUAMAX models have a water connection that is suitable for a “right” only water supply connection.
• The water connection pipe is not reversible.
• Use standard UK plumbing connections – compression – Push fit.
• Cable entry points left hand side – top, bottom, back : right hand side – top, bottom, back
• Outlet connection 1/2″ compression and pushfit 1/2″
• Power Input:
• A Power Input of 240 V and 40 amp circuit breaker is required for max output ( 9.5 KW ) anything less and the heater will not operate at max efficiency
• Min-Max Working Pressure:
• A Min Dynamic flow pressure of 100 K /Pa ( 15 ib / Sq In ) – 1.0 BAR  is required
• A Max Static  pressure of 500 K /Pa ( 75 ib / Sq In ) – 5.0 BAR  should not be exceeded
• Approvals: BEAB, CE; ROHS

Frequently Asked Questions

https://aquasshower.co.uk/en/customer-care/question-and-answers

Warranty: 2 years

Gravity Fed Systems:
The AQUAS shower requires a minimum static water pressure of 1.0 bar, delivering a flow rate of at least 9 litres per minute for proper functionality. For optimal performance and a superior showering experience, a pressure of 1.5 bars or higher is recommended.

If installing the shower with a gravity-fed water tank system (commonly located in lofts), it must be paired with a negative or universal head shower pump for sufficient pressure. However, this setup is not recommended, as the AQUAS shower is designed to have its own independent water feed directly from the mains supply.
