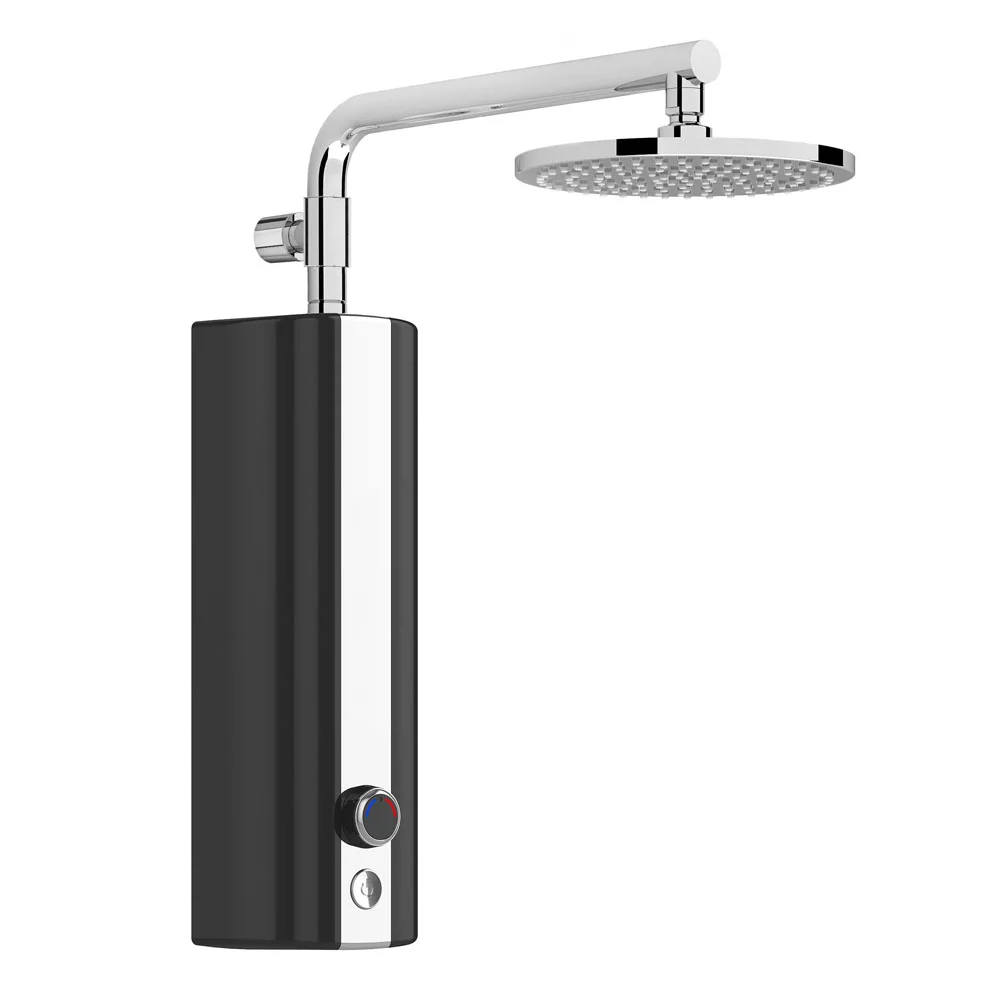

AQUAS AquaMax Top Manual Smart 9.5KW Black Electric Shower

Description

AQUAS AquaMax Top Manual Smart 9.5KW Black Electric Shower

Black is back with this AQUAS AquaMax Smart Shower. This 9.5kw electric shower features an on trend rain head fixture, as well as optimum functionality and the advantage of having hot water on demand. It’s easy to operate with a simple on/off button, then it’s just a case of setting the temperature exactly as you want it. As an added benefit, this unit from Aquas showers won’t run hot and cold thanks to a built in pressure balance that automatically regulates the heat. The shower’s body has a high gloss finish and features a chic chrome shower head.

Longer Reach
Extra long 400mm+ reach extending the shower head out further from the wall

Product Details:

• Range: AQUAMAX
• Name: Top Manual SMART
• Colour: Gloss Black Face / Chrome Body
• Overhead shower: SMART 200mm Rainshower
• Shower arm 400mm with free fixation
• Power Rating: 9.5kw
• Minimum Flow required: 1.0 Bar
• Temperature control:
• Electricity leakage safety
• High pressure protection
• Temperature and flow stabilizer
• Advantages:
• Fiber reinforced  Tank – less limescale, extended life, energy efficient, burst resistant
• Controls:
• Start/Stop button
• Easy Grip – temperature control
• Installation:
• Electrical connection
• Water entry points right – top, bottom, back
• All indulge and AQUAMAX models have a water connection that is suitable for a “right” only water supply connection.
• The water connection pipe is not reversible.
• Use standard UK plumbing connections – compression – Push fit.
• Cable entry points left hand side – top, bottom, back : right hand side – top, bottom, back
• Outlet connection 1/2″ compression and pushfit 1/2″
• Power Input:
• A Power Input of 240 V and 40 amp circuit breaker is required for max output ( 9.5 KW ) anything less and the heater will not operate at max efficiency
• Min-Max Working Pressure:
• A Min Dynamic flow pressure of 100 K /Pa ( 15 ib / Sq In ) – 1.0 BAR  is required
• A Max Static  pressure of 500 K /Pa ( 75 ib / Sq In ) – 5.0 BAR  should not be exceeded
• Approvals: BEAB, CE; ROHS

Frequently Asked Questions

https://aquasshower.co.uk/en/customer-care/question-and-answers

Warranty: 2 years

Gravity Fed Systems:
The AQUAS shower requires a minimum static water pressure of 1.0 bar, delivering a flow rate of at least 9 litres per minute for proper functionality. For optimal performance and a superior showering experience, a pressure of 1.5 bars or higher is recommended.

If installing the shower with a gravity-fed water tank system (commonly located in lofts), it must be paired with a negative or universal head shower pump for sufficient pressure. However, this setup is not recommended, as the AQUAS shower is designed to have its own independent water feed directly from the mains supply.
