AQUAS AquaMax Flex Manual Smart 9.5KW Brushed Brass Electric Shower

Description

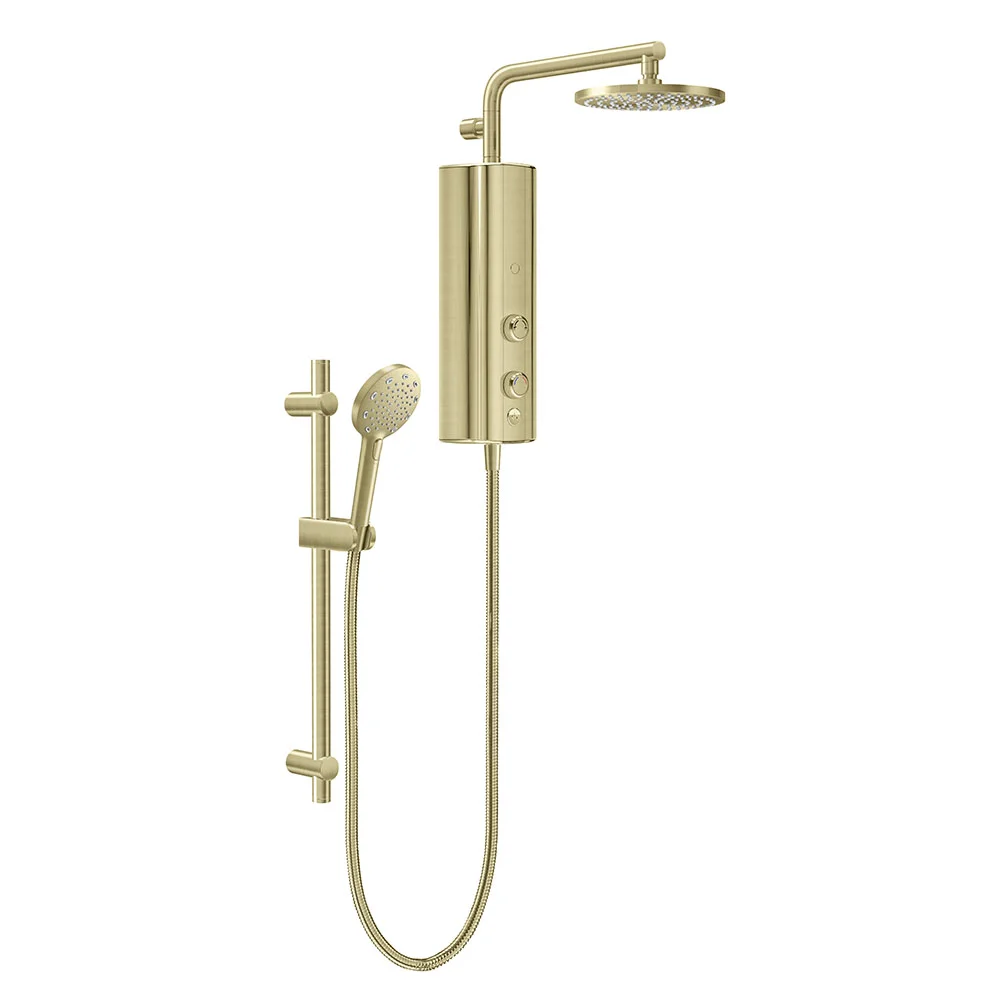

AQUAS AquaMax Flex Manual Smart 9.5KW Brushed Brass Electric Shower

This powerful 9.5KW AQUAS AquaMax Flex Manual Smart Electric Shower comes with an overhead shower. Want a more targeted stream? Switch seamlessly between fixed and handheld showerheads via the simple control unit.You can even adjust the heating power to 5KW for an eco-friendly flow without compromising on your invigorating shower experience.

Two-Way Divertor
Features a Two-way ceramic divertor to switch between Overhead and Handshower.

Longer Reach
Extra long 400mm reach extending the shower head out further from the wall

Latest model now features two power settings for warm and cold seasons:
9.5kw setting for cooler season
ECO 5kw setting for warmer season
Power setting remains in position even after restart for comfort.
Before switching from Eco Mode to the higher 9.5kw setting, we recommend turning the Volume control to full cold

Product Details

• Range: AQUAMAX
• Name: Aquamax Manual FLEX SMART
• Colour: Brushed Brass/Gold
• Handshower:

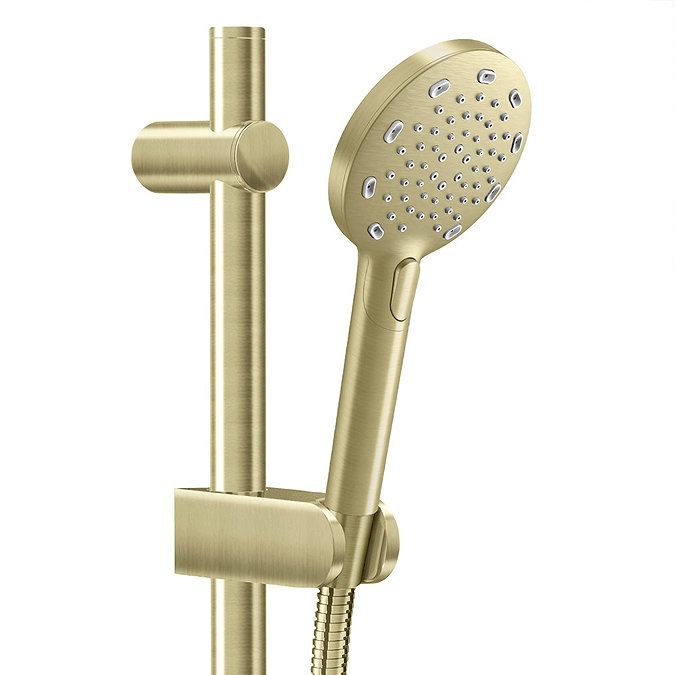

• Handshower X JET 110mm diameter 110mm diameter, 3 spray pattern:  X-Cite, Rain, Massage

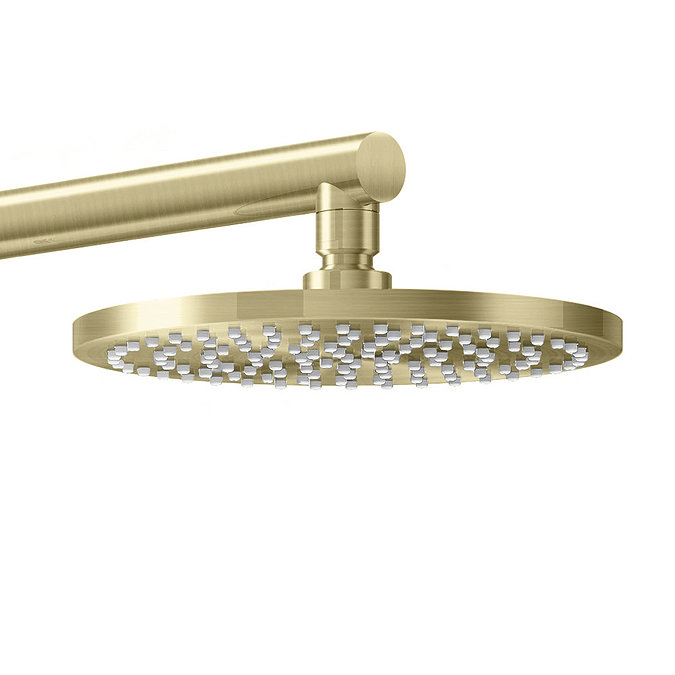

• Overhead shower: SMART 200mm
• Slidebar:
• Rail length 600mm with front loading slider
• Distance between rail brackets adjustable
• Brushed Gold hose 1,5m 1/2″ x  1/2″ twistfree non conductive
• Shower arm 400mm with free fixation
• Power Rating: 9.5kw
• Minimum Flow required: 1.0 Bar
• Temperature control:
• Electricity leakage safety
• High pressure protection
• Temperature and flow stabilizer
• Advantages:
• Fiber reinforced  Tank – less limescale, extended life, energy efficient, burst resistant

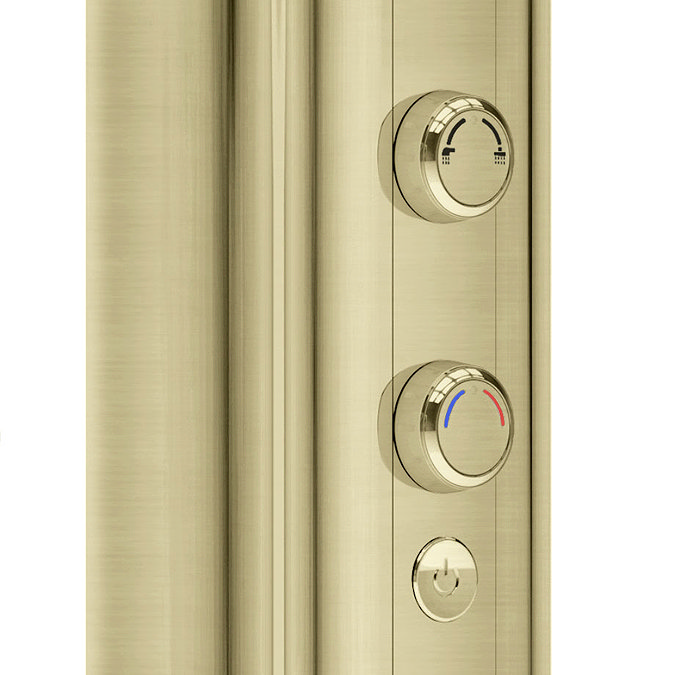

• Controls:
• Start/Stop button
• Easy Grip – temperature control
• Two-way ceramic divertor to switch between Overhead and Handshower
• Installation:
• Electrical connection
• Water entry points right – top, bottom, back
• All indulge and AQUAMAX models have a water connection that is suitable for a “right” only water supply connection.
• The water connection pipe is not reversible.
• Use standard UK plumbing connections – compression – Push fit.
• Cable entry points left hand side – top, bottom, back : right hand side – top, bottom, back
• Outlet connection 1/2″ compression and pushfit 1/2″
• Power Input:
• A Power Input of 240 V and 40 amp circuit breaker is required for max output ( 9.5 KW ) anything less and the heater will not operate at max efficiency
• Min-Max Working Pressure:
• A Min Dynamic flow pressure of 100 K /Pa ( 15 ib / Sq In ) – 1.0 BAR  is required
• A Max Static  pressure of 500 K /Pa ( 75 ib / Sq In ) – 5.0 BAR  should not be exceeded

Approvals: BEAB, UK

Frequently Asked Questions

https://aquasshower.co.uk/en/customer-care/question-and-answers

Images are for illustration purposes only

Warranty: 2 years

Gravity Fed Systems:
The AQUAS shower requires a minimum static water pressure of 1.0 bar, delivering a flow rate of at least 9 litres per minute for proper functionality. For optimal performance and a superior showering experience, a pressure of 1.5 bars or higher is recommended.

If installing the shower with a gravity-fed water tank system (commonly located in lofts), it must be paired with a negative or universal head shower pump for sufficient pressure. However, this setup is not recommended, as the AQUAS shower is designed to have its own independent water feed directly from the mains supply.
