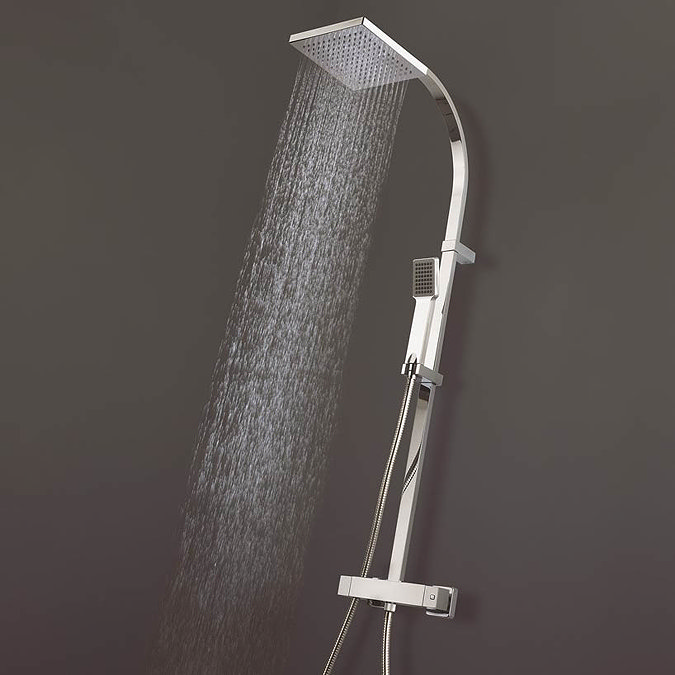

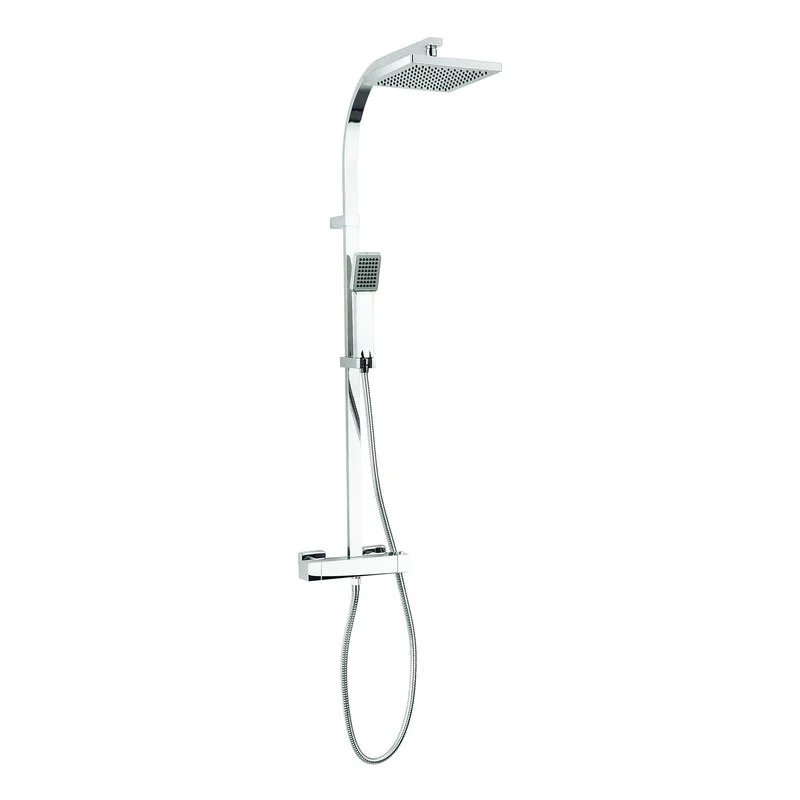

Crosswater Planet Multifunction Thermostatic Shower Valve with Fixed Head and Shower Kit

Description

Crosswater – Planet Multifunction Thermostatic Shower Valve with Fixed Head and Shower Kit – MB510SQ

The Planet Fusion thermostatic shower valve and shower kit is a luxury complete shower which offers a superb showering experience. Designed to be wall mounted the the thermostatic bar valve has two knobs, one knob controls the flow rate and flow direction and the other knob controls the temperature. For safety the valve incorporates a wax capsule temperature sensing unit, which provides an almost immediate response to changes in pressures or temperature of the incoming water supplies. The Crosswater Fusion is supplied with a 200mm fixed square head, rigid riser, a single mode handset and shower fittings kit.

Product specification

• Brand: Crosswater
• Product code: MB510SQ
• Finish: Chrome plated
• Suitable for high pressure systems of 1.0 bar and above
• High quality design
• Rub clean nozzles
• Self-clamping, easy gliding handset holder
• Thermostatically controlled
• Automatic shut off within 5 secs if cold supply fails
• 200mm square fixed head
• Single spray pattern handset
• Inlet supply –  Threaded 1/2″ male connectors
• WRAS approved

5 year guarantee covering all manufacturing faults

Flow Rates

0.5 Bar – 7 l/m
1.0 Bar – 10 l/m
2.0 Bar – 14 l/m
3.0 Bar – 17 l/m
